Low Voltage Landscape Wall Wash Lighting | Without Clear Glass Protect | Brass Sheet Outdoor Flood Lights COF505B
Product Informations

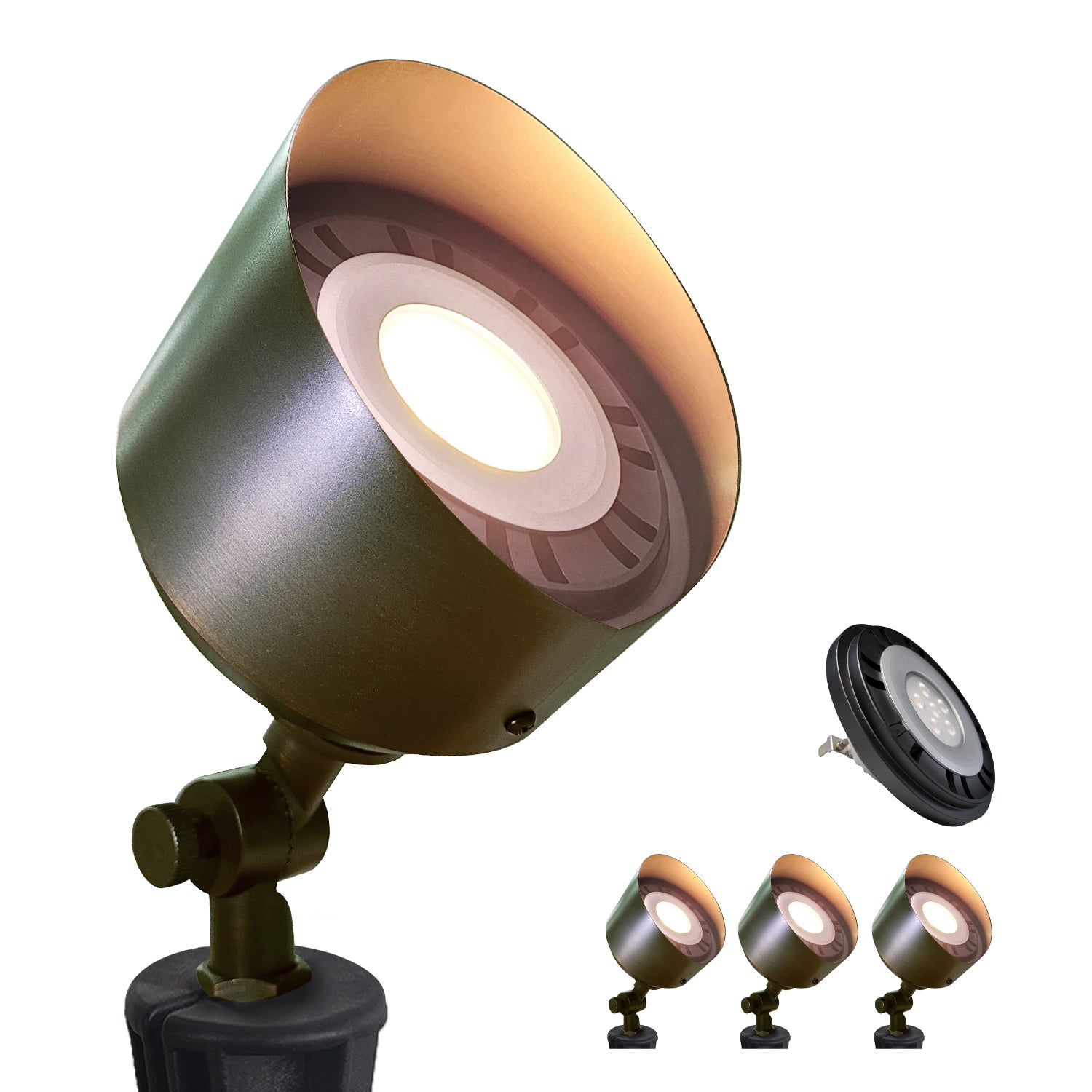

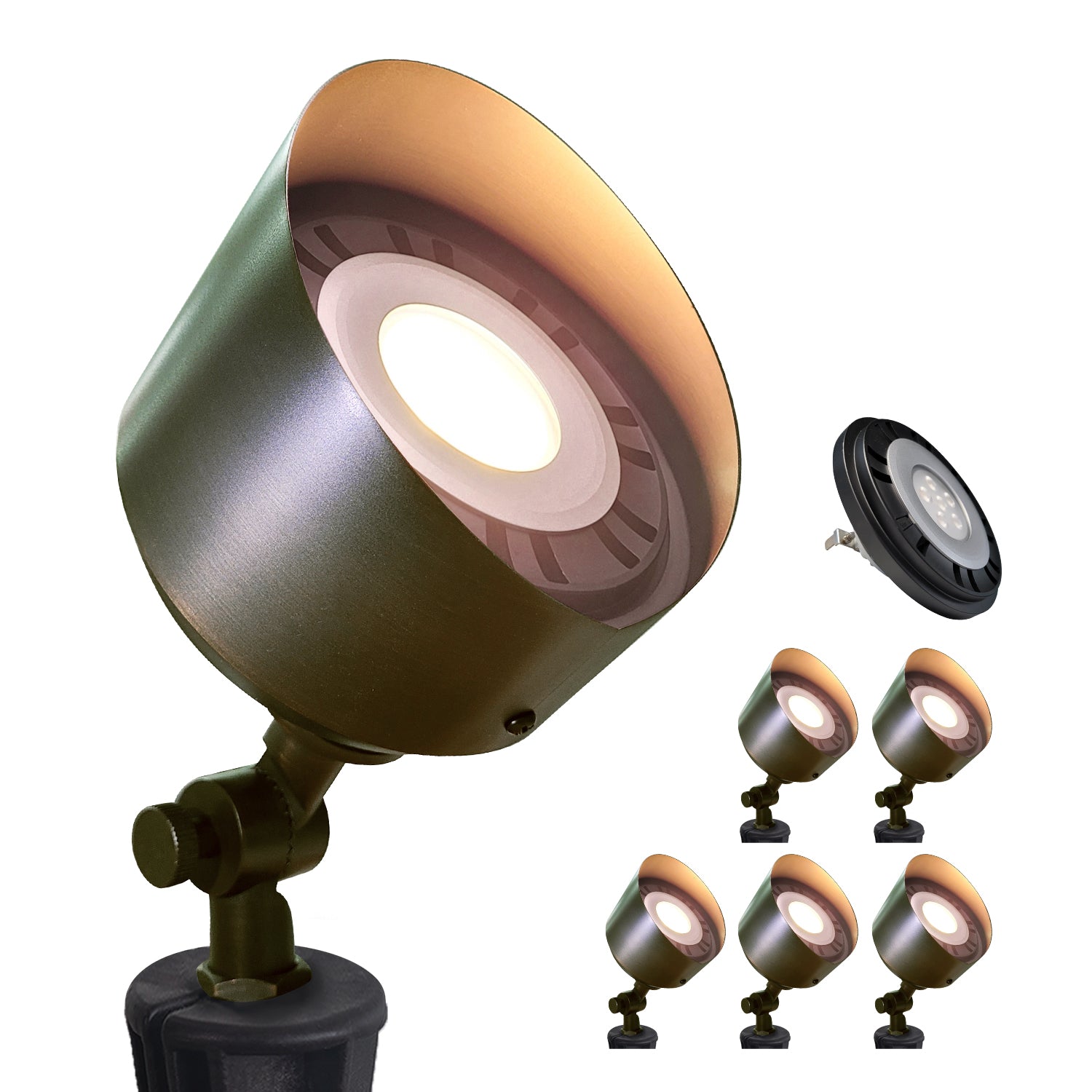

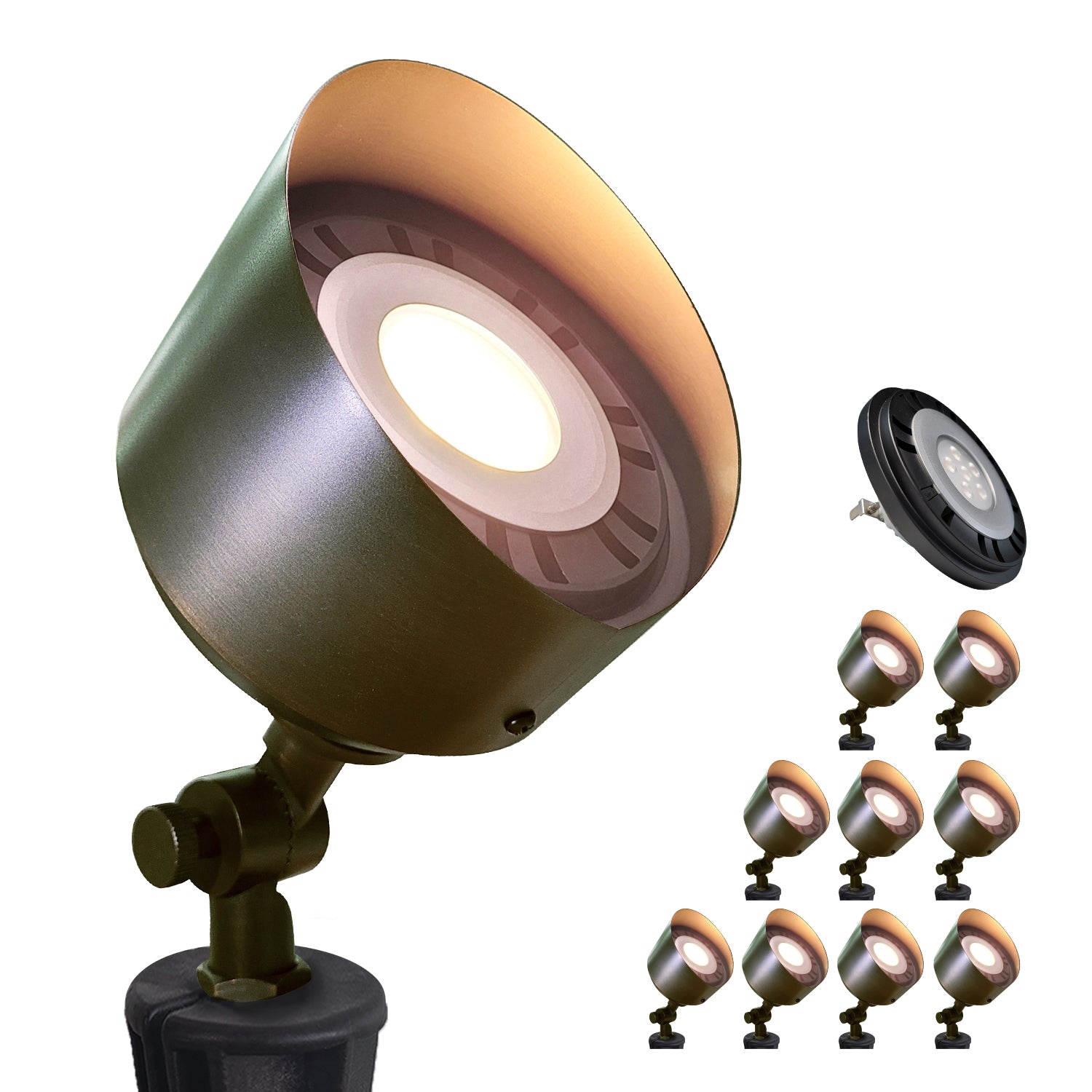

About the COF505B Flood Light
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- With Vertical 180 degree, horizontal 360 degree adjustable knuckles, can adjust the angle of the lighting easily.
- Uses halogen lamps up to 20w or rated LED PAR36(Not Included), it emits a soft and warm 2700K light, providing a comfortable experience.
- A high-quality PVC ground stake with cut makes it easy and stable for outdoor ground mounting.

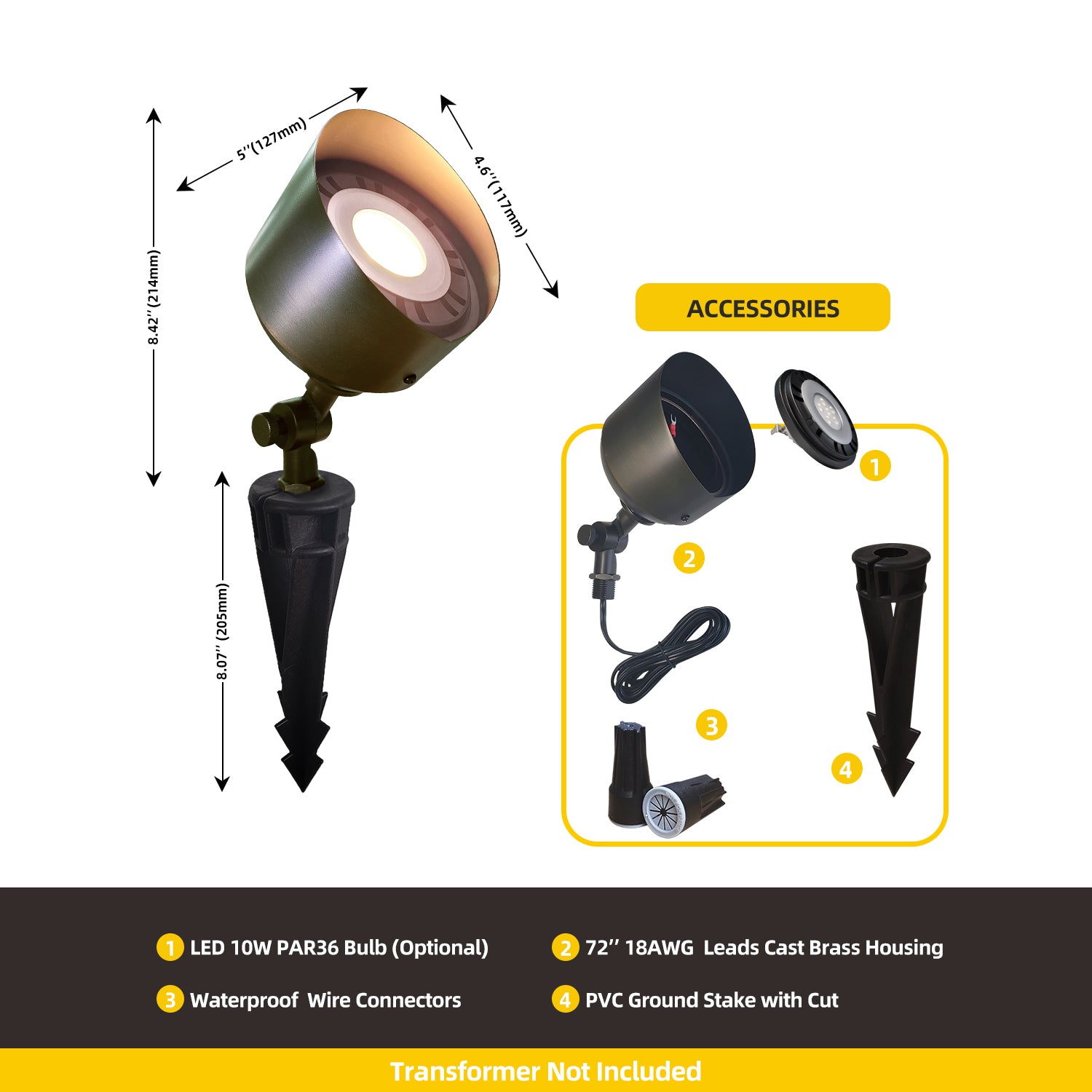

5"L x 4.6"W x 8.42"H
2.5 pounds
Brass
PAR36 / 10W / 2700K / 800LM
60D
9-17V AC/DC
Atique Bronze
What included in the box
- Main Fixture
- LED PAR36 Bulb
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime
12V LOW VOLTAGE
DIE-CAST BRASS
Solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light. Ceramic white paint under shade for maximum photometrics. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with PAR36 LED or halogen bi-pin bulbs up to 20W (not included).

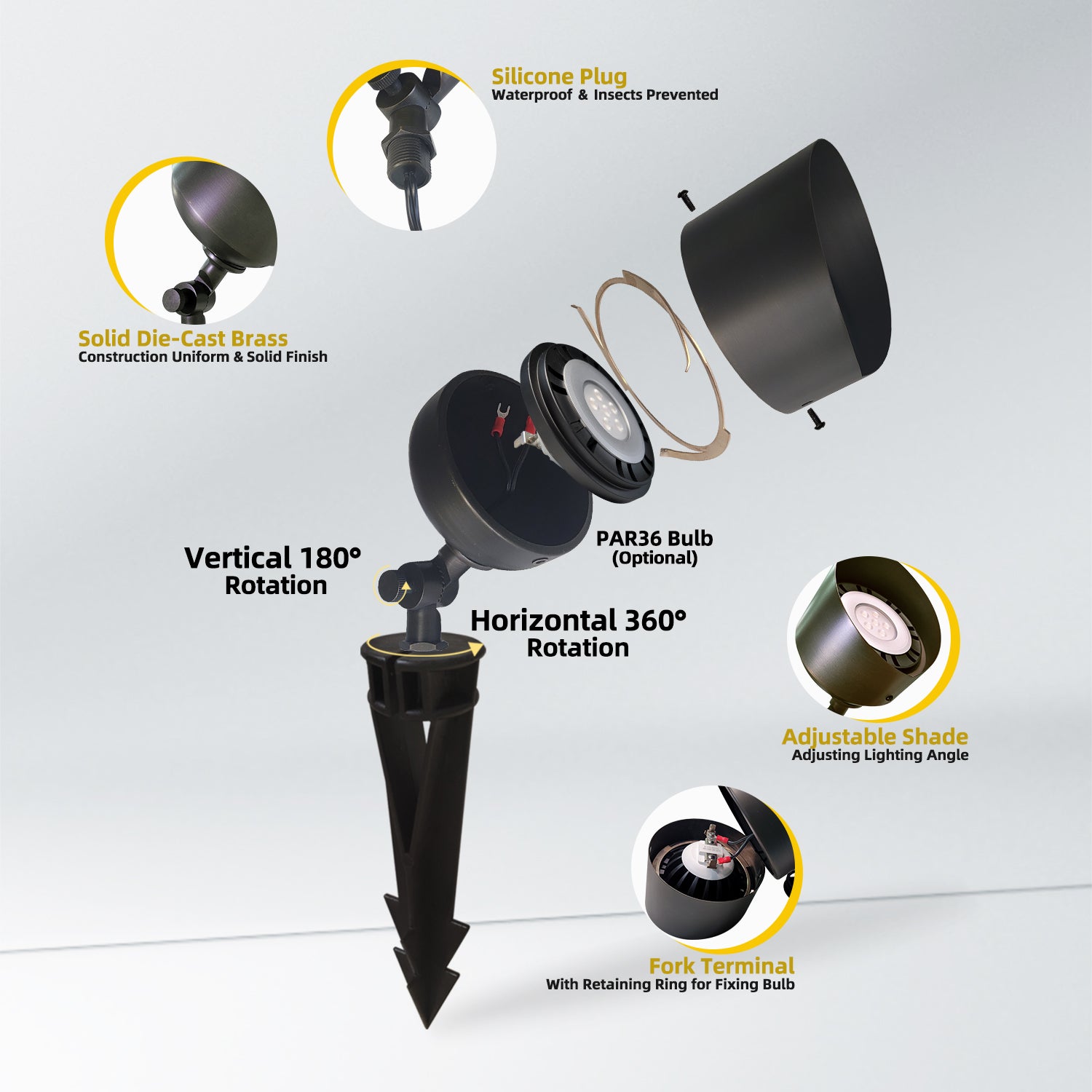

Uniform Finish

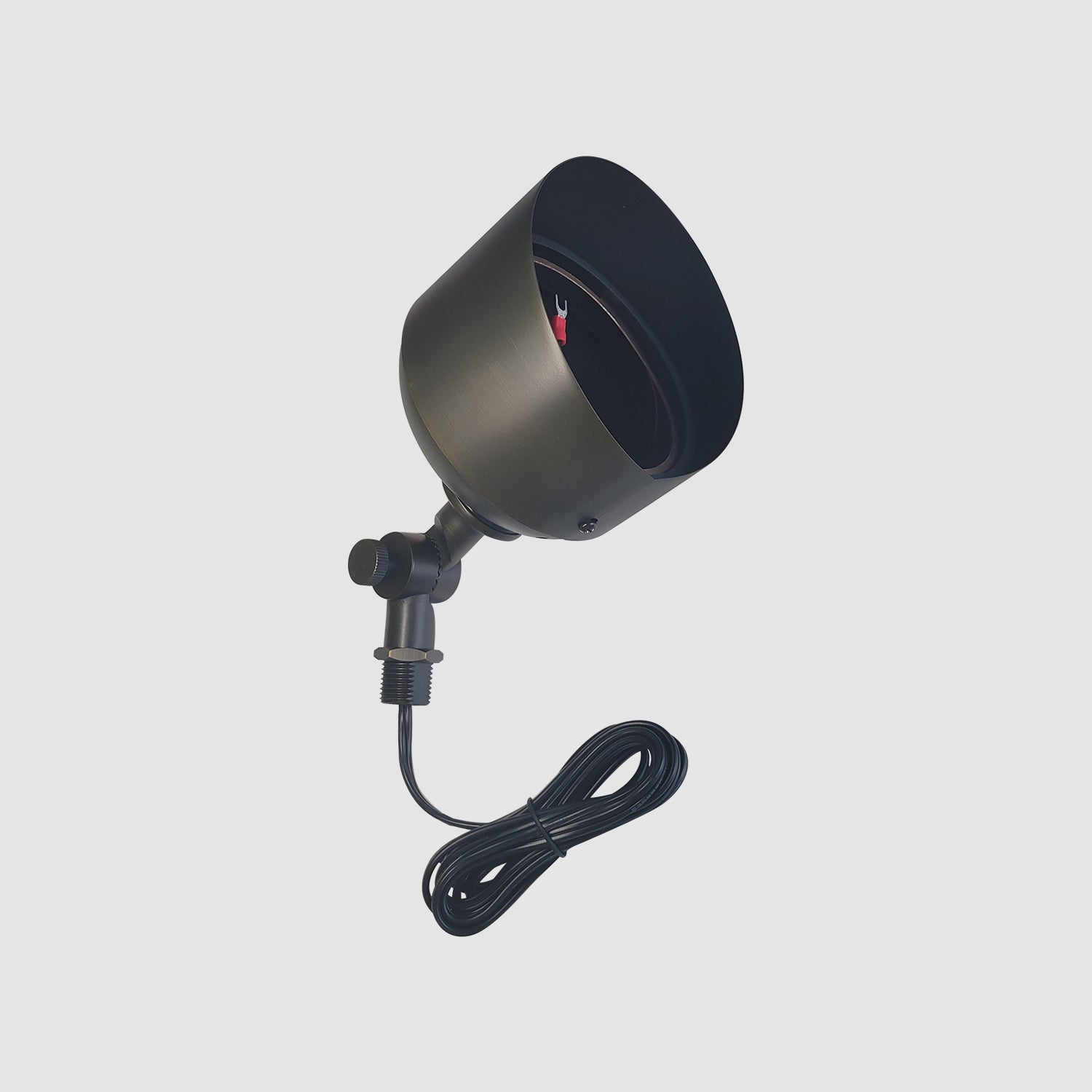

Die-cast brass flood light with 6-foot 18 AWG lead wire.
Fork Terminal

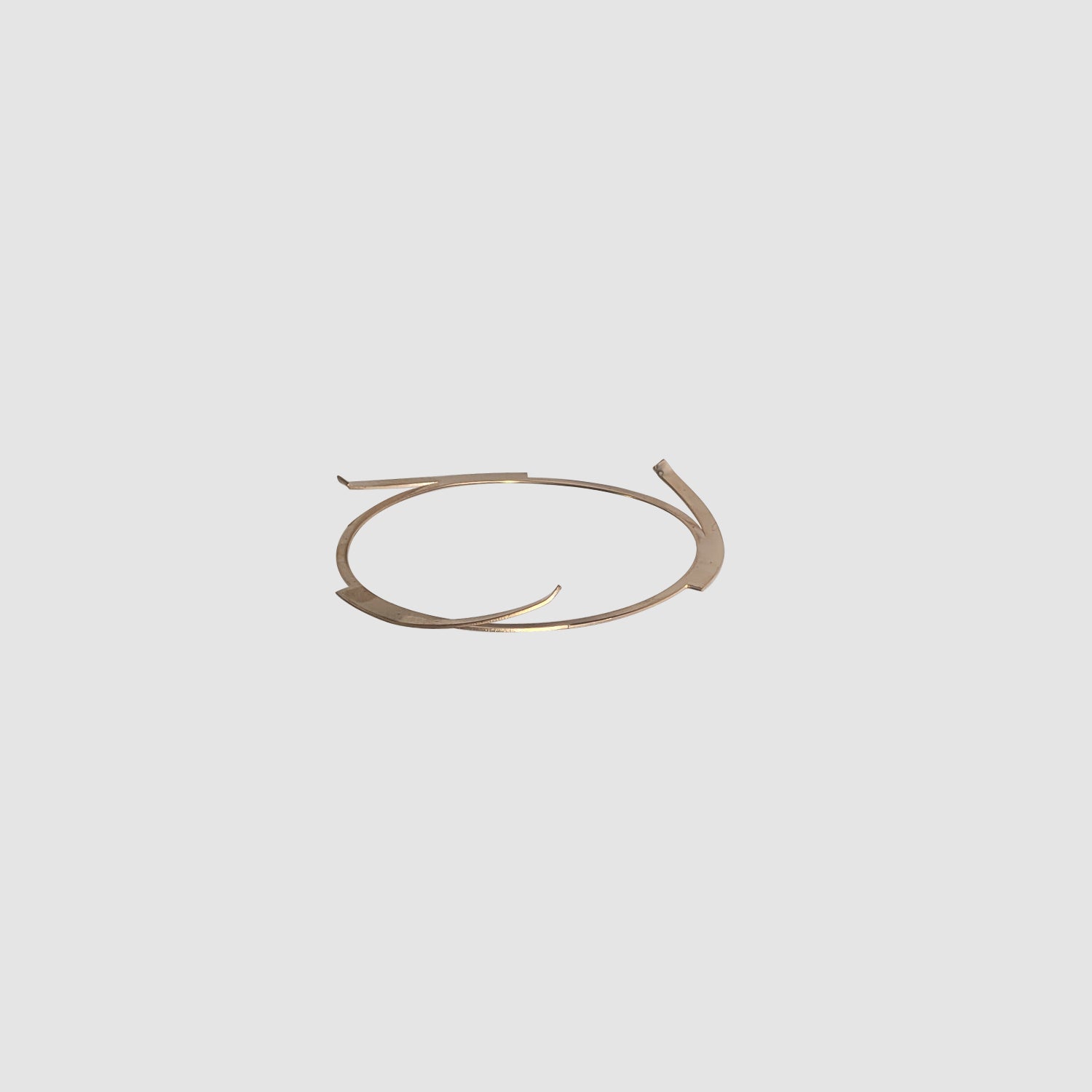

With Retaining Ring for Fixing Bulb.

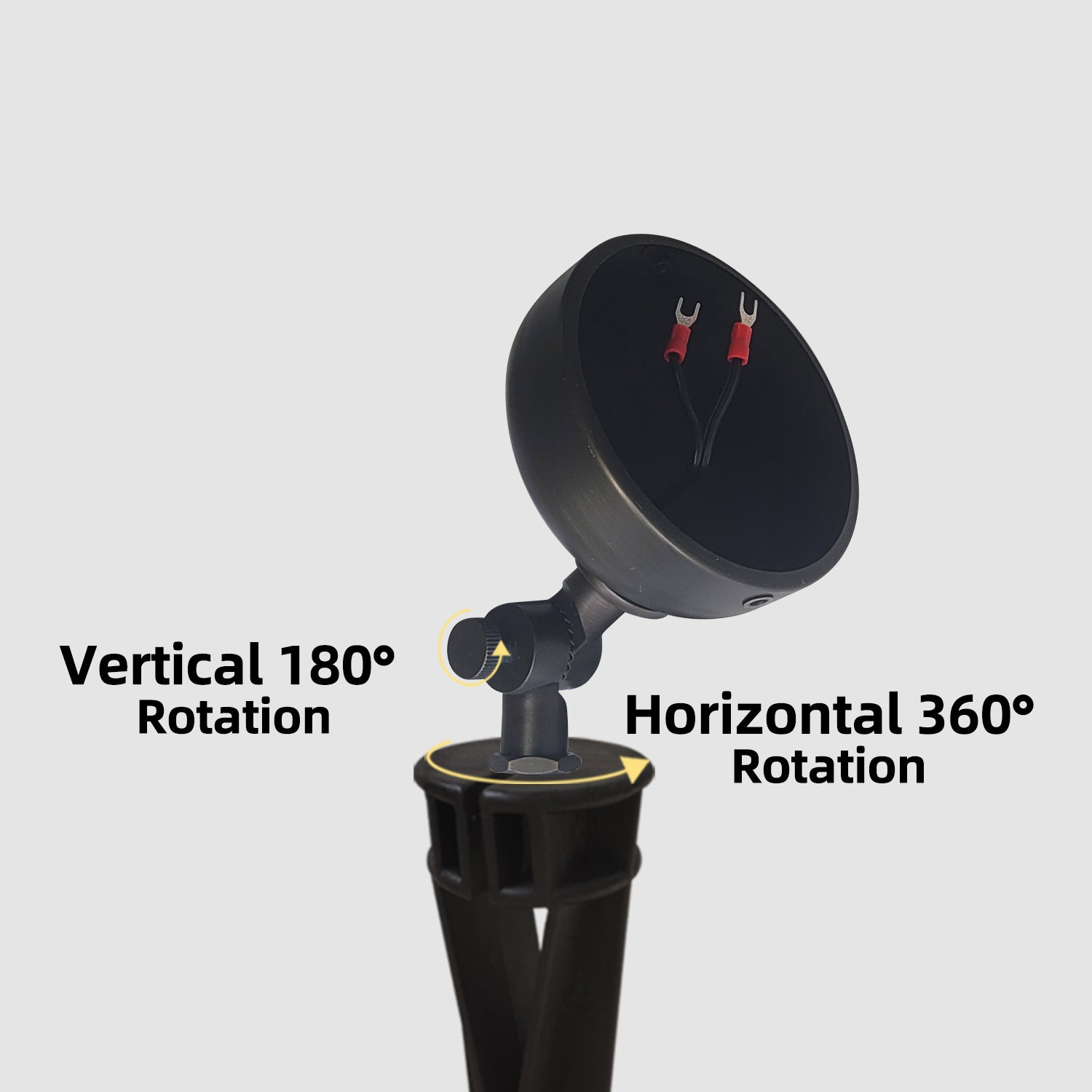

Adjustable
Vertical 180 degree, horizontal 360 degree, you can adjust the height of the light by yourself.

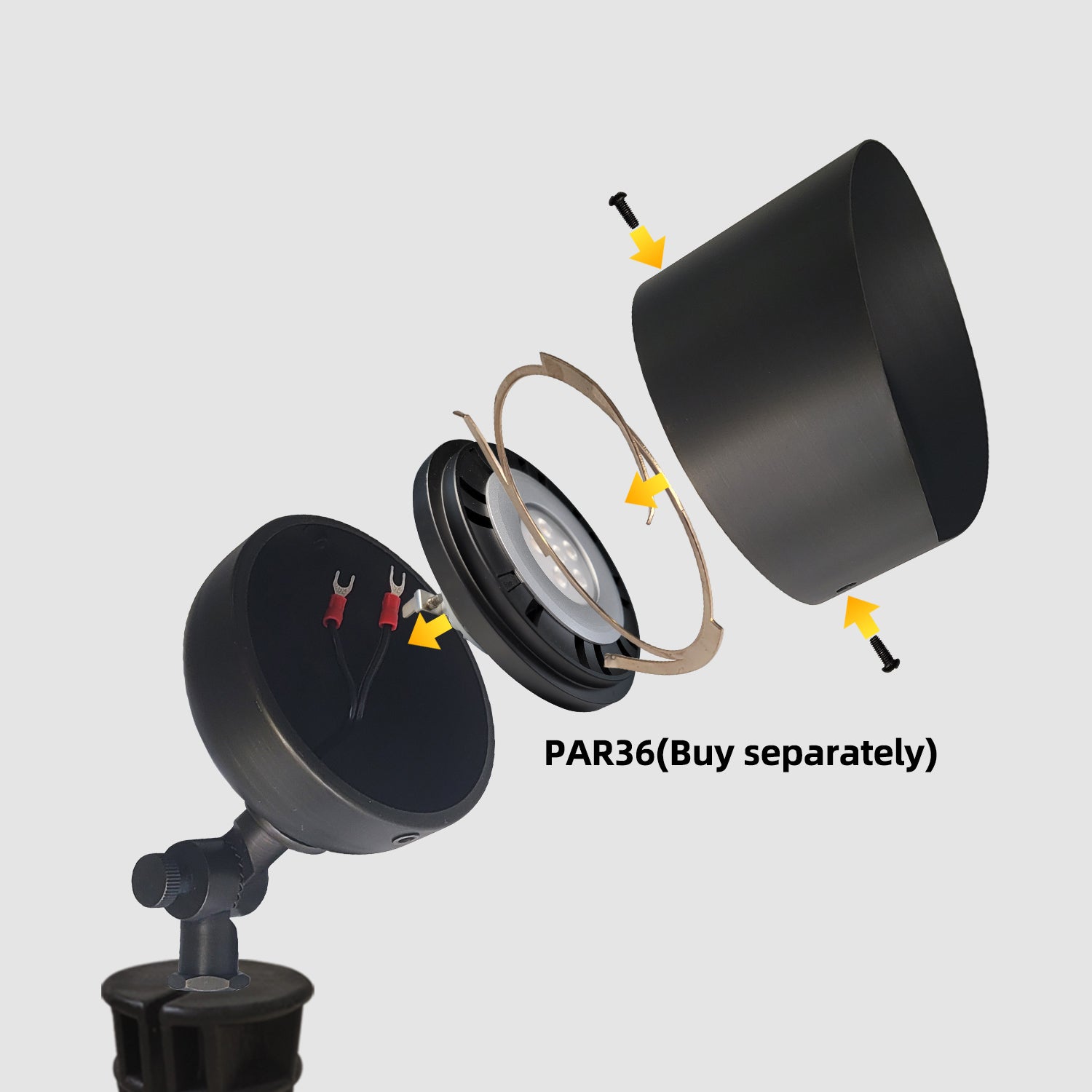

PAR36 Bulb Socket
The light source can use PAR36 or halogen bi-pin bulbs up to 20W (Optional)
COLOER Die-cast Brass 12V Low Voltage Outdoor Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light.
COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

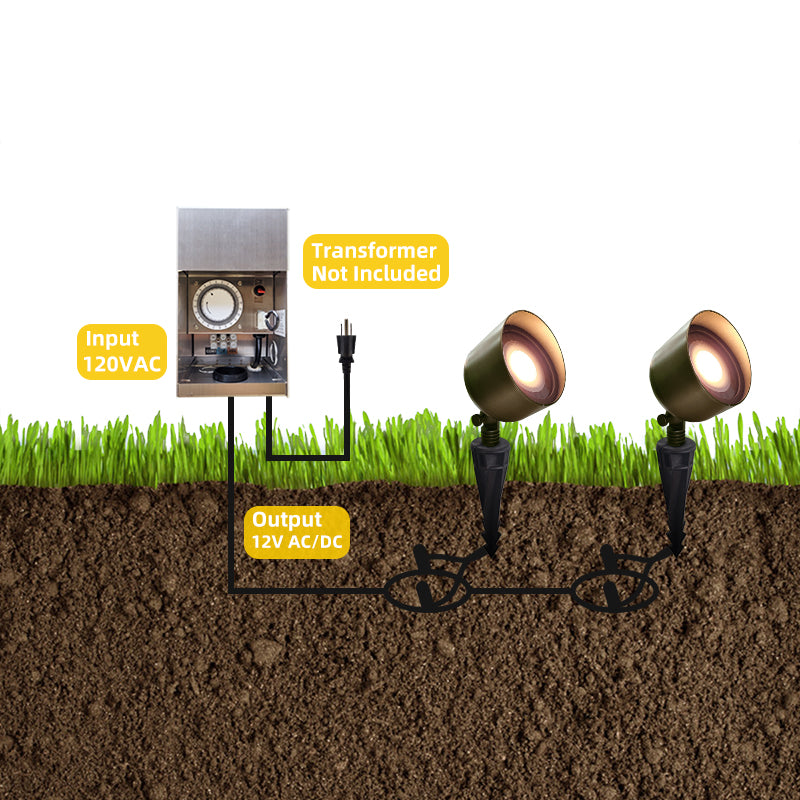

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

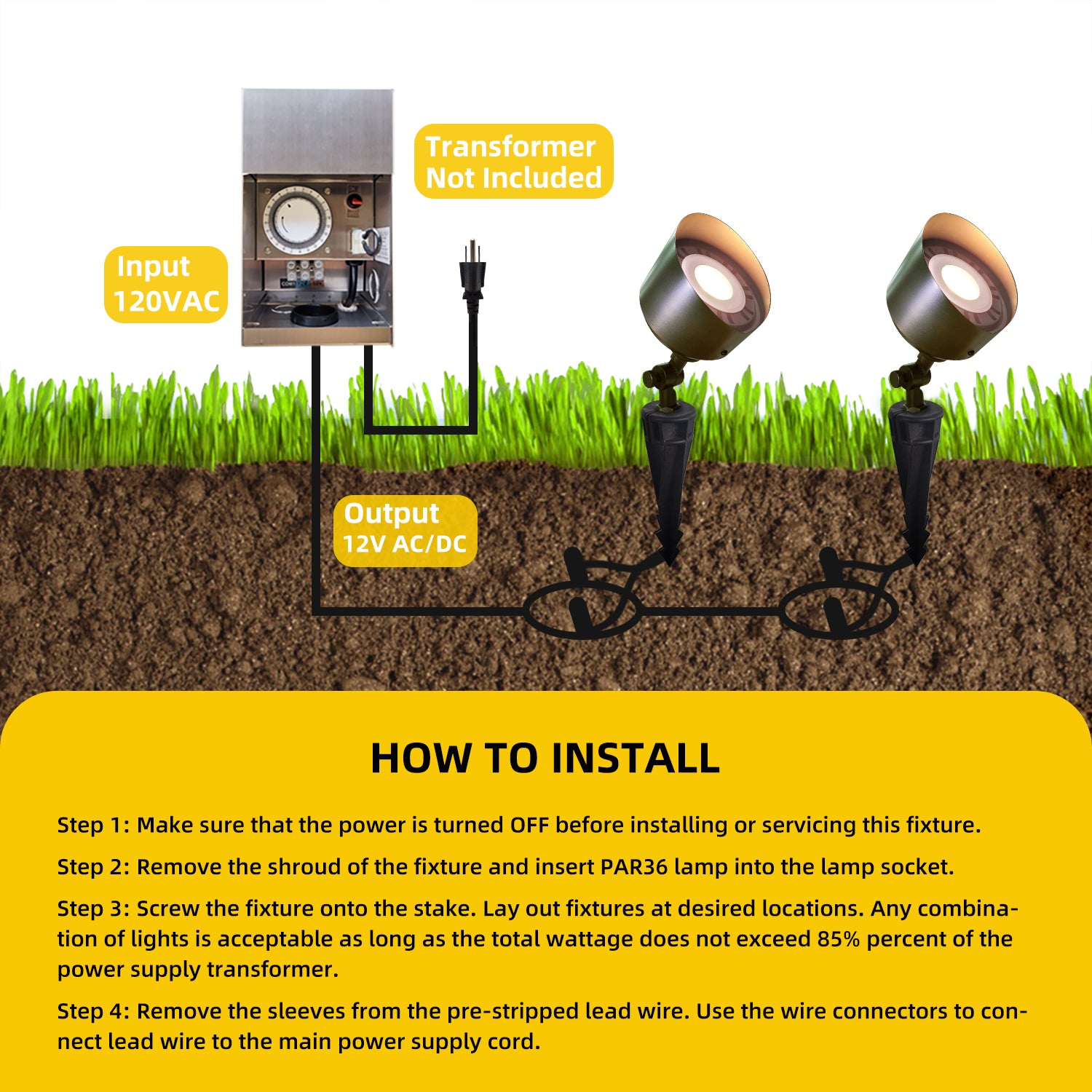

How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert PAR36 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert PAR36 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
