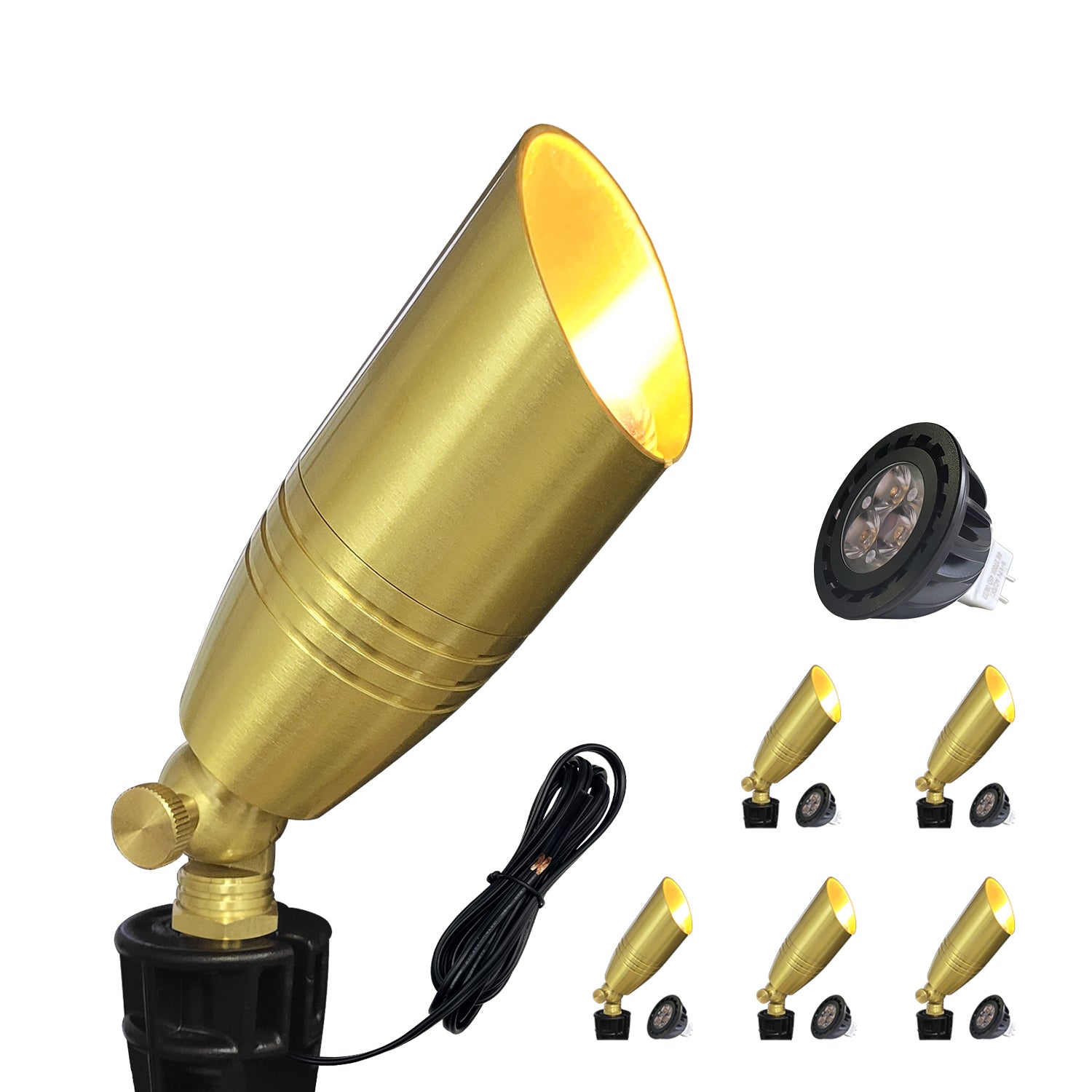

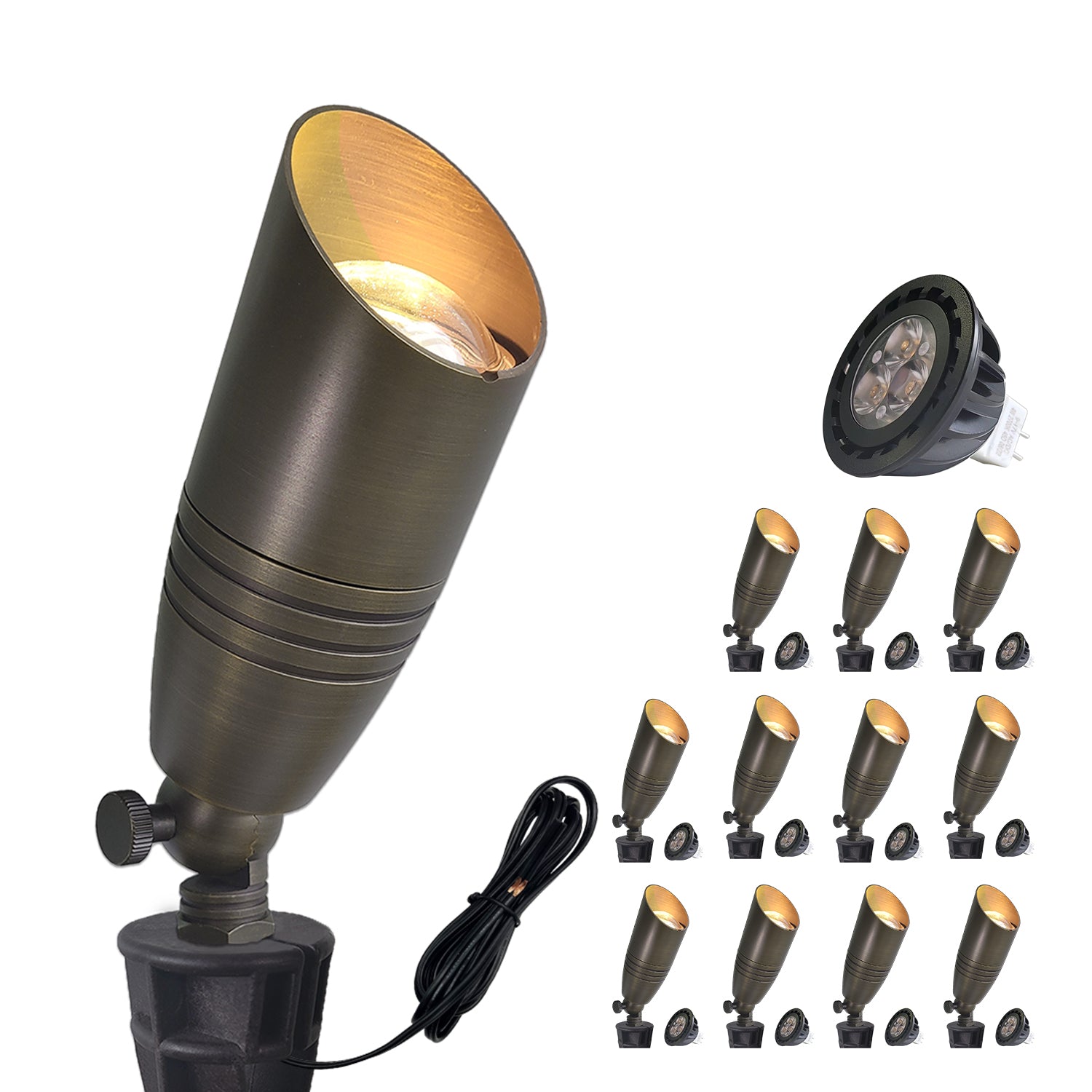

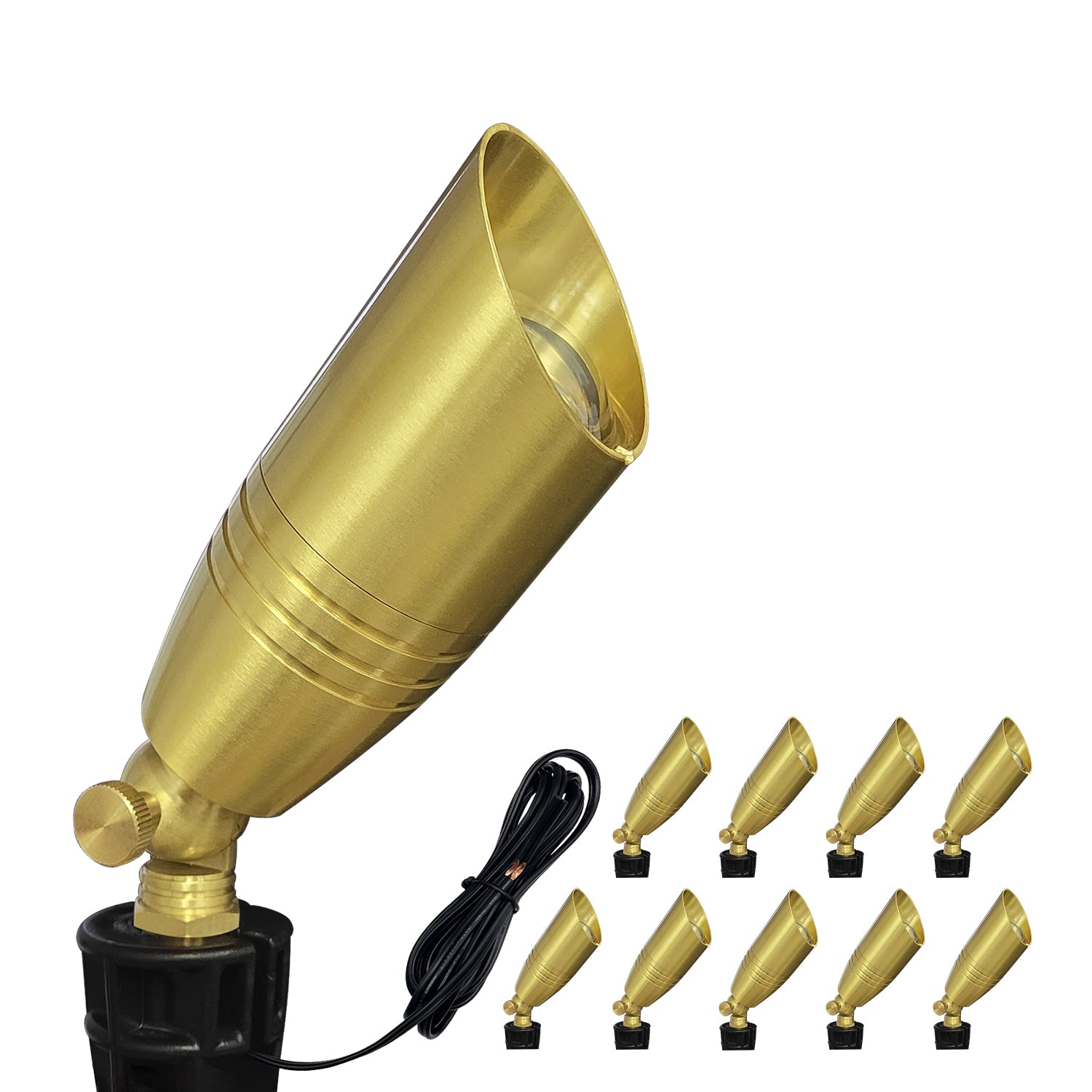

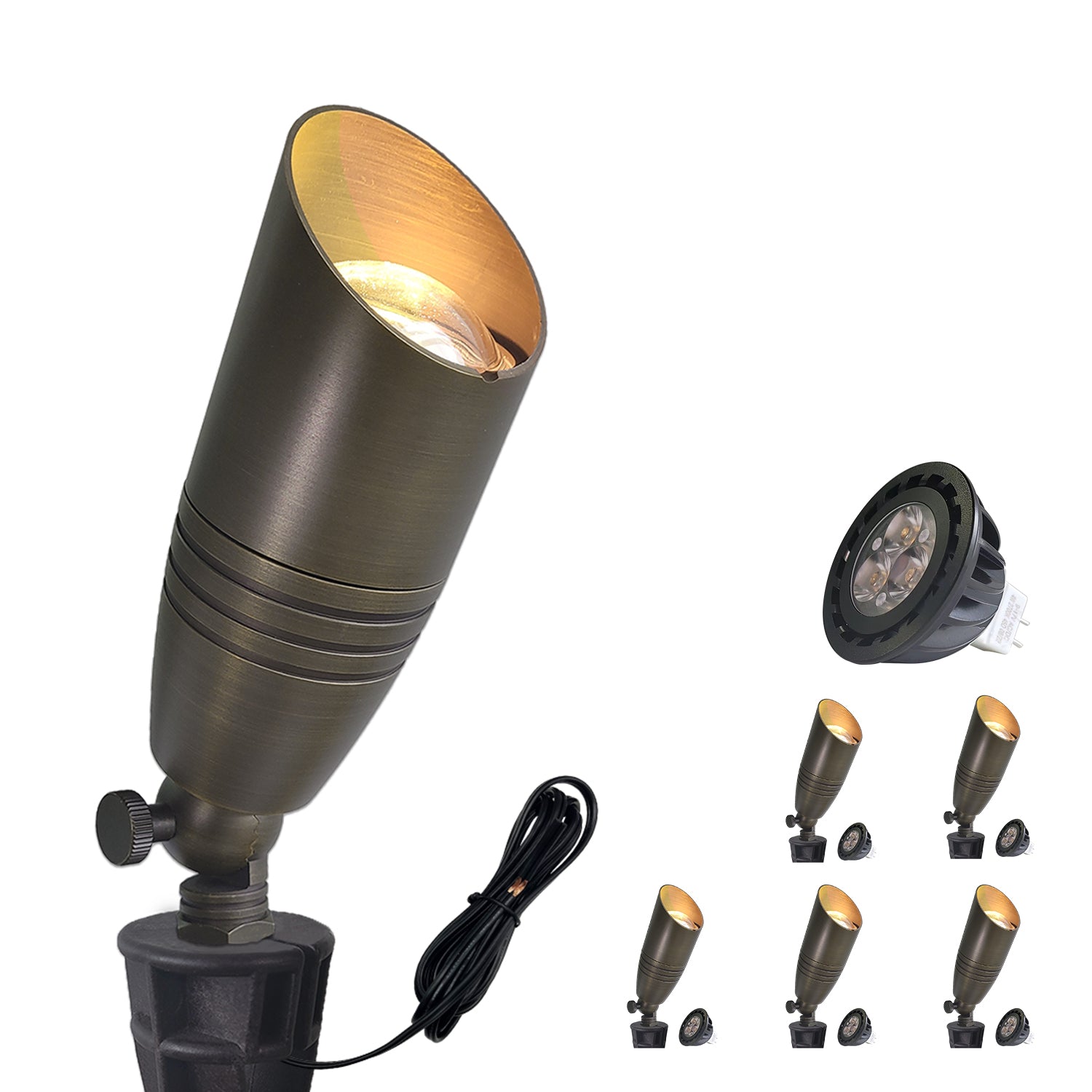

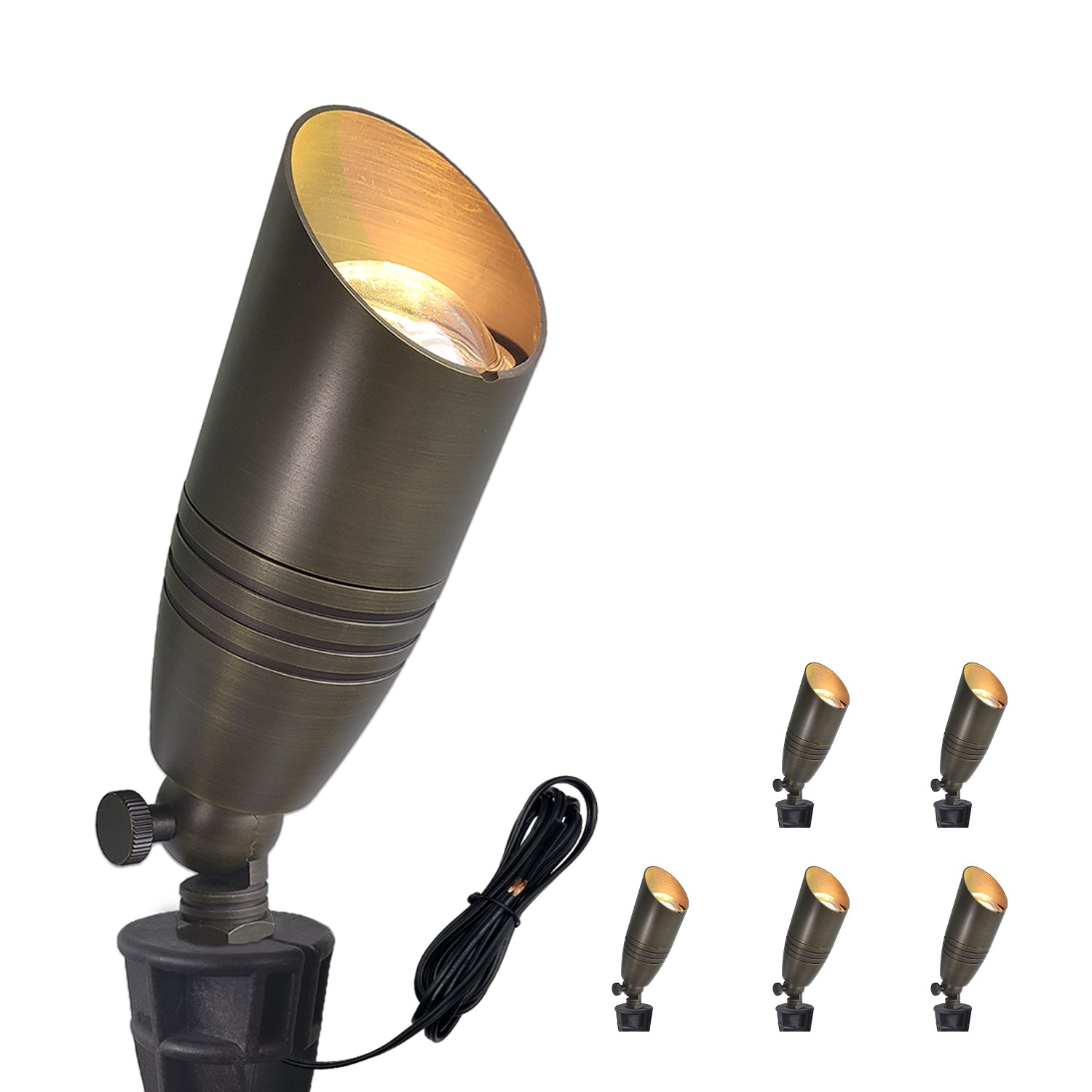

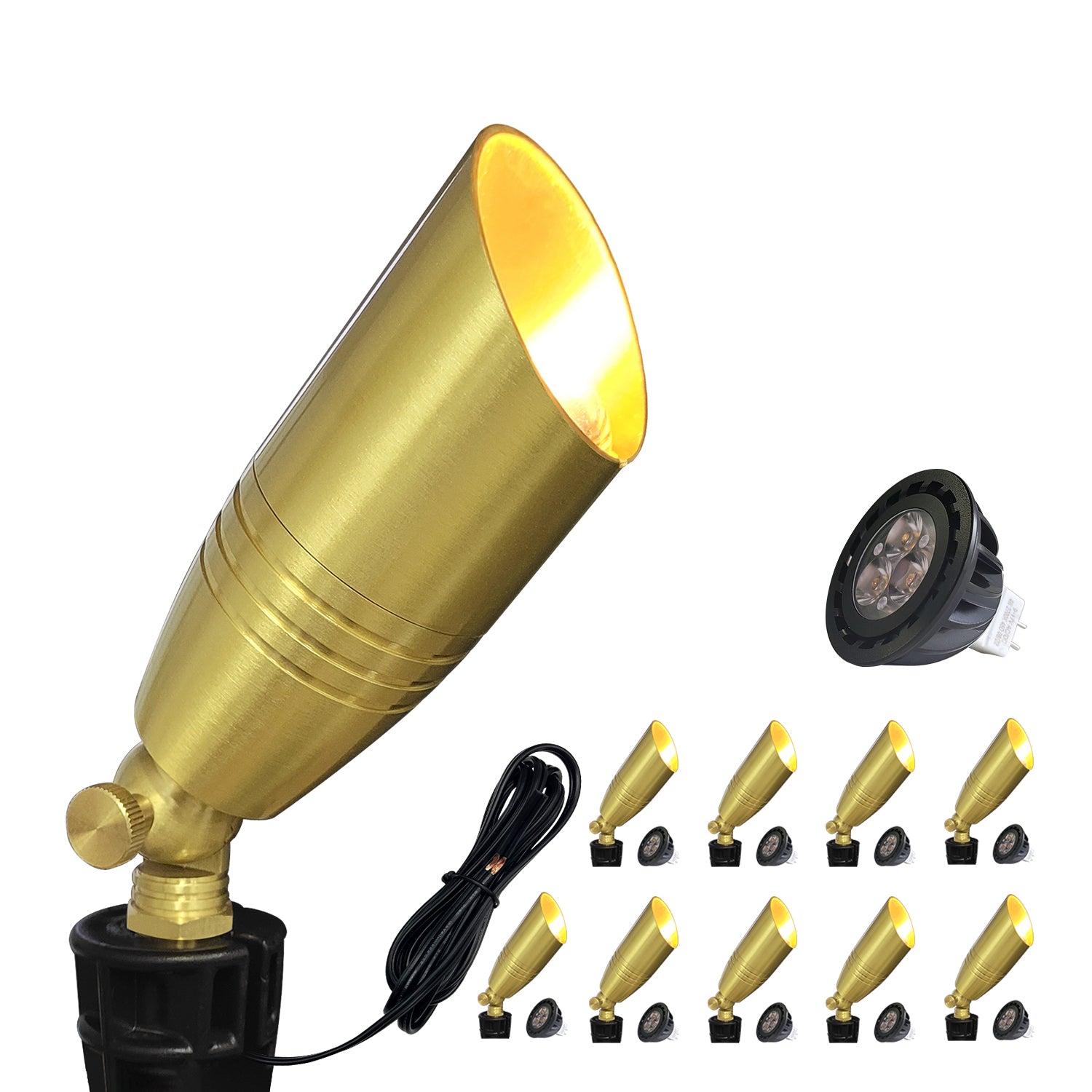

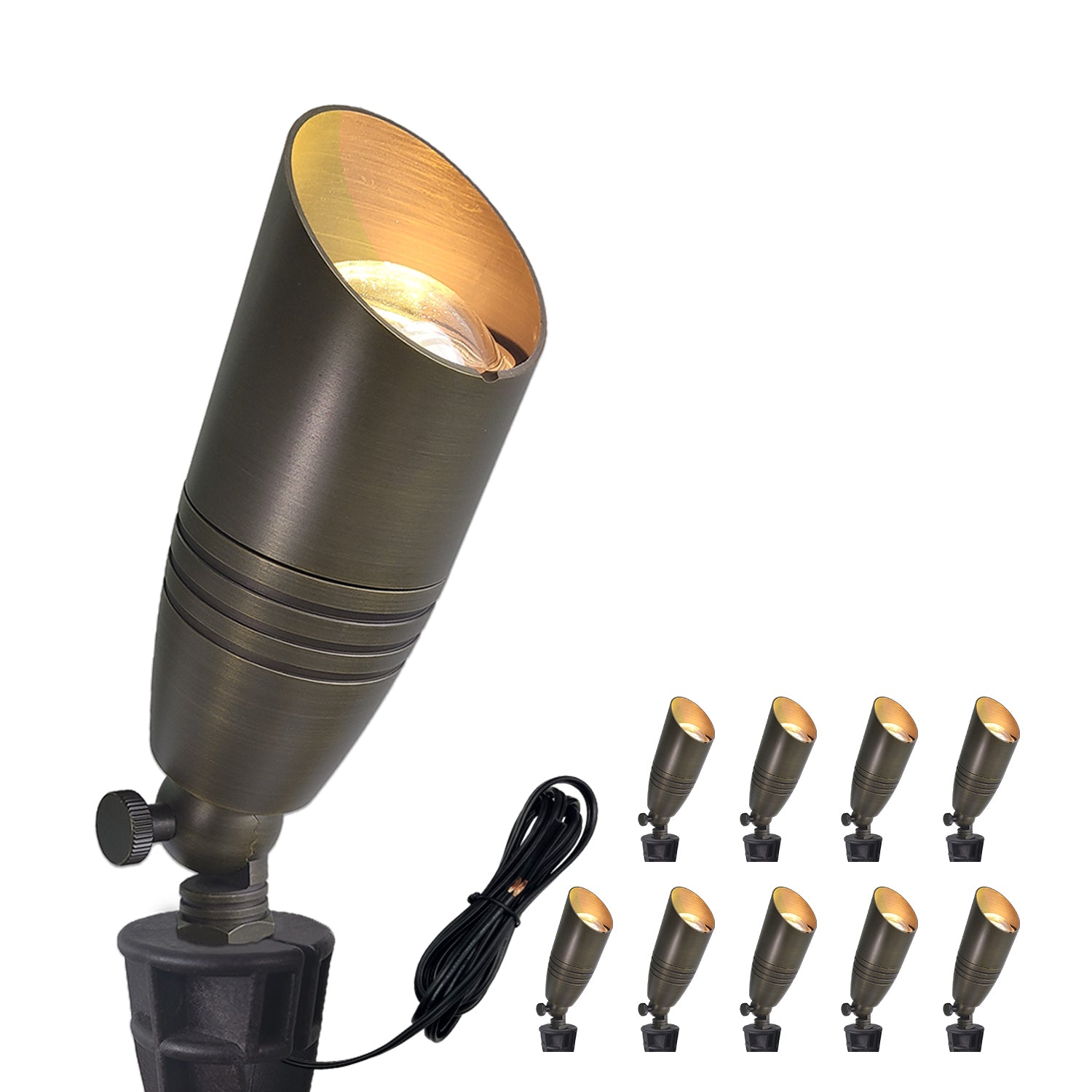

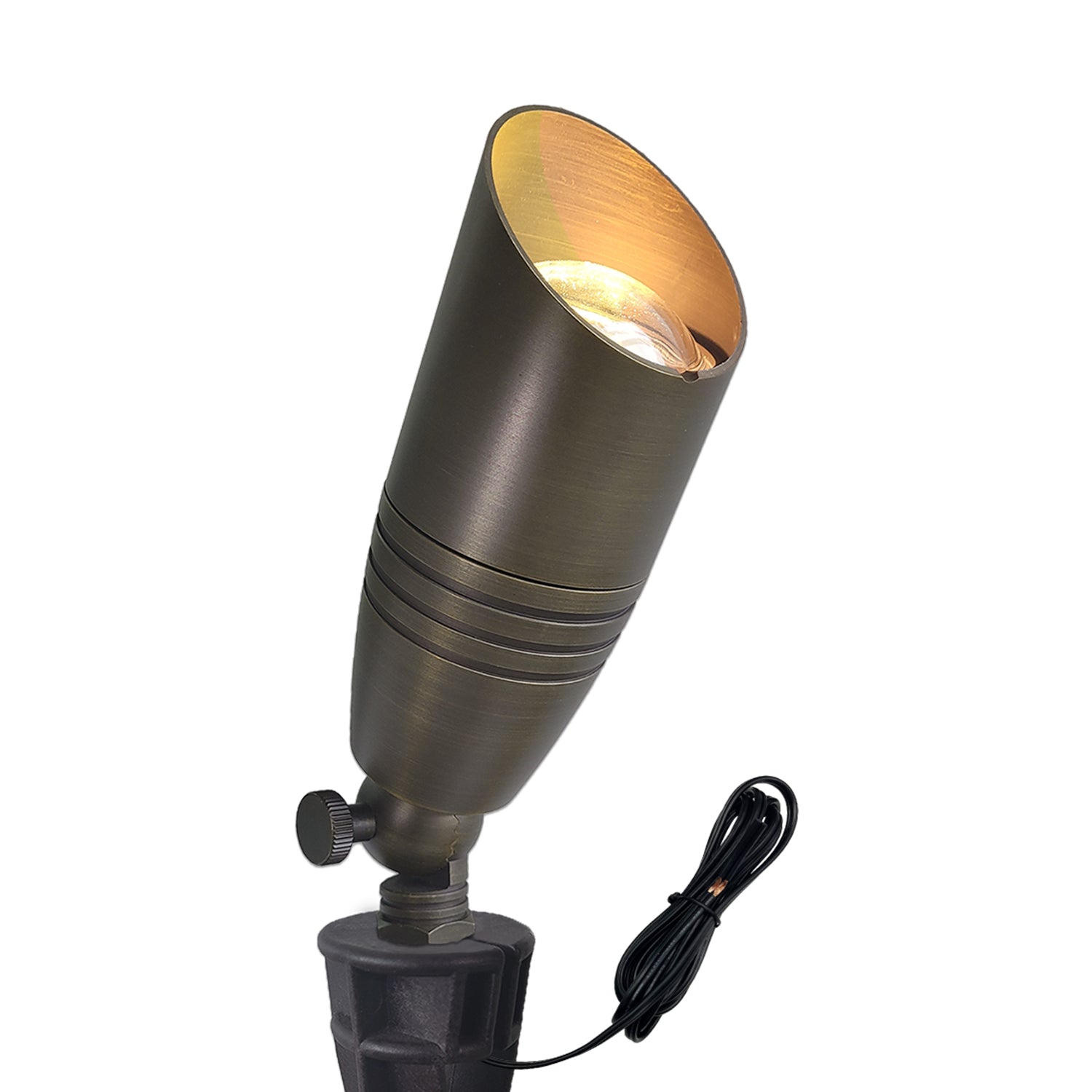

COLOER Die-cast Brass (Bronze Finish) LED Landscape Lighting,Low Voltage Outdoor Spotlights COA102B

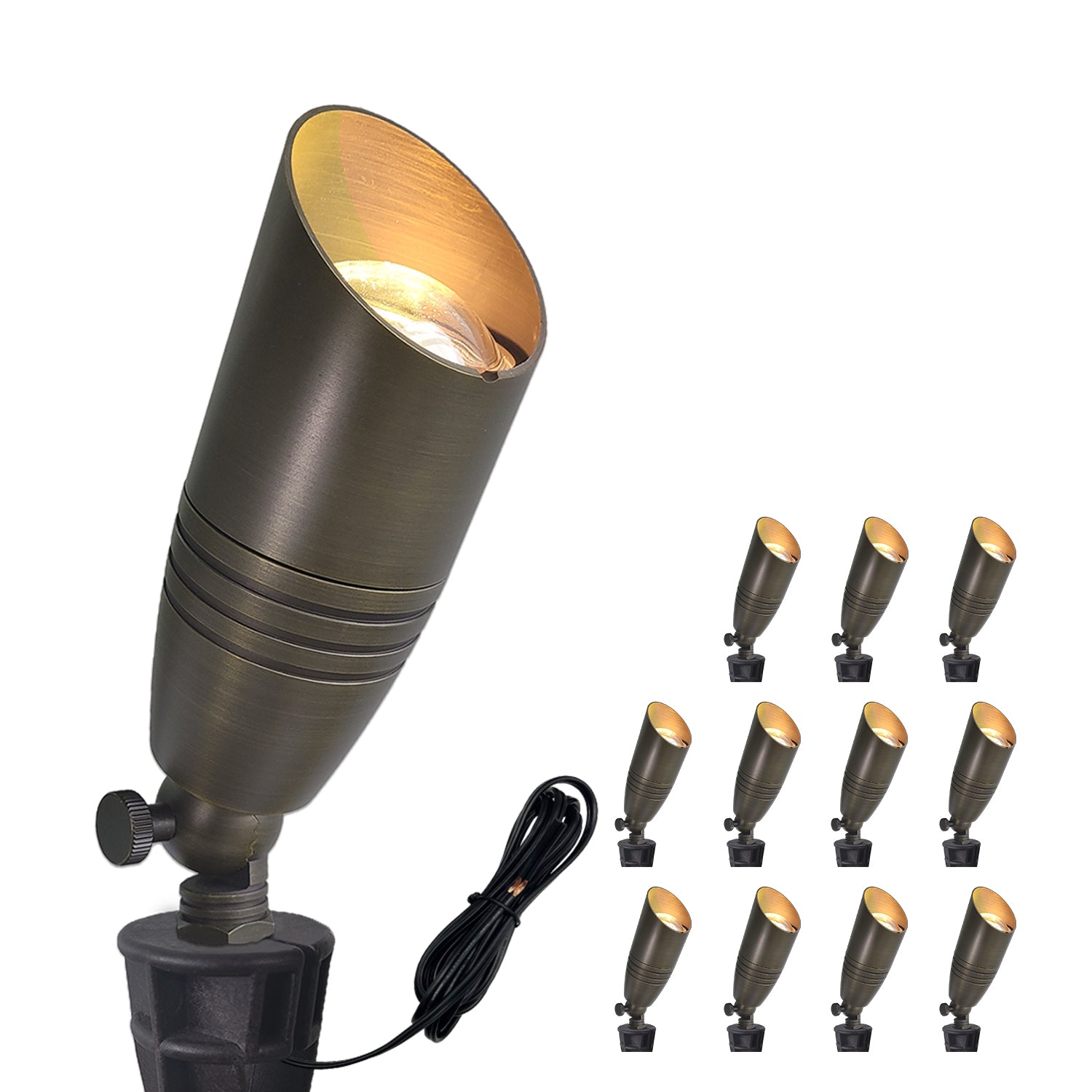

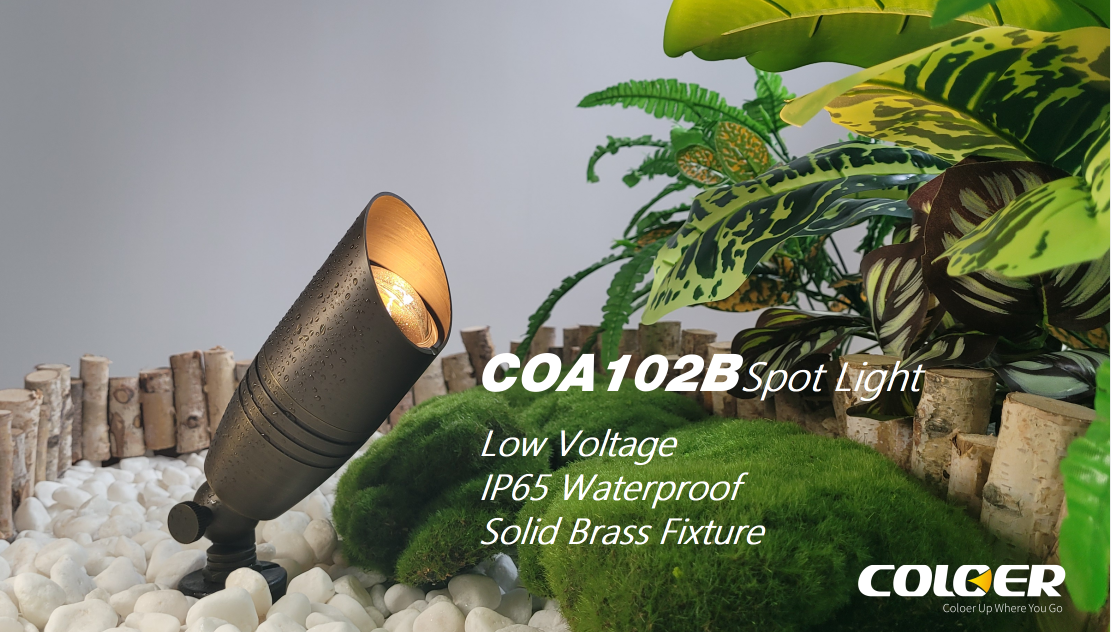

12V Low Voltage Die-Cast Brass Spot Light

COLOER Spotlights are entirely cast in high-quality brass and sprayed with corrosion-resistant paint for a long time without corrosion. This spotlight with high-temperature silicone o-ring for a water-tight seal can provide IP65 waterproof easy to install and suitable for multiple environments.

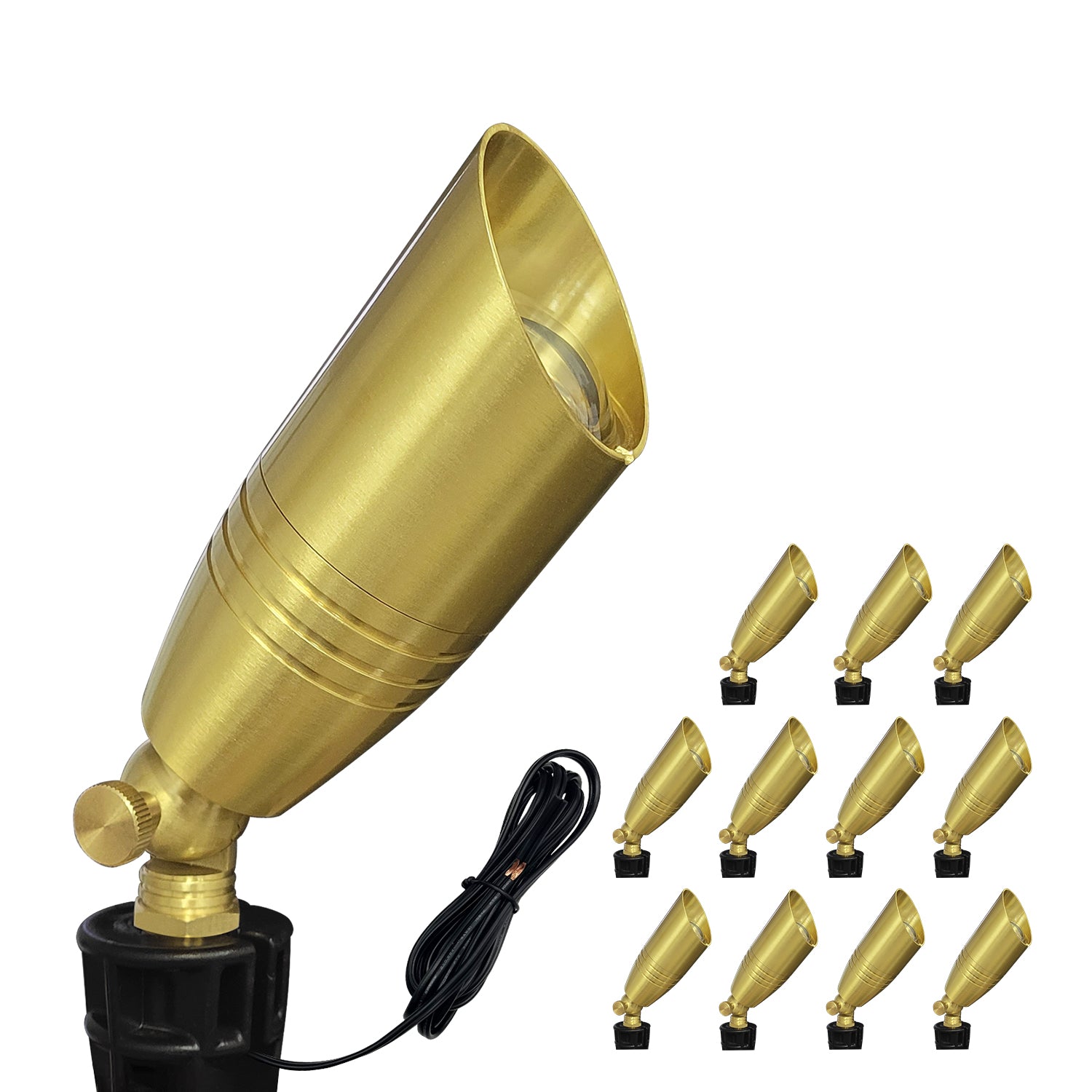

This landscape light is made of die-cast brass, and bronze paint on the surface of the light fixture, which is higher quality and more beautiful. The brass construction for the spotlight has better corrosion resistance and pressure resistance and is more durable and lasts longer than aluminum and plastic lamps. 45°narrow beam angle for the exterior of the house, palm trees, and tall oak trees. Classic compact design, easy to install and clean.

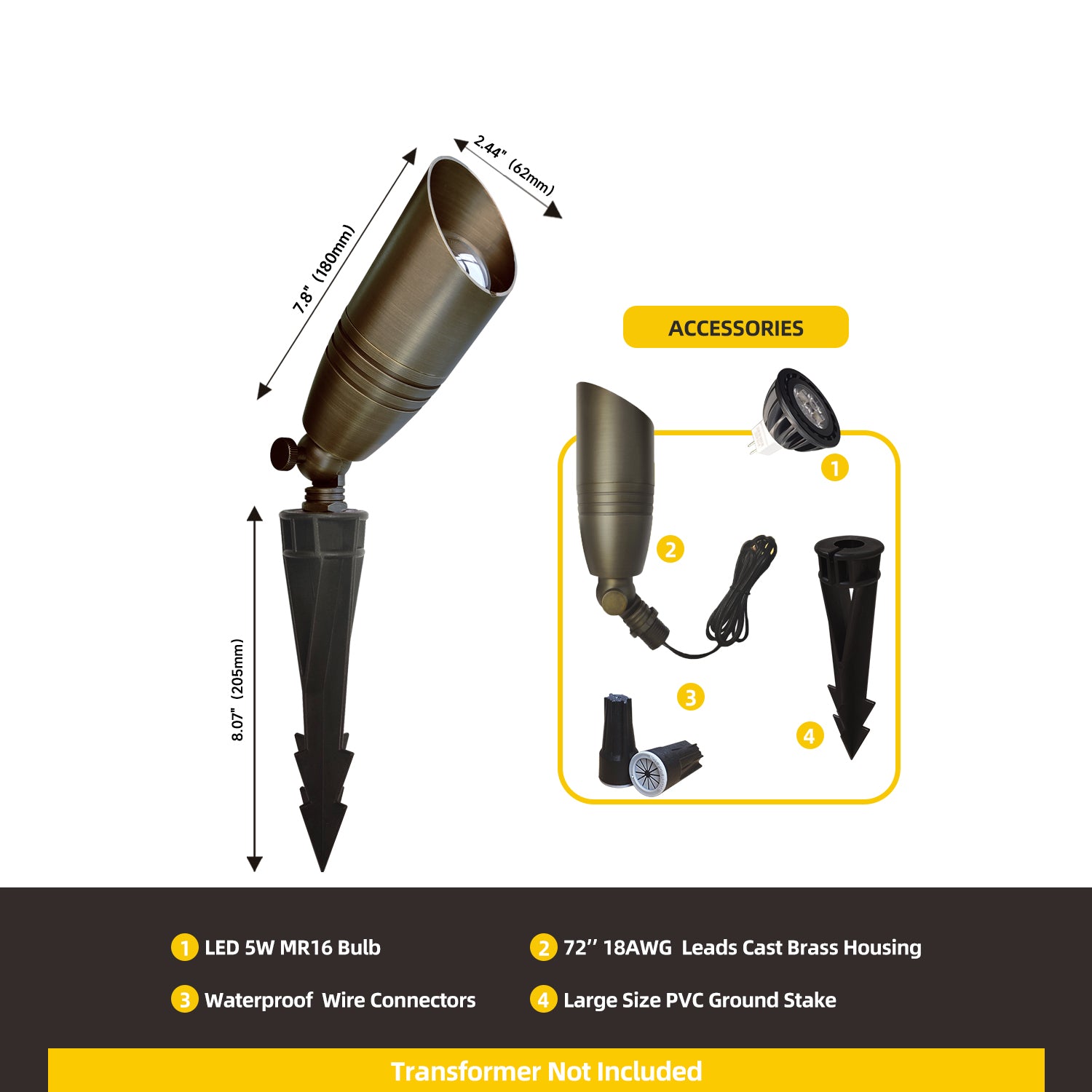

• Low Voltage Spotlight: ETL certified, operating at a safe 12V AC/DC, and measuring just 5.25 inches in length with a diameter of 2.125 inches.

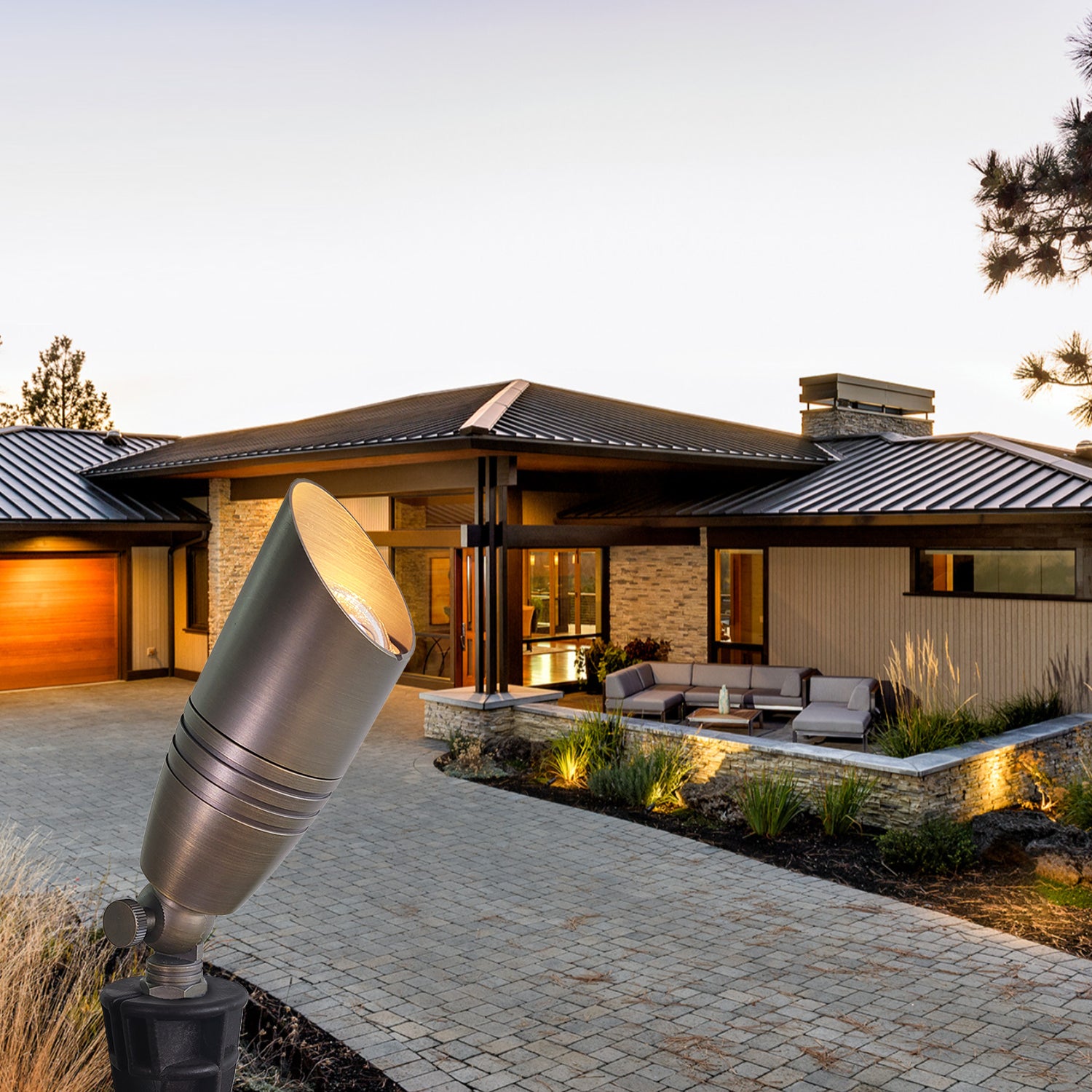

• Outdoor Uplighting: Crafted from die-cast brass material, this exquisite landscape light enhances your outdoor appeal with a 45° narrow beam angle, ideal for illuminating the exterior of your house, garden, patio, palm trees, and tall oak trees.

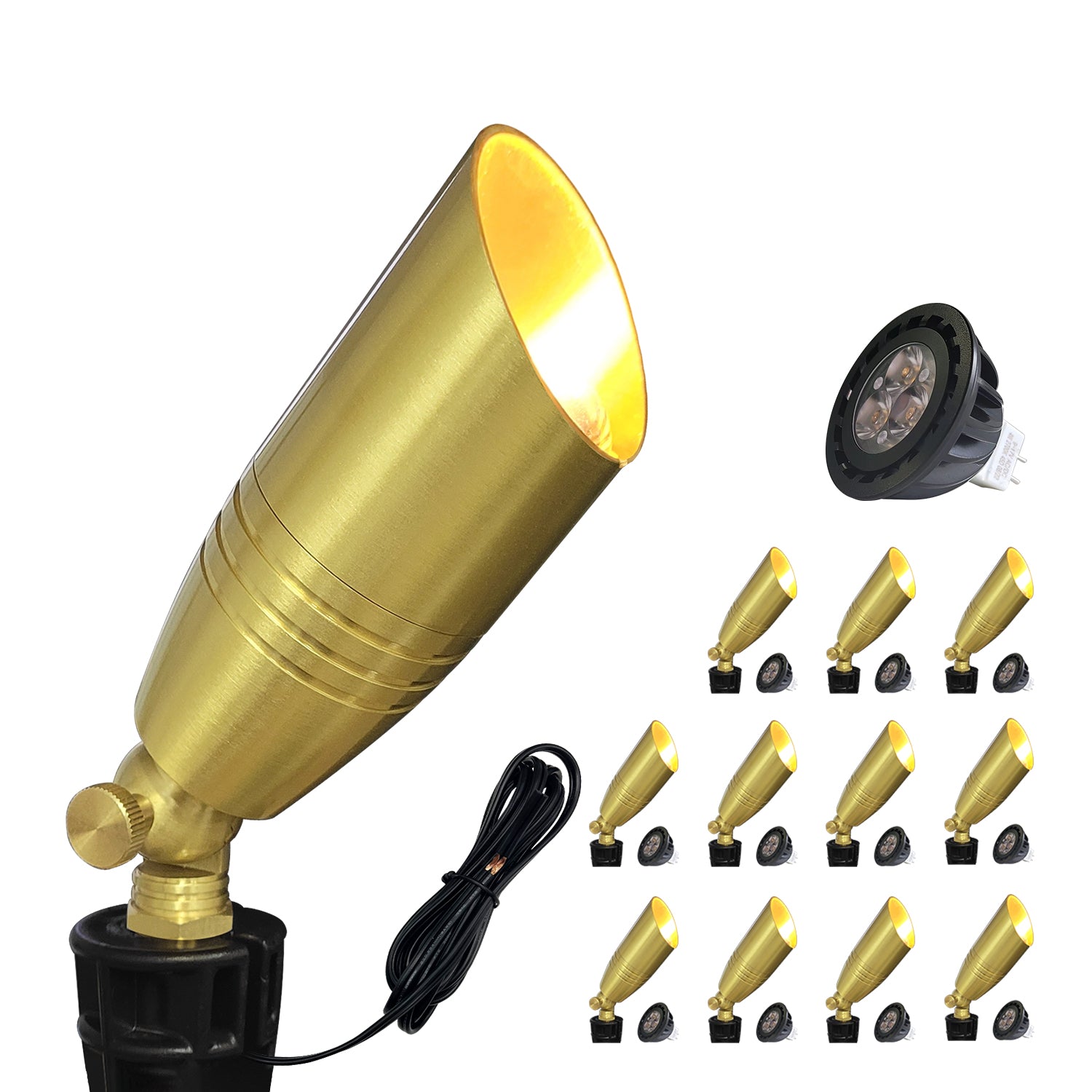

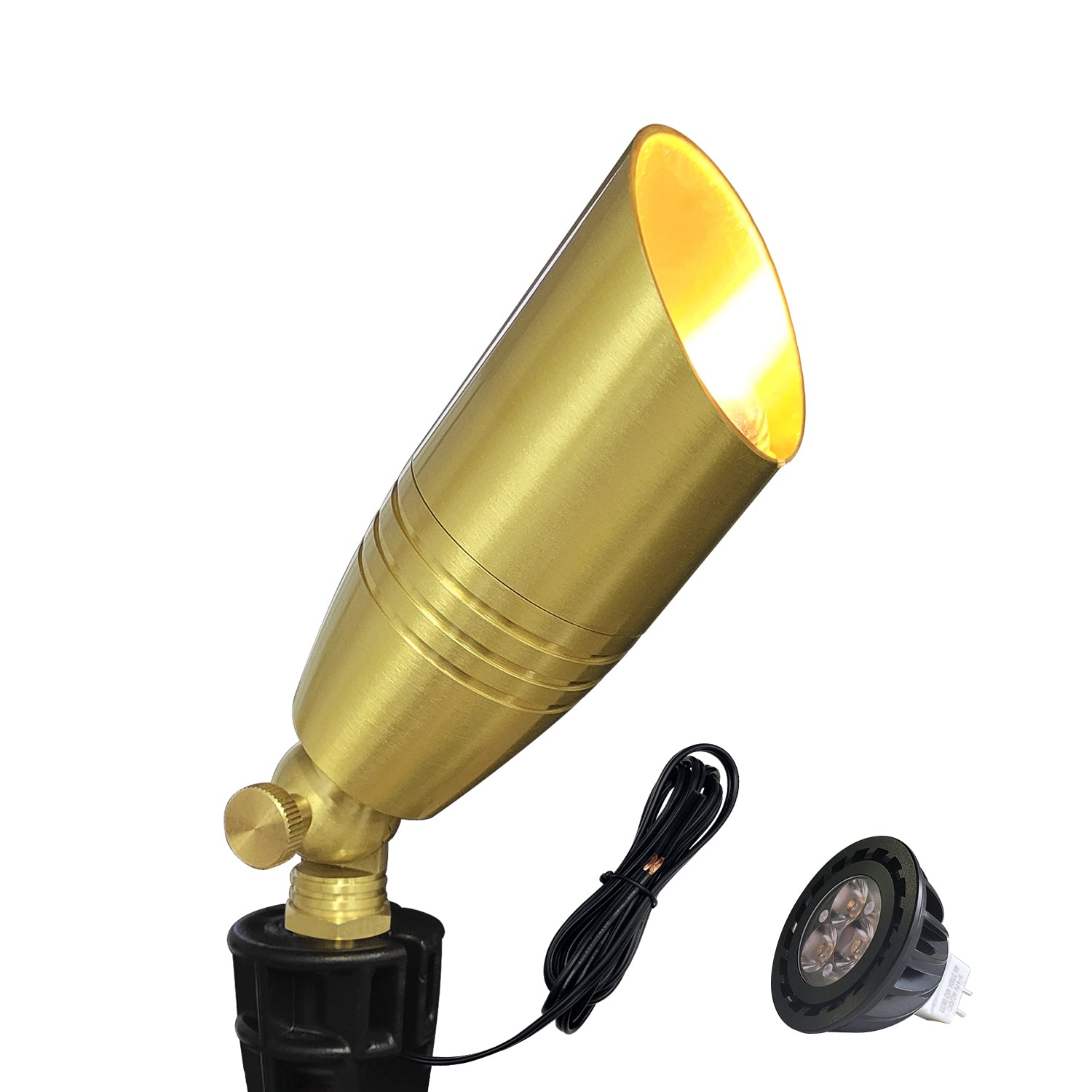

• Make Your Neighbor Envious: Experience a true color rendition with an 85+CRI landscape light. Featuring a GU5.3 Bi-pin socket for MR16, allowing easy bulb replacement or customization. This outdoor spotlight includes a 6-foot 18 AWG premium copper lead wire with a special waterproof design for the lead wire exit to prevent ground moisture from entering through the stem. The double silicone o-ring ensures water resistance.

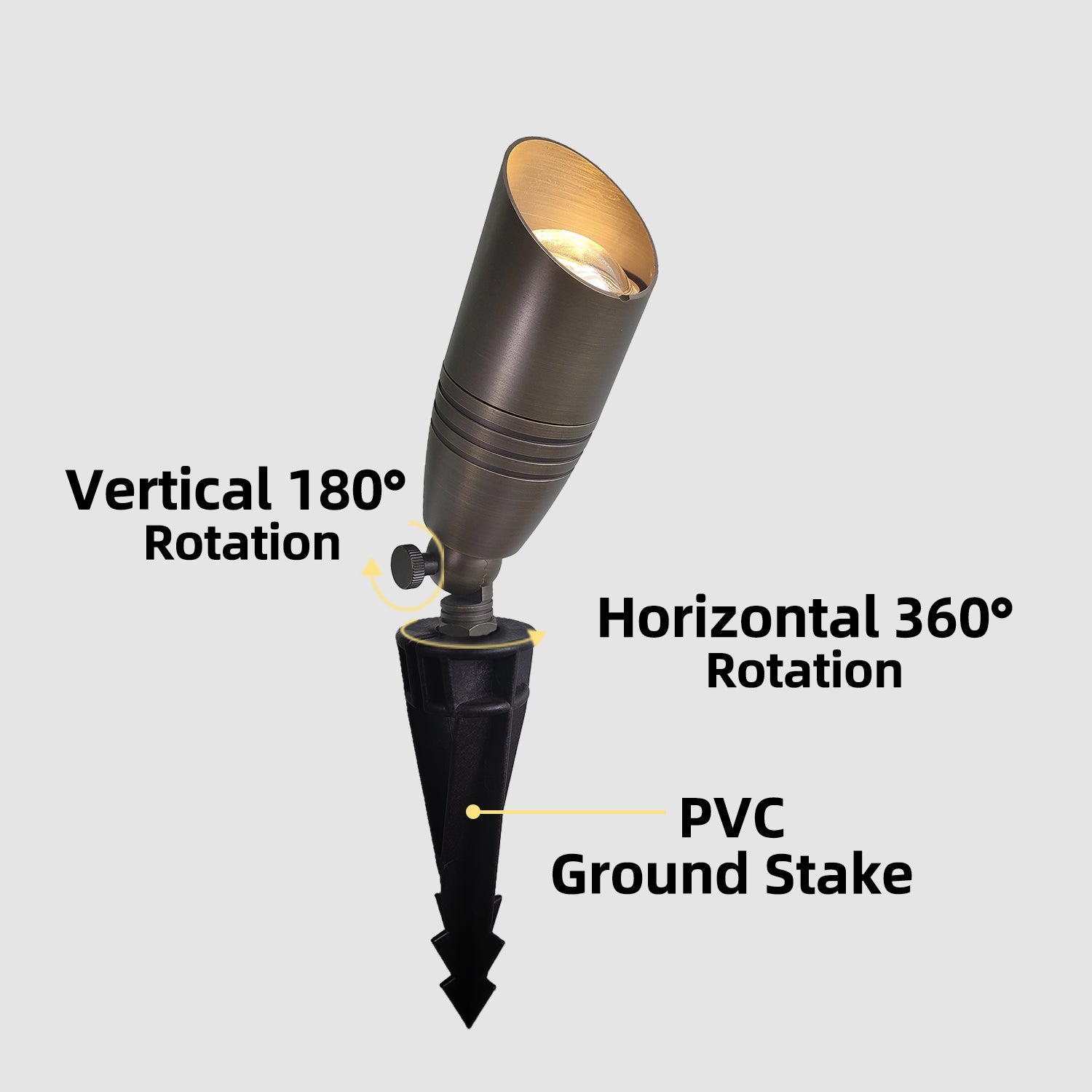

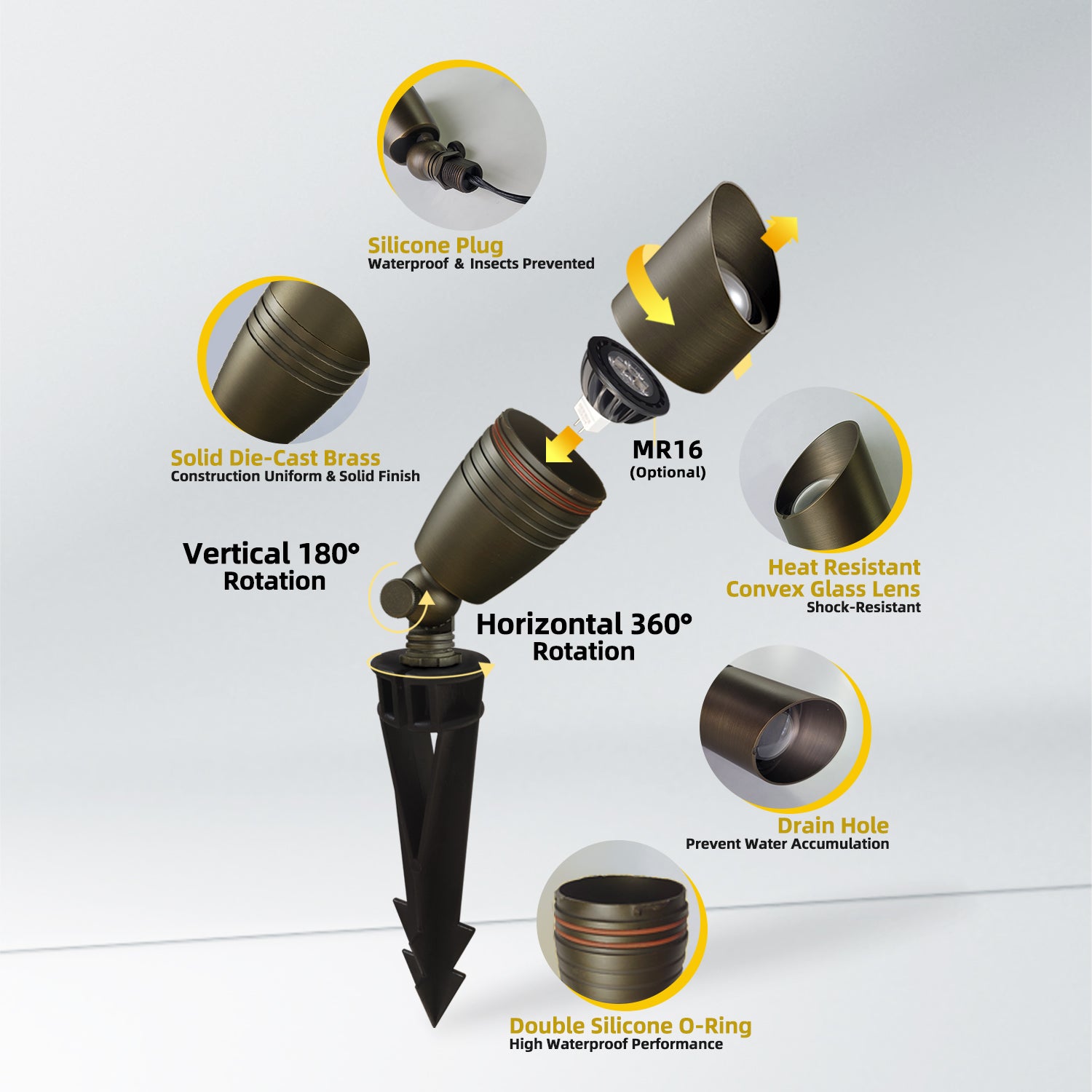

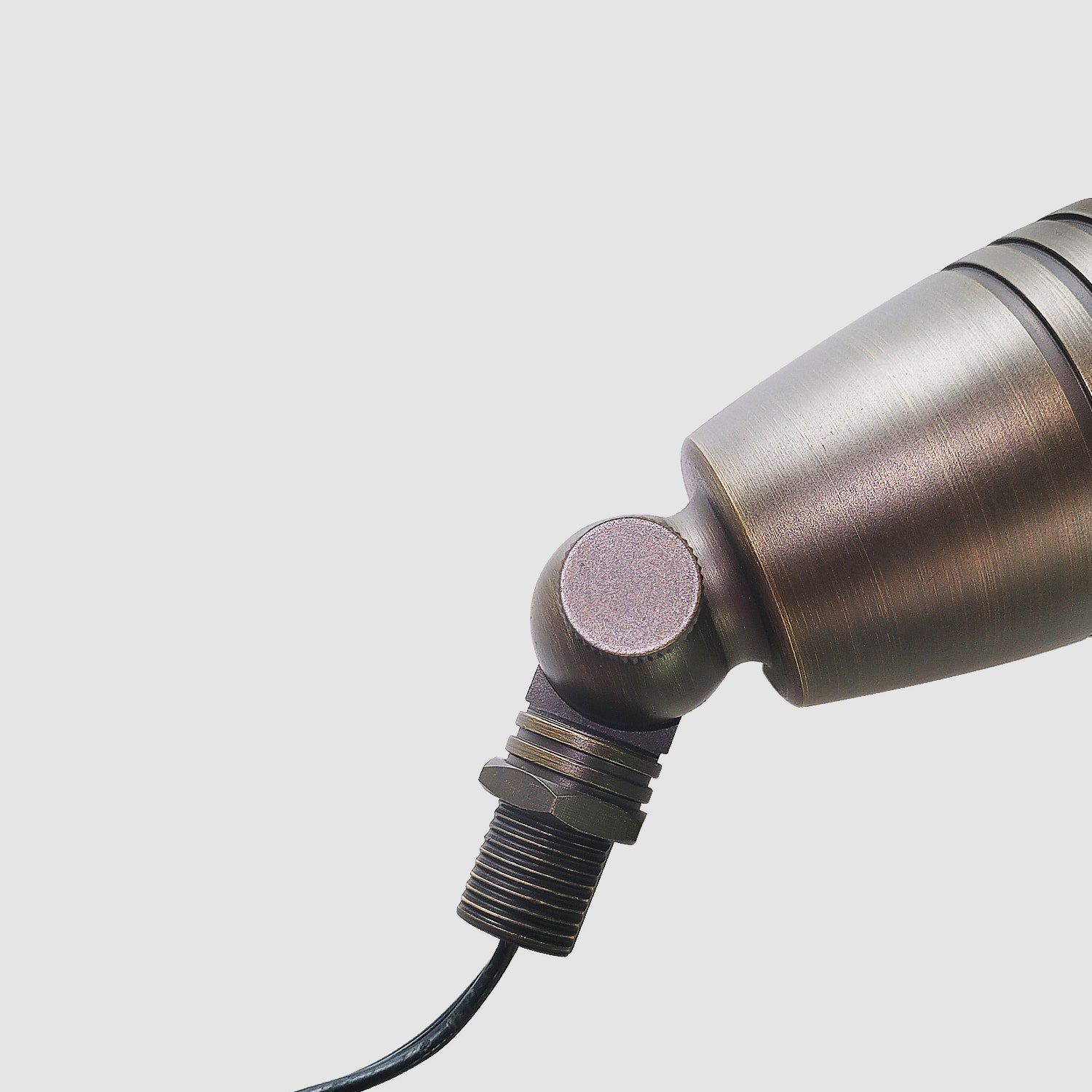

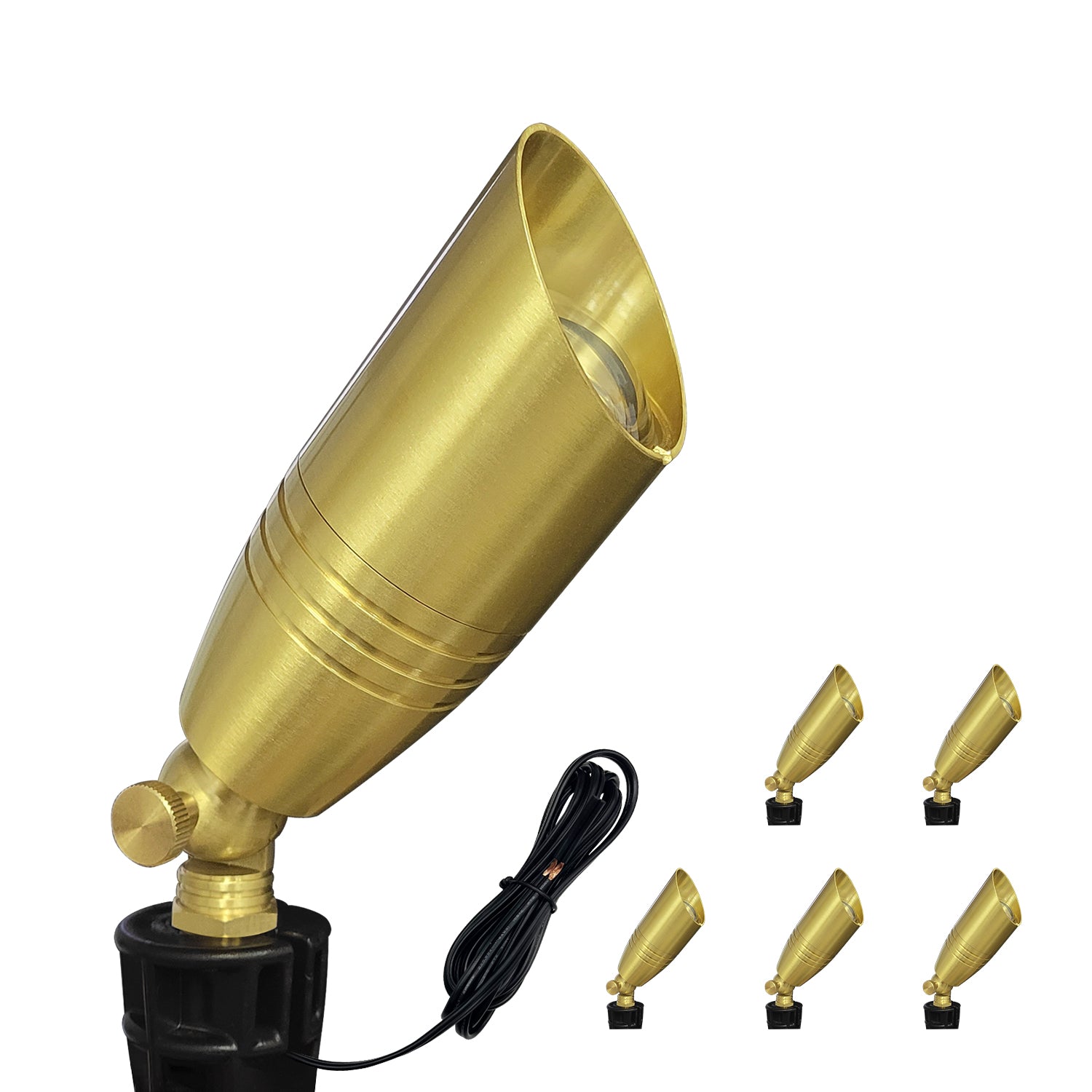

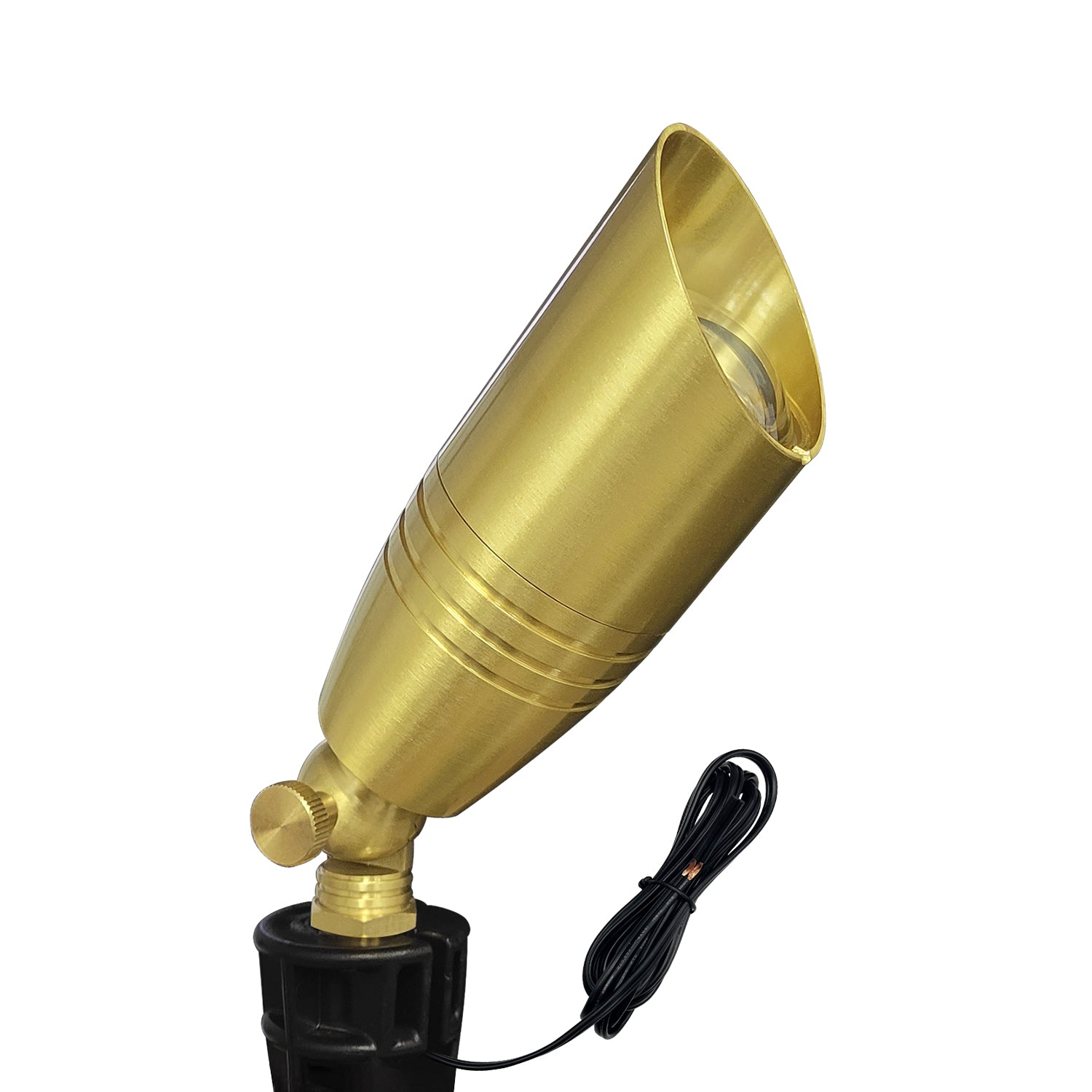

• Installed Flexible: With a heavy-duty stake design featuring cleats for grip, it's easy to install on the ground. The adjustable screw allows for a 180°vertical rotation of the spotlight while adjusting the ground stake provides a 360°horizontal rotation, letting you illuminate any angle you want without moving the fixture.
• Lifetime Warranty: We offer a lifetime warranty on the brass light fixture and a 50,000-hour lifespan warranty for the LED bulb.

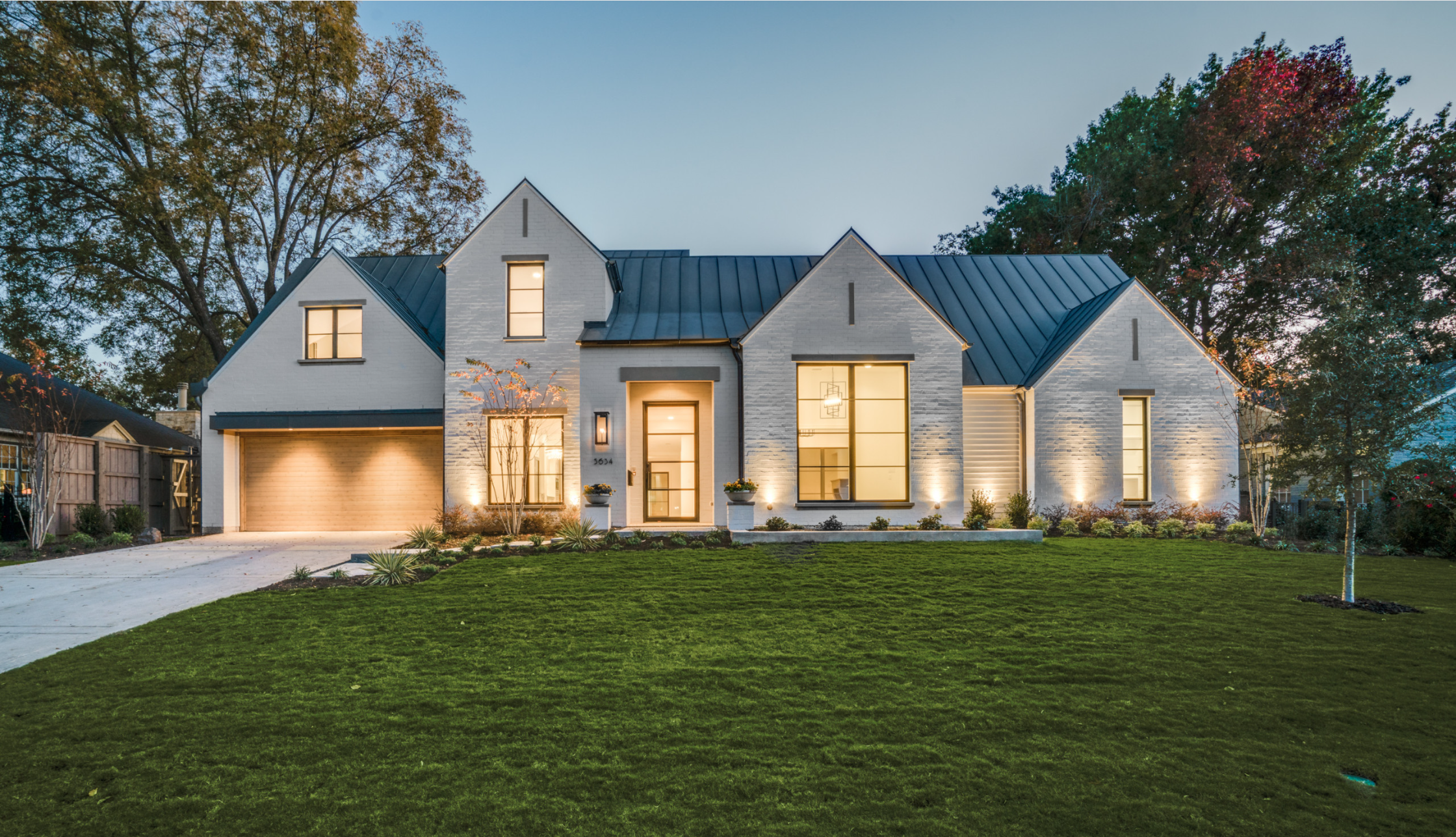

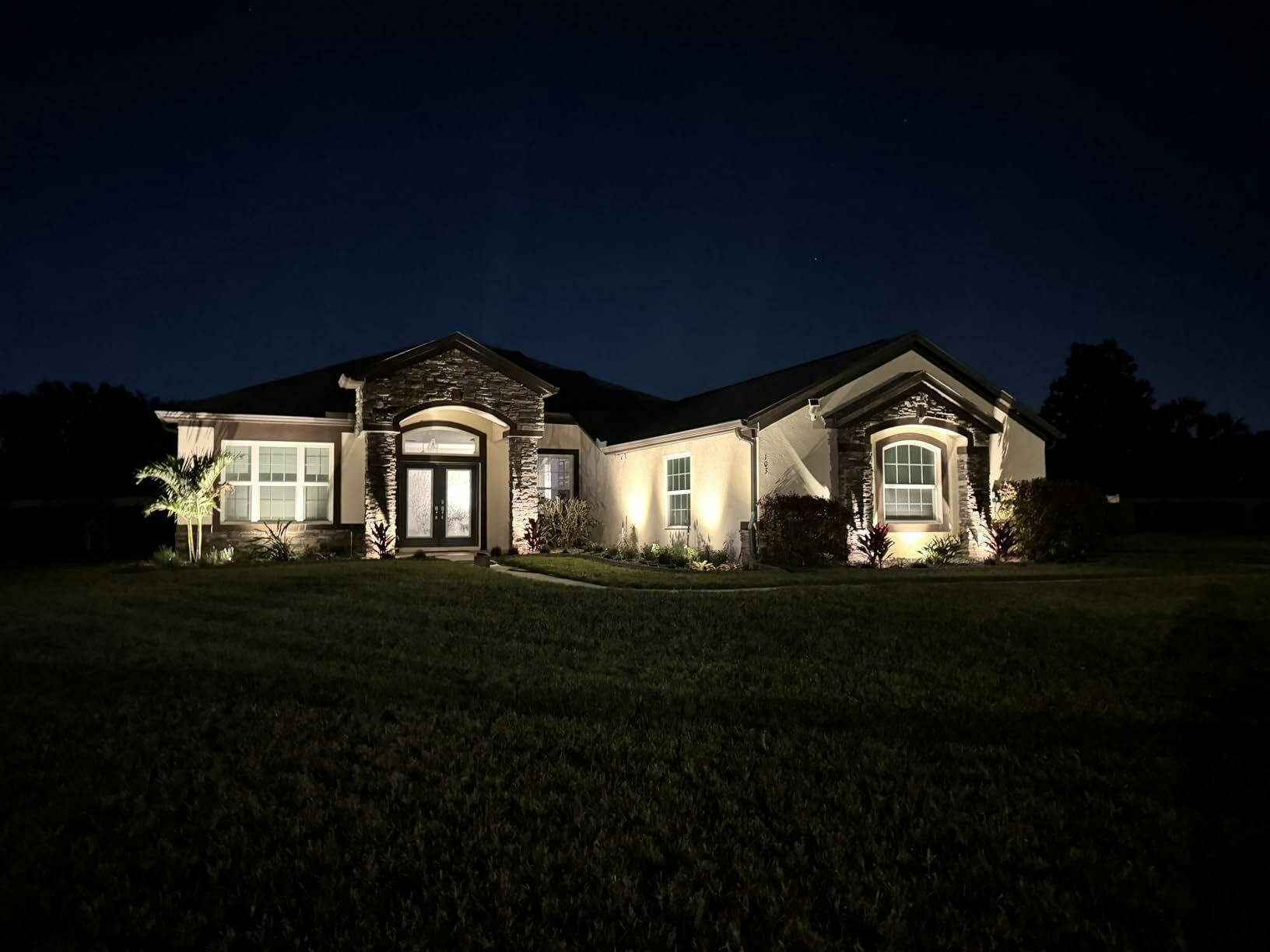

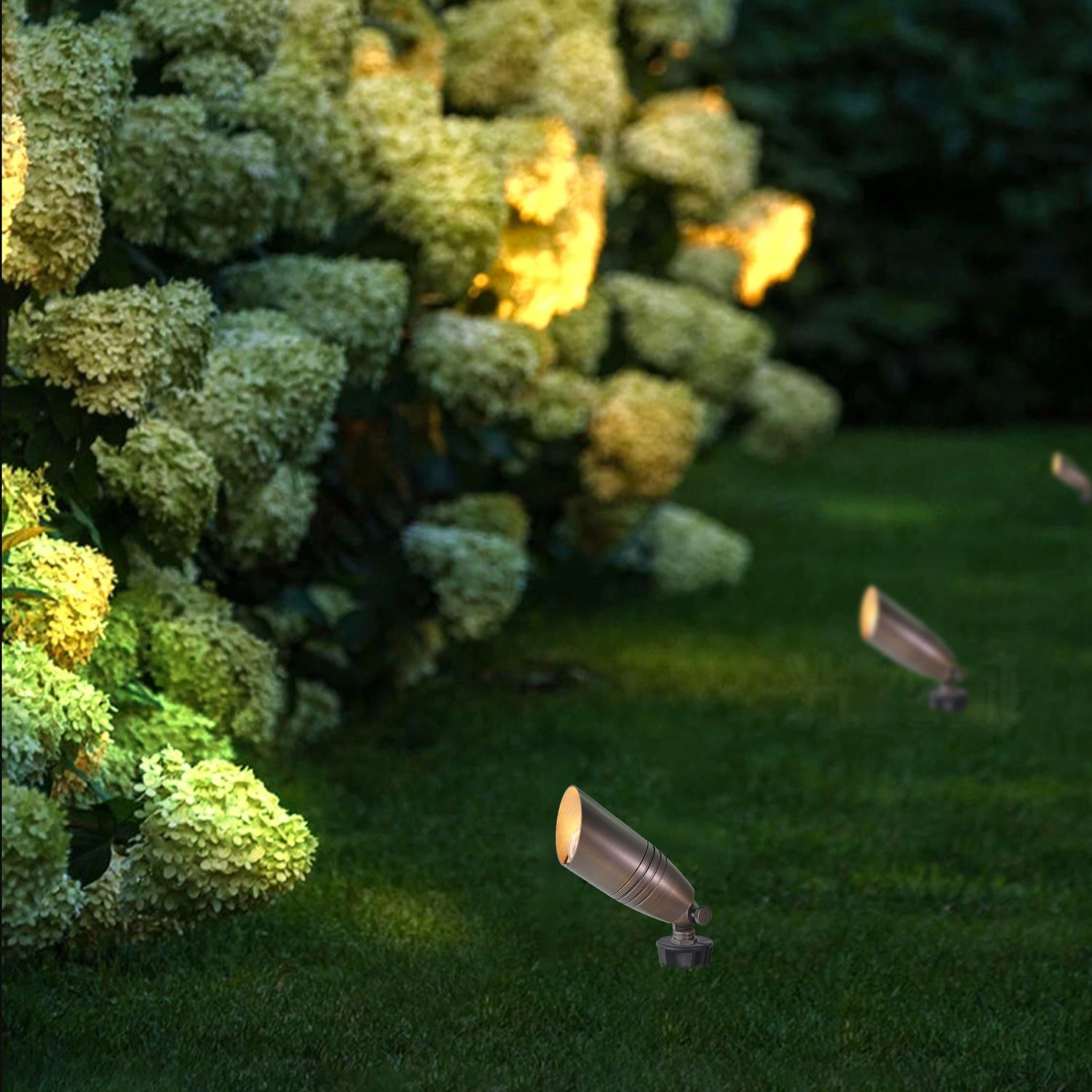

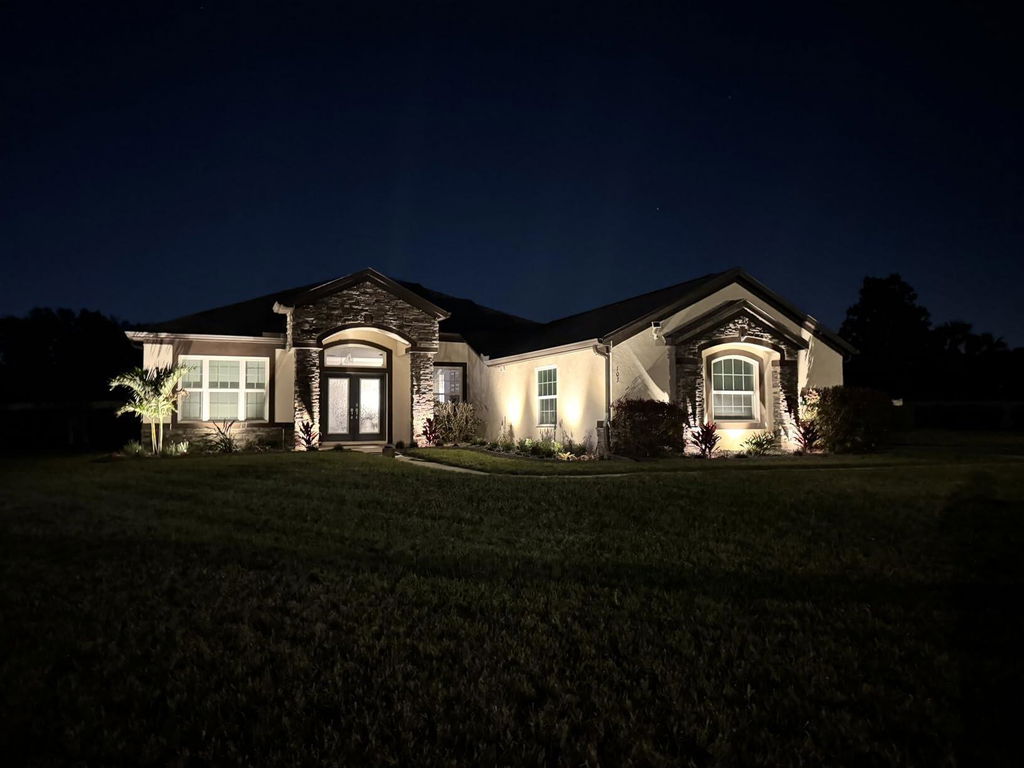

This spotlight is for the exterior of the house, garden flowers, palm trees, alleys, loading docks, doorway, bus stations, streets, pathways, and parking areas. It's your better choice for your uplighting applications.

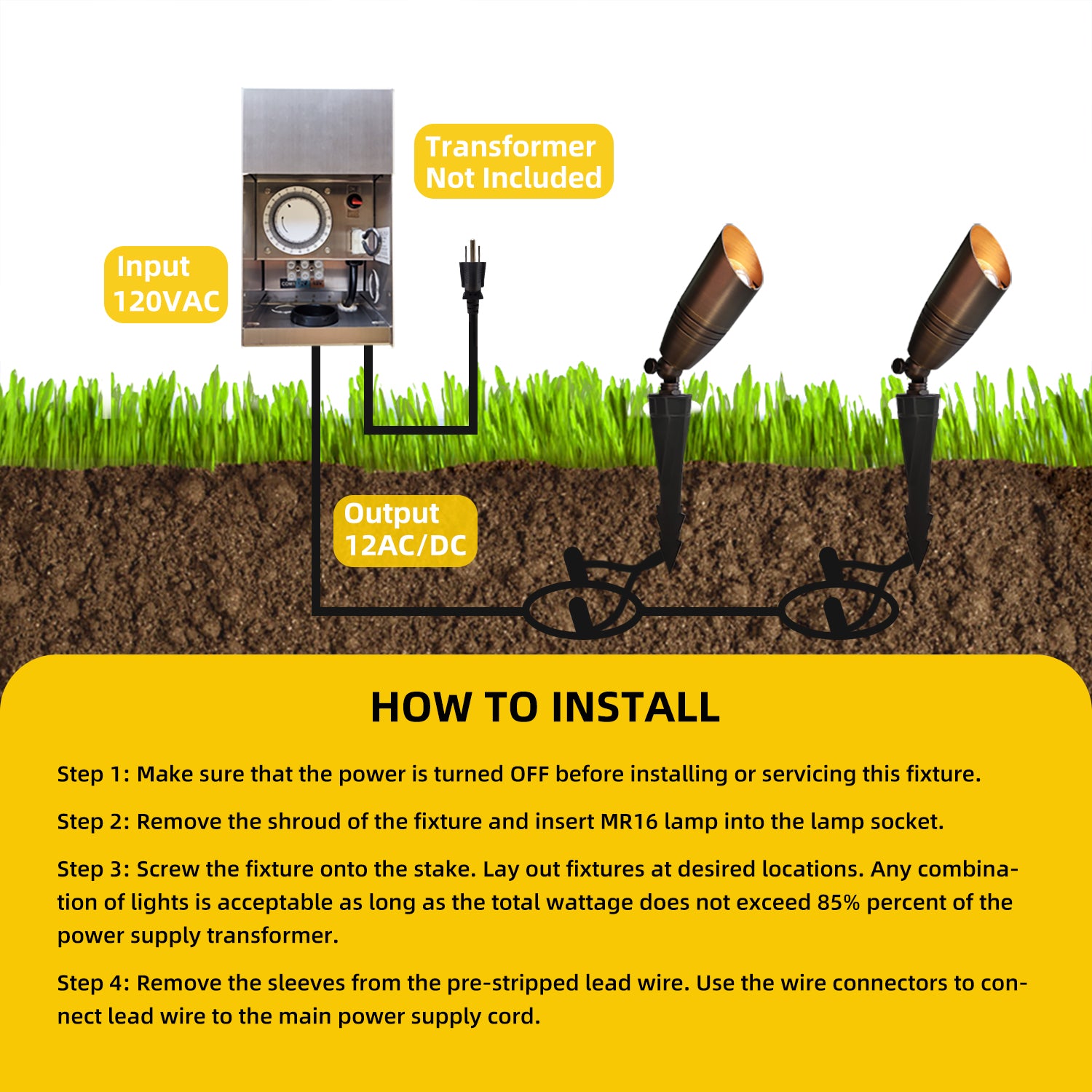

How to Install

Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

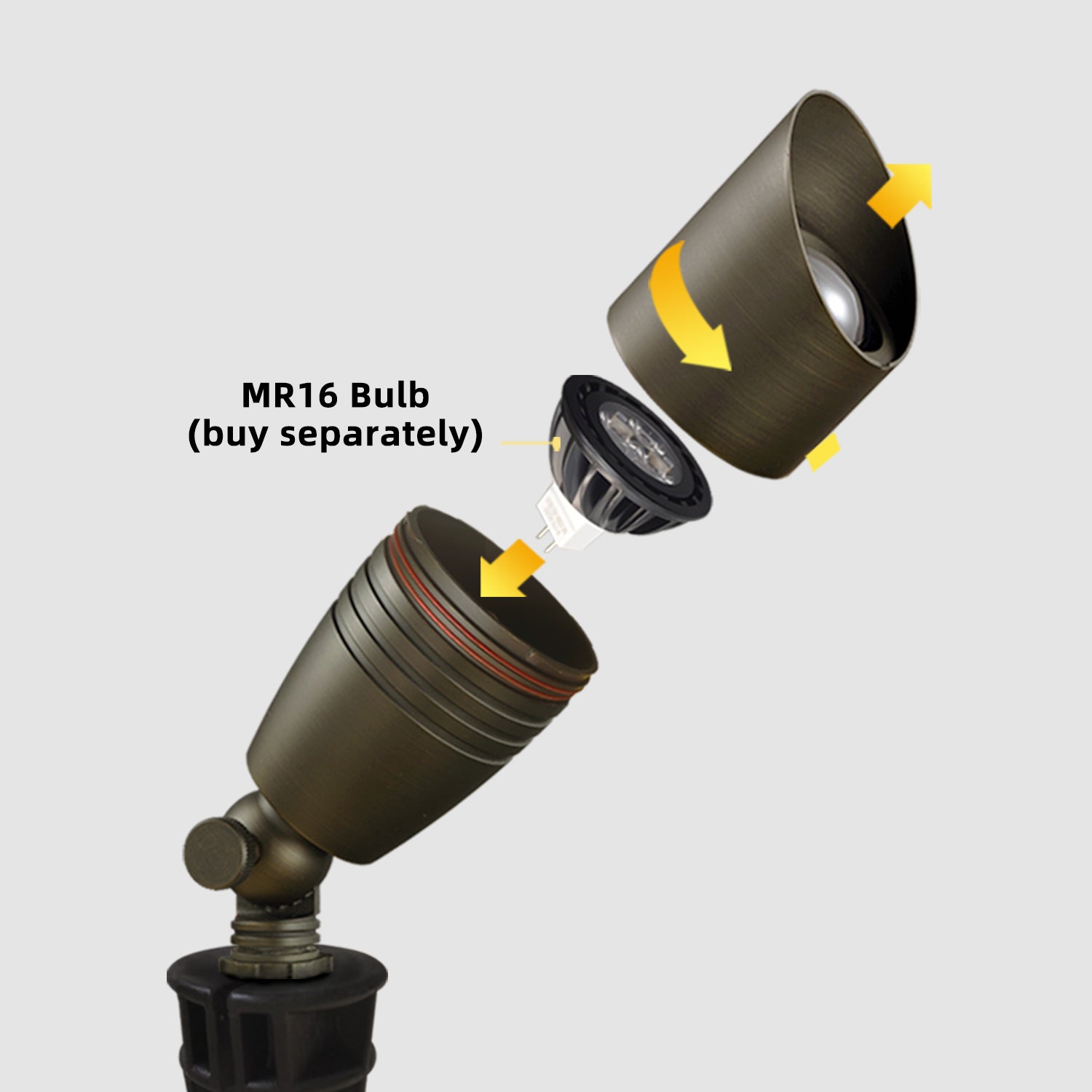

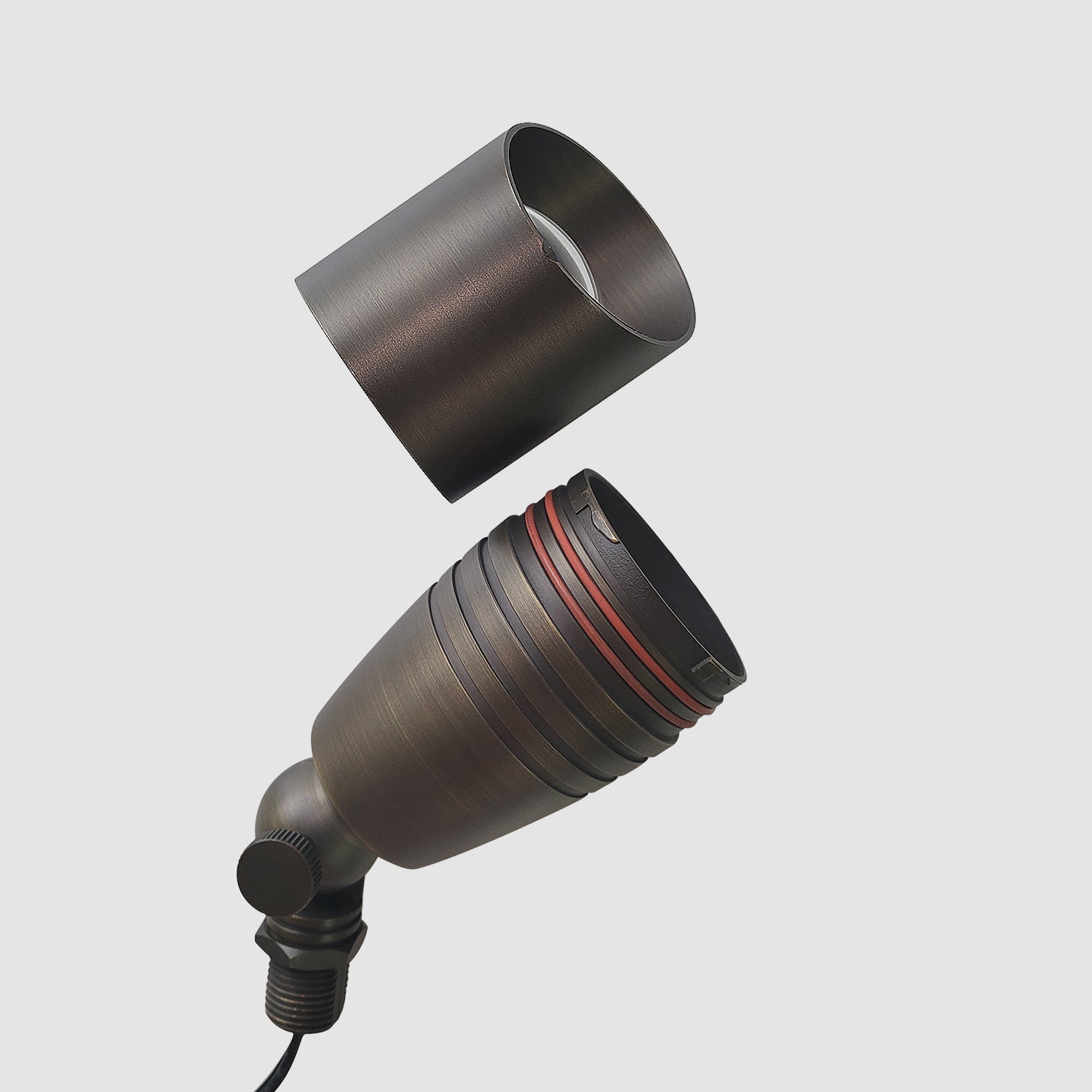

Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.

How to Choose a Transformer

To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.

Size of transformer=Total wattages of fixtures X 1.1

Select a transformer that matches as close as possible to the calculation shown above.

Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)

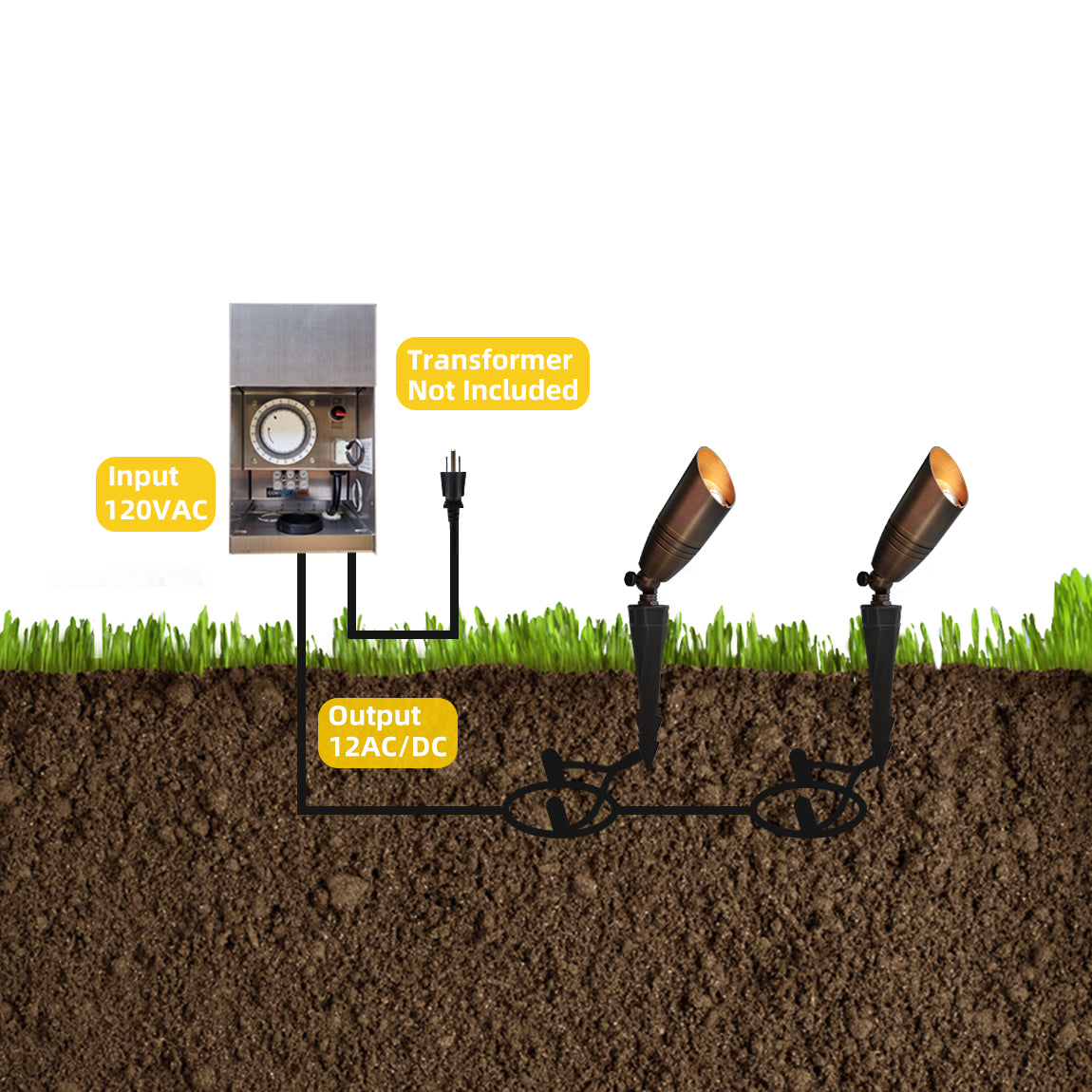

NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

Spot Lights

COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.

We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.

For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.

Call: 626-699-4666

Email: customerservice@coloer.com

Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST

What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 45 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 360 lumen and 2700K.
What do I use to mount to a tree for downlighting purposes?
The mounting for the lights in the box only supports uplighting. You can buy a ring surface wall mount separately for it, so you can Install these lights on a tree or wall for downlighting.
What is the difference between 101B/102B/103B fixtures?
They vary in appearance and size.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this spotlight?
Yes, our landscape spotlights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Can an MR-11 bulb be used in this fixture?
Yes, the MR11 bulb can be used in the 101B/102B/103B fixture.
I am replacing a broken lamp that is on a volt landscape lighting16 volt transformer. is
this compatible?
Multi-tap transformers provide taps from 12 to 22 volts. The higher voltage taps are for
long runs of cable because voltage decreases over long distances. This light should work
on a 16v tap, however, if the higher voltage is sustained over the entire line it may affect
the life of the bulbs.
Can this work with rgb-w multiple-color mr16 bulbs?
Yes, it works well with any type of MR16 bulb as long as it's the standard size MR16.
Do these come in white?
The light fixtures are bronze and the skate for these is black, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Mi has mr16 bulbs that use a 60-degree beam. Will the bulb turn this light more like a
floodlight rather than a spotlight?
The 60-degree beam MR16 bulb use in this fixture also projects a spotlight, thank you.
