300W (12V-13V-14V-15V) Multi-Tap Low Voltage Transformer COT705S

Multi-Tap Low Voltage Transformer for Outdoor Landscape Lighting

COLOER transformer uses a high-performance toroidal core-quiet operation, great reliability, High-quality heavy-duty stainless steel enclosure, waterproof and corrosion-resistant, and can be used indoors and outdoors. This low-voltage landscape lights transformer is designed with different voltage wiring positions, just connect the wire to the wiring hole of the voltage you need. Stainless steel enclosure and all electrical components are backed by our lifetime warranty.

This low-voltage transformer can transform the 110V or 120V AC into 12/13/14/15V AC for landscape lights. Perfect for outdoor landscapes, LED lights, in-ground well lights, hardscape lighting, spotlights, decorative lighting, etc.

• Multi-tap Design – This low-voltage landscape lights transformer is designed with different voltage wiring positions, just connect the wire to the wiring hole of the voltage you need. Low voltage transformer designed for use with LED bulbs and fixtures, this is all you need for any small- to medium-sized LED landscape lighting system, with no worry about voltage loss.
• Waterproof and Durable – High-quality heavy-duty stainless steel enclosure, waterproof and corrosion-resistant, can be used indoors and outdoors.
• Dual Protection - ETL-listed with built and in circuit breaker, auto reset thermal circuit breaker / secondary: 13A magnetic circuit breaker.

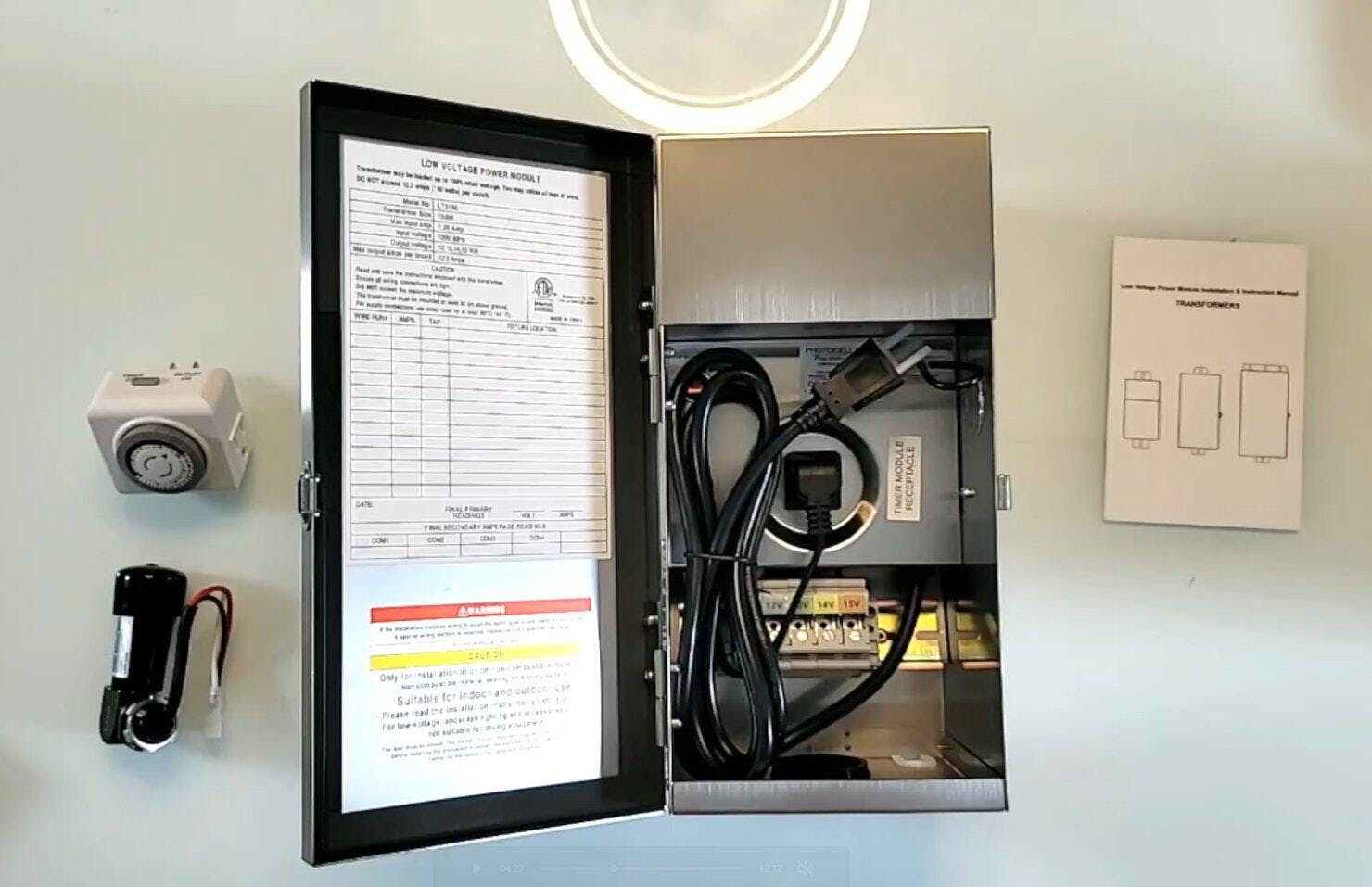

• Work with Timer & Sensor - Photocell & timer port available, the package includes a mechanical timer and photocell sensing and timing functions. With pre-punched knockouts for photocell, you can easily install it for this transformer. Using a smart socket or WiFi timer, you can remotely control the working hours of the transformer. We suggest not making the Timer & Photocell work at the same time, choose a more suitable accessory for your needs and use it alone.
• Lifetime Warranty – With an industry-leading warranty, this landscape lighting transformer is designed for a lifetime of worry-free use - we guarantee it. The core, stainless steel enclosure, and all electrical components are backed by our lifetime warranty.

The stainless steel enclosure has excellent hermetic, formability, compatibility, and toughness. The 25A auto-reset magnetic circuit breaker can shield the transformer from shock damage. It also can be rainproof and against all weather.

• Materials: ‎Stainless Steel
• Dimensions: ‎11.61"x6.1"x5.28"
• Weight: 18 LB
• Voltage Taps: ‎12V/13V/14V/15V
• Input Voltage: 120V 50/60Hz
• Warranty: Lifetime

To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.

Size of transformer=Total wattages of fixtures X 1.1

Select a transformer that matches as close as possible to the calculation shown above.

Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)

NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
