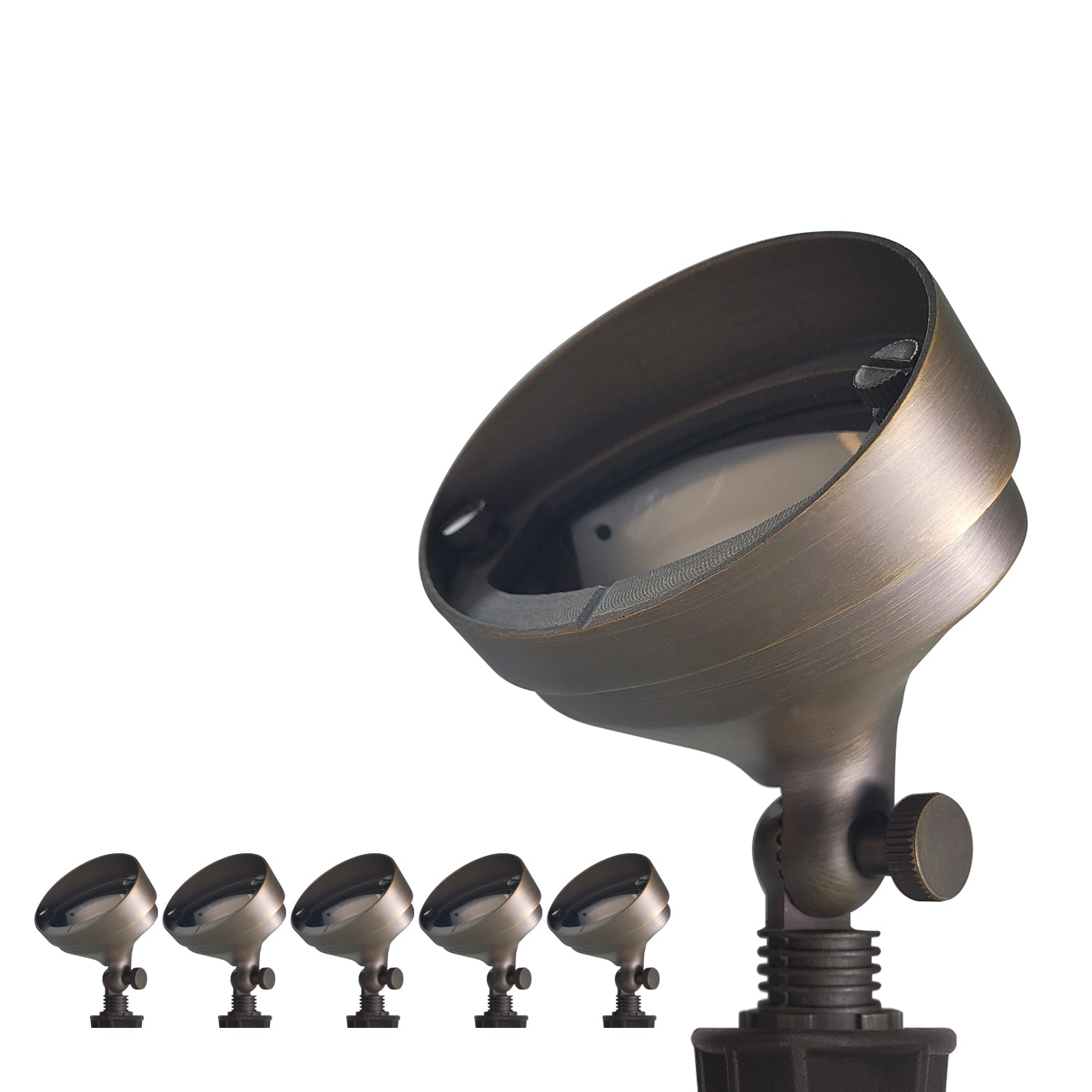

Brass Oval Flood Lights,Landscape Wall Wash Lighting COF501B
👉Subscribe to get $10 off on your first order!
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- With Vertical 180-degree, horizontal 360 degree adjustable knuckles, can adjust the angle of the lighting easily.
- Uses halogen lamps up to 20w or rated LED G4(Optional), it emits a soft and warm 2700K light, providing a comfortable experience.
- A high-quality PVC ground stake with cut makes it easy and stable for outdoor ground mounting.
Description

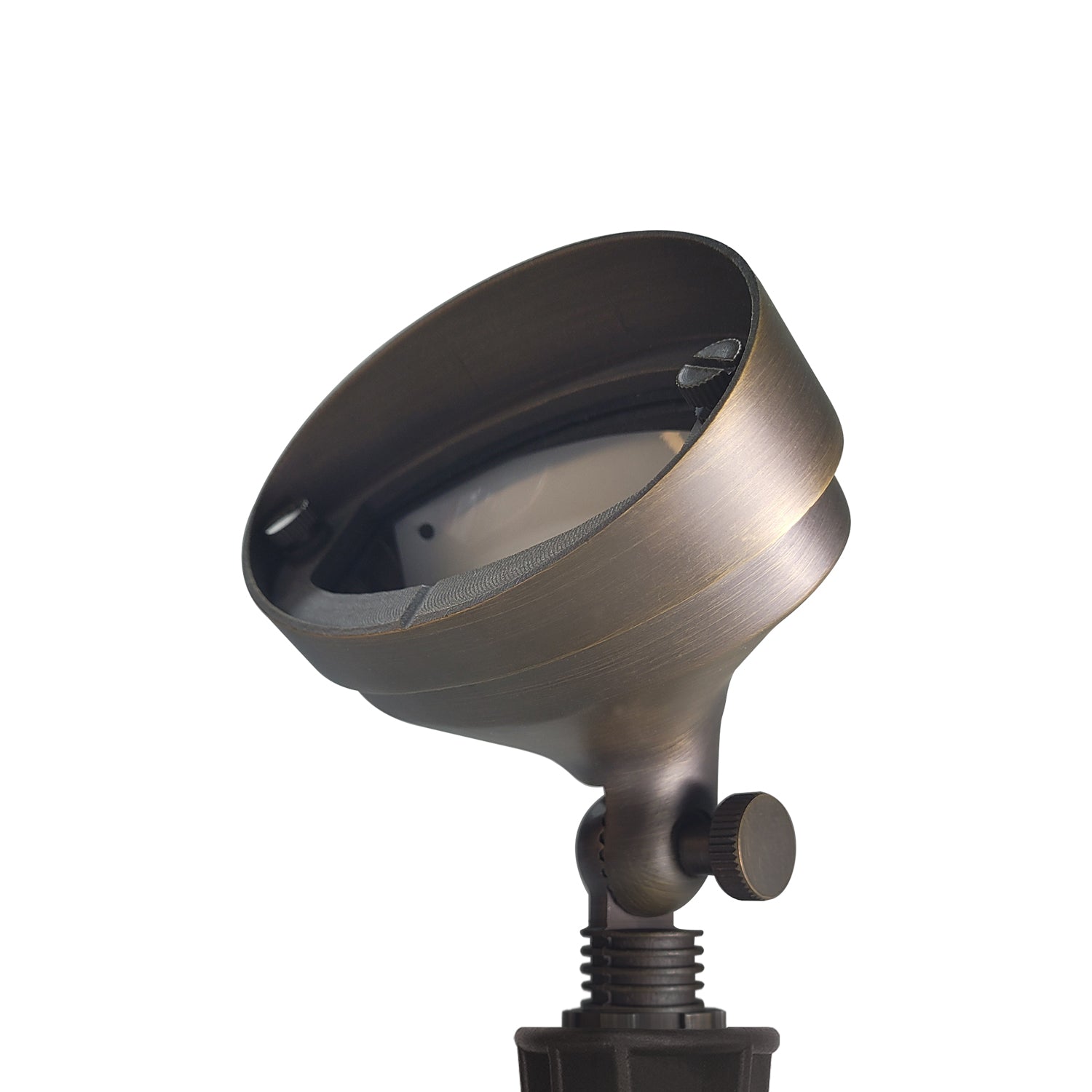

12V Low Voltage Die-Cast Brass Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify the spread of light. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with G4 LED or halogen bi-pin bulbs up to 20W (not included).
Low Voltage Flood Light: The flood light fixture is ETL Listed to guarantee customers' safety. Operating at AC/DC 12V low input voltage, the fixture is safe for children or pets in the surrounding area. Use a 12-24V low-voltage transformer to power this flood light (transformer is sold separately).
Gentle Illumination: This compact cast brass fixture is ideal to softly illuminate small to medium objects and landscape features. An adjustable shade that can move up and down allows for modification of the spread of light. The ceramic white paint underneath the shade provides maximum photometric performance. If you choose without bulb fixture, you need to purchase the G4 bulb separately.
Professional Grade: Don’t worry about a powder coating, paint or finish that wears off or peels. The flood light fixture is made from solid cast brass that is corrosion-resistant. It includes a 6-foot 18 AWG lead wire to reduce corrosion and extend the fixture’s lifespan. The machine threaded body screws tightly onto an O-ring. A silicone plug at the lead wire exit prevents ground moisture from entering through the stem.
Easy Installation: Our professional grade products are field tested for durability and ease of installation. The fixture is simple to run, even for people with no prior experience with low-voltage lighting.
Lifetime Warranty: Using state-of-the-art components, COLOER landscape lights are built to meet the highest standards of construction and performance. We offer a lifetime warranty on the brass light fixture. We stand behind our product with our top-rated customer service. Please don't hesitate to contact us if you have any issues.

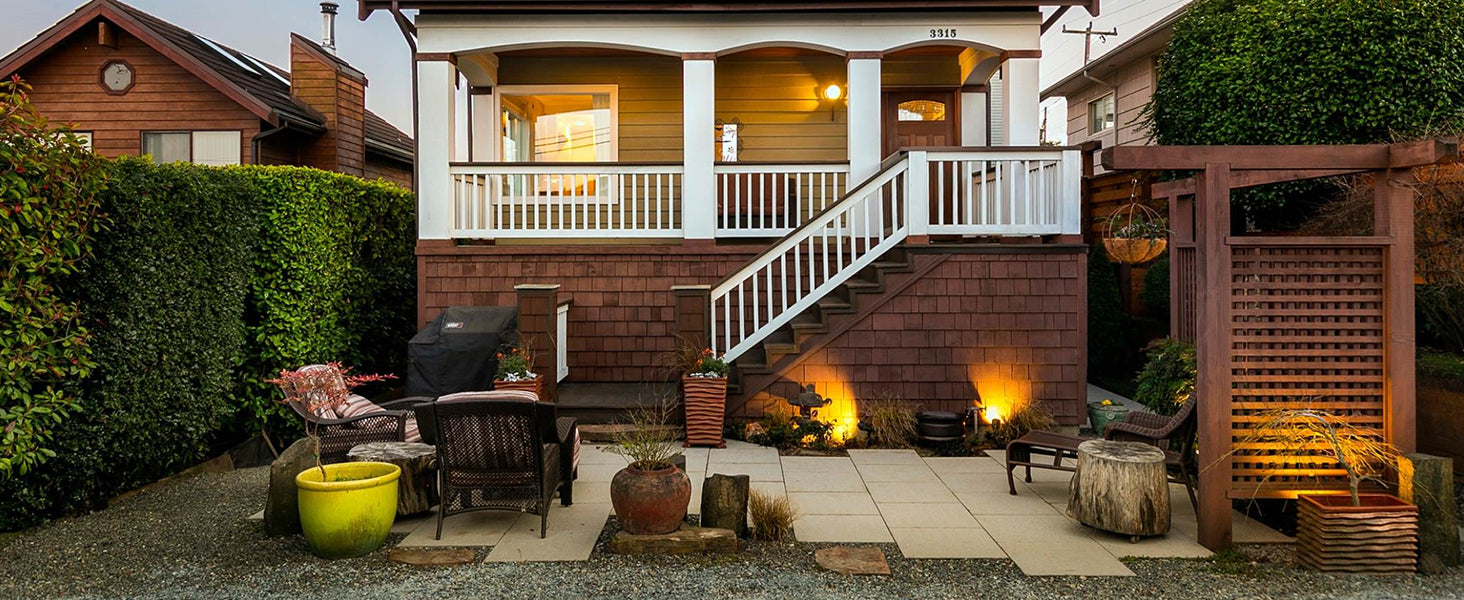

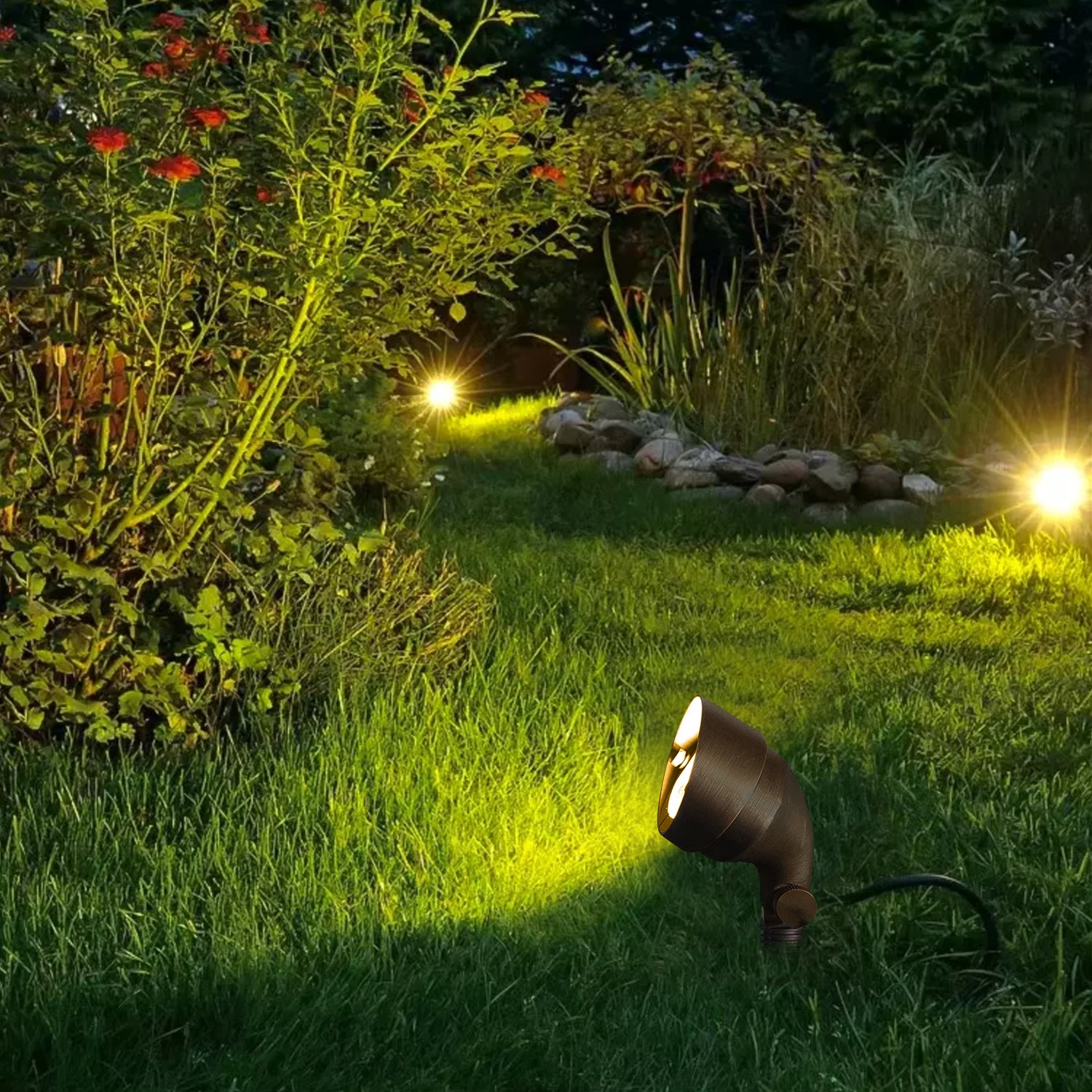

These brass floodlights can provide ample illumination for residential purposes or part areas around commercial buildings at night. It's a good choice for any of your up-lighting applications.
Specifications
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 4.25"L x 3.38"W x 5.5"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: G4 LED Bulb | Wattage: 2 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 180 Lumen | Beam Angle: 360D | Lens: Clear/Frosted Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Item Weight: 1.6 Pounds | Light Adjustable: Vertical 180°& Horizontal 360° | Color Rendering Index (CRI): >85 |
| Water Resistance: Silicone O-Ring | Warranty Type: Lifetime | Shape: Oval | Indoor/Outdoor Usage: Outdoor |
| Style: Modern | Installation Type: Ground Stake | Finish Type: Polished | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Ground Stake, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |

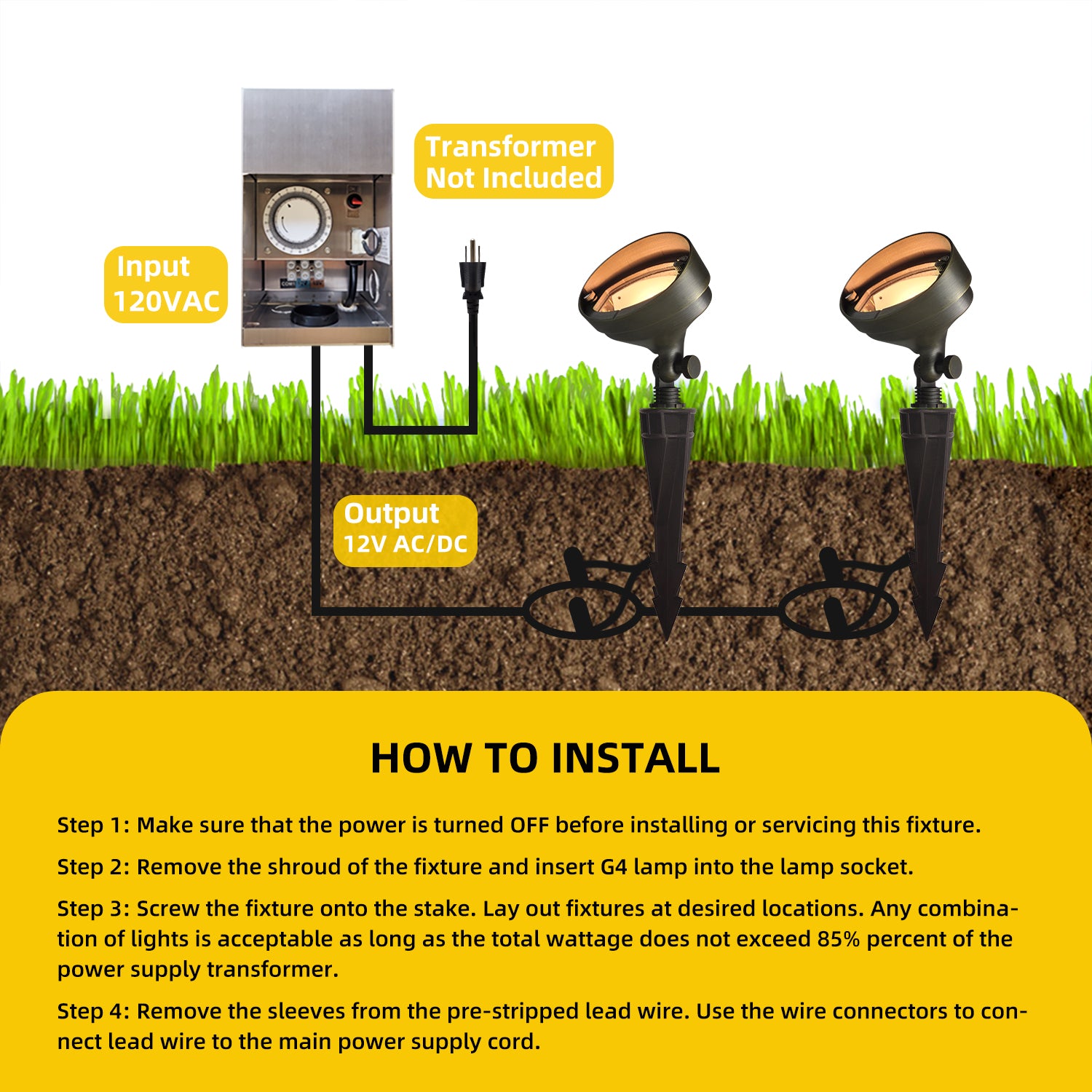

How to Install
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

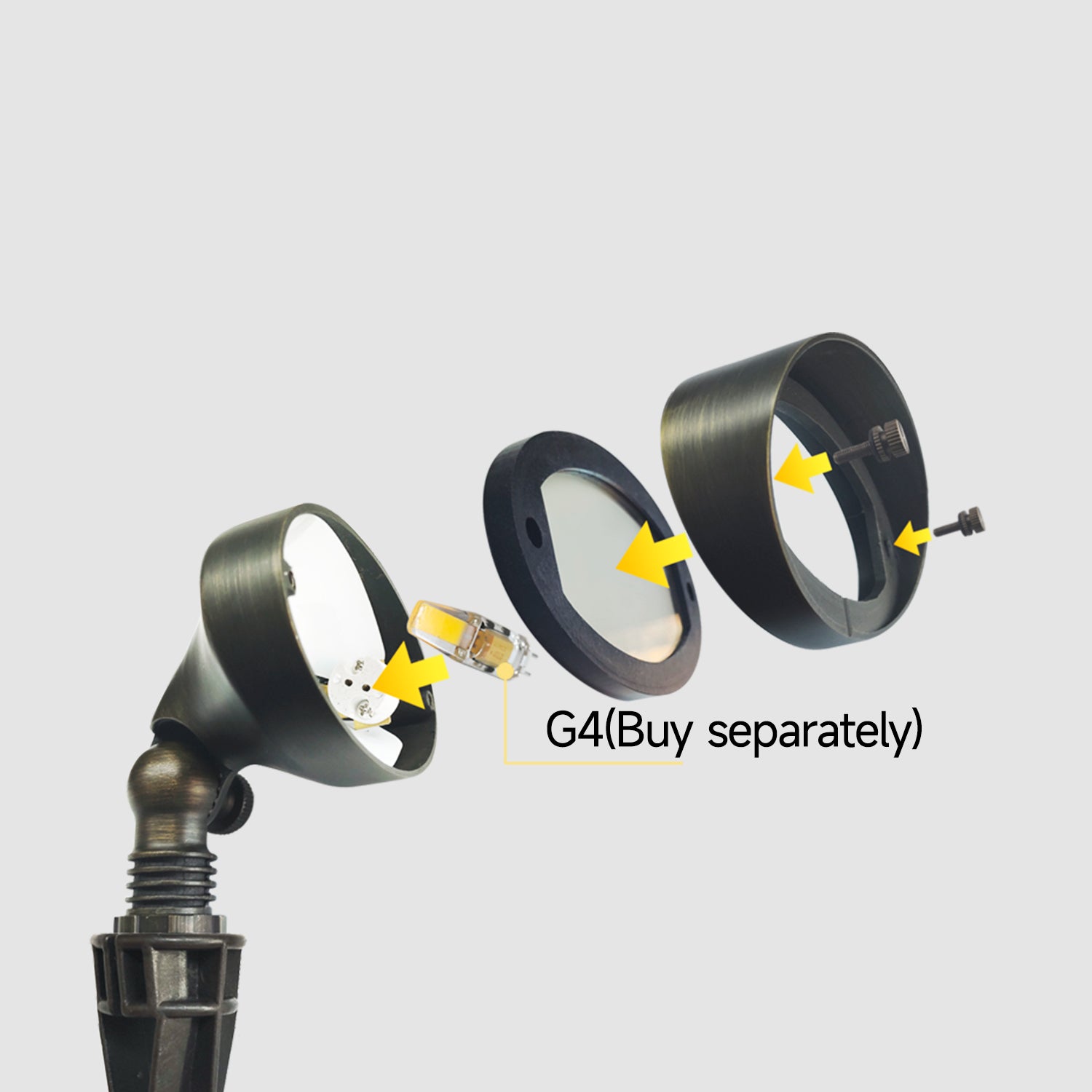

Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)
NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Downloads
12V Low Voltage Die-Cast Brass Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify the spread of light. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with G4 LED or halogen bi-pin bulbs up to 20W (not included).
Low Voltage Flood Light: The flood light fixture is ETL Listed to guarantee customers' safety. Operating at AC/DC 12V low input voltage, the fixture is safe for children or pets in the surrounding area. Use a 12-24V low-voltage transformer to power this flood light (transformer is sold separately).
Gentle Illumination: This compact cast brass fixture is ideal to softly illuminate small to medium objects and landscape features. An adjustable shade that can move up and down allows for modification of the spread of light. The ceramic white paint underneath the shade provides maximum photometric performance. If you choose without bulb fixture, you need to purchase the G4 bulb separately.
Professional Grade: Don’t worry about a powder coating, paint or finish that wears off or peels. The flood light fixture is made from solid cast brass that is corrosion-resistant. It includes a 6-foot 18 AWG lead wire to reduce corrosion and extend the fixture’s lifespan. The machine threaded body screws tightly onto an O-ring. A silicone plug at the lead wire exit prevents ground moisture from entering through the stem.
Easy Installation: Our professional grade products are field tested for durability and ease of installation. The fixture is simple to run, even for people with no prior experience with low-voltage lighting.
Lifetime Warranty: Using state-of-the-art components, COLOER landscape lights are built to meet the highest standards of construction and performance. We offer a lifetime warranty on the brass light fixture. We stand behind our product with our top-rated customer service. Please don't hesitate to contact us if you have any issues.
These brass floodlights can provide ample illumination for residential purposes or part areas around commercial buildings at night. It's a good choice for any of your up-lighting applications.
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 4.25"L x 3.38"W x 5.5"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: G4 LED Bulb | Wattage: 2 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 180 Lumen | Beam Angle: 360D | Lens: Clear/Frosted Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Item Weight: 1.6 Pounds | Light Adjustable: Vertical 180°& Horizontal 360° | Color Rendering Index (CRI): >85 |
| Water Resistance: Silicone O-Ring | Warranty Type: Lifetime | Shape: Oval | Indoor/Outdoor Usage: Outdoor |
| Style: Modern | Installation Type: Ground Stake | Finish Type: Polished | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Ground Stake, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)
NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

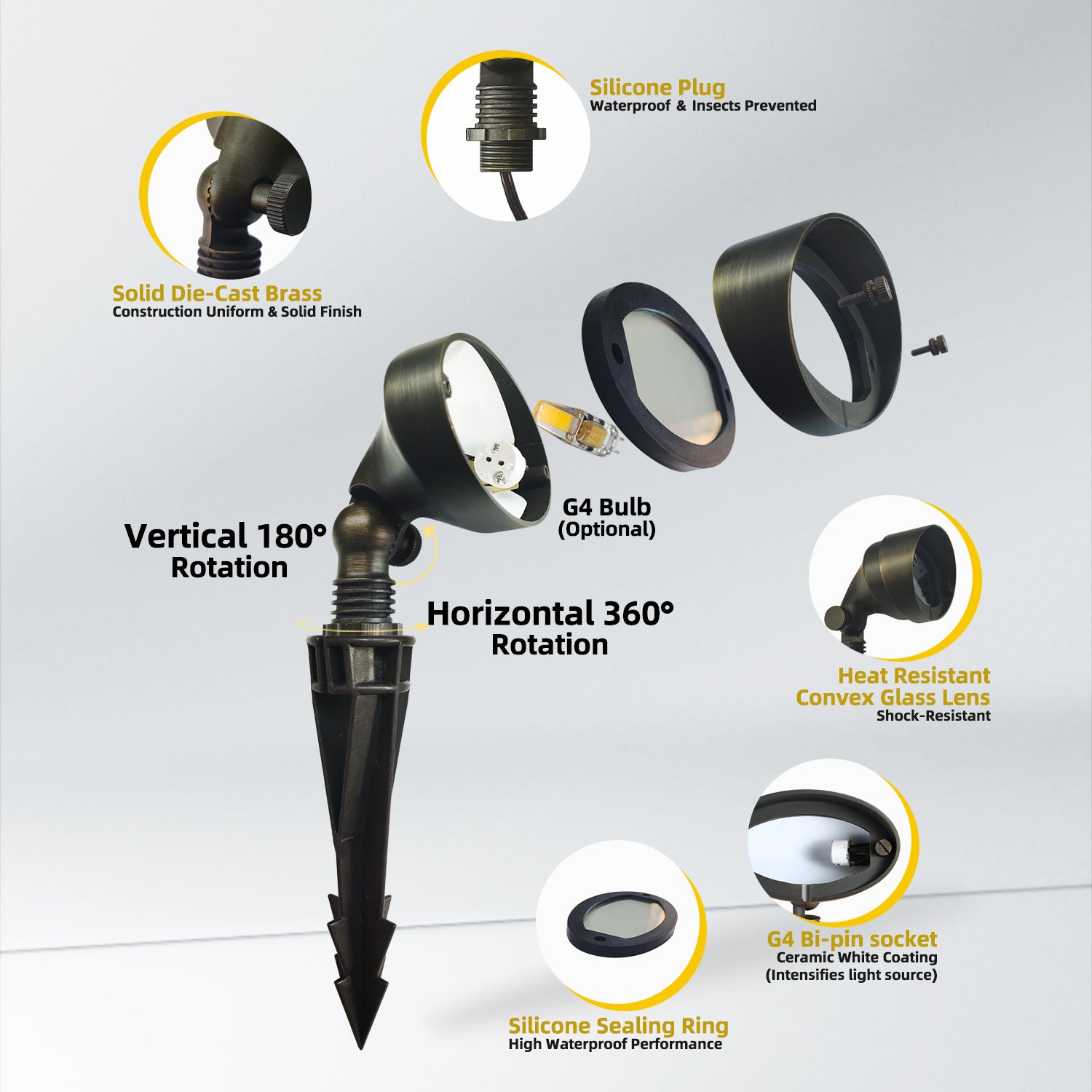

Low Voltage Brass Outdoor Flood Lights
Silicone Waterproof Sealing Ring

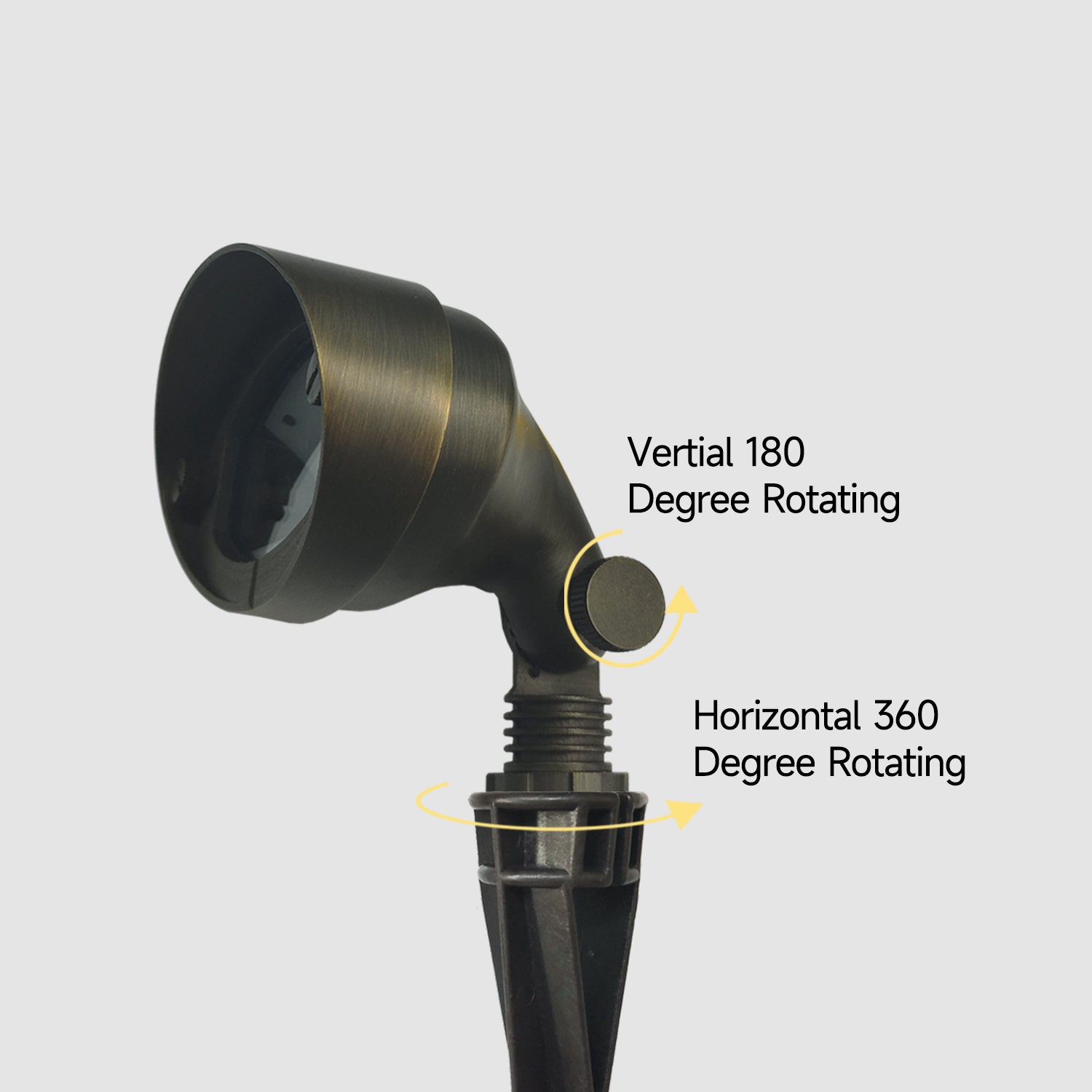

Vertical 180°& Horizontal 360°
Clear or Frosted Lens
Anti-ponding Recess

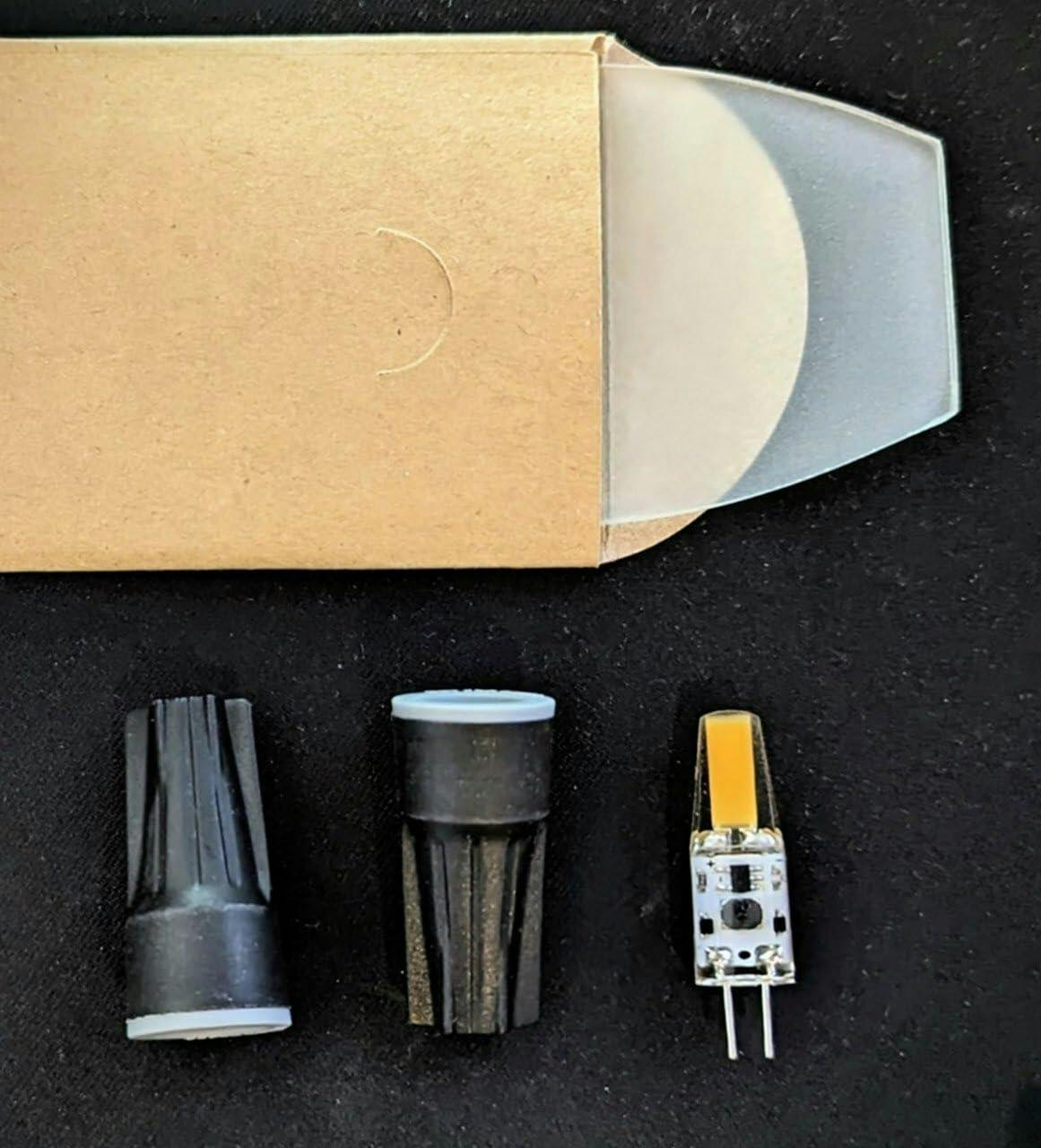

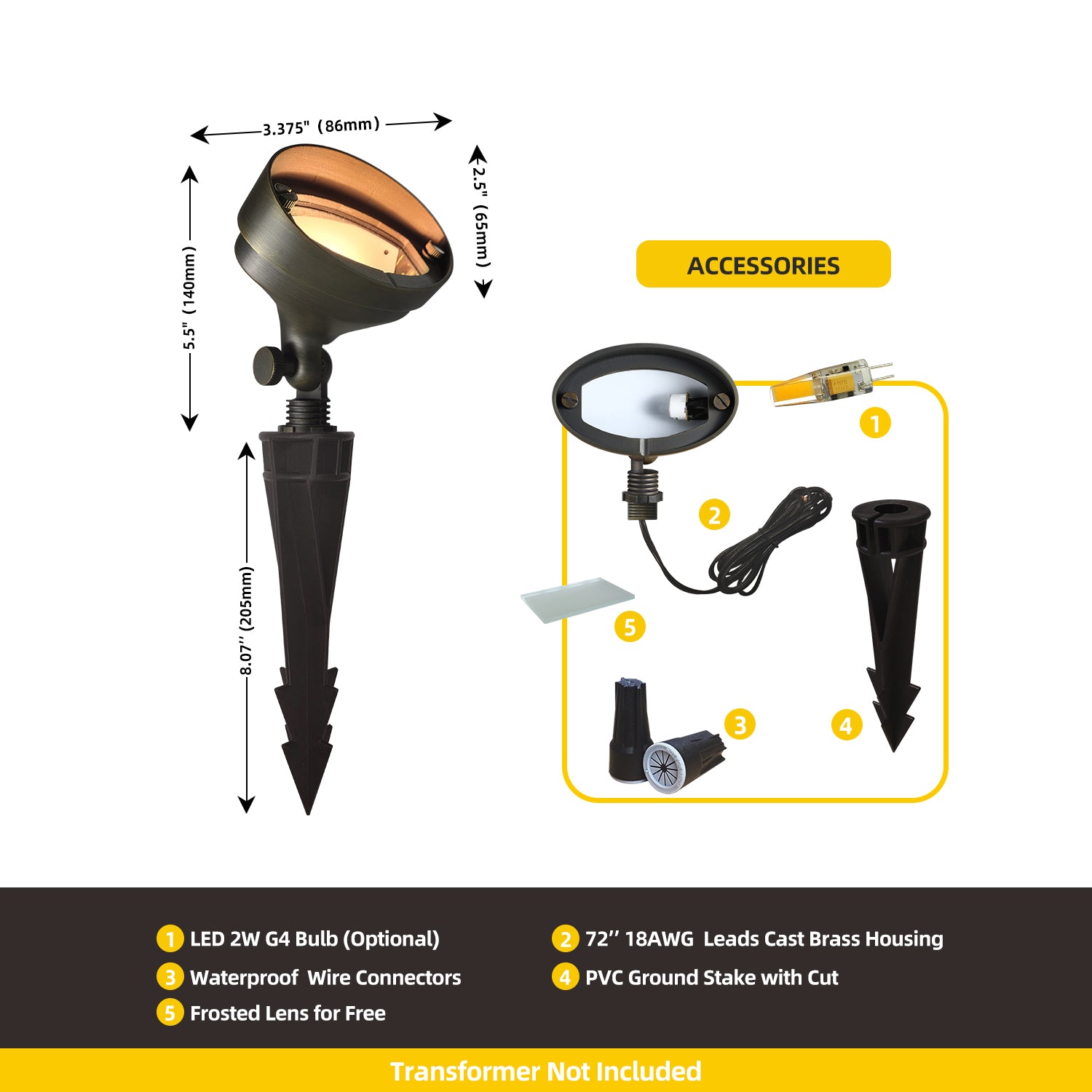

What included in the box
- Main Fixture
- LED G4 Bulb
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime

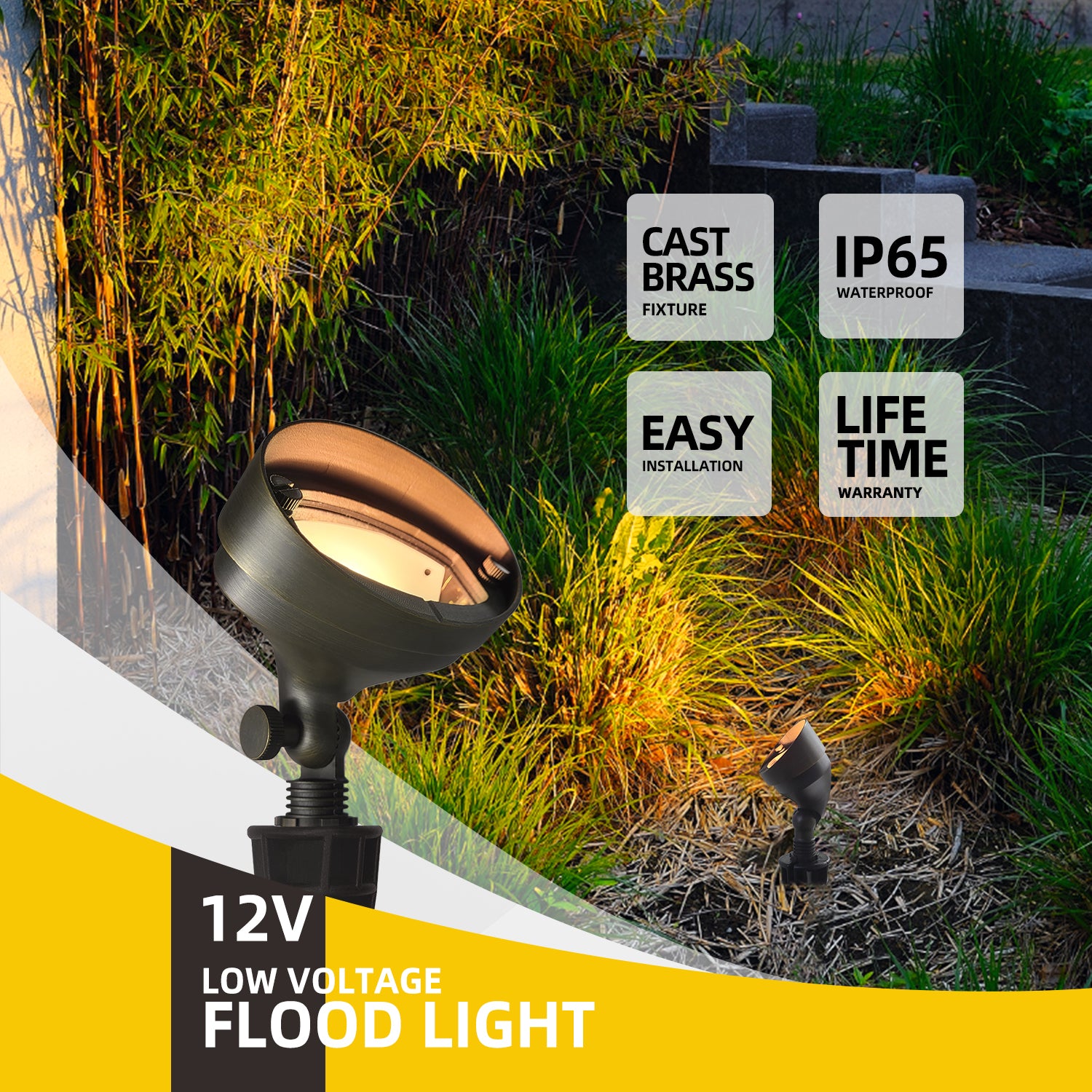

12V LOW VOLTAGE
DIE-CAST BRASS
Solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light. Ceramic white paint under shade for maximum photometrics. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with G4 LED or halogen bi-pin bulbs up to 20W (not included).
Uniform Finish
Die-cast brass flood light with 6-foot 18 AWG lead wire and two waterproof wire connectors.
Adjustable
Vertical 180 degrees, horizontal 360 degrees, you can adjust the height of the light by yourself.

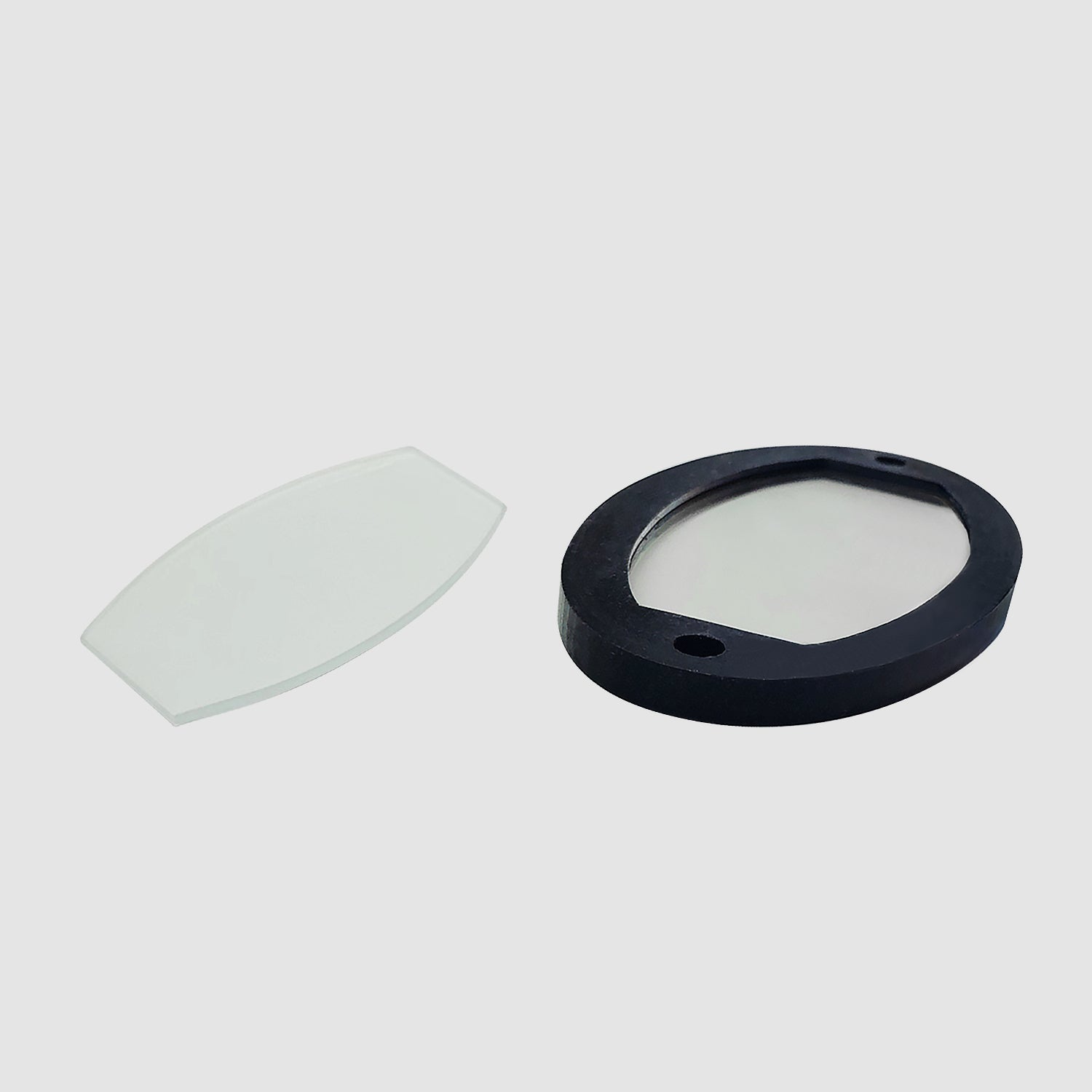

Clear or Frosted Lens
Clear or frosted 2 lenses can be used to adjust brightness.

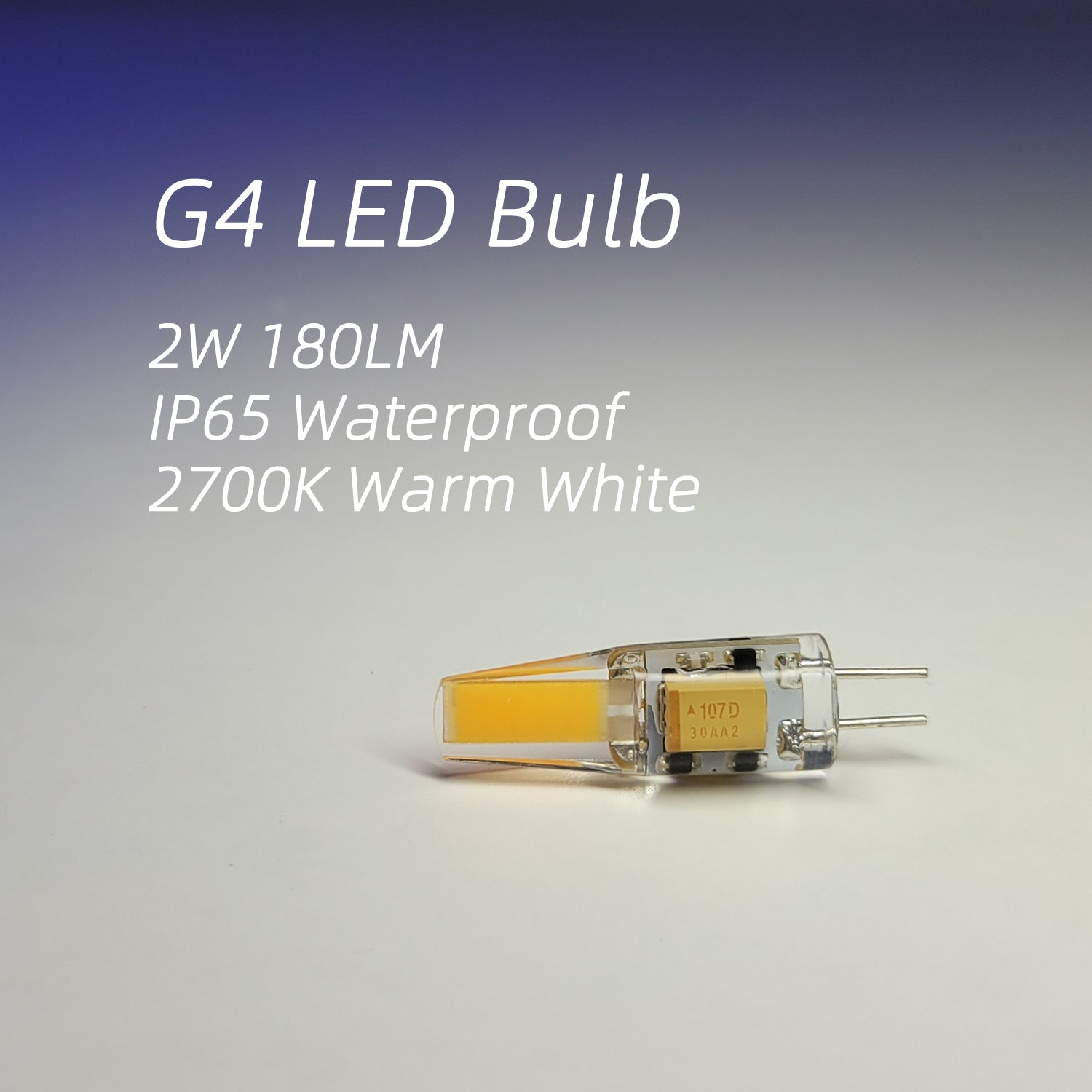

G4 Bulb Socket
The light source can use G4(Optional) or halogen bi-pin bulbs up to 20W.
Flood Lights Series
- There's no powder coating, paint, or finish to wear off or peel - just solid cast brass that does not corrode. Includes a 6-foot 18 AWG lead wire to reduce corrosion and increase fixture longevity. Machine-threaded body screws tight onto an O-ring. The silicone plug at the lead wire exit prevents ground moisture from entering through the stem.
- Our professional-grade products are field-tested for durability and ease of installation. Pretty simple to run, even for people with no prior experience with low-voltage lighting.
- This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Adjustable shade moves up and down to modify the spread of light.
COF502B
COF503B
COF504B
3.8"L x 2.1"W x 5"H
5.12"L x 4.2"W x 5.98"H
5.31"L x 4.65"W x 8.24"H
1.6 pounds
3.6 pounds
2.5 pounds
Die-cast brass
Die-cast brass
Die-cast brass
G4 / 2W / 2700K / 180LM
G4 / 2W / 2700K / 180LM
PAR36 / 10W / 2700K / 800LM
360D
360D
360D
9-17V AC/DC
9-17V AC/DC
9-17V AC/DC
Antique Bronze
Antique Bronze
Antique Bronze
COLOER Die-cast Brass 12V Low Voltage Outdoor Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light.
This product is rated 4.8 of 5.0 stars.
It has received 60 reviews.
Customer Reviews
Wow, the low voltage lights are very nice. Heavy and solid. All parts included. Stake in the boxes! Look fabulous and work as described. Highly recommend!
The pictures of this COLOER landscape light clearly show and state that an ABS stake is included, however this seems to be an error because no stake is included, and the packaging is not even large enough to have ever included a stake.
So long as you know you need to buy stakes separately, these are nice high quality brass lights, with a bright silicone G4 bulb included. There is even a frosted glass lend included that can be swapped out with the original clear glass or saved as a backup in case the clear lens breaks.
The light has two thick silicone seals, one seal under the glass lens, and one seal in the stem to seal the wire entry/exit. These seals are effective at keeping water out, but I'm not sure if there is a way for condensate to drain or humidity vent. Hopefully this won't be an issue, I will update this review after a few months of use in the summer if it is.
We decided to get these lights for our backyard, and they've made a significant impact, transforming it into a beautiful nighttime oasis. It's amazing how just a few lights can make such a difference in the ambiance. Considering the remarkable change they've brought, we're now contemplating ordering a few more to further enhance the atmosphere.
I am thoroughly impressed by these floodlights. Residing in a wooded area where darkness prevails at night, I previously relied on solar lights. However, they often fell short in providing adequate illumination, particularly on rainy days or nights. The installation process for these lights was surprisingly effortless. Despite being a first-time installer, I completed the setup in under an hour, which included mounting a transformer. I wholeheartedly recommend these lights to anyone seeking reliable and effective lighting solutions.
Excellent manufacturing and materials used - very well made to last a very long time - very easy to assemble plus will be easy to replace the lamp (should that be needed). The "Warm White" is the perfect color for pathway lighting. Purchased a set of 8 and like them so much I have just purchased another 16 of them! I have installed and used a lot of different types and styles but this is the best one I have found (value for cost of light) - updating all of my landscape lights to these.
Still have questions?
We are here to help
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
Q & A
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 360 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 180 lumen and 2700K.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this light?
Yes, our landscape lights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Do these come in white?
The light fixtures are bronze, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Any question?
You can contact us through our contact page! We will be happy to assist you.
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 360 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 180 lumen and 2700K.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this light?
Yes, our landscape lights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Do these come in white?
The light fixtures are bronze, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Any question?
You can contact us through our contact page! We will be happy to assist you.
