600W (12V-13V-14V-15V-16V-17V-18V,22V) Multi-Tap Low Voltage Transformer COT703S

Sale price$245.99 USD

👉Subscribe to get $10 off on your first order!

  • All-Weather Durability: Waterproof stainless steel enclosure for reliable indoor and outdoor use.
  • Built-In Safety: 13A magnetic circuit breakers ensure smooth operations in any environment.
  • High-Performance Core: Efficient toroidal core design for reliable power management.
  • Convenient Functionality: Built-in timer receptacle for controlling the transformer working hours.
  • Enhanced Customization: Optional photocell sensor add-on for advanced sensing capabilities.

Power: 600W
Accessories: With Photocell&Timer
Sale price$245.99 USD

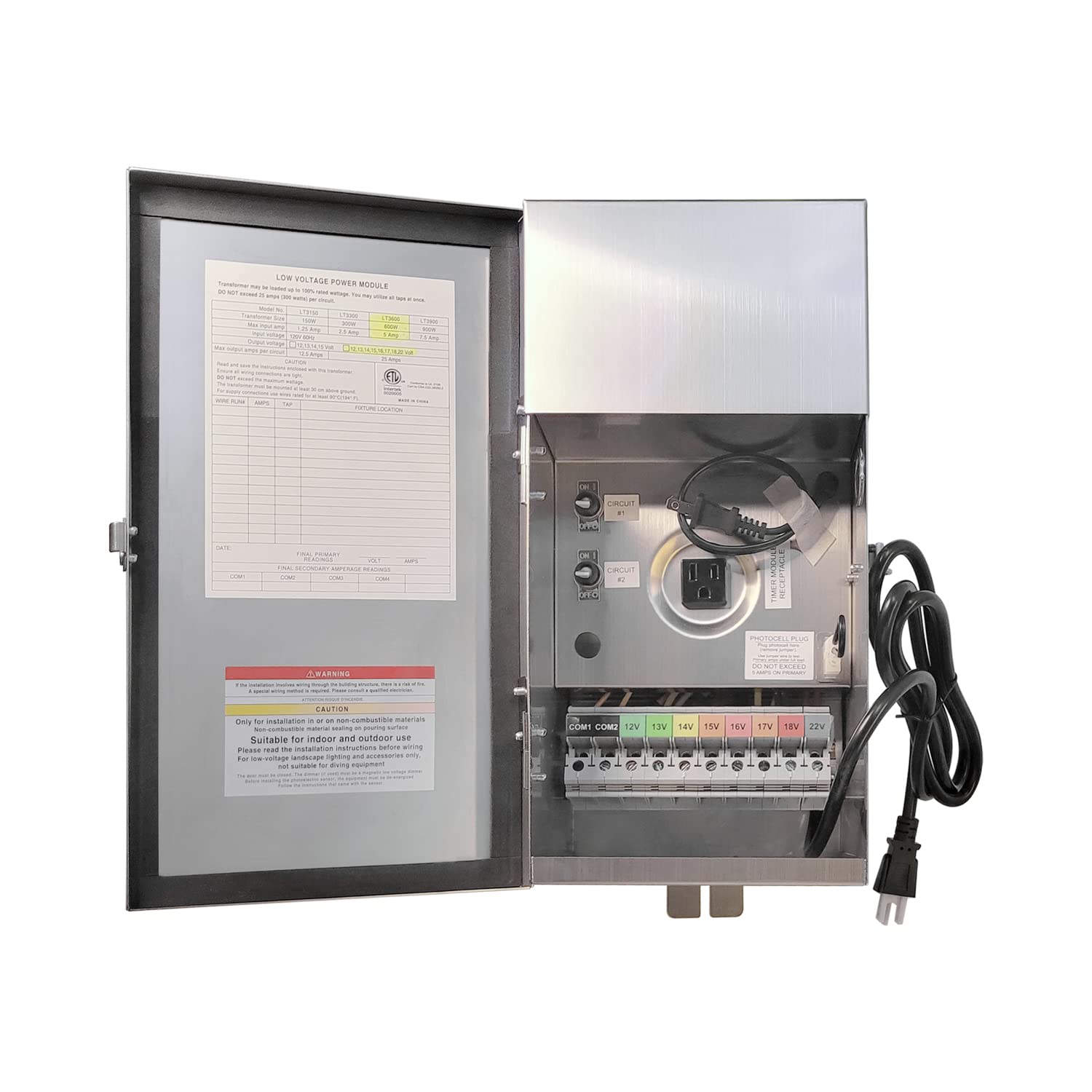

Multi-Tap Low Voltage Transformer for Outdoor Landscape Lighting

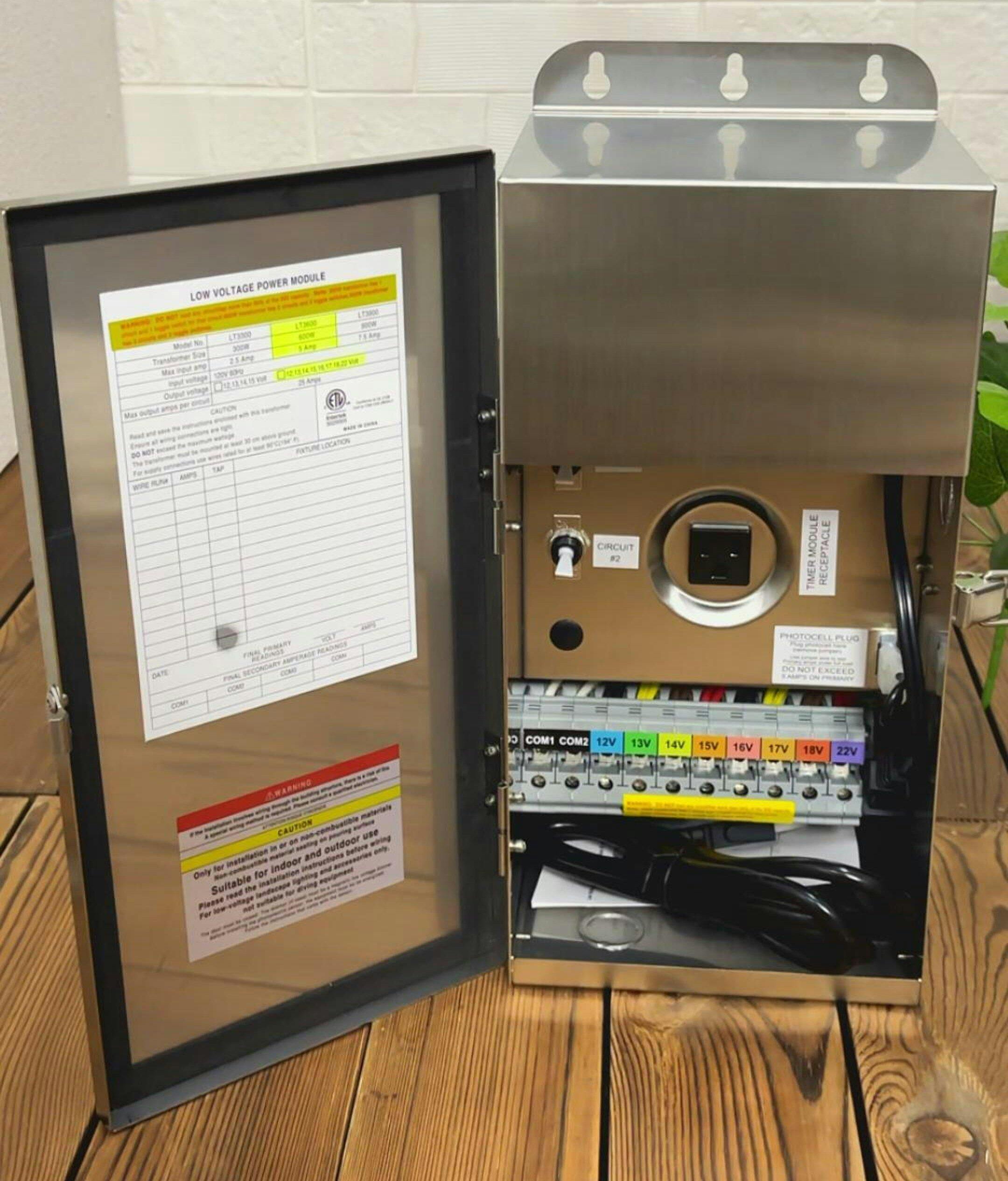

COLOER transformer uses a high-performance toroidal core-quiet operation, great reliability, High-quality heavy-duty stainless steel enclosure, waterproof and corrosion-resistant, and can be used indoors and outdoors. This low-voltage landscape lights transformer is designed with different voltage wiring positions, just connect the wire to the wiring hole of the voltage you need. Stainless steel enclosure and all electrical components are backed by our lifetime warranty.

This low-voltage transformer can transform the 110V or 120V AC into 12/13/14/15/16/17/18/22V AC for landscape lights. Perfect for outdoor landscapes, LED lights, in-ground well lights, hardscape lighting, spotlights, decorative lighting, etc.

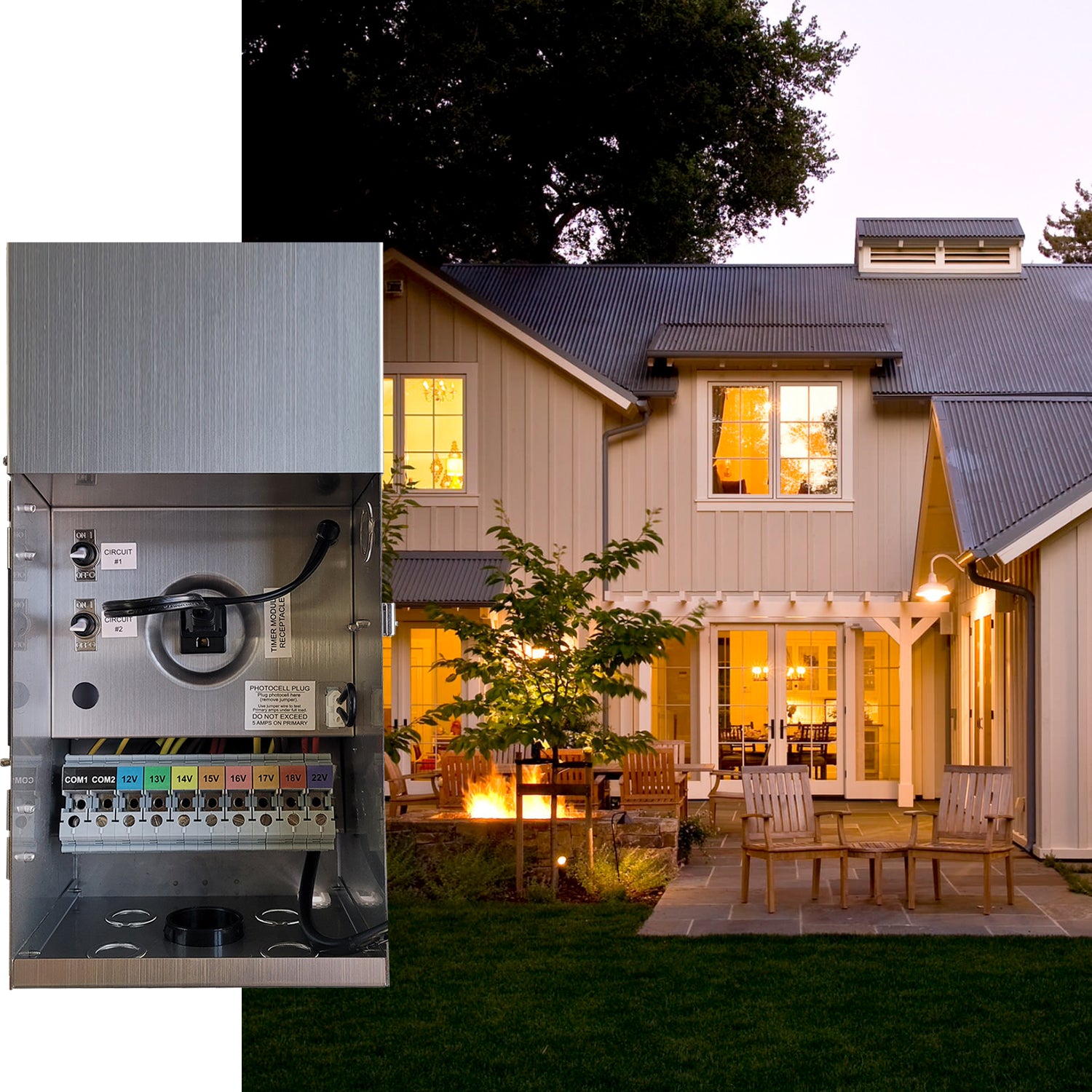

  • Multi-tap Design – This low-voltage landscape lights transformer is designed with different voltage wiring positions, just connect the wire to the wiring hole of the voltage you need. Low voltage transformer designed for use with LED bulbs and fixtures, this is all you need for any small- to medium-sized LED landscape lighting system, with no worry about voltage loss.
  • Waterproof and Durable – High-quality heavy-duty stainless steel enclosure, waterproof and corrosion-resistant, can be used indoors and outdoors.
  • Dual Protection - ETL-listed with built and in circuit breaker, auto reset thermal circuit breaker / secondary: 13A magnetic circuit breaker.

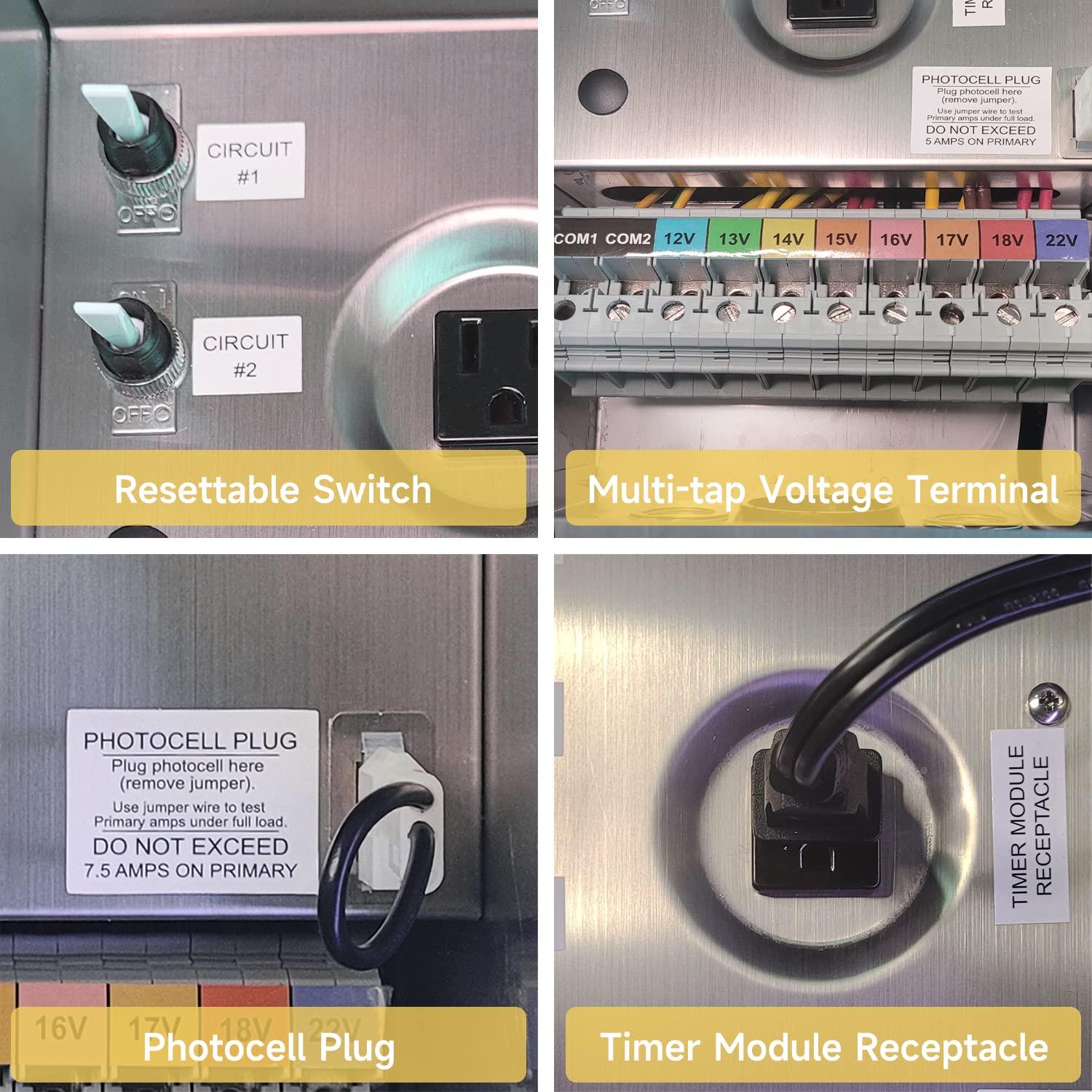

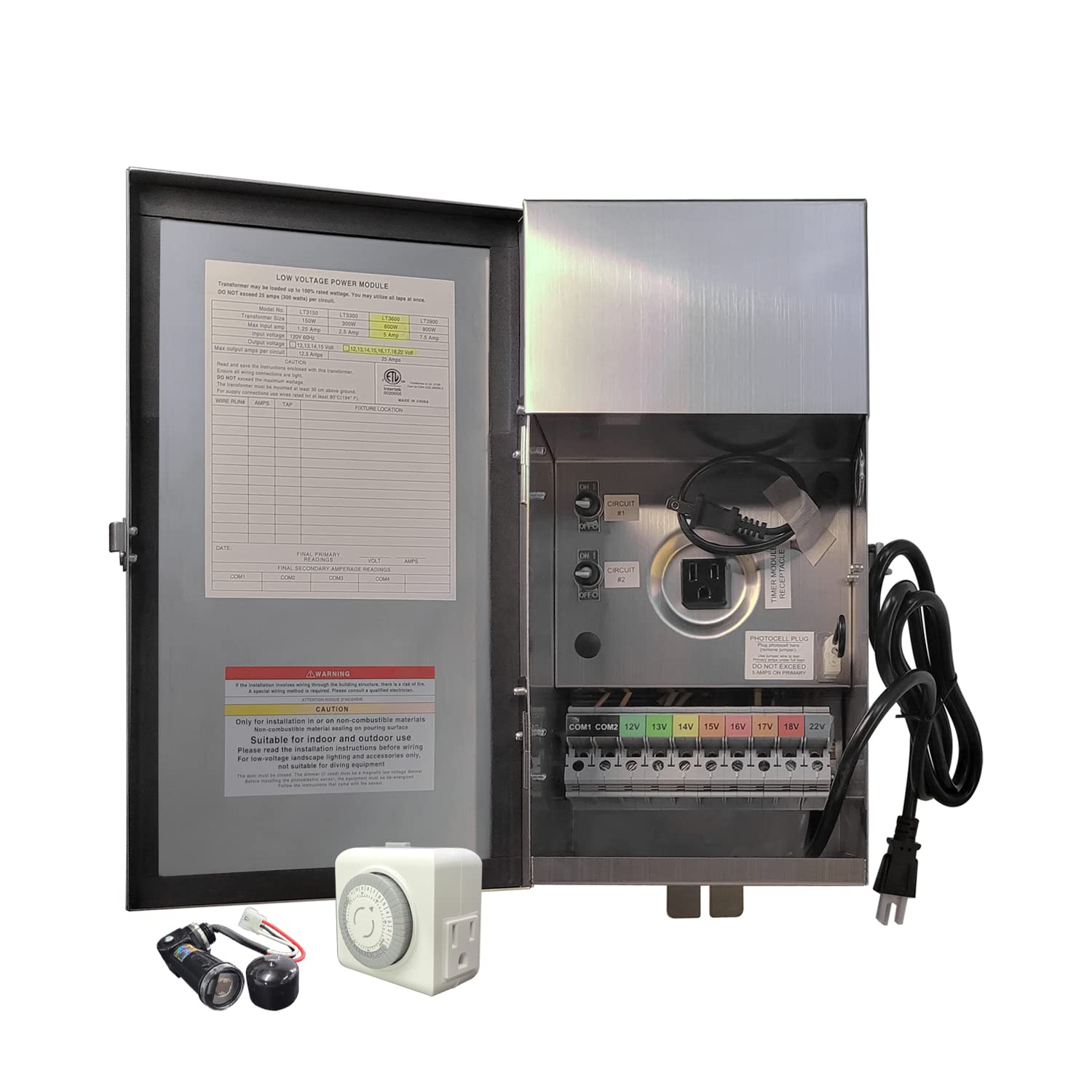

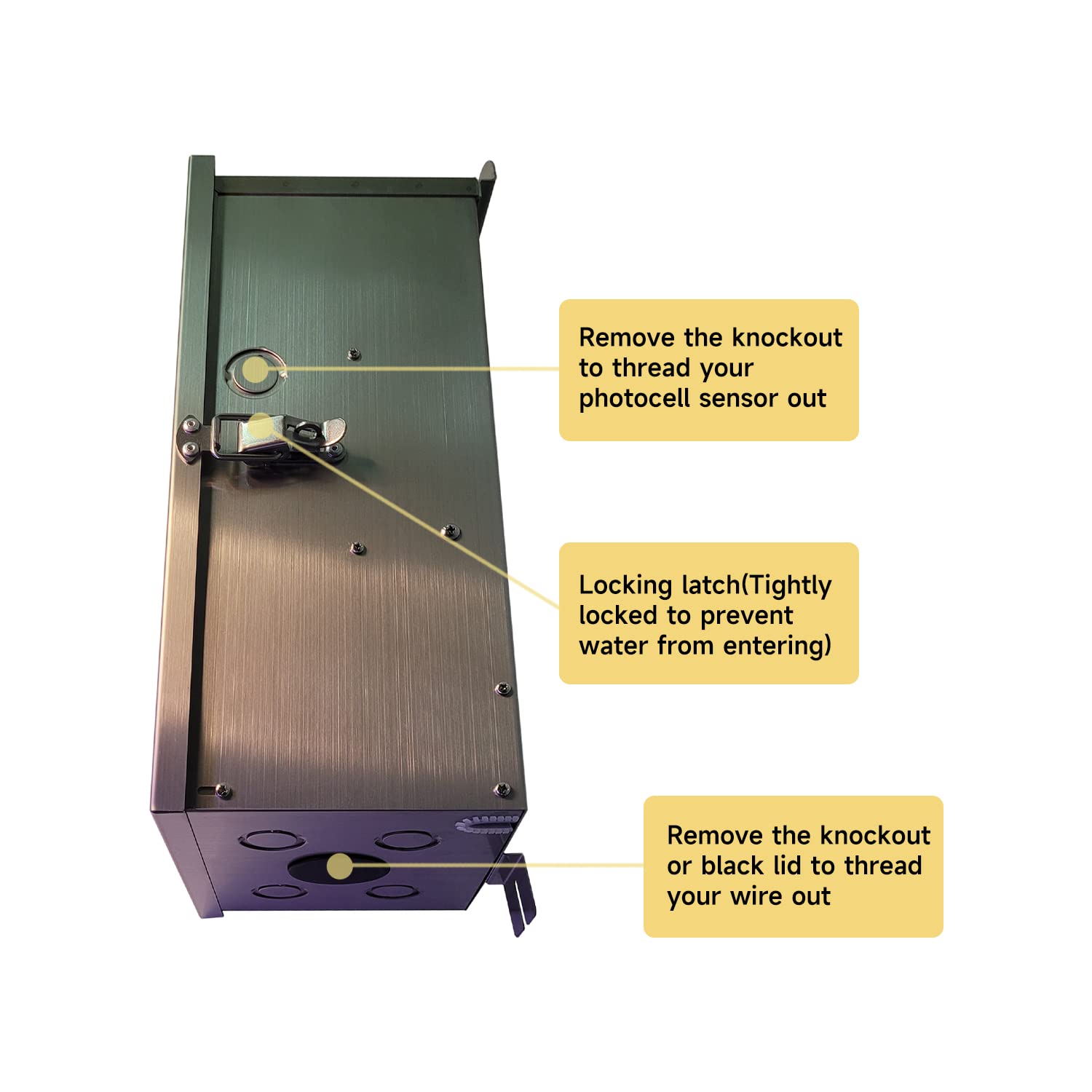

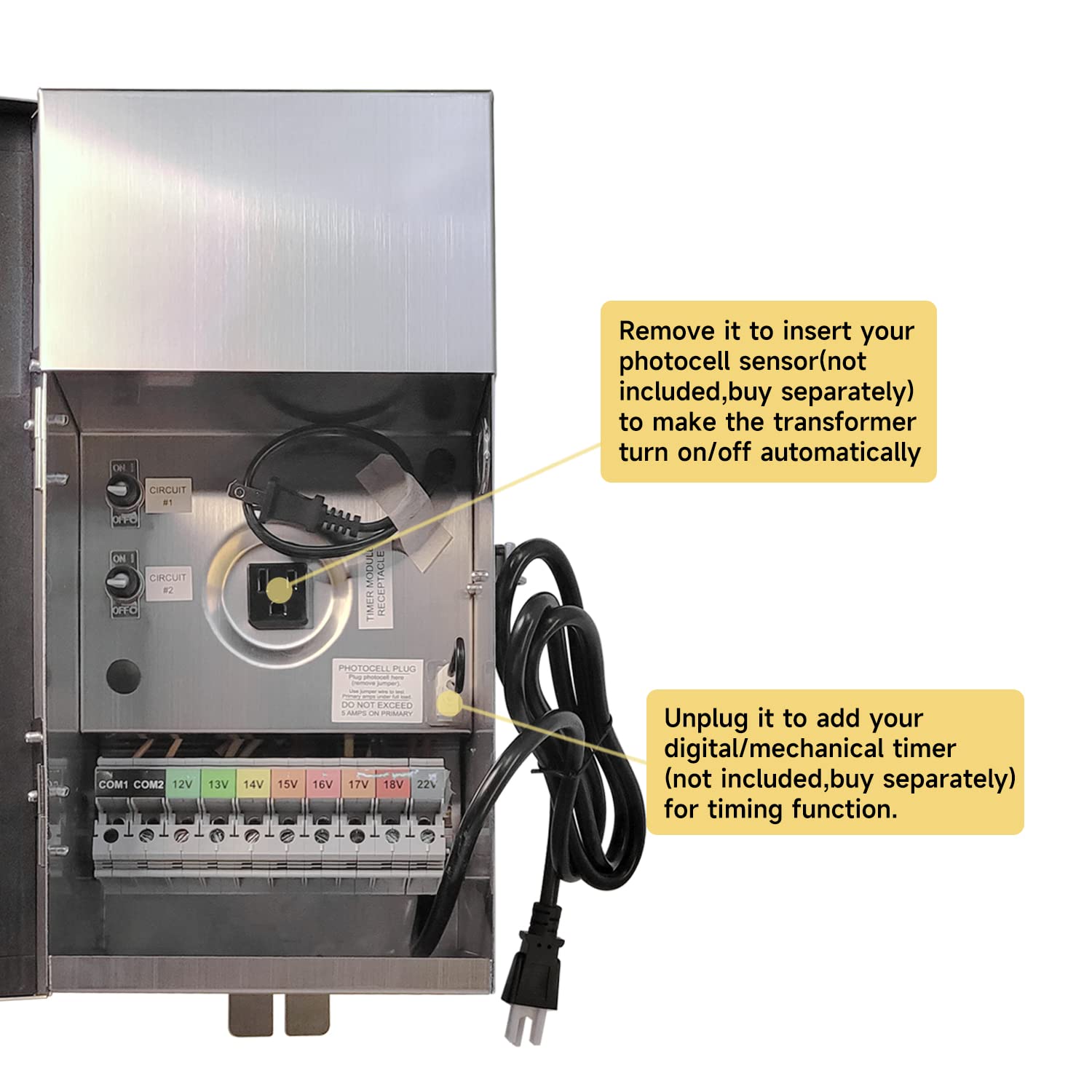

  • Work with Timer & Sensor - Photocell & timer port available, the package includes a mechanical timer and photocell sensing and timing functions. With pre-punched knockouts for photocell, you can easily install it for this transformer. Using a smart socket or WiFi timer, you can remotely control the working hours of the transformer. We suggest not making the Timer & Photocell work at the same time, choose a more suitable accessory for your needs and use it alone.
  • Lifetime Warranty – With an industry-leading warranty, this landscape lighting transformer is designed for a lifetime of worry-free use - we guarantee it. The core, stainless steel enclosure, and all electrical components are backed by our lifetime warranty.

The stainless steel enclosure has excellent hermetic, formability, compatibility, and toughness. The 25A auto-reset magnetic circuit breaker can shield the transformer from shock damage. It also can be rainproof and against all weather.

What included in the box

  • 600W Multi-Tap Low Voltage Transformer
  • User Manual

How long can I receive it

  • We have CA/FL two warehouses for service
  • We will arrange delivery nearby
  • You will receive the goods in 3-5 workdays

How long is the warranty

  • Transformers: Lifetime
  • Brass Fixture: Lifetime
  • LED Bulbs: 5 Years
  • Aluminum Fixture: 5 Years

120V 50/60Hz Input Voltage

Stainless Steel

This transformer use high performance toroidal core - quiet operation, great reliability, High-quality heavy duty stainless steel enclosure, waterproof and corrosion-resistant, can be used indoors and outdoors. This low voltage landscape lights transformer is designed with different voltage wiring positions, just connect the wire to the wiring hole of the voltage you need. Stainless steel enclosure and all electrical components are backed by our lifetime warranty.

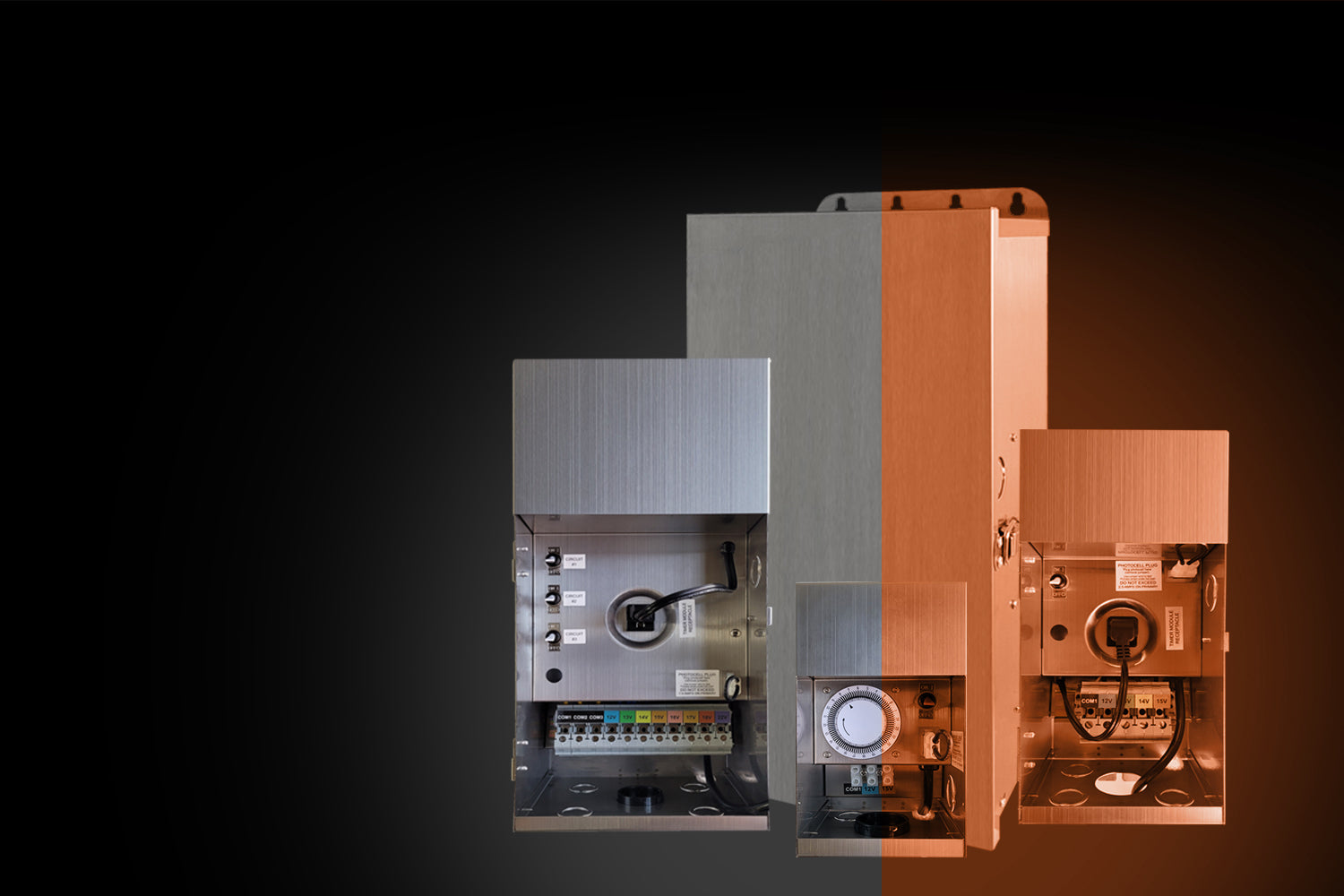

Transformers Series

75W/150W/300W/600W/900W

  • Dual Protection - ETL-listed with built and in circuit breaker, auto reset thermal circuit breaker / secondary: 13A magnetic circuit breaker. Work with Timer and Sensor.
  • Waterproof and Durable - High-quality heavy-duty stainless steel enclosure, waterproof and corrosion-resistant, can be used indoors and outdoors.
  • Easy Installation - The low voltage landscape lights transformer is designed with different voltage wiring positions, just connect the wire to the wiring hole of the voltage you need. Low voltage transformer designed for use with LED bulbs and fixtures, this is all you need for any small to medium-sized LED landscape lighting system, with no worry about voltage loss.

100W/200W

  • Compatible with small or medium-sized 12V low-voltage LED and halogen landscape lighting systems.
  • Built-in photocell sensor and timer.
  • Sliding lid design, makes it easier for you to adjust different Settings, and protects the switch of the transformer.
Dimensions

6.9"L x 4.5"W x 4.5"H

6.1"L x 5.28"W x 11.61"H

11.61"L x 6.1"W x 5.28"H

Weight

6.6 Pounds

11 Pounds

18 Pounds

Material

Stainless Steel

Stainless Steel

Stainless Steel

Voltage Taps

12V/15V

12V/13V/14V/15V

12V/13V/14V/15V

Input Voltage

120V 50/60Hz

120V 50/60Hz

120V 50/60Hz

Warranty

Lifetime

Lifetime

Lifetime

01

How to Choose Transformer

To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.

TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1

Select a transformer that matches as close as possible to calculation shown above.

Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

01

How to Choose Transformer

To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.

TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1

Select a transformer that matches as close as possible to calculation shown above.

Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

Customer Reviews

Based on 54 reviews
85%
(46)
15%
(8)
0%
(0)
0%
(0)
0%
(0)
r
robert j turi
Excellent Landscape Transformer

This unit is extremely capable of producing serious voltage supply to landscape lights with the need for supplemental transformers. The multiple volt choices to connect lighting wire is great so you can compensate for voltage drop over the run of wire. Simple math will tell you what socket to hook your wire to based on number of lights (watts) and linear feet of wire to last fixture on the lighting chain of wire.

S
Sandman
Seems to work well so far

Straightforward and effortless to install. The dawn to dusk functionality surpasses that of my old (and I mean really old) power supply. While I can't comment on its longevity yet as I've only had it for about a month and a half, it's worth noting that it hasn't faced the intense heat of the south yet; the true test will come in the summer months. Update: It's been a year now, and I'm pleased to report that this transformer has exceeded my expectations. It continues to operate flawlessly, enduring the relentless sun of the southeast without faltering.

C
CHMAN
Good reliable transformer

You won't find anything simpler than this. Just connect it, and it takes care of the rest for you. I personally utilize the photo sensor option, but you also have the flexibility to use the timer if you prefer.

D
Deborah
Works perfectly!

Newly retired and a landscape lighting beginner, watching videos on how to fix my lights, I realized I needed a new transformer. This product took care of all my needs because I only had a few lights connected. I would buy all products again from this company!

G
Gary
Compact Transforrmer Easy Set Up

Considering its price point, this transformer proved to be a fantastic solution for my needs. Installation and hookup were a breeze, making the process hassle-free. It efficiently powered my 10 landscape lights with ample capacity to accommodate additional fixtures in the future. Without hesitation, I would highly recommend this product to others seeking a reliable and cost-effective transformer for their landscape lighting setup.
