12V Low Voltage Brass Garden Path Lights & Area Light COP602B

Brass Low Voltage LED Path Lights for Outdoor

COLOER solid brass housing makes the outdoor lights for the yard excellent in corrosion resistance and heat dissipation, the fine workmanship makes it tougher, harder, and aesthetics. Projects a large 16' diameter region of illumination. Suitable for wet locations. IP65 waterproof outdoor garden lights, suitable for flowerbeds, walkways, driveways, patios, or any yard area.

Low Voltage Path Light: This bronze finish brass low voltage landscape path lights fixture is ETL Listed to guarantee customers' safety, no worrying about fire hazard. Operating at a 12V AC/DC working voltage, it is safe for children and pets in the surrounding area. This walkway light must be powered by a 12-24V low voltage transformer (not included). Our outdoor garden lights are suitable for flowerbeds,gardens, shrubs, ponds, walkways, driveways, patios or any yard area.

Solid Heavy-duty Brass Structre: Cast brass path light with frosted polycarbonate lens and 6-foot 18AWG, SPT-1 lead wire. Measures 22.88 inches tall with 6.13 inches diameter hat. The solid brass housing ensures excellent corrosion resistance and heat dissipation, while the fine workmanship makes it tougher, harder, and aesthetically pleasing.

Optimal Illumination: This landscaping lights projects a large 16-foot diameter region of illumination, the white ceramic coating under the lampshade brings better lighting and save energy. Equipped with a CRI85+ G4 bulb, it emits a soft and warm 2700K light, providing a comfortable experience. Robust seal with O-ring design and silicone plug at the bottom to stop moisture from entering, suitable for wet locations.

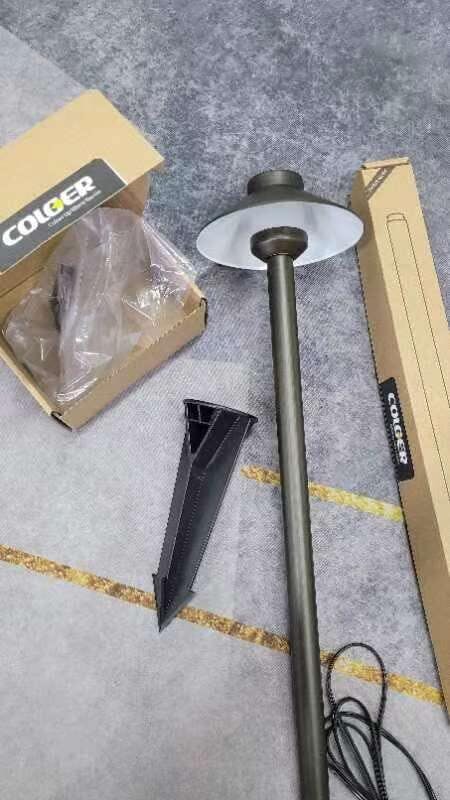

Easy Istallation: This sidewalk lights fixture compatible with G4 lamps up to 20W, you can easily install or replace the bulb. One energy efficient 2W G4 LED bulb,one 8.5" high and 2.87" diameter large PVC ground stake and two waterproof wire connectorsis included. Our professional-grade products are field-tested for durability and ease of installation. Even for those with no prior experience with low voltage outdoor pathway lights, installation is pretty simple.

Llifetime Warranty: Using state-of-the-art components, COLOER landscape lights are built to the highest standards of construction and performance. we offer a lifetime warranty on the brass light fixture and 50,000hrs long lifespan warranty for the led bulb. We stand behind our product with our top rated customer service. Please don't hesitate to contact us if you have any issues.

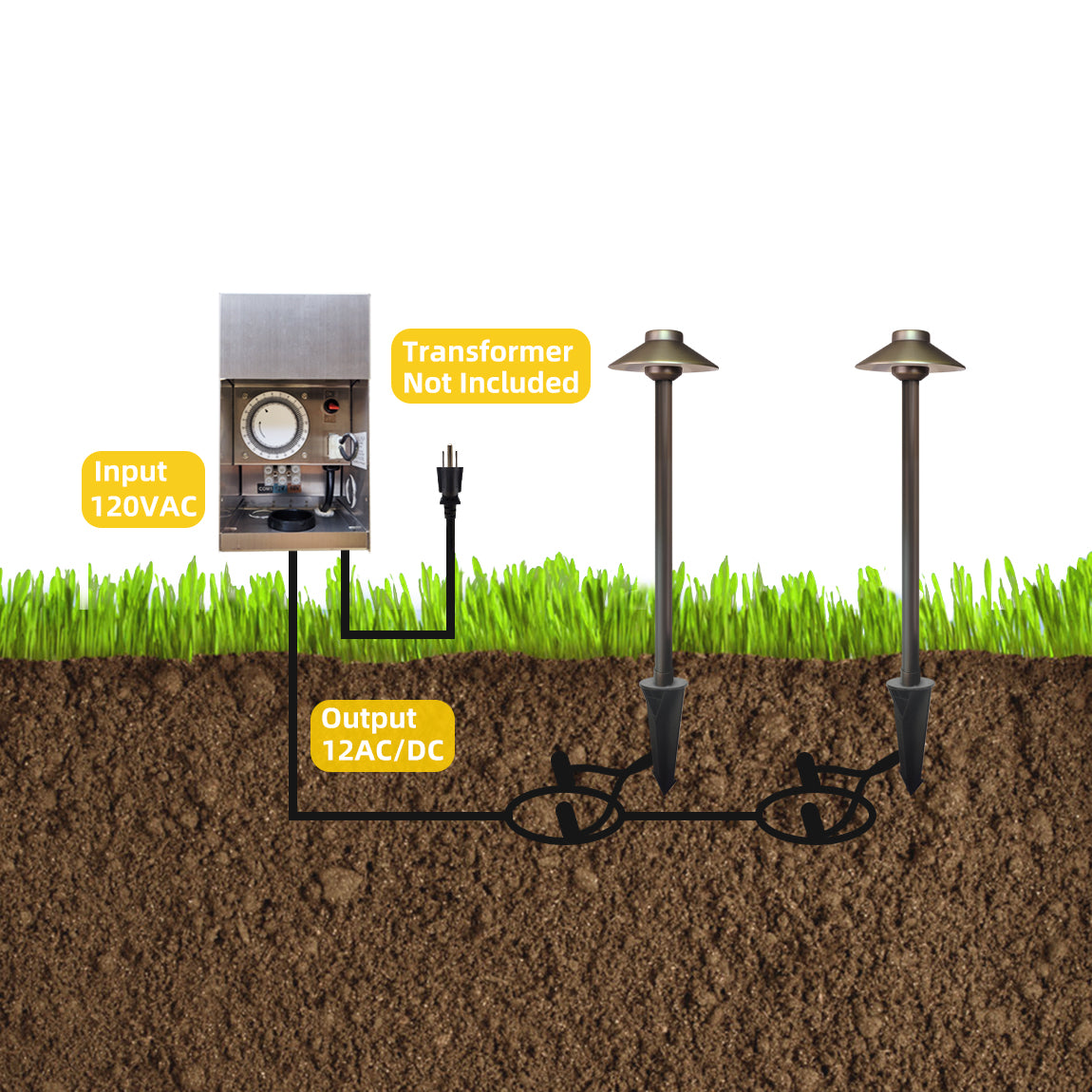

How to Install

Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

Step 2: Remove the shroud of the fixture and insert the G4 lamp into the lamp socket.

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect a lead wire to the main power supply cord.

Download👉 Path Light User Manual

How to Choose a Transformer

To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.

Size of transformer=Total wattages of fixtures X 1.1

Select a transformer that matches as close as possible to the calculation shown above.

Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)

NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

💪Aluminum fixtures are covered by a 5-year warranty, providing enduring quality assurance

💡LED bulbs also carry a 5-year warranty, ensuring durable and reliable lighting solutions.

🏆Brass fixtures come with a lifetime warranty, ensuring long-term usage and peace of mind.

🎡Furthermore, our transformers are backed by a lifetime warranty, offering sustained support for your lighting system. Whether you choose any of these products, rest assured, that comprehensive after-sales support is guaranteed. 💰 Money Back Guarantee: If the product is damaged or defective, we will replace it or refund your money within 30 days of normal use.

📩 24/7 Customer Service: Our customer support team is online 24/7 to answer all your questions.

🔒 Secure Payments: We use the most advanced SSL encryption technology to ensure 100% protection of your personal and financial data.

🪐 We work directly with manufacturers around the world to ensure the best quality products in the world. We also have a dedicated quality control department to help us deliver on our promises!

🥇 Our prices are competitive from start to finish. We guarantee that we will spend money on product production and quality control.

COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.

We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.

For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.

Call: 626-699-4666

Email: customerservice@coloer.com

Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST

Can I change out the g4 bulb to another bulb that is 4500K temperature? where would I get the ones that work? link?
Yes, you can change 4500K temperature G4 bulb. We only sale 2700K G4 bulb, you can buy 4500K or different temperature bulb from other sellers.
Does it turn on by sensor?
The lights don't have individual sensors. They can be controlled by a timer or photocell on the circuit.
What types of transformer and wire I need for these lights?
The transformer will depend on how many lights you put on that wire, our path light with 2.5W LED G4 bulb, you can choose 14 gauge wire to connect the light to transformer.
Will just one have a male plug?
There are no plugs, you will need to hardwire into the transformer circuit.
Description says the lights come with 2 lenses. One clear and one frosted. Mine came with only one. Do you have clear lenses available?
It should be our warehouse employee left out clear lanses, not put it in the package. Could you send us your order number, we will resend the clear one, thank you.
What is the stem dimension and diameter?
Except for 603, all other path light stem diameter is about 1.07" and about 18.1" long, thank you.
What is the warranty on these lights?
The lights fixture are lifetime warranty and 50,000hrs for our LED bulb.
Does this include connectors?
Yes, every pack path light include two connectors.
