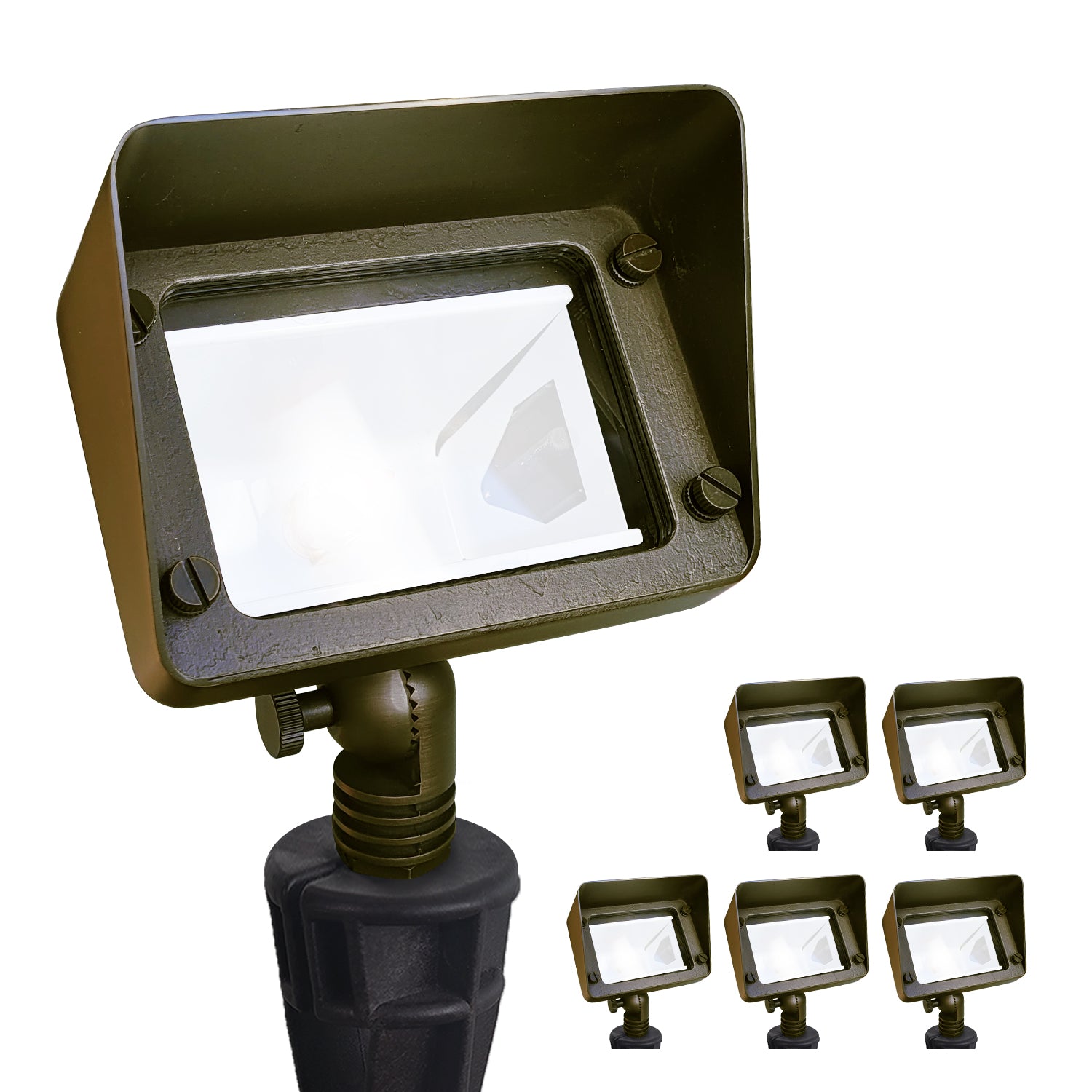

COLOER Low Voltage LED Outdoor Brass Rectangular Flood Lights COF503B
👉Subscribe to get $10 off on your first order!
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- With Vertical 180-degree, horizontal 360-degree adjustable knuckles, can adjust the angle of the lighting easily.
- Uses halogen lamps up to 20w or rated LED G4(Optional), it emits a soft and warm 2700K light, providing a comfortable experience.
- A high-quality PVC ground stake with cut makes it easy and stable for outdoor ground mounting.
Description

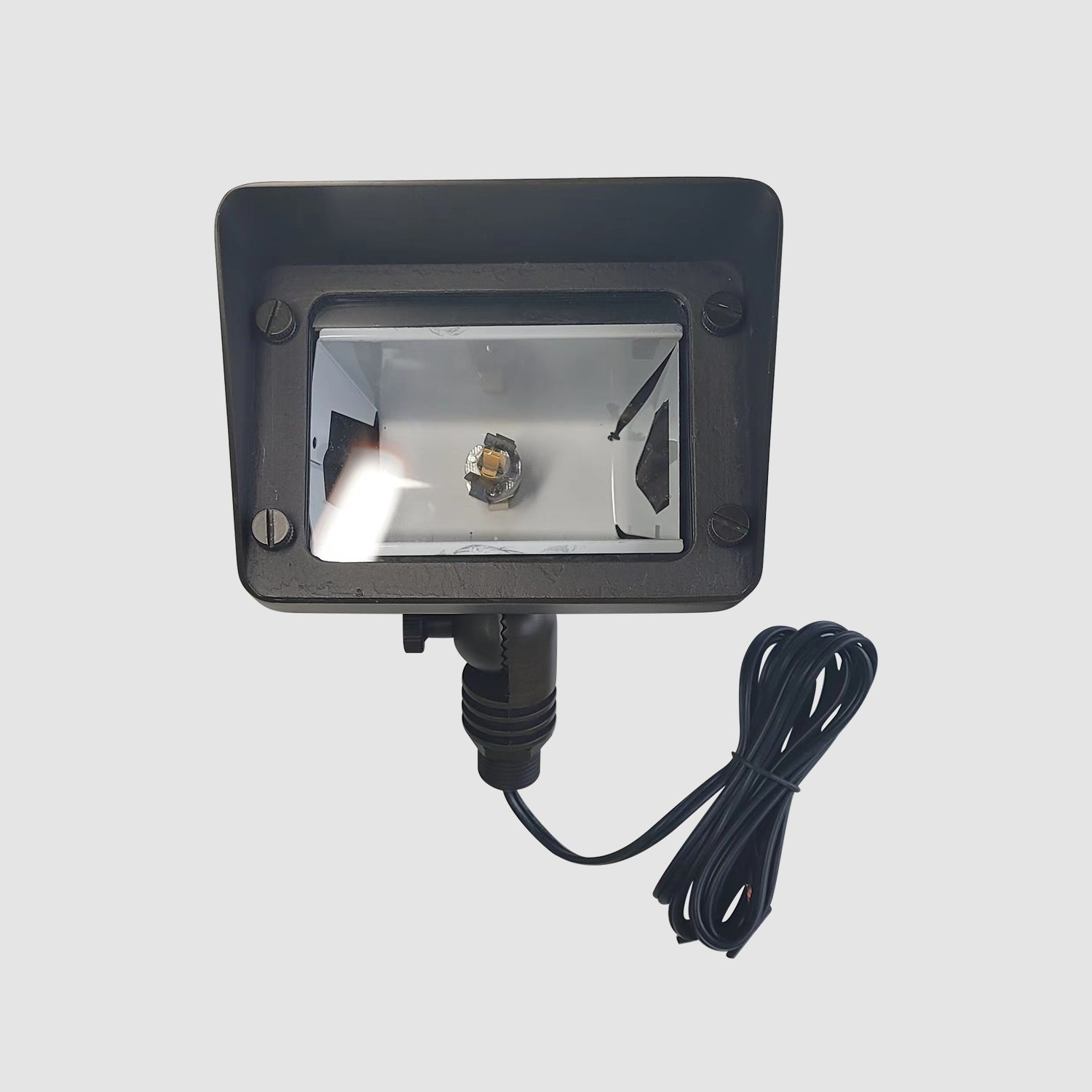

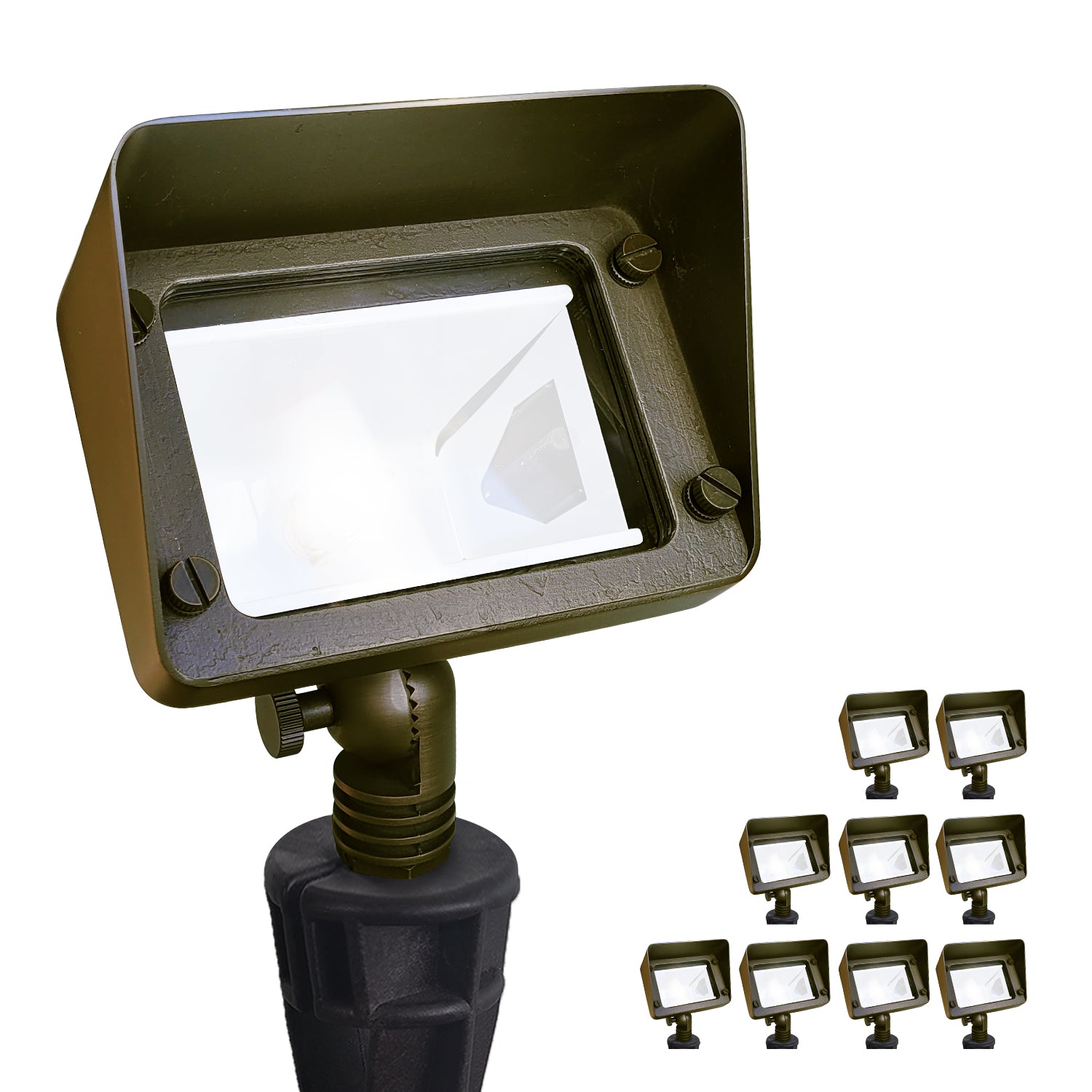

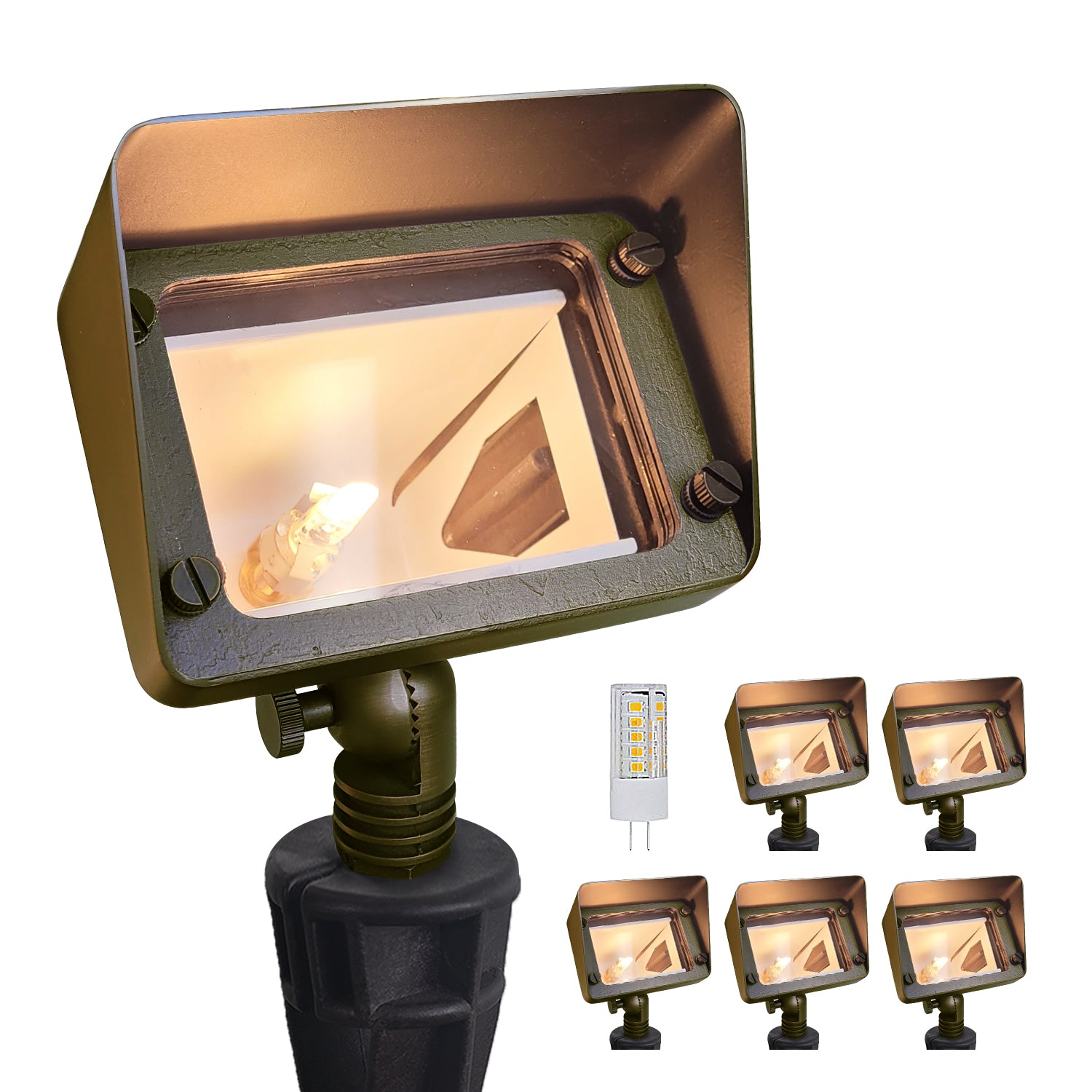

12V Low Voltage Die-Cast Brass Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify the spread of light. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with G4 LED or halogen bi-pin bulbs up to 20W (not included).
Large-size brass floodlight: Brass large square flood light 5.12" wide and 5.98" tall with 6-foot 18 AWG lead wire and two waterproof wire connectors, ground stake also included.
Replaceable light bulb design: Replaceable bulb design with a socket for G4 or MR16, you can easily install or replace the bulb. The ceramic white paint can enhance the lighting effect.

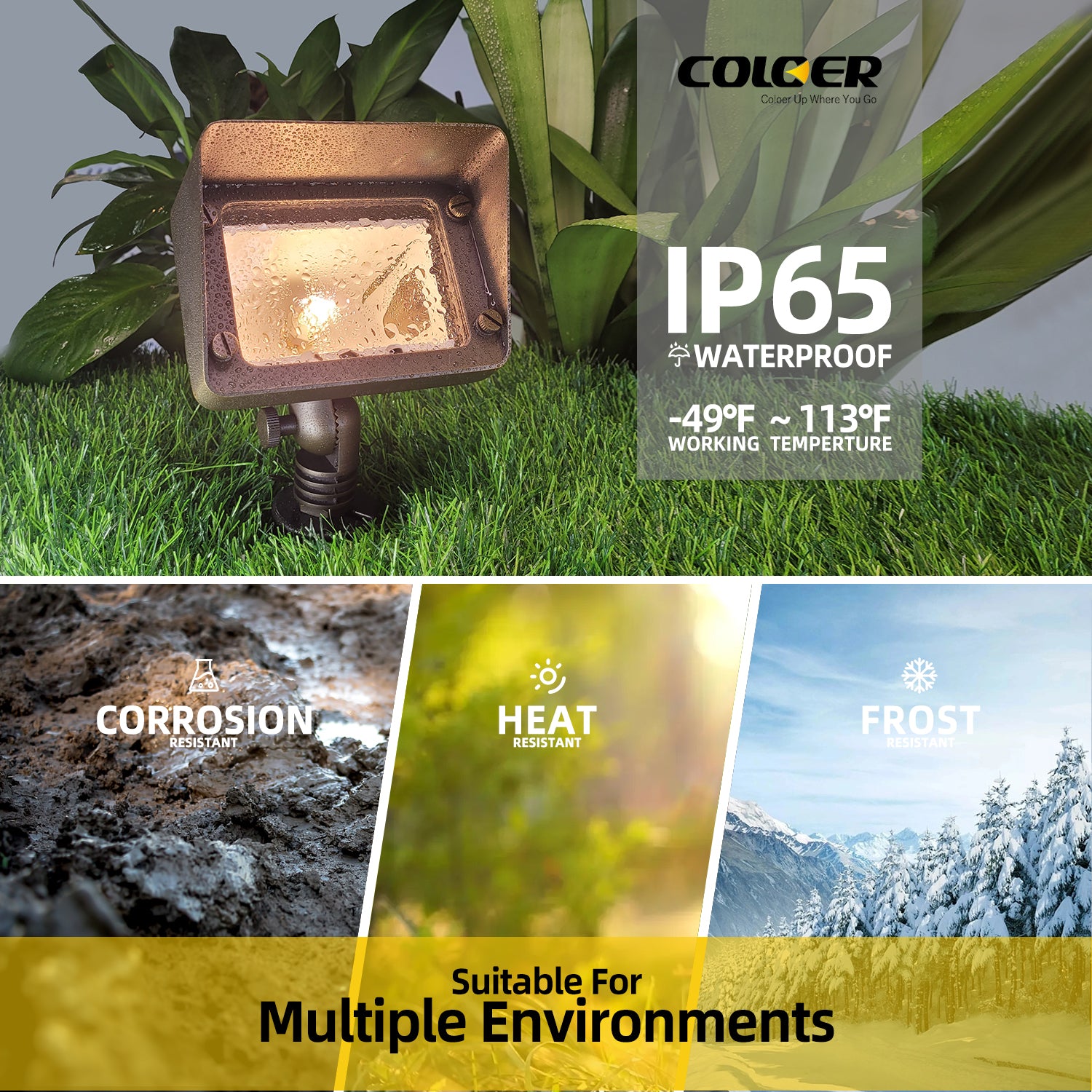

IP65 waterproof: A silicone plug at the lead wire exit prevents ground moisture from entering through the stem, allowing this fixture to be used in humid environments.

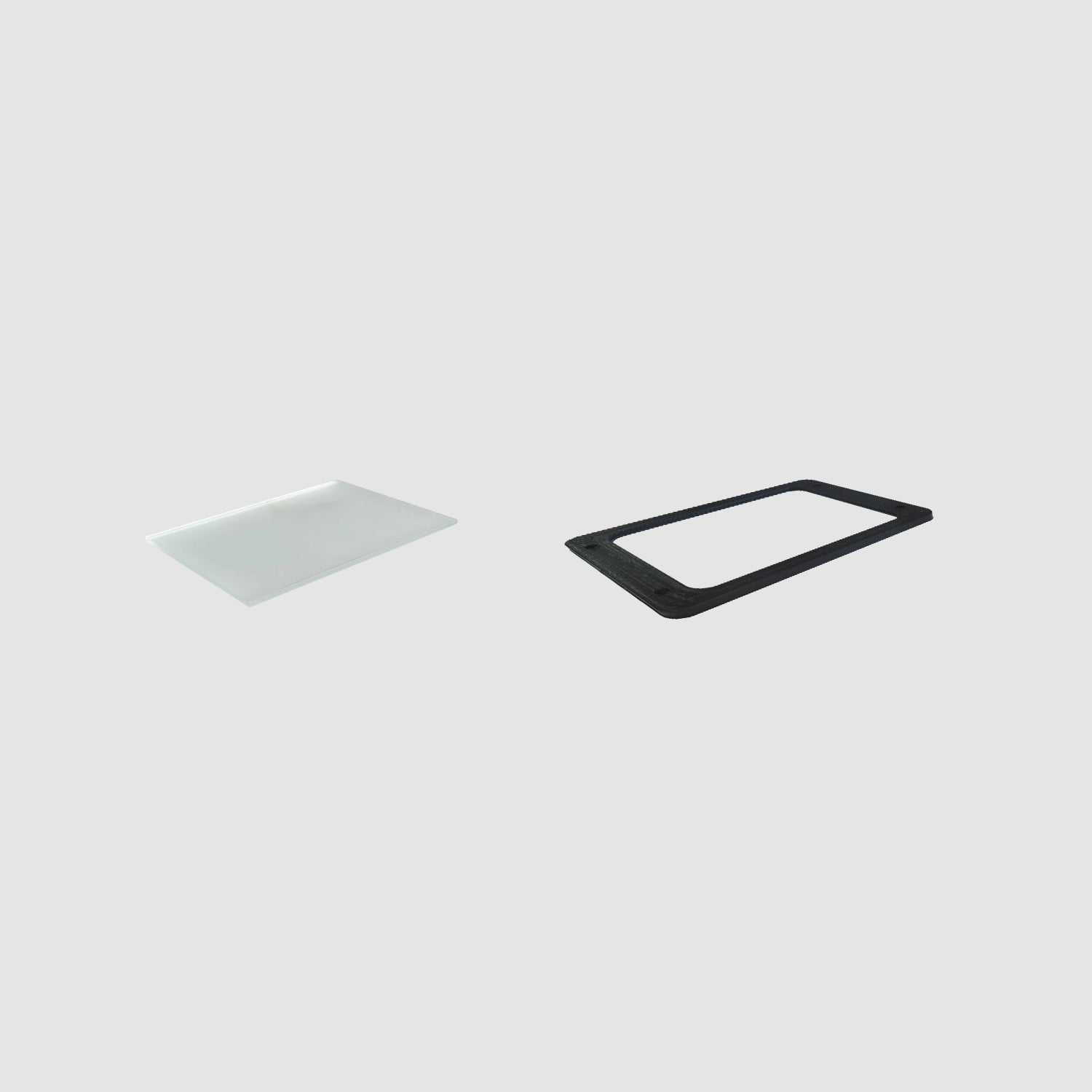

Two lenses for choose: Both frosted and clear lenses are included in the package. With these two options, a variety of brightness levels for the floodlight.
Floodlights are IP65 weatherproof, durable, and complement the architecture of the surrounding area. These lights can create ambiance in the garden or be placed near an entryway, garage door, or exterior wall. It will brighten the way as you take out the trash or get home late at night.
Specifications
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 5.12"L x 4.2"W x 5.98"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: G4 LED Bulb | Wattage: 2 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 180 Lumen | Beam Angle: 360D | Lens: Clear/Frosted Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Item Weight: 3.6 Pounds | Light Adjustable: Vertical 180°& Horizontal 360° | Color Rendering Index (CRI): >85 |
| Water Resistance: Silicone O-Ring | Warranty Type: Lifetime | Shape: Rectangular | Indoor/Outdoor Usage: Outdoor |
| Style: Modern | Installation Type: Ground Stake | Finish Type: Polished | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Ground Stake, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |

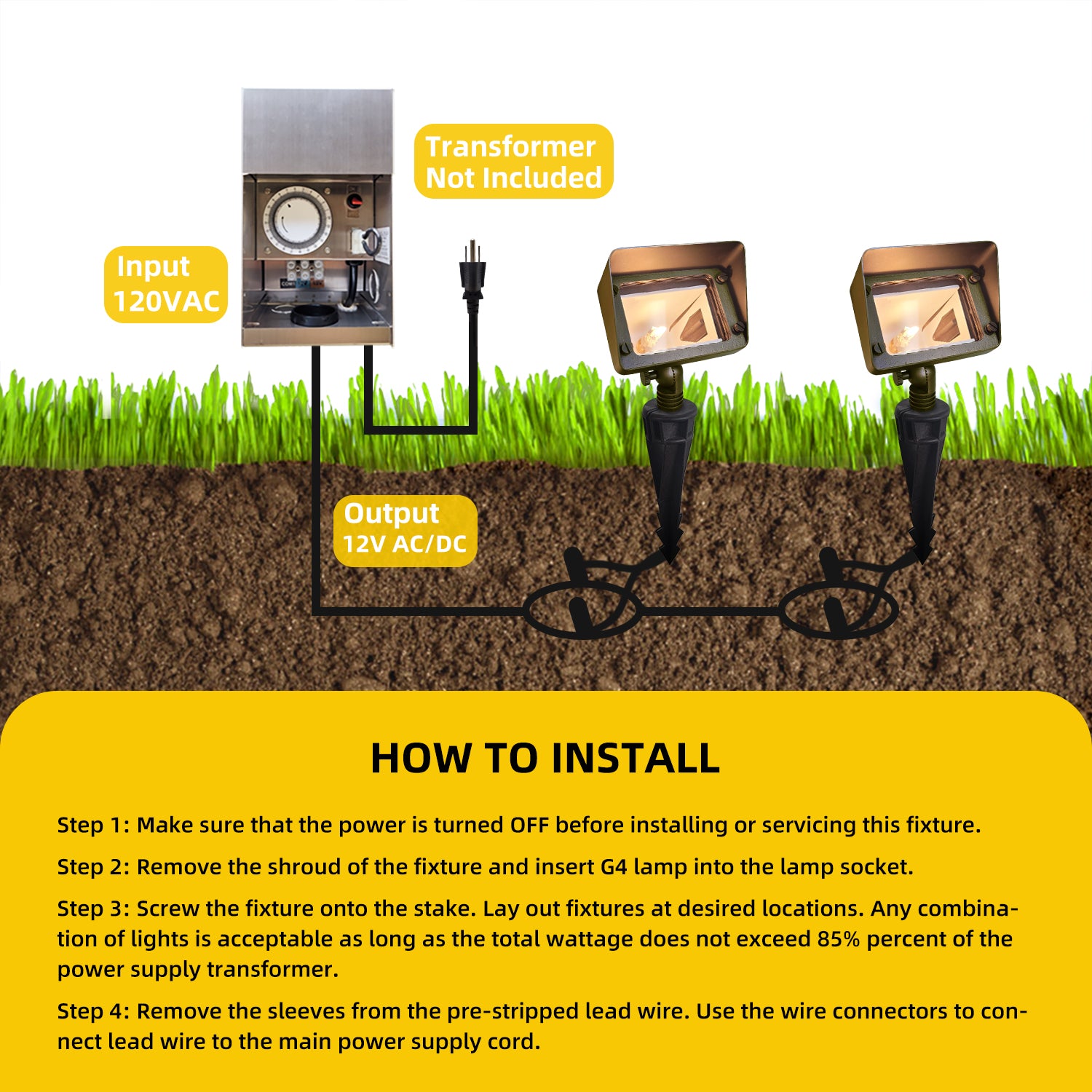

How to Install
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

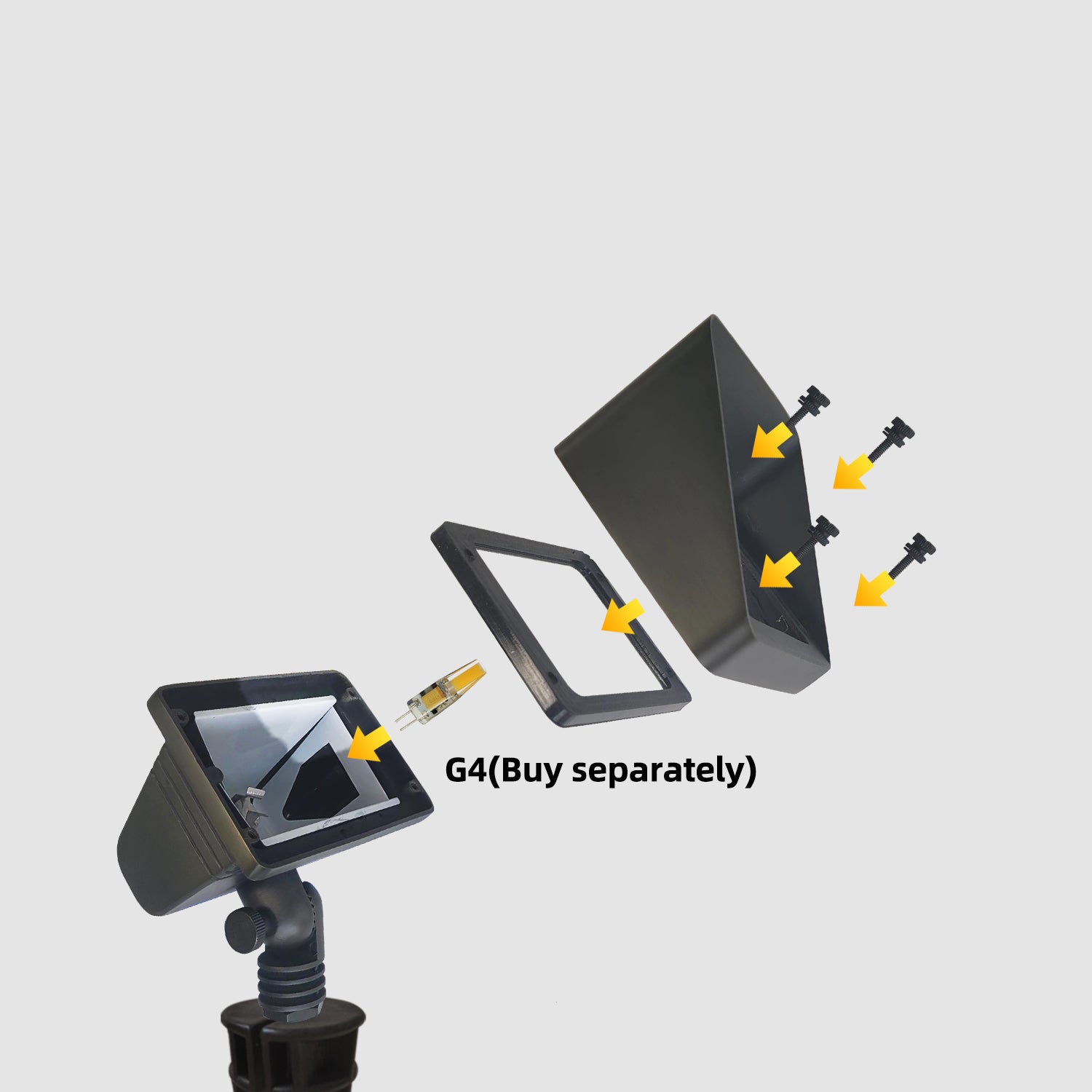

Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)

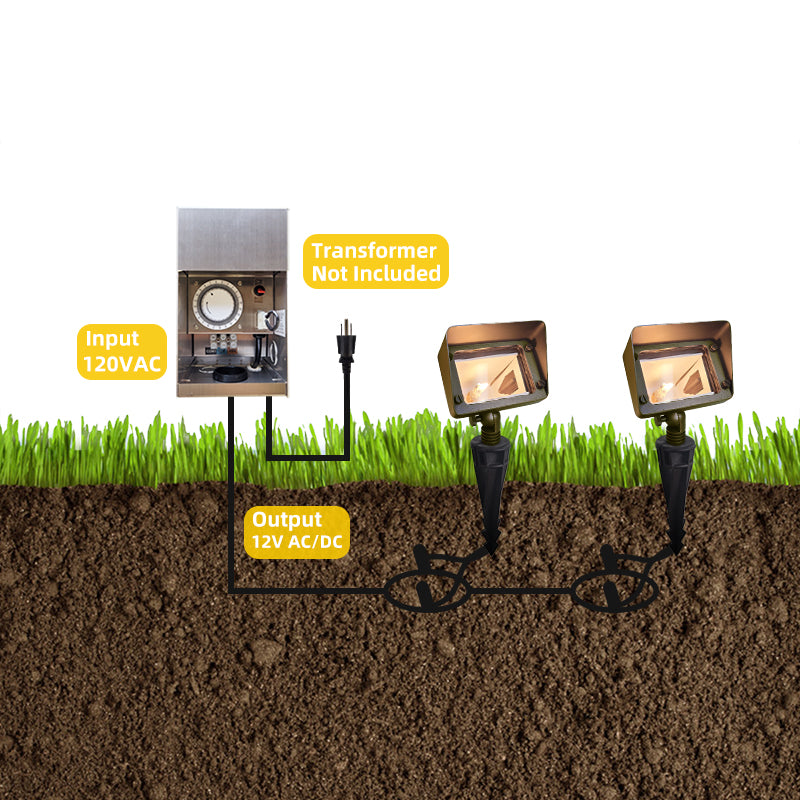

NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Downloads
12V Low Voltage Die-Cast Brass Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify the spread of light. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with G4 LED or halogen bi-pin bulbs up to 20W (not included).
Large-size brass floodlight: Brass large square flood light 5.12" wide and 5.98" tall with 6-foot 18 AWG lead wire and two waterproof wire connectors, ground stake also included.
Replaceable light bulb design: Replaceable bulb design with a socket for G4 or MR16, you can easily install or replace the bulb. The ceramic white paint can enhance the lighting effect.
IP65 waterproof: A silicone plug at the lead wire exit prevents ground moisture from entering through the stem, allowing this fixture to be used in humid environments.
Two lenses for choose: Both frosted and clear lenses are included in the package. With these two options, a variety of brightness levels for the floodlight.
Floodlights are IP65 weatherproof, durable, and complement the architecture of the surrounding area. These lights can create ambiance in the garden or be placed near an entryway, garage door, or exterior wall. It will brighten the way as you take out the trash or get home late at night.
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 5.12"L x 4.2"W x 5.98"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: G4 LED Bulb | Wattage: 2 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 180 Lumen | Beam Angle: 360D | Lens: Clear/Frosted Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Item Weight: 3.6 Pounds | Light Adjustable: Vertical 180°& Horizontal 360° | Color Rendering Index (CRI): >85 |
| Water Resistance: Silicone O-Ring | Warranty Type: Lifetime | Shape: Rectangular | Indoor/Outdoor Usage: Outdoor |
| Style: Modern | Installation Type: Ground Stake | Finish Type: Polished | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Ground Stake, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)
NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

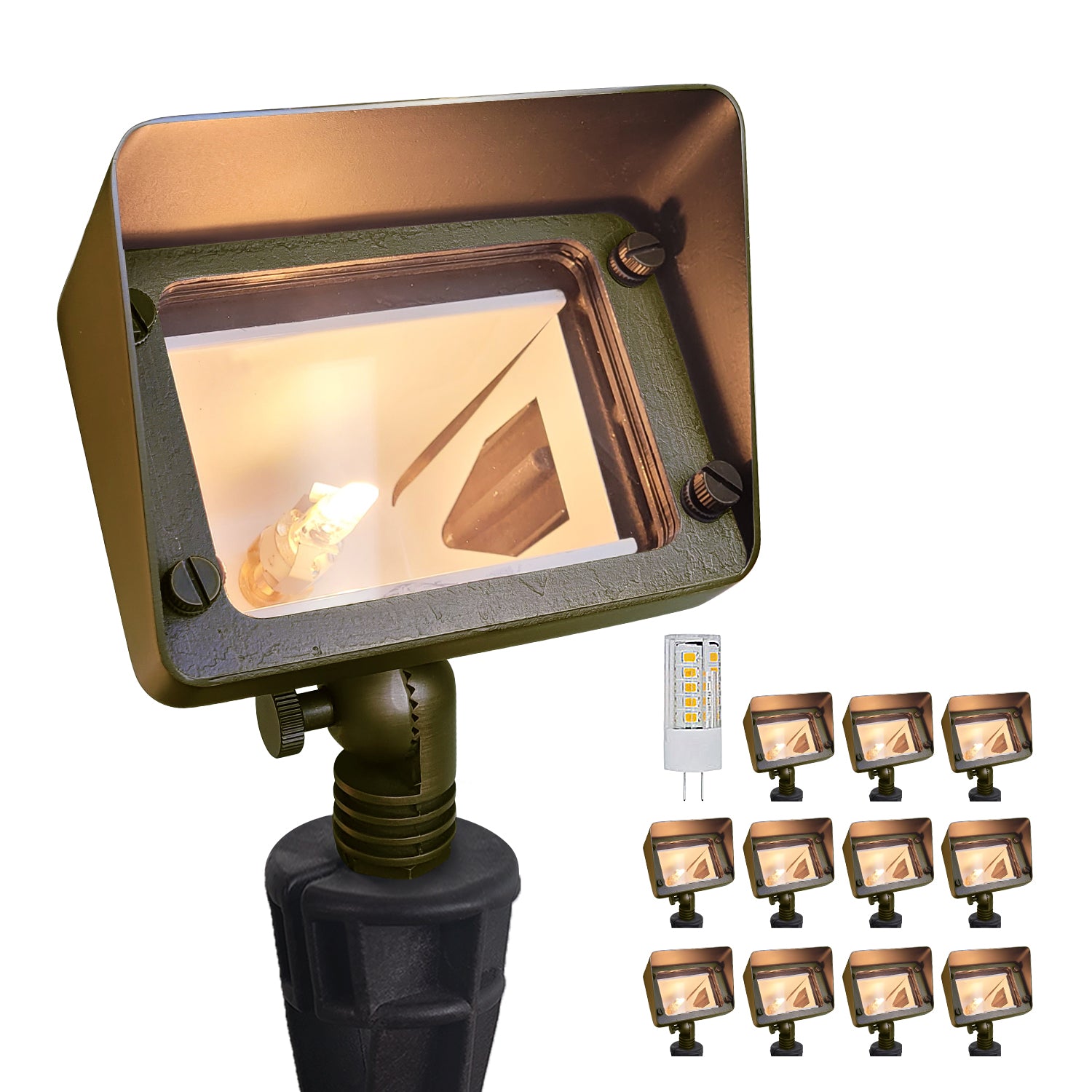

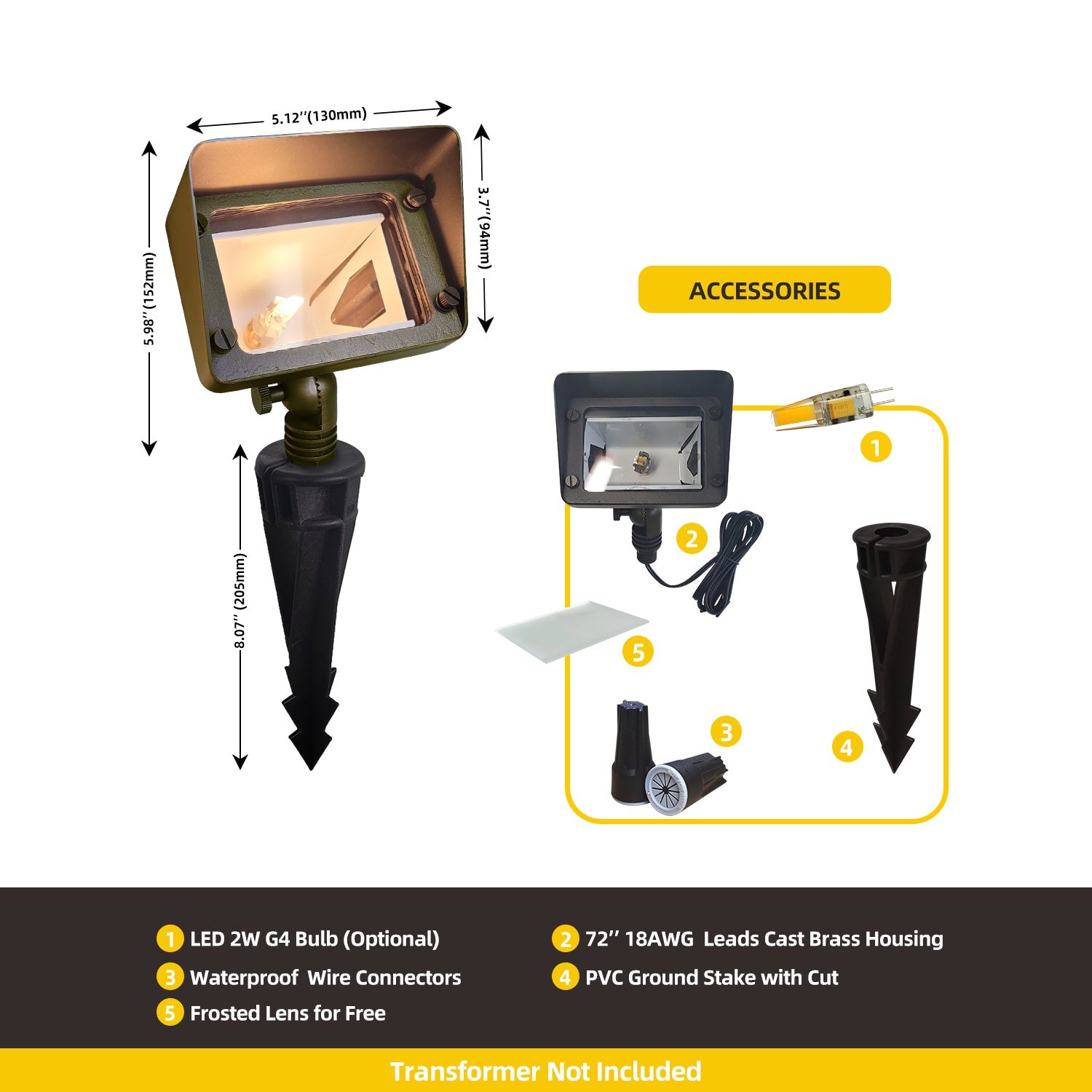

What included in the box
- Main Fixture
- LED G4 Bulb
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime
12V LOW VOLTAGE
DIE-CAST BRASS
Solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light. Ceramic white paint under shade for maximum photometrics. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with G4 LED or halogen bi-pin bulbs up to 20W (not included).
Uniform Finish
Die-cast brass flood light with 6-foot 18 AWG lead wire and four waterproof wire connectors.

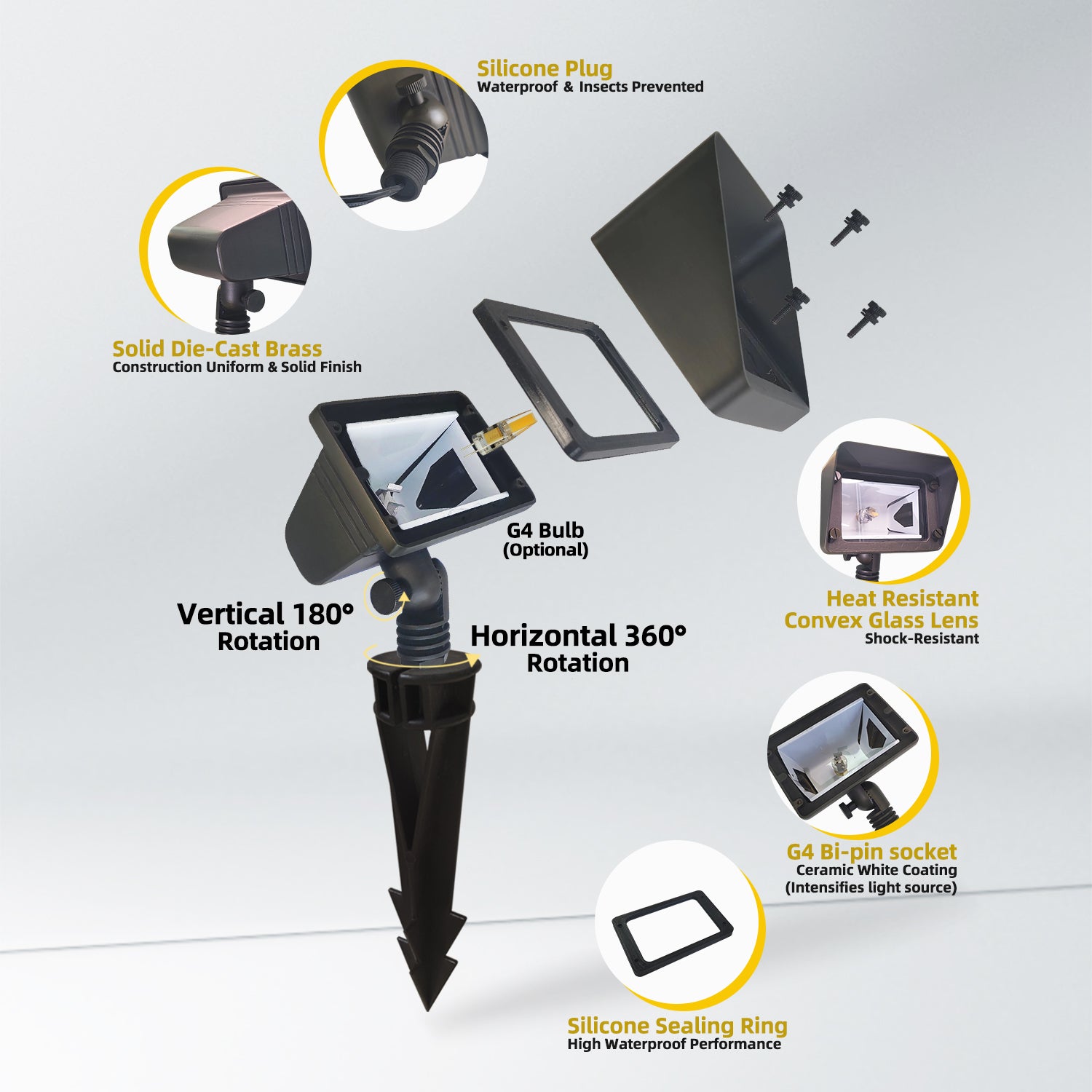

Clear Len & Silicone Sealing Ring
With High Waterproof Performance.

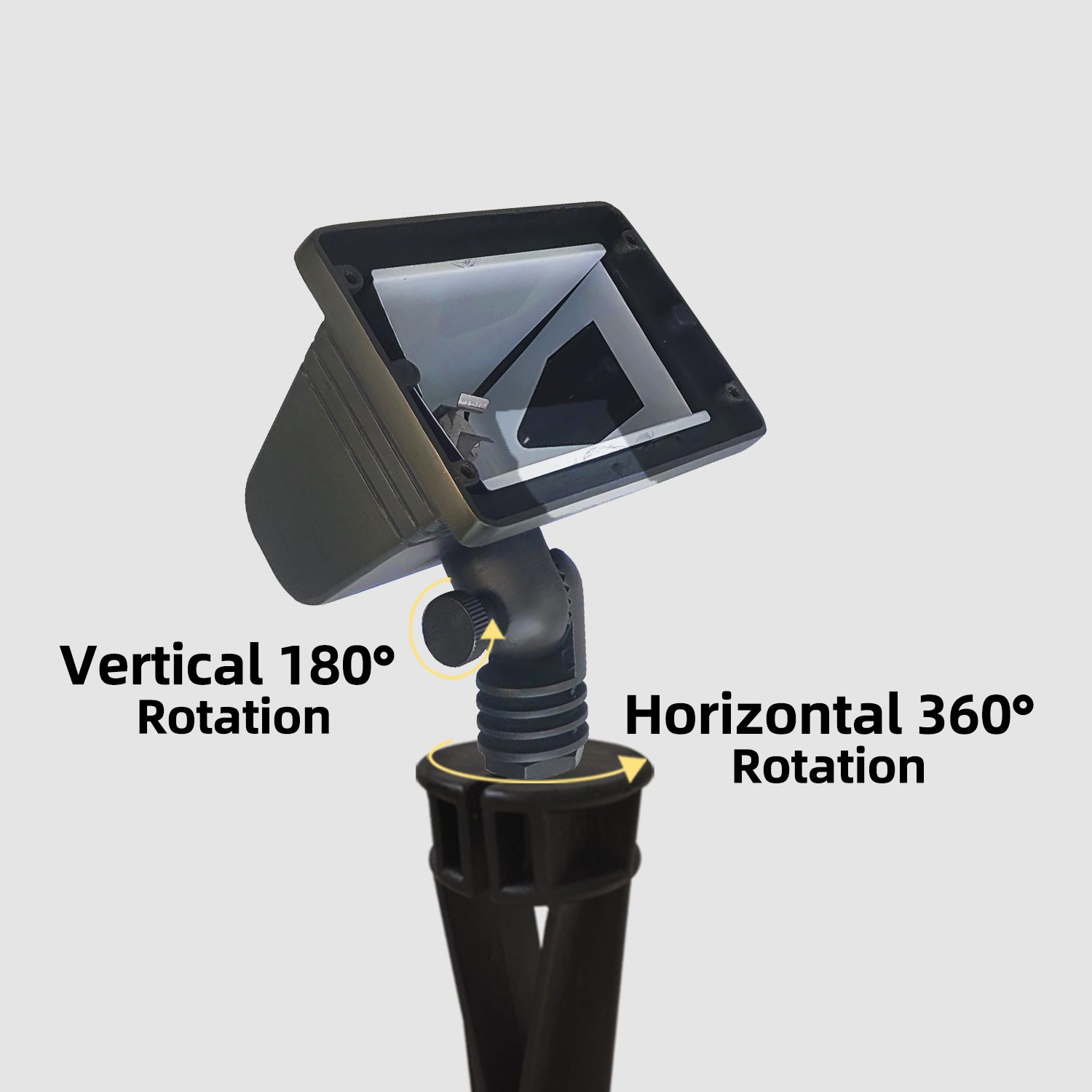

Adjustable
Vertical 180 degree, horizontal 360 degree, you can adjust the height of the light by yourself.

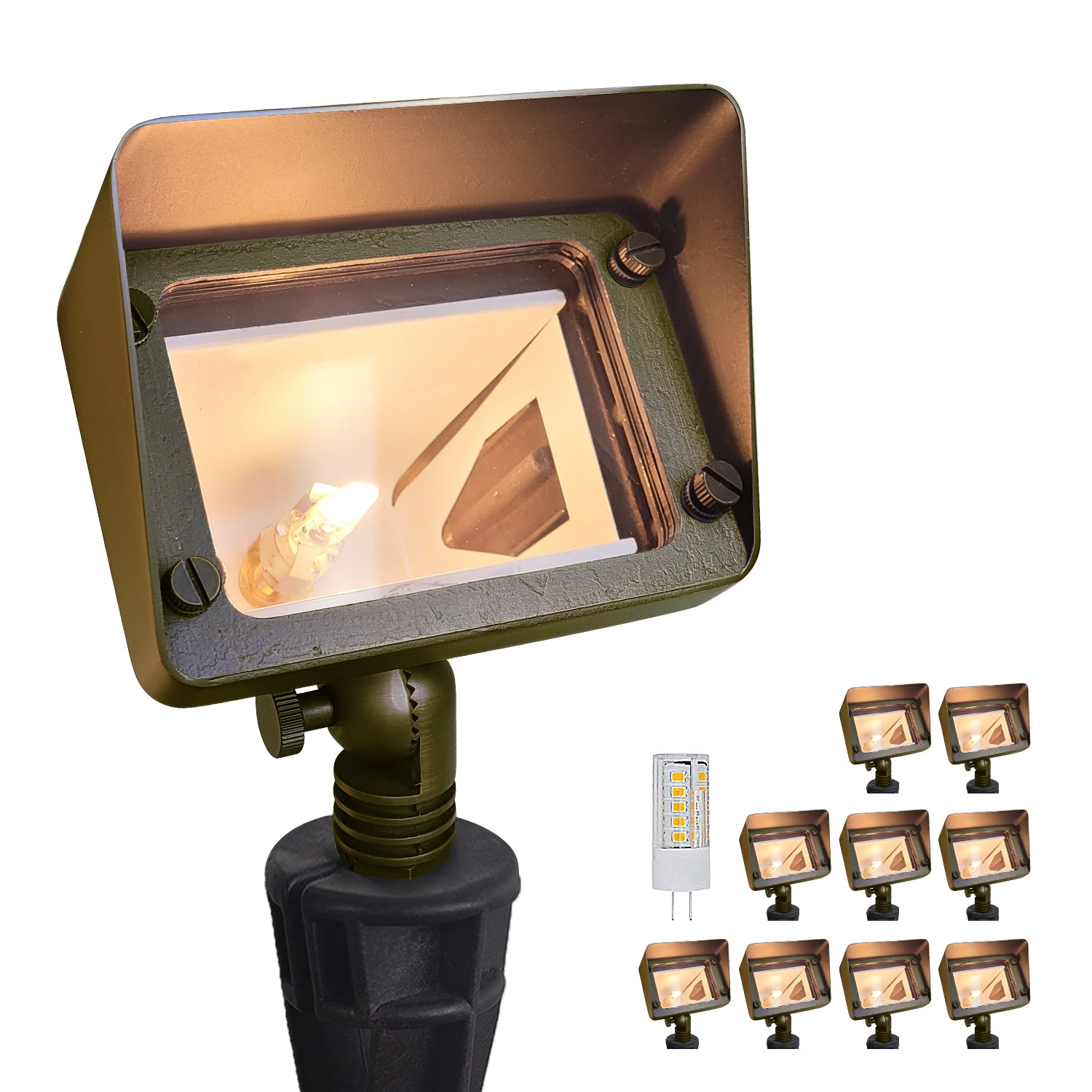

G4 Bulb Socket
The light source can use G4 or halogen bi-pin bulbs up to 20W (Optional)
Flood Lights Series
- There's no powder coating, paint, or finish to wear off or peel - just solid cast brass that does not corrode. Includes a 6-foot 18 AWG lead wire to reduce corrosion and increase fixture longevity. Machine-threaded body screws tight onto an O-ring. The silicone plug at the lead wire exit prevents ground moisture from entering through the stem.
- Our professional-grade products are field-tested for durability and ease of installation. Pretty simple to run, even for people with no prior experience with low-voltage lighting.
- This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Adjustable shade moves up and down to modify the spread of light.
COF5001B
COF502B
COF504B
4.25"L x 3.38"W x 5.5"H
3.8"L x 2.1"W x 5"H
5.31"L x 4.65"W x 8.24"H
1.6 pounds
1.6 pounds
2.5 pounds
Die-cast brass
Die-cast brass
Die-cast brass
G4 / 2W / 2700K / 180LM
G4 / 2W / 2700K / 180LM
PAR36 / 10W / 2700K / 800LM
360D
360D
60D
9-17V AC/DC
9-17V AC/DC
9-17V AC/DC
Antique Bronze
Antique Bronze
Antique Bronze
COLOER Die-cast Brass 12V Low Voltage Outdoor Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light.
This product is rated 4.9 of 5.0 stars.
It has received 26 reviews.
Still have questions?
We are here to help
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
Q & A
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 360 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 180 lumen and 2700K.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this light?
Yes, our landscape lights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Do these come in white?
The light fixtures are bronze, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Any question?
You can contact us through our contact page! We will be happy to assist you.
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 360 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 180 lumen and 2700K.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this light?
Yes, our landscape lights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Do these come in white?
The light fixtures are bronze, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Any question?
You can contact us through our contact page! We will be happy to assist you.
