Mini Brass Outdoor Rectangular Flood Lights COF502B
👉Subscribe to get $10 off on your first order!
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- With Vertical 180-degree, horizontal 360-degree adjustable knuckles, can adjust the angle of the lighting easily.
- Uses halogen lamps up to 20w or rated LED G4(Optional), it emits a soft and warm 2700K light, providing a comfortable experience.
- A high-quality PVC ground stake with cut makes it easy and stable for outdoor ground mounting.
Description
12V Low Voltage Die-Cast Brass Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Floodlights offer better security protection for your home's exterior than traditional bulb lighting by providing intense brightness over a wide-angle field of view. This compact, cast brass fixture is ideal to softly illuminate small to medium objects and landscape features.
Unique Design: Enhance your outdoor aesthetics with this beautifully crafted landscape light made of die-cast brass. The fixture is rated IP65 weatherproof and complements the architecture of the surrounding area. With a superior corrosion resistance and pressure resistance, this outdoor flood light have longer service life and longer lasting than aluminum and plastic lamps.
Low Voltage Flood Light : The small size floodlight brass fixture is 4 inches wide and 3.8 inches tall. It has a G4 socket for easy bulb installation or replacement. This sophisticated bronze finish landscape yard light fixture operates with AC/DC 12V, posing no harm for children and pets in the surrounding area. Please note that this outdoor floodlight for your house must be powered by a 12-24V low voltage transformer which is NOT included.
Easy Installation: The floodlight has an adjustable cast brass knuckle with thumb screw and a ½" NPT threaded male hub on the bottom. The package comes with a PVC ground stake and 2 wire connectors enabling you to securely attach the fixture to any suitable surface. This floodlight comes with a 6-foot 18 AWG lead wire, which you can easy connect to an existing landscape system. A silicone plug at the lead wire exit prevents ground moisture from entering through the stem, reducing corrosion and increasing the fixture’s lifespan.
Wide Applications: Floodlights offer better security protection for your home's exterior than traditional bulb lighting by providing intense brightness over a wide-angle field of view. This flood light can also be used to create ambiance in a garden or be placed near an entryway, garage door, or an exterior wall. Flood lights brighten the way as you take out the trash or get home late at night.
Gentle Illumination: This compact cast brass fixture is ideal to softly illuminate small to medium objects and landscape features. An adjustable shade moves up and down to modify spread of light. The ceramic white paint under the shade provides for maximum photometrics. Includes two lenses (clear and frosted) that can be used to adjust brightness.
COLOER landscape lighting offers a lifetime warranty on the brass light fixture and a 5 year warranty for the LED bulb based on 50,000 hour long lifespan.
Specifications
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 3.8"L x 2.1"W x 5"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: G4 LED Bulb | Wattage: 2 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 180 Lumen | Beam Angle: 360D | Lens: Clear/Frosted Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Item Weight: 1.6 Pounds | Light Adjustable: Vertical 180°& Horizontal 360° | Color Rendering Index (CRI): >85 |
| Water Resistance: Silicone O-Ring | Warranty Type: Lifetime | Shape: Rectangular | Indoor/Outdoor Usage: Outdoor |
| Style: Modern | Installation Type: Ground Stake | Finish Type: Painted | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Ground Stake, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |
How to Install
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.

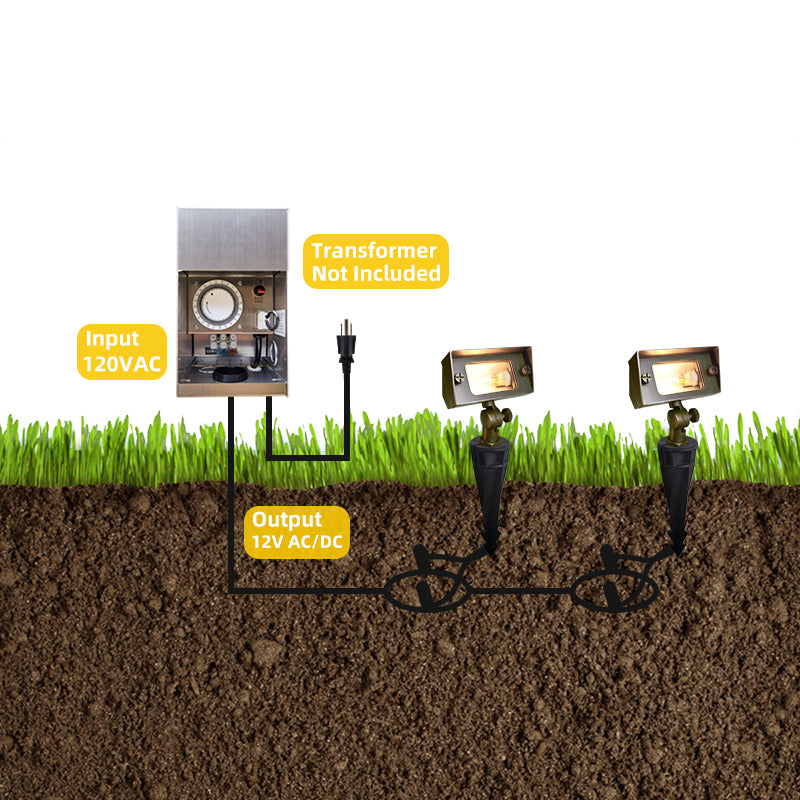

How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)
NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Downloads
12V Low Voltage Die-Cast Brass Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Floodlights offer better security protection for your home's exterior than traditional bulb lighting by providing intense brightness over a wide-angle field of view. This compact, cast brass fixture is ideal to softly illuminate small to medium objects and landscape features.
Unique Design: Enhance your outdoor aesthetics with this beautifully crafted landscape light made of die-cast brass. The fixture is rated IP65 weatherproof and complements the architecture of the surrounding area. With a superior corrosion resistance and pressure resistance, this outdoor flood light have longer service life and longer lasting than aluminum and plastic lamps.
Low Voltage Flood Light : The small size floodlight brass fixture is 4 inches wide and 3.8 inches tall. It has a G4 socket for easy bulb installation or replacement. This sophisticated bronze finish landscape yard light fixture operates with AC/DC 12V, posing no harm for children and pets in the surrounding area. Please note that this outdoor floodlight for your house must be powered by a 12-24V low voltage transformer which is NOT included.
Easy Installation: The floodlight has an adjustable cast brass knuckle with thumb screw and a ½" NPT threaded male hub on the bottom. The package comes with a PVC ground stake and 2 wire connectors enabling you to securely attach the fixture to any suitable surface. This floodlight comes with a 6-foot 18 AWG lead wire, which you can easy connect to an existing landscape system. A silicone plug at the lead wire exit prevents ground moisture from entering through the stem, reducing corrosion and increasing the fixture’s lifespan.
Wide Applications: Floodlights offer better security protection for your home's exterior than traditional bulb lighting by providing intense brightness over a wide-angle field of view. This flood light can also be used to create ambiance in a garden or be placed near an entryway, garage door, or an exterior wall. Flood lights brighten the way as you take out the trash or get home late at night.
Gentle Illumination: This compact cast brass fixture is ideal to softly illuminate small to medium objects and landscape features. An adjustable shade moves up and down to modify spread of light. The ceramic white paint under the shade provides for maximum photometrics. Includes two lenses (clear and frosted) that can be used to adjust brightness.
COLOER landscape lighting offers a lifetime warranty on the brass light fixture and a 5 year warranty for the LED bulb based on 50,000 hour long lifespan.
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 3.8"L x 2.1"W x 5"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: G4 LED Bulb | Wattage: 2 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 180 Lumen | Beam Angle: 360D | Lens: Clear/Frosted Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Item Weight: 1.6 Pounds | Light Adjustable: Vertical 180°& Horizontal 360° | Color Rendering Index (CRI): >85 |
| Water Resistance: Silicone O-Ring | Warranty Type: Lifetime | Shape: Rectangular | Indoor/Outdoor Usage: Outdoor |
| Style: Modern | Installation Type: Ground Stake | Finish Type: Painted | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Ground Stake, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)
NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Mini Rectangular Brass Outdoor Flood Lights
Adjustable Knuckle for Rotating 180°vertically
The Lens Hood Reduce Glare
Solid Cast Brass Fixture
What included in the box
- Main Fixture
- LED G4 Bulb
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime
12V LOW VOLTAGE
DIE-CAST BRASS
Solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light. Ceramic white paint under shade for maximum photometrics. This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Compatible with G4 LED or halogen bi-pin bulbs up to 20W.
Small size brass floodlight
Small floodlight is 3.86 inches wide and 5 inches tall with a 6-ft 18 AWG lead wire. Two waterproof wire connectors and ground stake are also included
IP65 weatherproof
A silicone plug at the lead wire exit prevents ground moisture from entering through the stem, allowing this fixture to be used in humid environments.
Replaceable light bulb design
With a replaceable light source design and a G4 socket, you can easily install or replace bulb. The ceramic white paint enhances the lighting effect.
Two lenses for choose
Both frosted and clear lenses are included in the package. With these two options, a variety of brightness levels for the floodlight.
Flood Lights Series
- There's no powder coating, paint, or finish to wear off or peel - just solid cast brass that does not corrode. Includes a 6-foot 18 AWG lead wire to reduce corrosion and increase fixture longevity. Machine-threaded body screws tight onto an O-ring. The silicone plug at the lead wire exit prevents ground moisture from entering through the stem.
- Our professional-grade products are field-tested for durability and ease of installation. Pretty simple to run, even for people with no prior experience with low-voltage lighting.
- This compact cast brass fixture is ideal for soft illumination of small to medium objects and landscape features. Adjustable shade moves up and down to modify the spread of light.
COF504B
COF501B
COF503B
5.31"L x 4.65"W x 8.24"H
4.25"L x 3.38"W x 5.5"H
5.12"L x 4.2"W x 5.98"H
2.5 pounds
1.6 pounds
3.6 pounds
Die-cast brass
Die-cast brass
Die-cast brass
PAR36 / 10W / 2700K / 800LM
G4 / 2W / 2700K / 180LM
G4 / 2W / 2700K / 180LM
60D
360D
360D
9-17V AC/DC
9-17V AC/DC
9-17V AC/DC
Antique Bronze
Antique Bronze
Antique Bronze
COLOER Die-cast Brass 12V Low Voltage Outdoor Flood Light
COLOER solid die-cast brass flood light IP65 waterproof and corrosion resistant, easy to install very durable. Adjustable shade moves up and down to modify spread of light.
This product is rated 5.0 of 5.0 stars.
It has received 12 reviews.
Customer Reviews
This outdoor landscape light spot fixture is pretty nice well built, and easy to install.
This outdoor landscape light spot fixture is pretty nice well built, and easy to install. The only complaint I have is that it could probably use a more powerful bulb or brighter.
This light boasts an elegant height and a sleek profile, adding to its charm. LED lights provide ideal illumination for pathways, ensuring visibility and safety. Assembly and installation are straightforward, making it a hassle-free experience. Moreover, the brass construction sets it apart from the common plastic lights typically found in big-box stores, elevating its appeal and durability. I highly recommend these lights!
I was highly satisfied with the quality of these floodlights; they are solidly constructed and well-made, with sturdy glass components. I intend to expand my lighting setup by adding more of these lights to enhance the illumination around my house. The fact that this kit includes only the lights, with wiring and transformers sold separately, doesn't pose an issue for me. In fact, I view it as an advantage, as it allows for greater flexibility in customizing the installation to suit my specific design preferences.
These flood lights are exactly as described. They are great quality and look amazing! I was worried that the low wattage LED light would not give enough light but we have these spaced out between 8 and 10 feet apart and they light up the walkway perfectly. Definitely would recommend these and I would love to be able to put them all around the house.
Still have questions?
We are here to help
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
Q & A
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 360 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 180 lumen and 2700K.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this light?
Yes, our landscape lights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Do these come in white?
The light fixtures are bronze, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Any question?
You can contact us through our contact page! We will be happy to assist you.
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 360 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 180 lumen and 2700K.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this light?
Yes, our landscape lights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Do these come in white?
The light fixtures are bronze, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Any question?
You can contact us through our contact page! We will be happy to assist you.
