Solid Brass Low Voltage Outdoor Pathway Lights | Waterproof Landscape Lighting COP603B
Product Informations
About the COP603B Path Light
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 5.3-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- Uses halogen lamps up to 50w or rated LED G4(Not Included), it emits a soft and warm 2700K light, providing a comfortable experience.
- A high-quality PVC ground stake with cut makes it easy and stable for outdoor ground mounting.

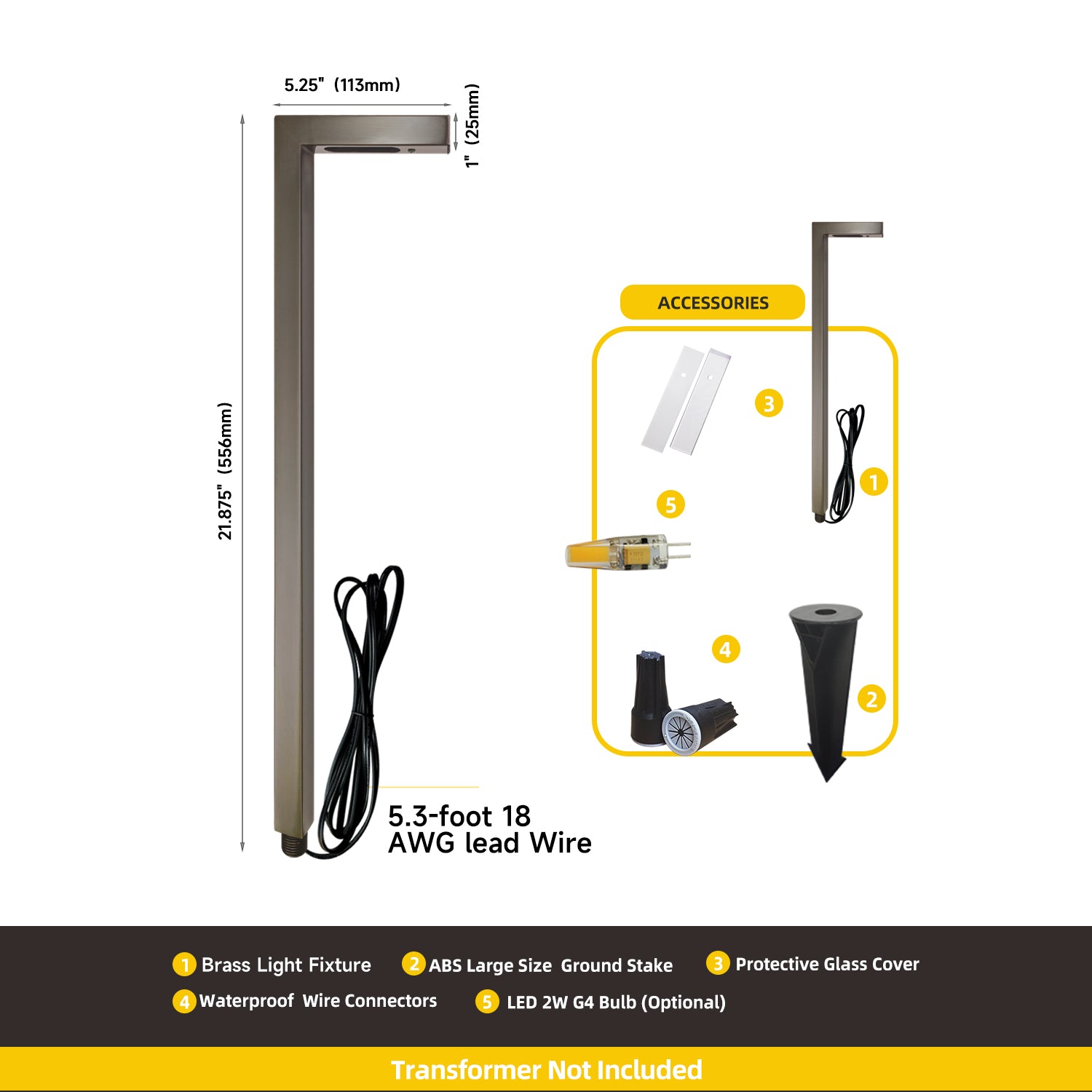

5.25"L x 1"W x 21.88"H
2.74 pounds
Brass
G4 / 2W /2700K / 180LM
360D
9-17V AC/DC
Atique Bronze
Copper Garden Pathway Lights

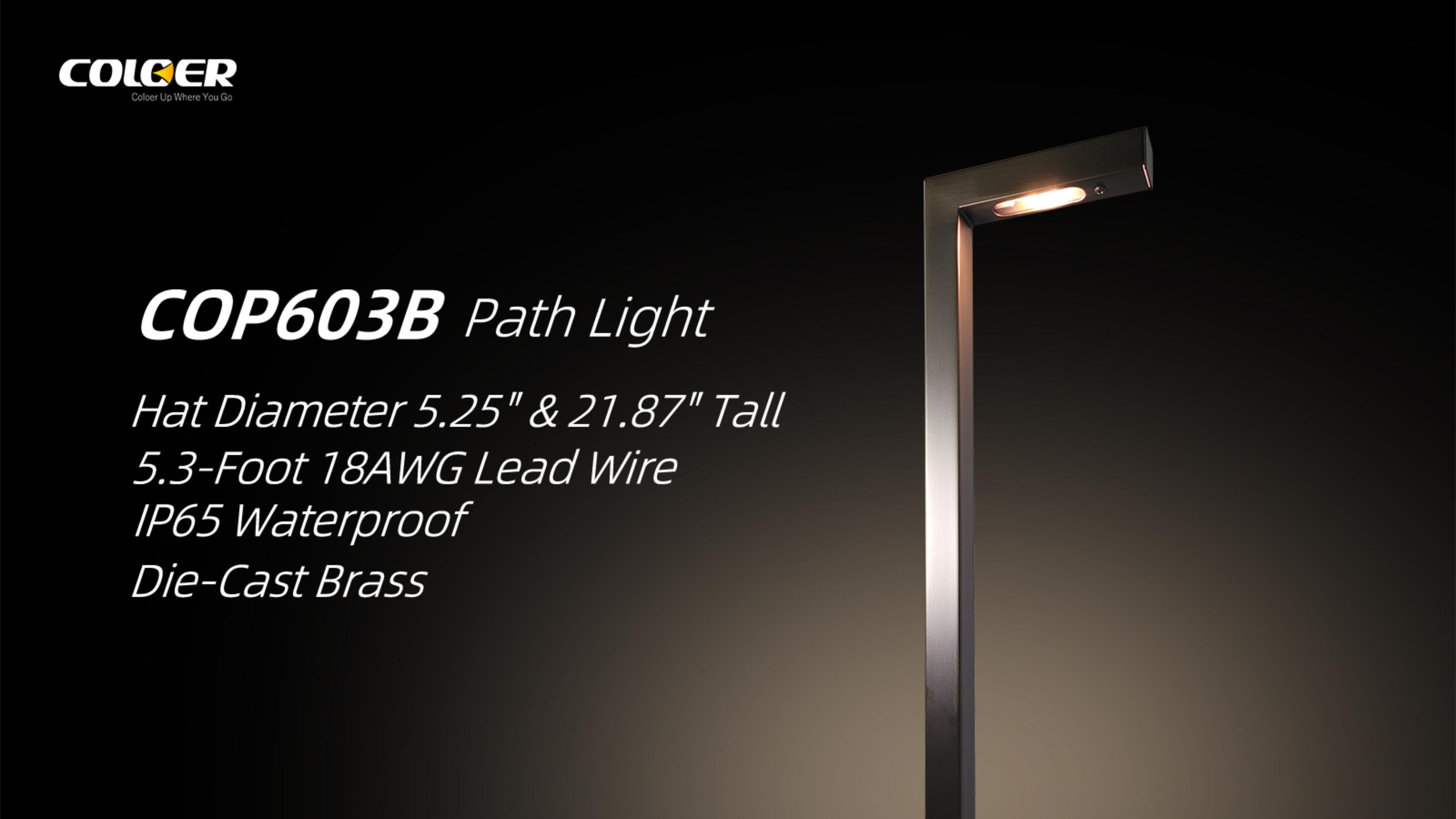

Hat Diameter 5.25" & 21.87" Tall
Sipecial L-type fixture disign

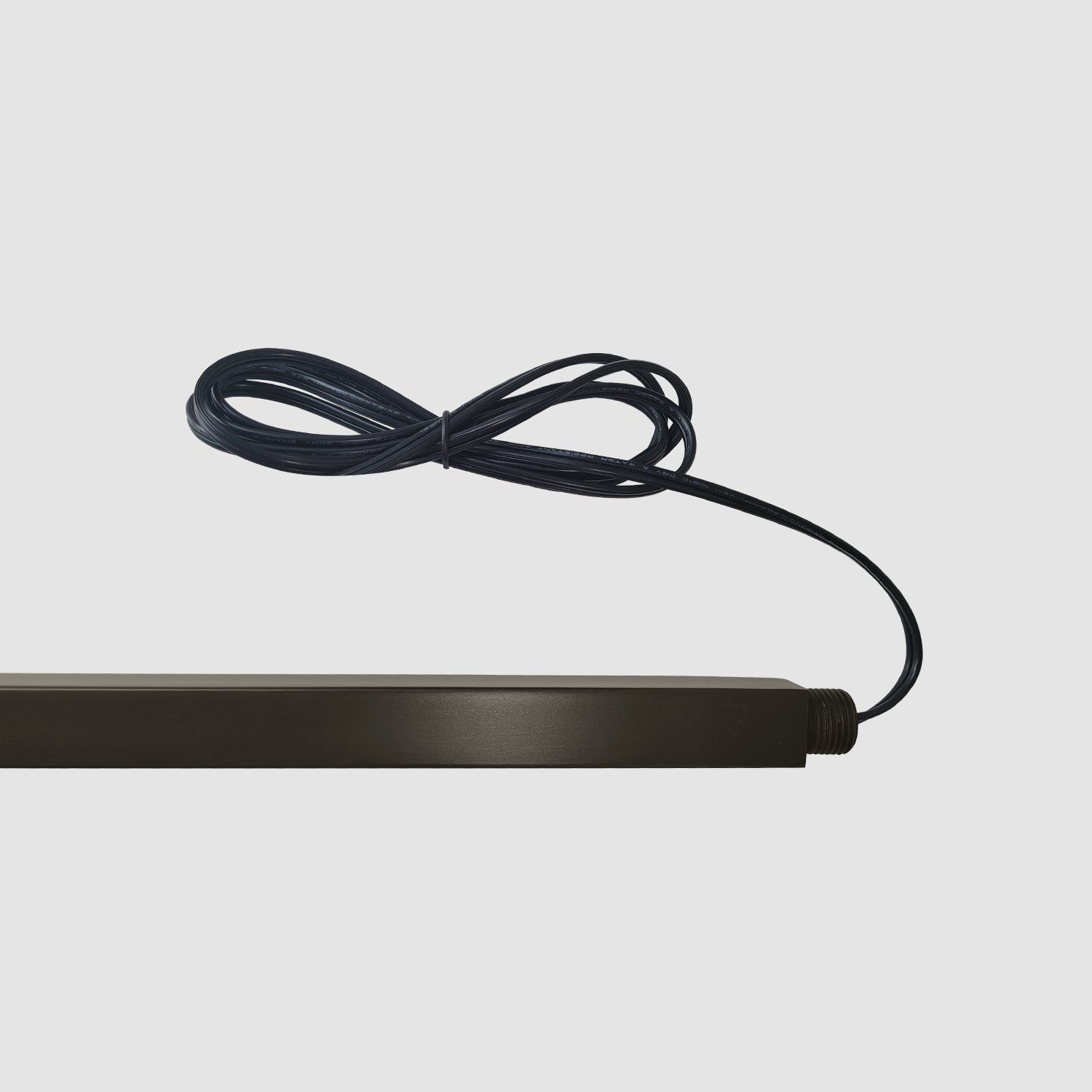

5.3-Foot 18AWG Lead Wire
Die-Cast Brass Fixture

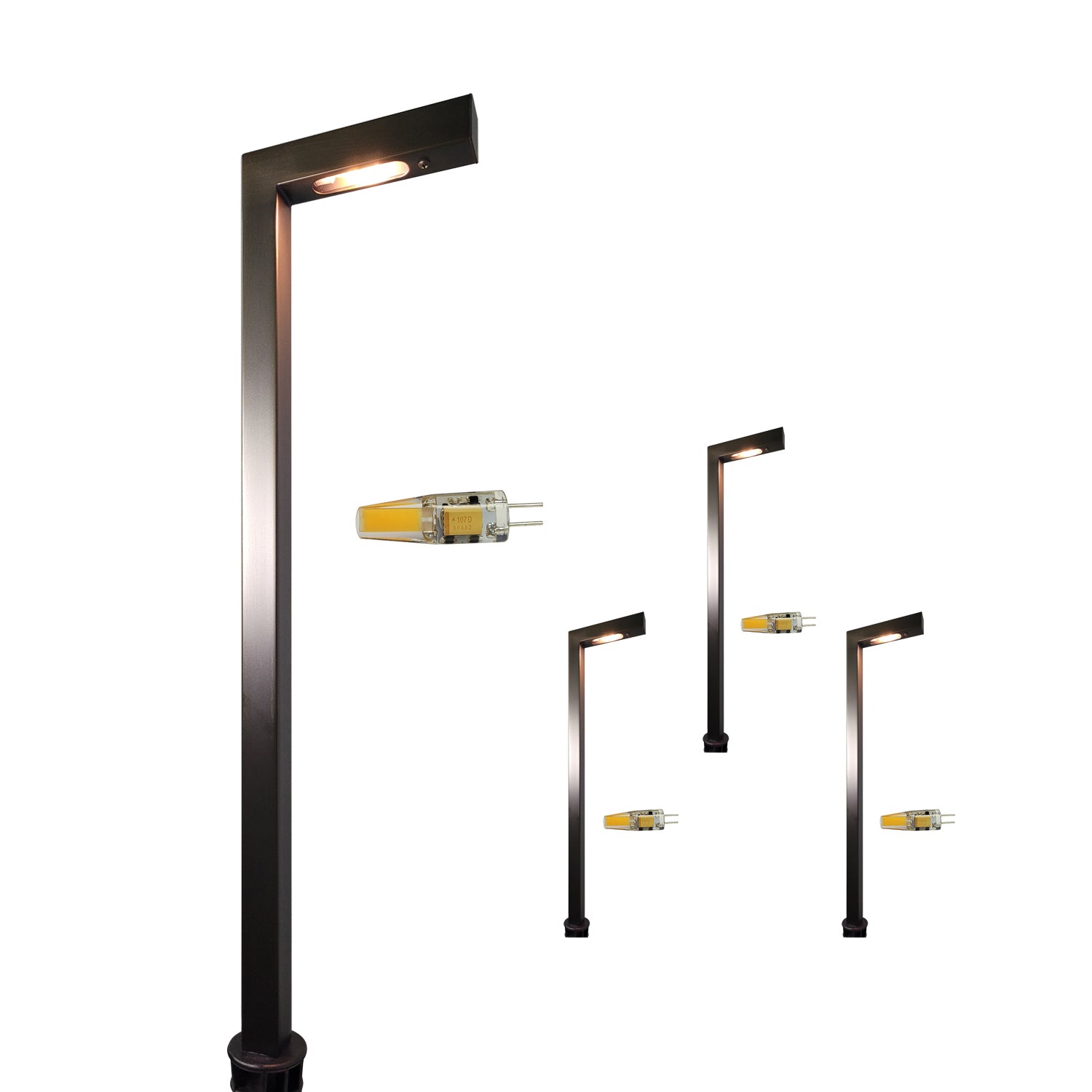

What included in the box
- Main Fixture
- LED G4 Bulb
- Large Size PVC Stake
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime

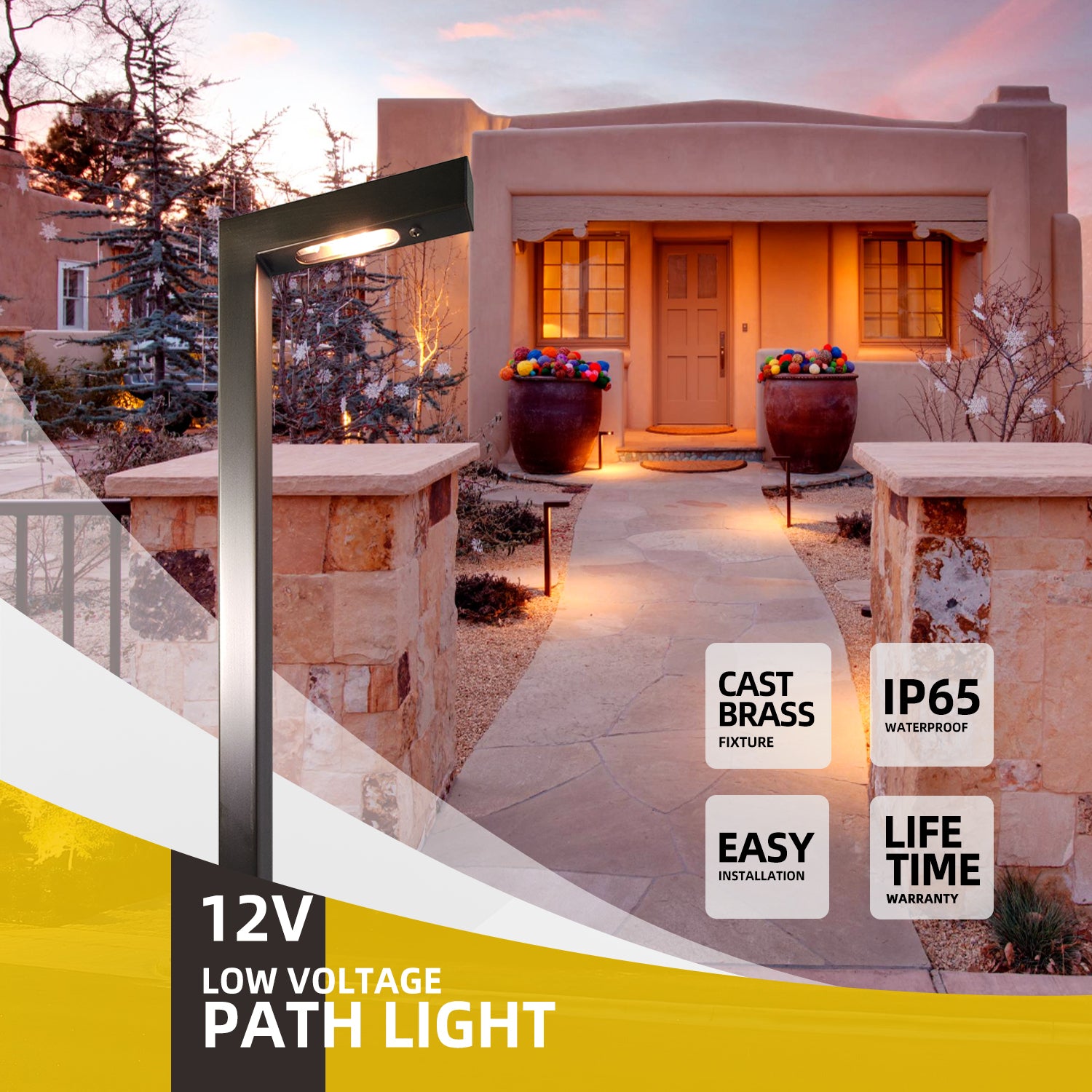

12V LOW VOLTAGE
SOLID-CAST BRASS

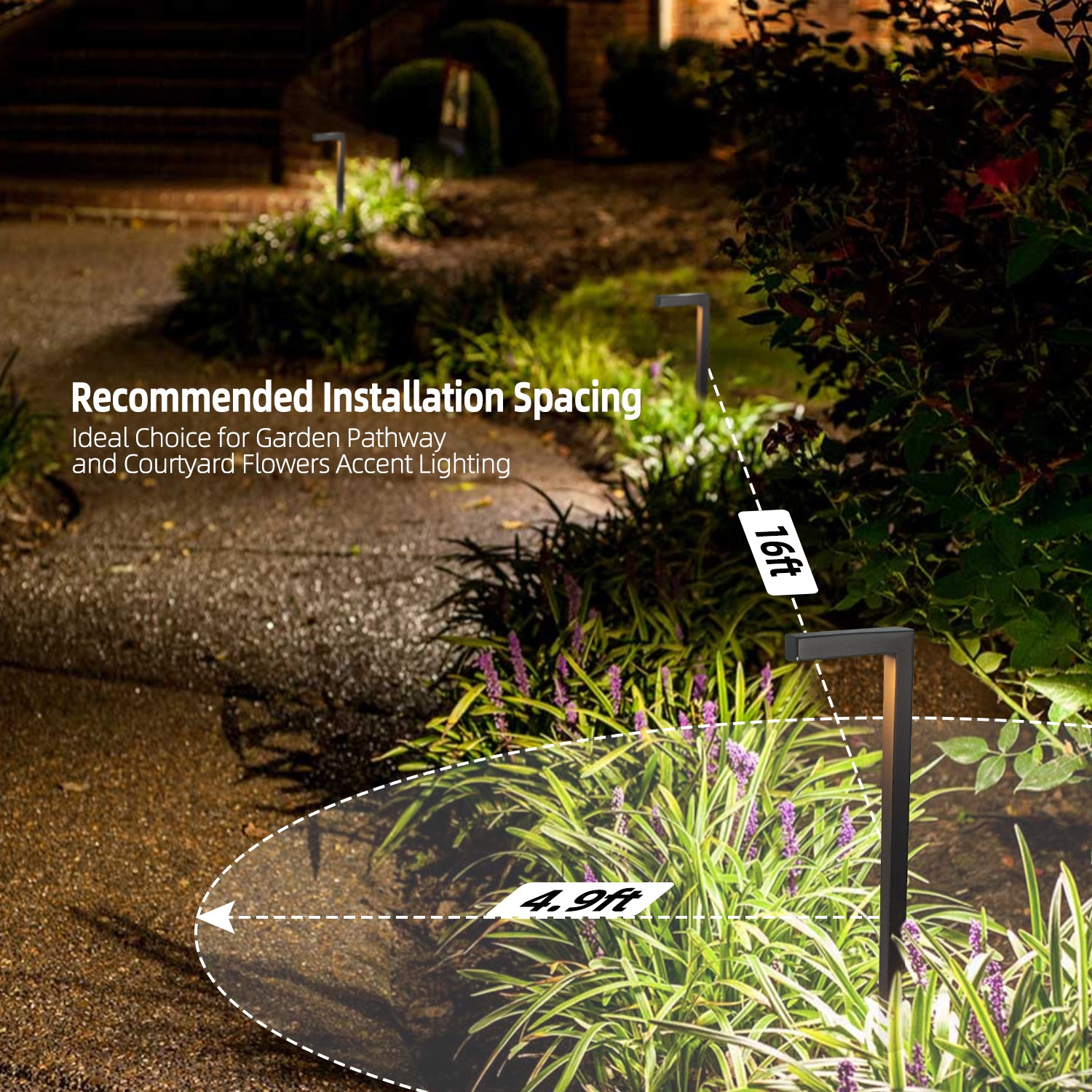

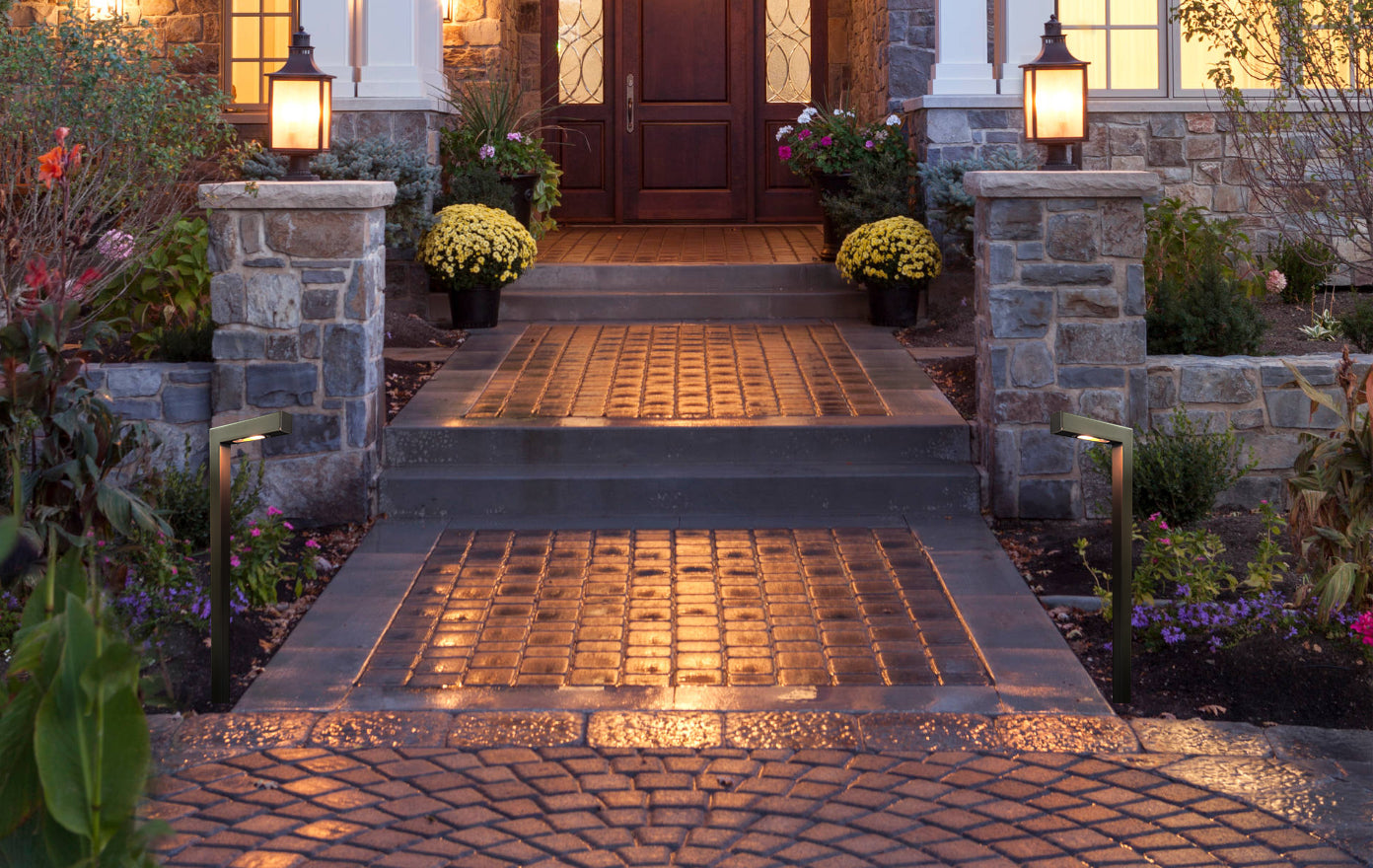

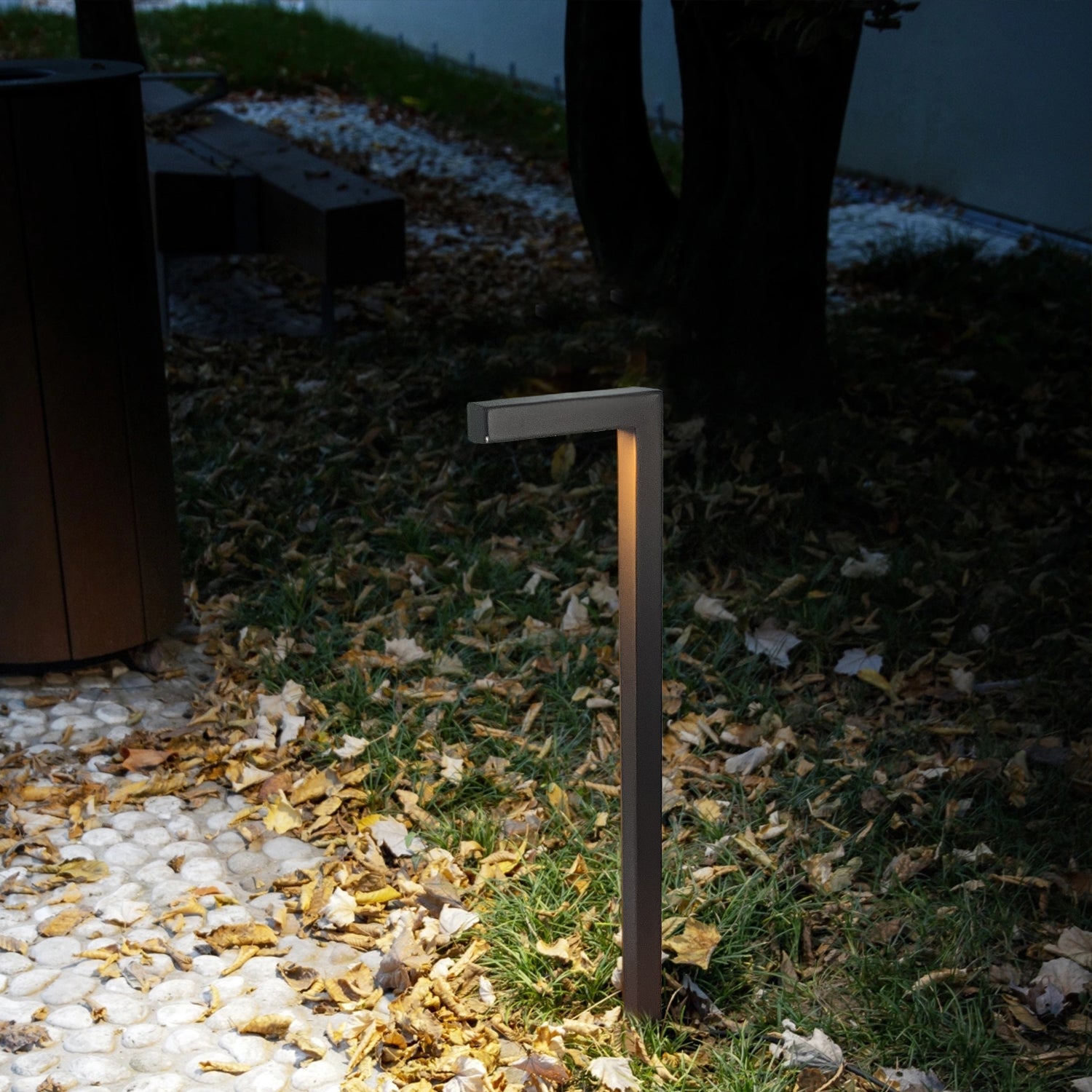

This landscape light is made of solid-cast brass material.The solid brass housing makes the outdoor lights for yard excellent in corrosion resistance and heat dissipation, the fine workmanship makes it tougher, harder and aesthetics. Projects a large 16' diameter region of illumination. Suitable for wet locations. IP 65 waterproof outdoor garden lights, suitable for flowerbeds, walkways, driveways, patios or any yard area.
Uniform Finish
Total height 21.87 inch brass fixture can be resistant to high temperature and corrosion, with 5.3-foot 18AWG UL listed wire provide more safer to use

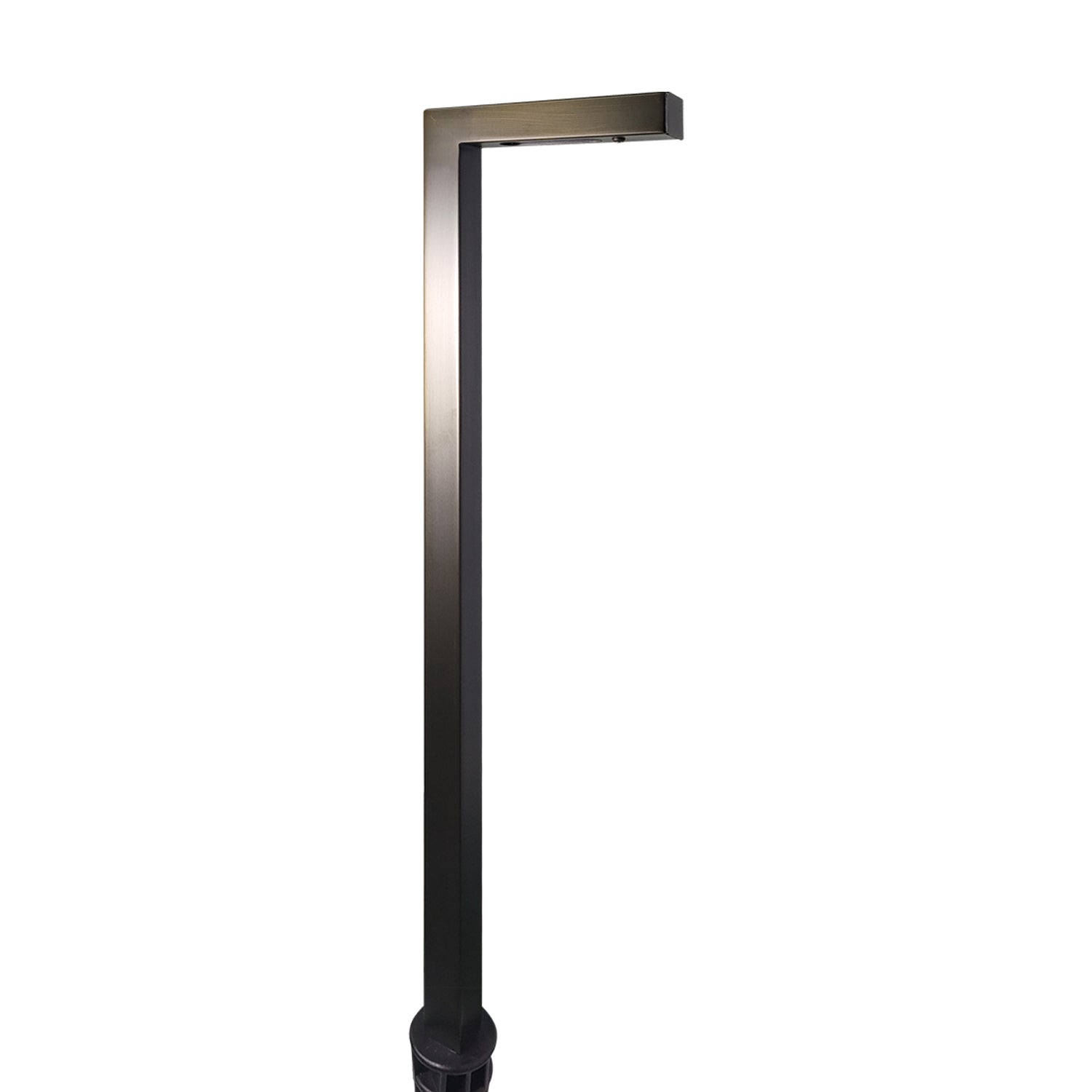

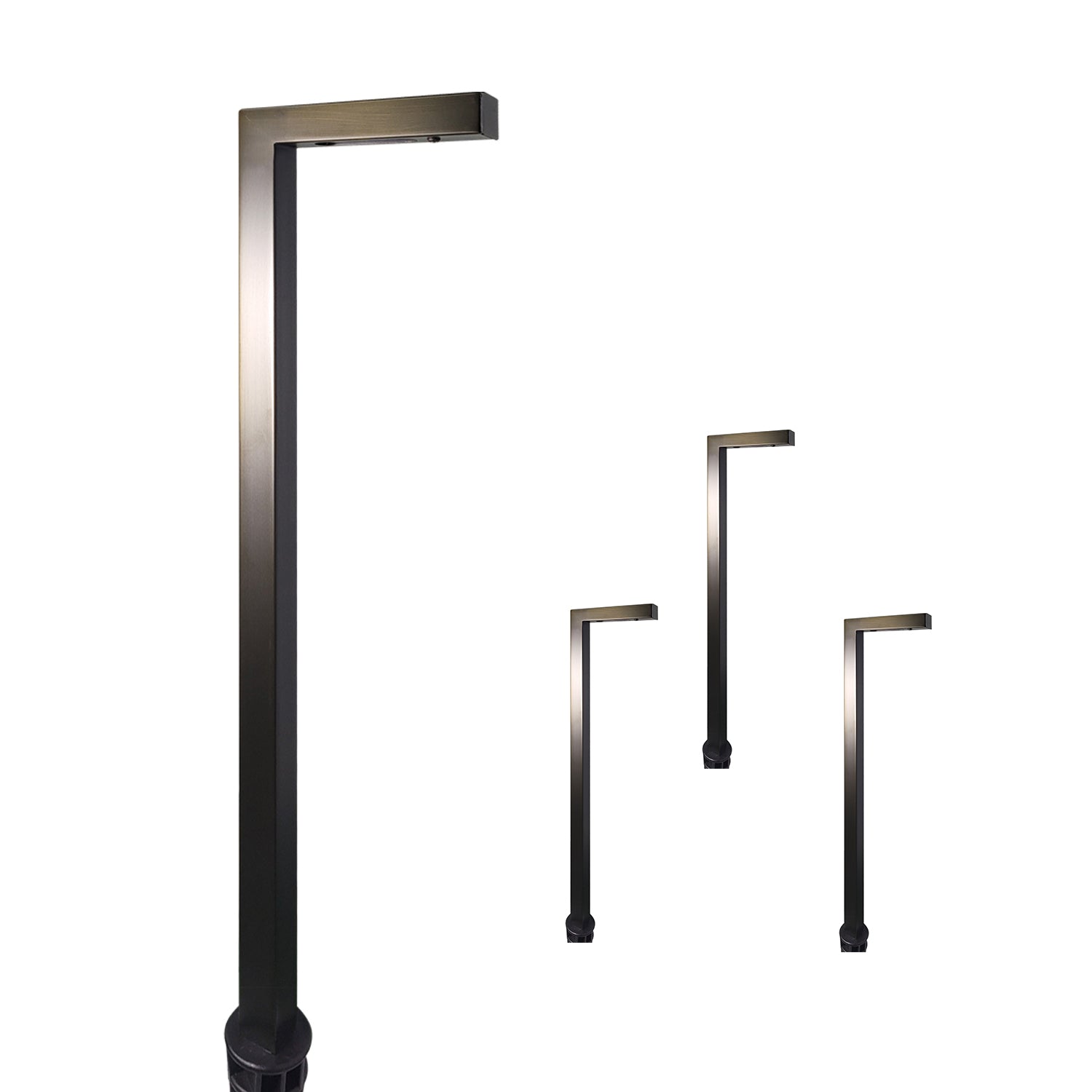

Sipecial L-type fixture disign

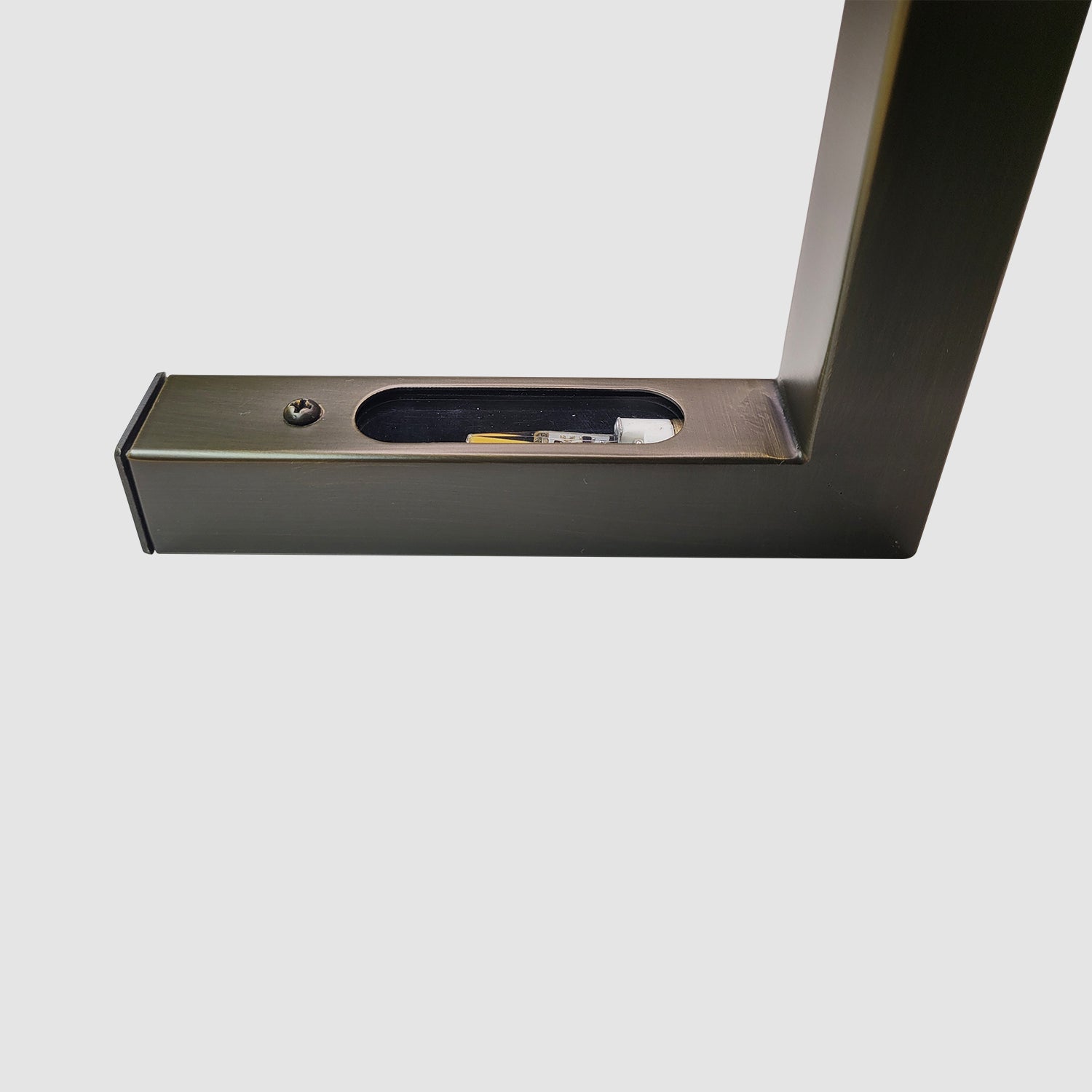

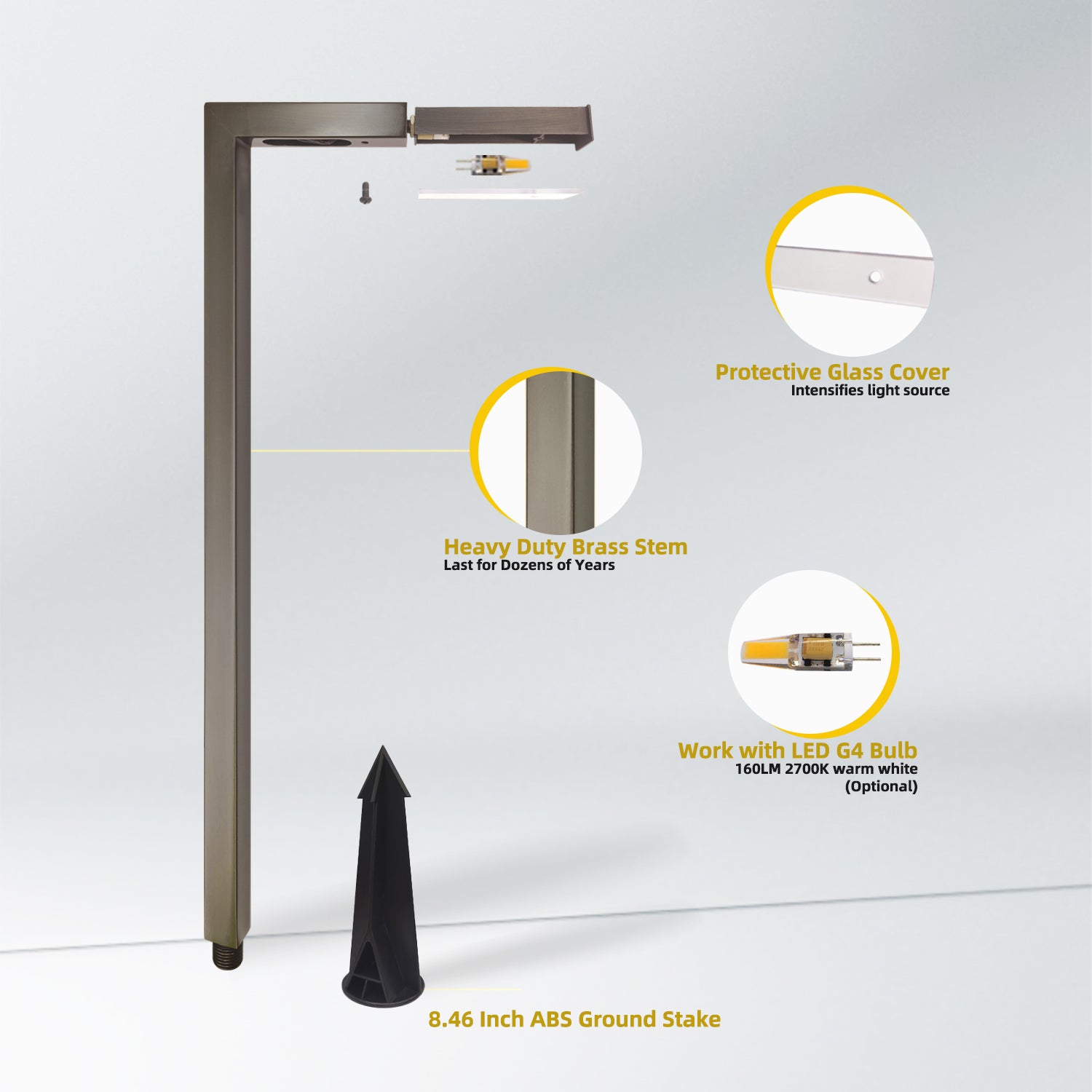

Sipecial L-type fixture disign with solid brass stem support last for dozens of years and the detachable design for replace the bulb easily

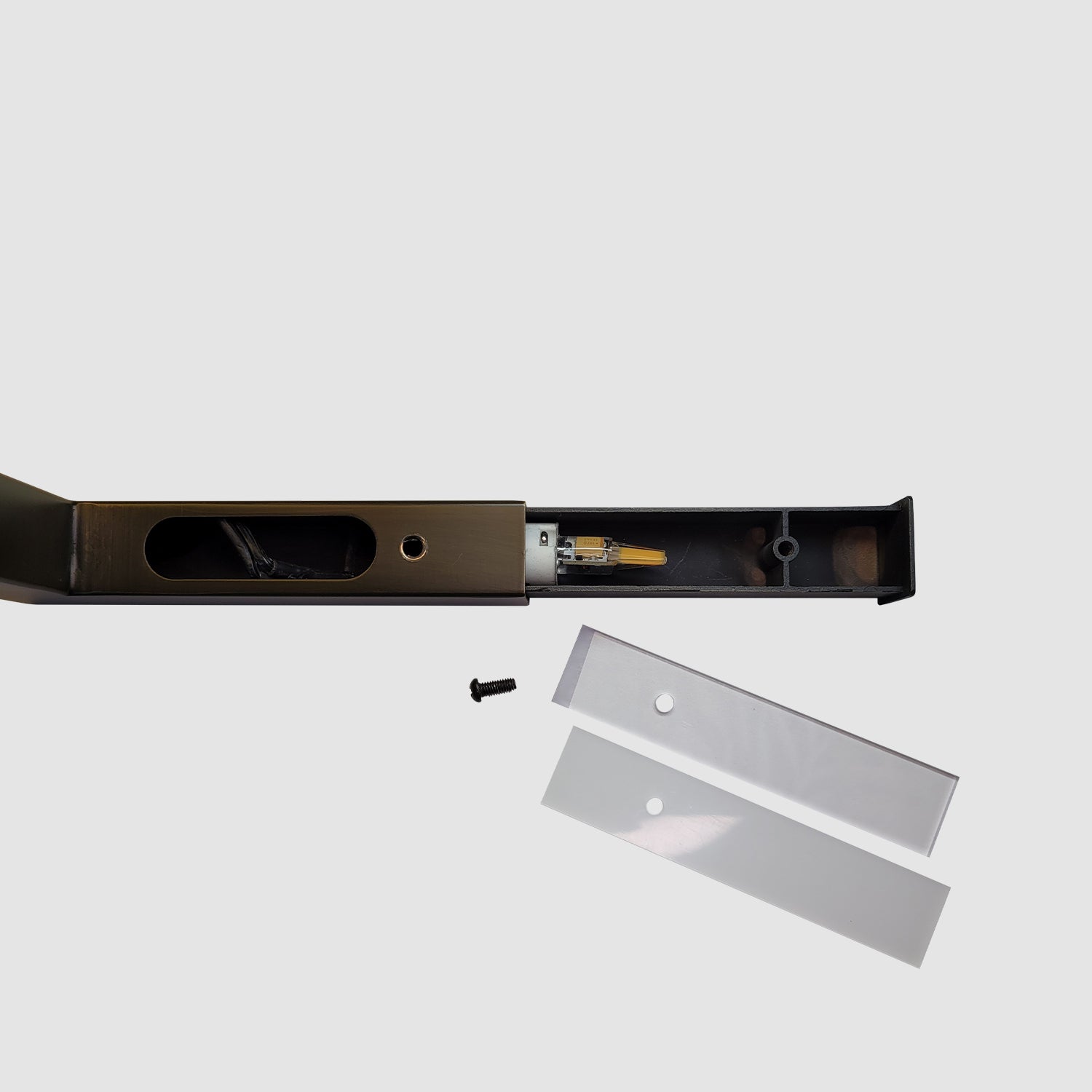

Polycarbonate Lens
Polycarbonate lens can stops water and protect the bulb, and one additional free lens is available for replacement

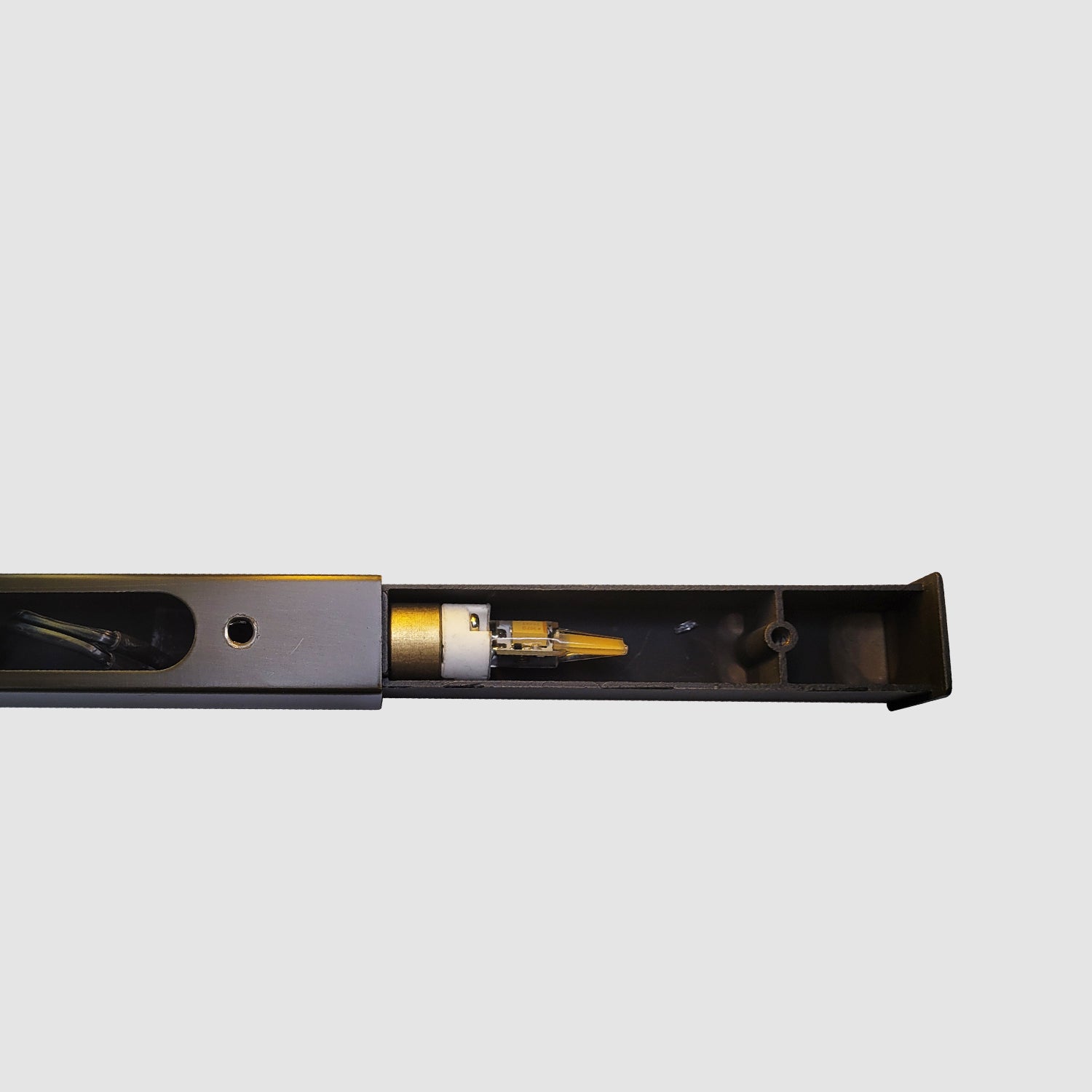

G4 Bulb Socket
This pathway light fixture work with G4 bi-pin socket, compatible with G4 bulbs up to 20W, can easily install or replace the bulb
COLOER Brass Low Voltage LED Path Lights for Outdoor
COLOER solid cast brass pathway lights housing excellent in corrosion resistance and heat dissipation, the fine workmanship makes it tougher and aesthetics. Proper hardscape lighting allows you to extend the use of your patio, walkway or driveway long after the sun goes down.
COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

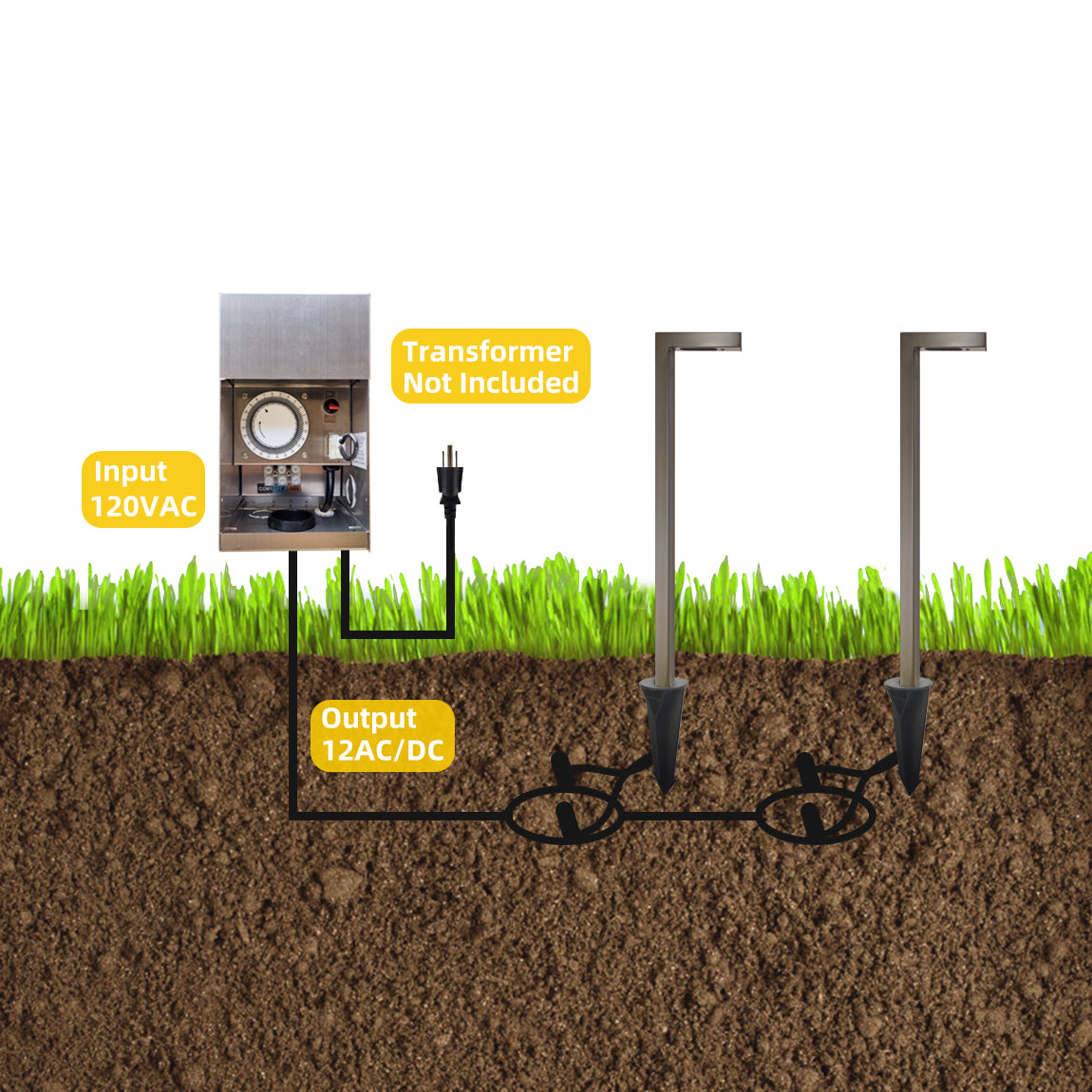

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
Email: customerservice@coloer.com / Tel: +1 626 699 4666
Have a question? We are here to help.
Check out the most common questions our customers asked. Still have questions? Contact our customer support
Can i change out the g4 bulb to another bulb that is 4500k temperature? where would i get the ones that work? link?
Yes, you can change 4500k temperature G4 bulb. We only sale 2700K G4 bulb, you can buy 4500K or different temperature bulb from other sellers.
Does it turn on by sensor ?
The lights don’t have individual sensors. They can be controlled by a timer or photocell on the circuit.
Hola ! Le gustarían en forma de L pero niquel cepillado . La tienen así ?
Sí, la luz para senderos en forma de L está fabricada en latón fundido a presión con un acabado de laca de color bronce.
What types of transformer and wire I need for these lights ?
The transformer will depend on how many lights you put on that wire, our path light with 2.5 W LED G4 bulb, you can choose 14ga wire to connect the light to transformer.
will just one have a male plug??
There are no plugs, you will need to hardwire into the transformer circuit.
Description says the lights come with 2 lenses. One clear and one frosted. Mine came with only one and it was fro. Do you have clear lenses available?
It should be our warehouse employee left out clear lanses, not put it in the package. Could you send us your order number, we will resend the clear one, thank you.
what is the stem dimension and diameter ?
Except for 603, all other path light stem diameter is about 1.07" and about 18.1" long, thank you.
what is the warranty on these lights?
The lights fixture are lifetime warranty and 50,000hrs for our led bulb.
Does this include connectors?
yes, every pack path light include two connectors.
