LED Brass Deck Lights | Backyard Lighting | Low Voltage Waterproof Landscape Lighting COD401B

Product Informations

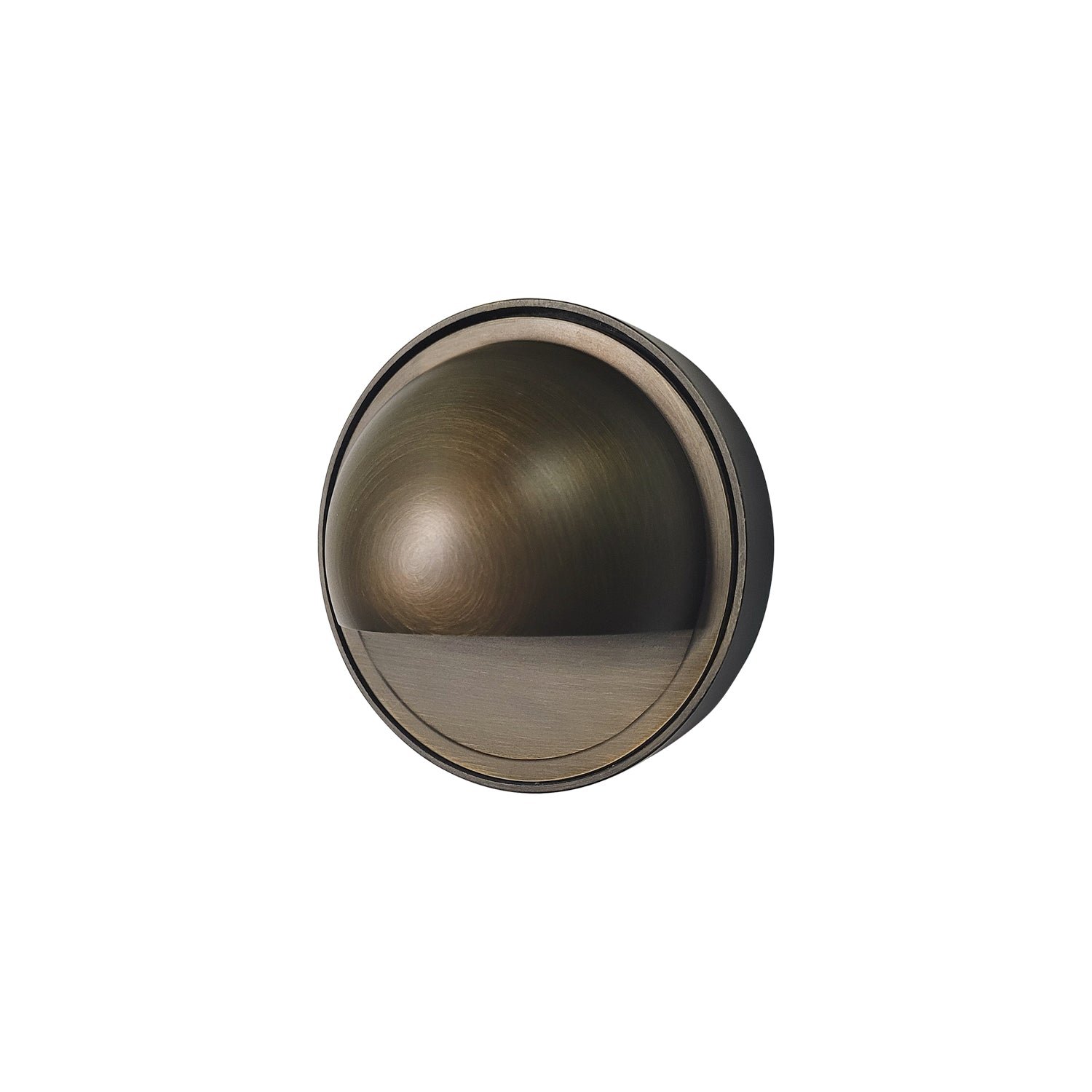

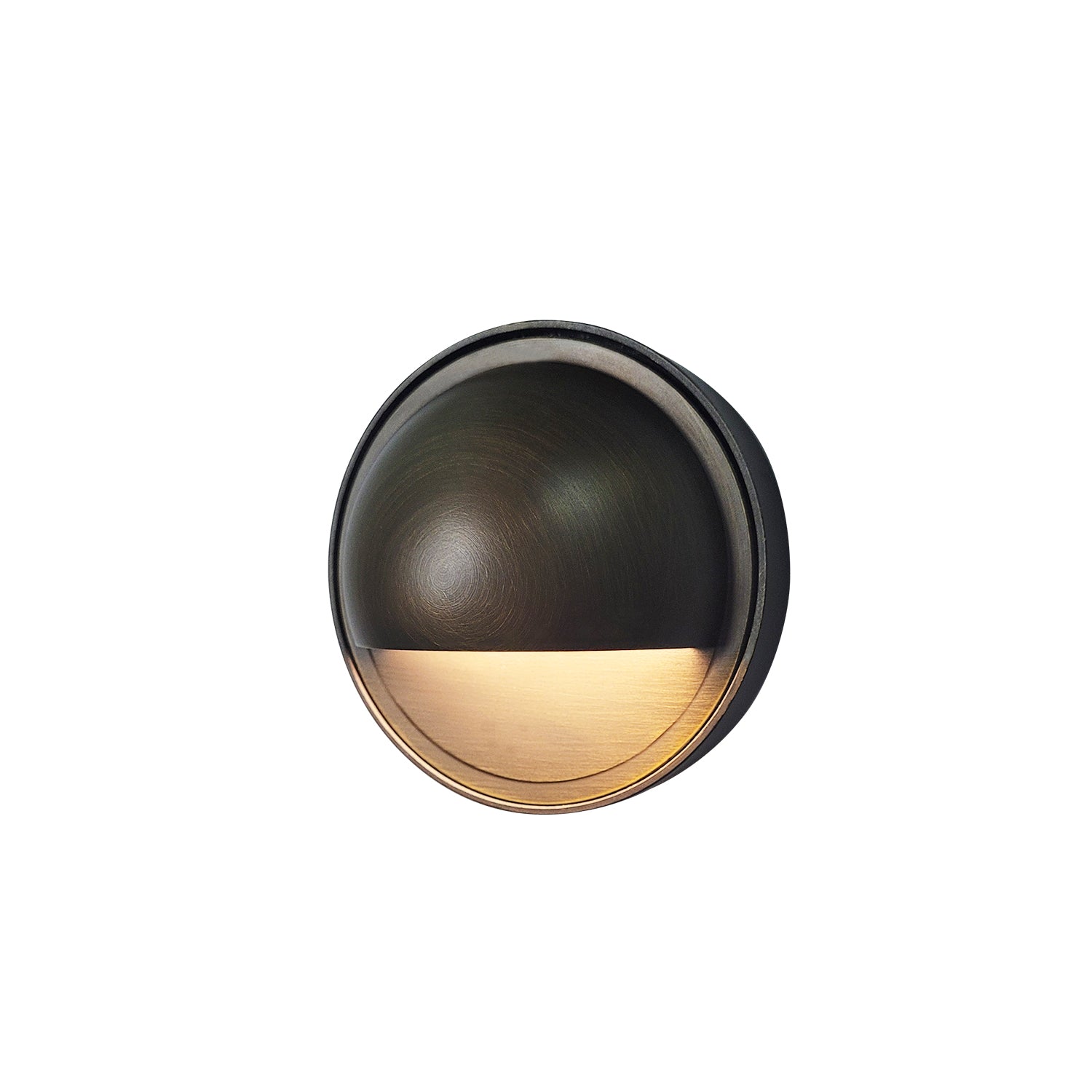

About the COD401B Deck Light
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for variety of installation requirements. Silicone plug at lead wire exit prevents ground moisture from entering through the stem.
- Uses halogen lamps up to 20w or rated LED G4(Not Included), The circular lamp holder's low height lets it hide in the grass or shrubs, The frosted lens eliminates glare letting you enjoy bright light.
- Easy installation, just screw the fixture onto the stake, Lay out fixtures at desired locations.
3.13"L x 3.13"W x 1.63"H
1 pounds
Brass
9-17V AC/DC
360D
9-17V AC/DC
Atique Bronze

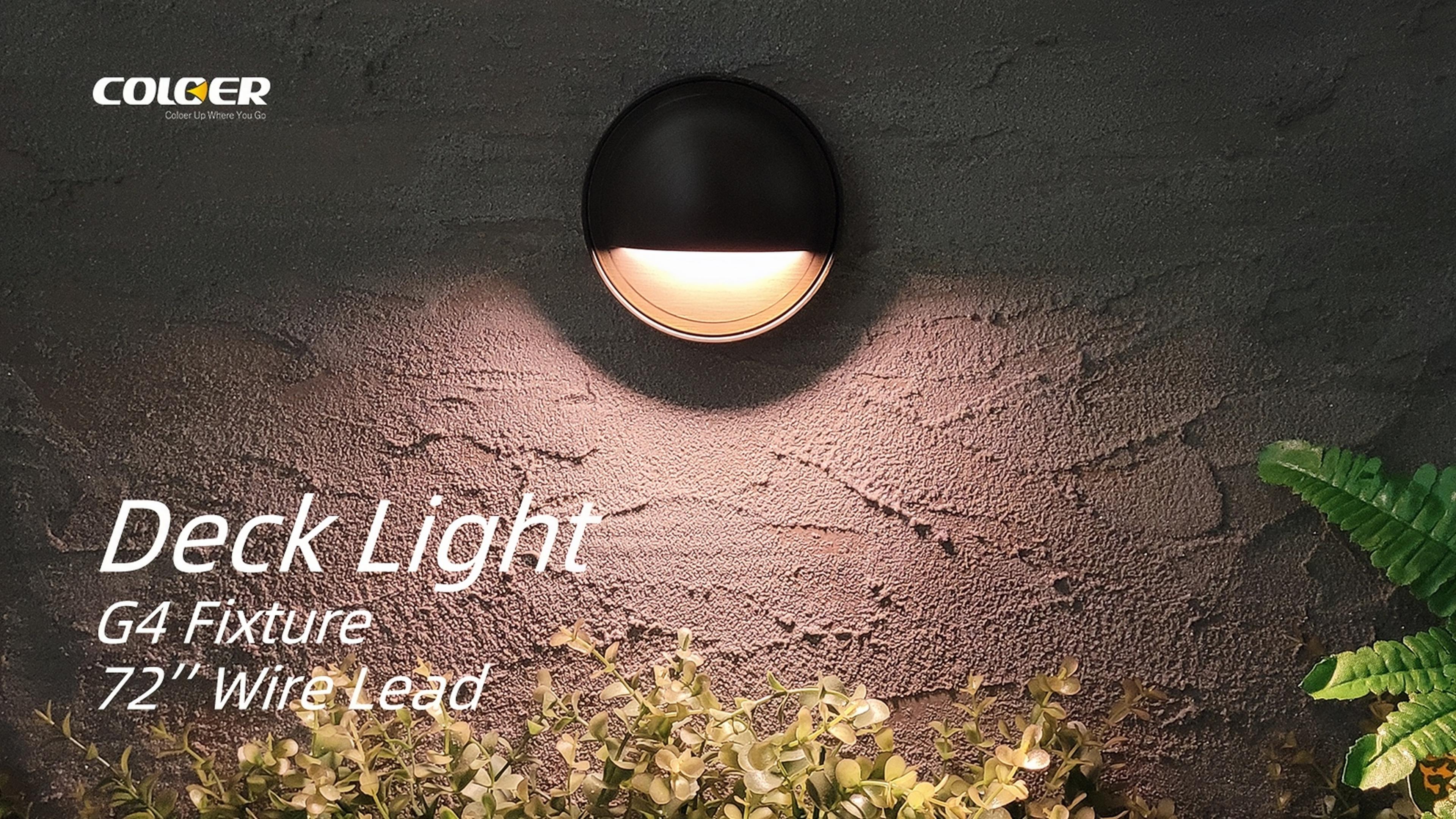

LED Backyard Deck Lights

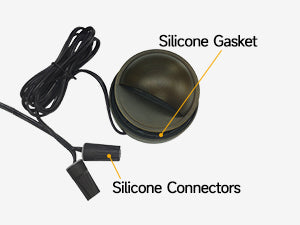

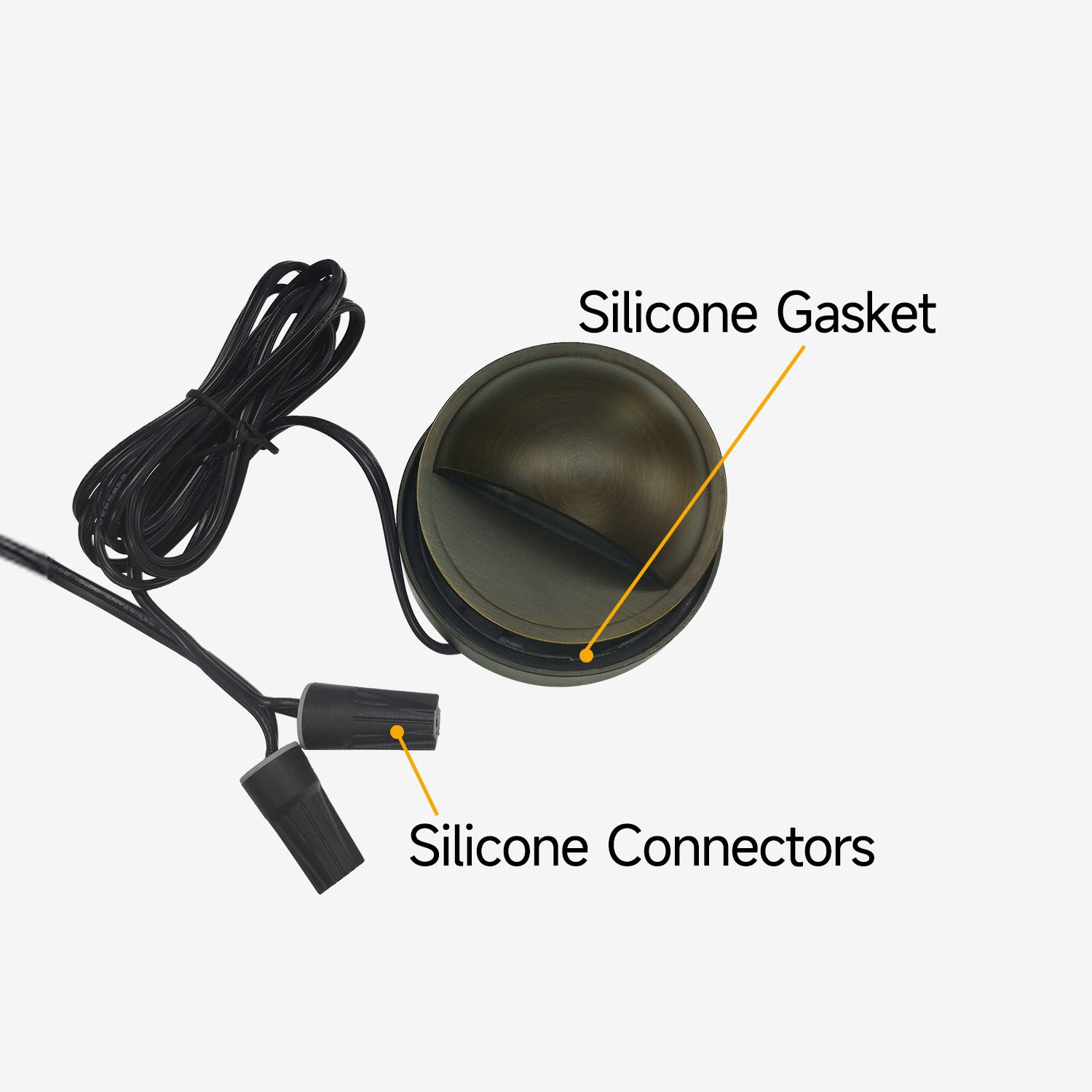

Silicone gasket & Two waterproof silicone connectors
Output 180 lumens 2700K warm white light

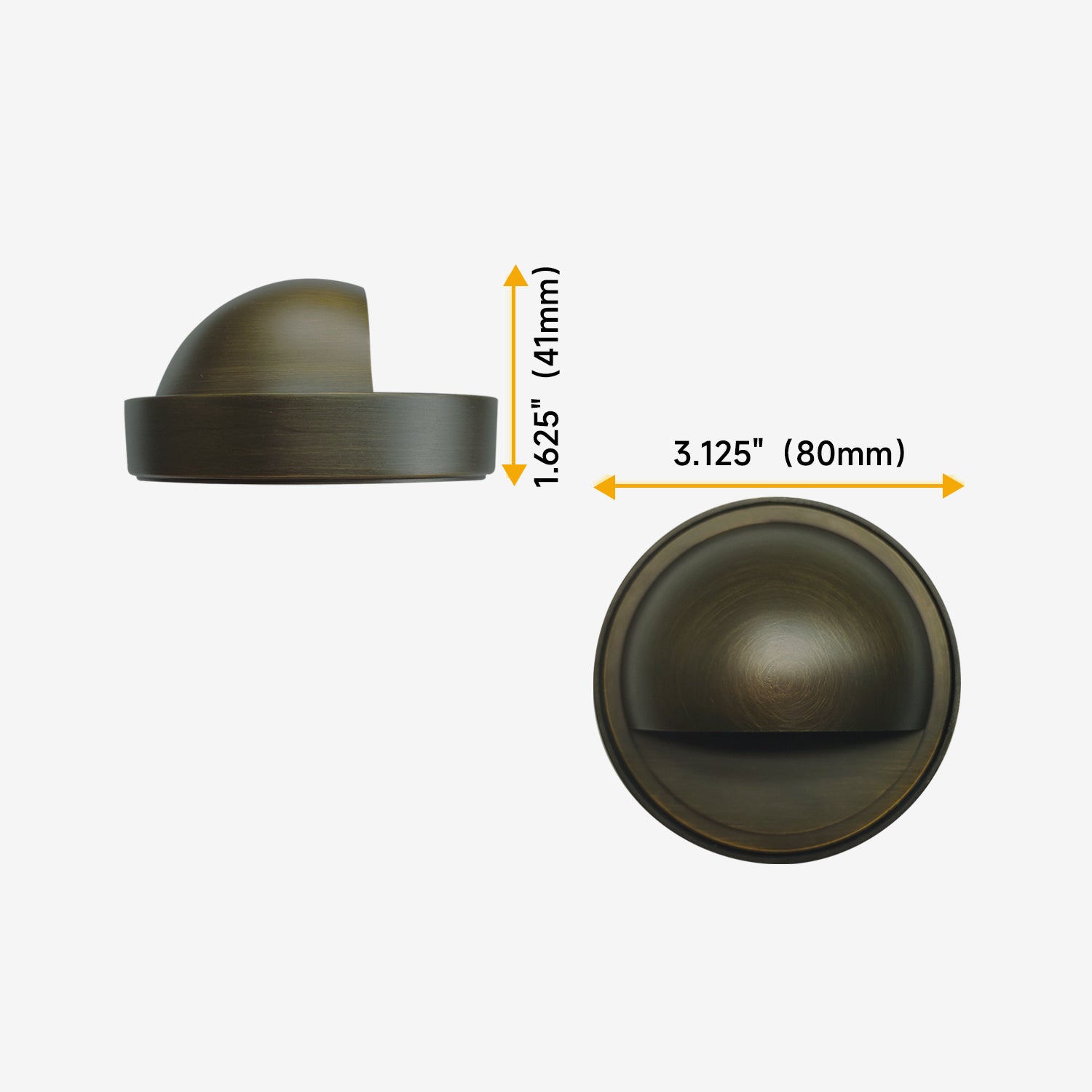

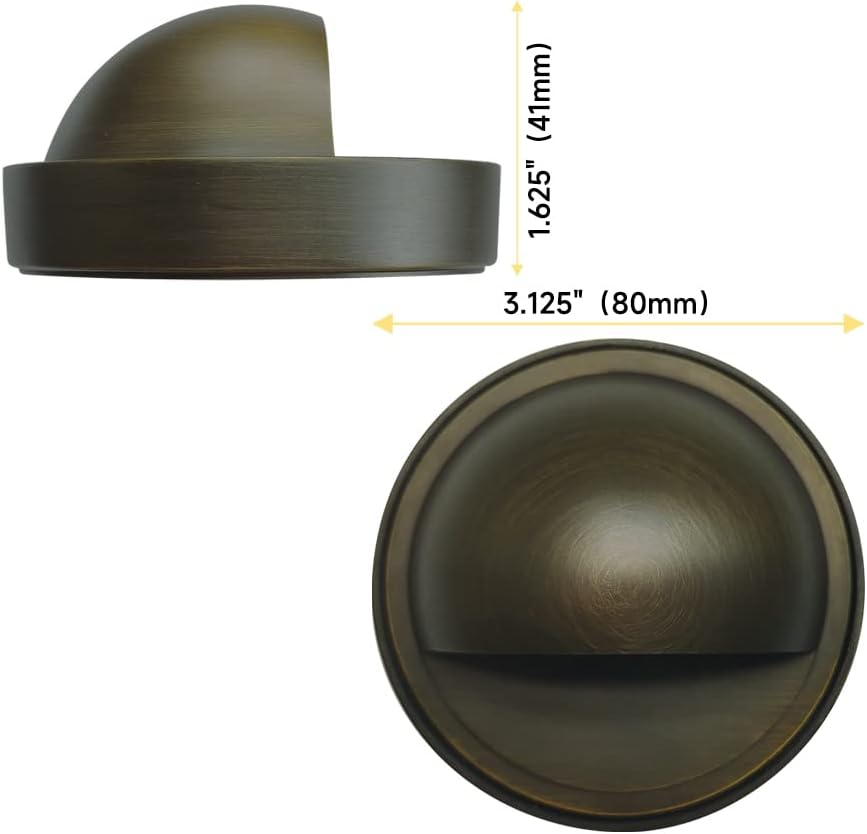

1.625" diameter, 3.125" tall small size
IP65 Waterproof

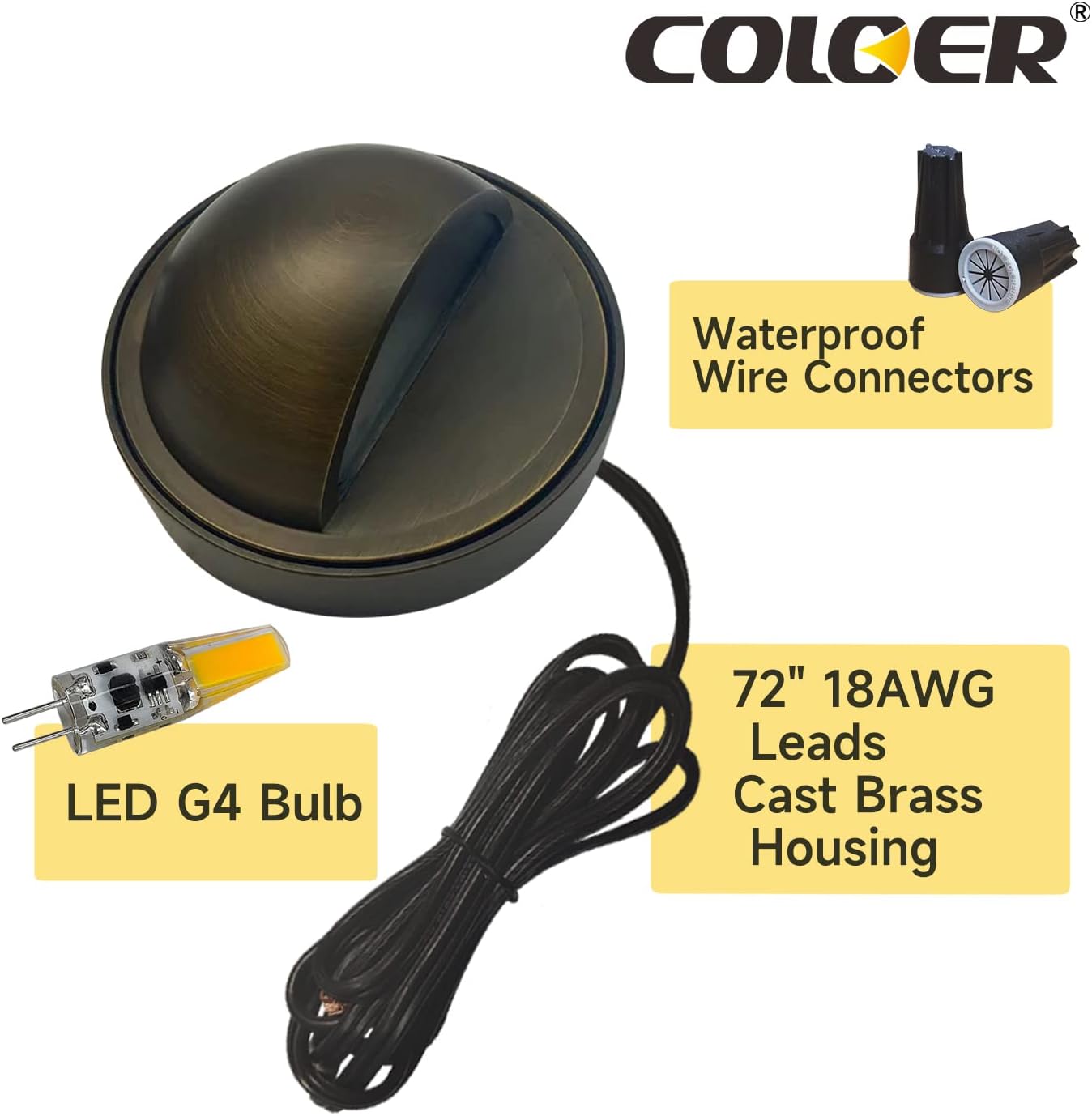

What included in the box
- Main Fixture
- LED G4 Bulb
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime

12V-24V LOW VOLTAGE

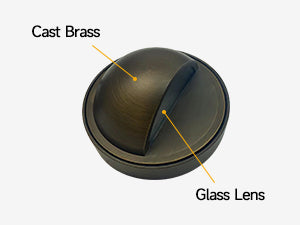

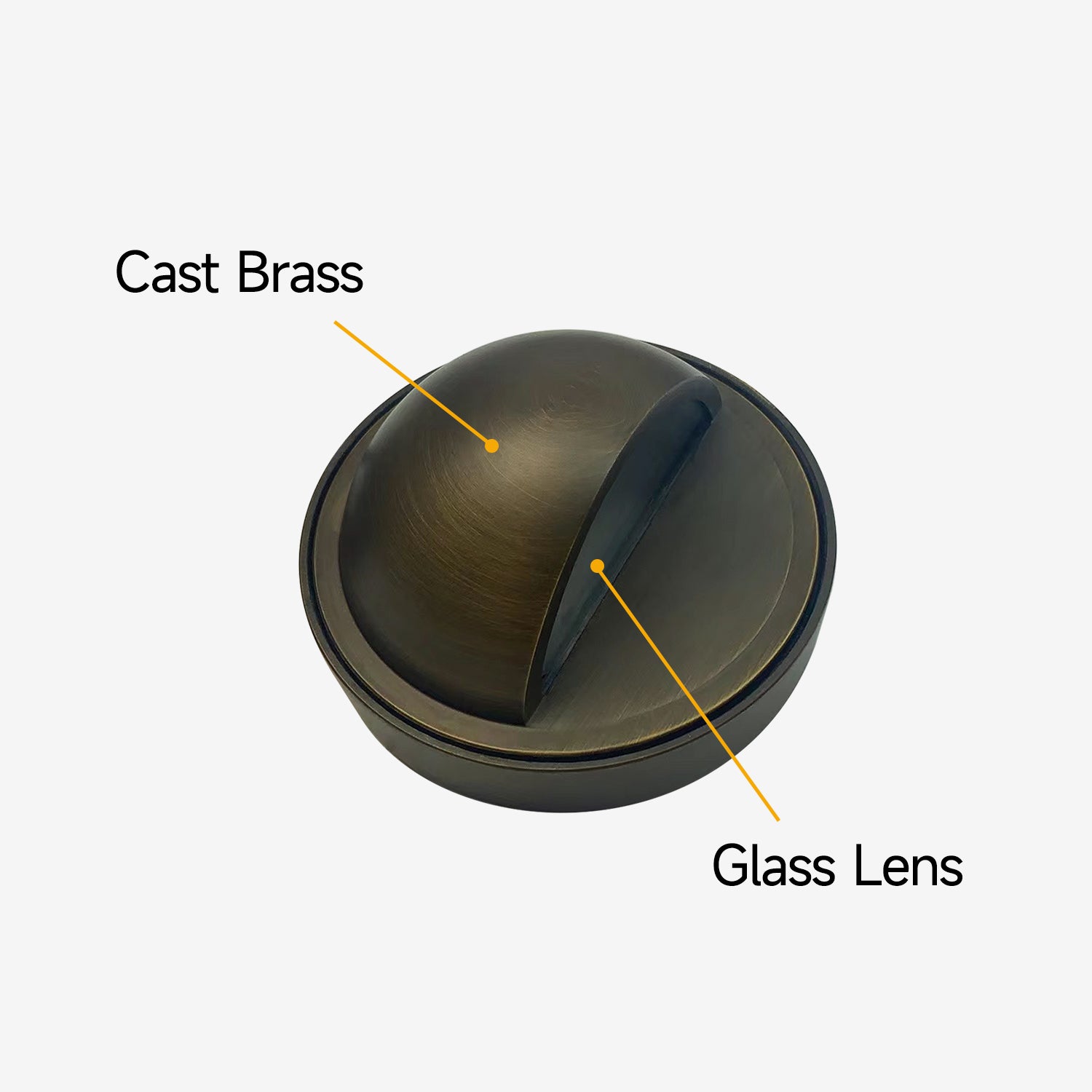

SOLID-CAST BRASS

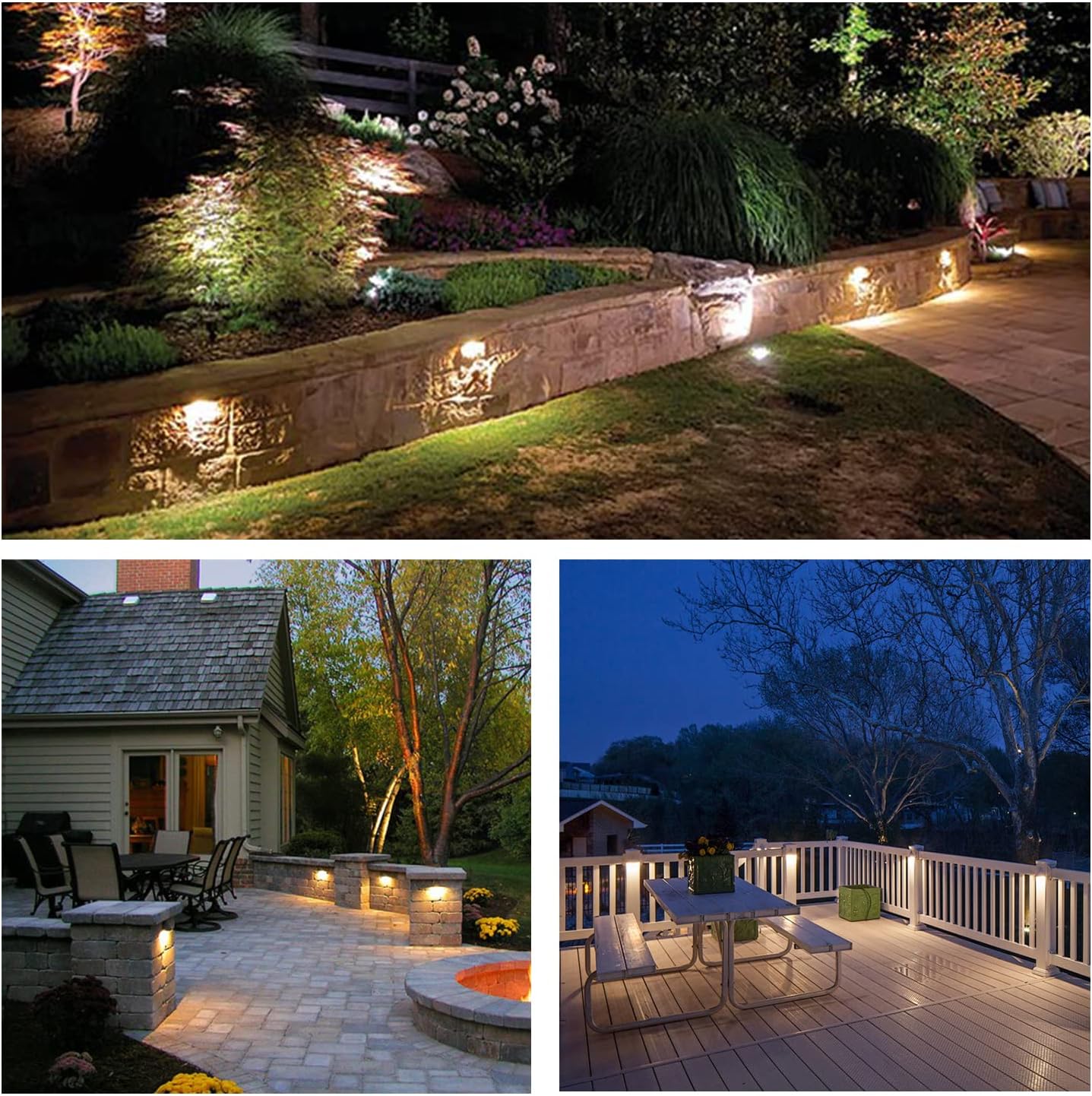

This deck light is constructed of solid cast brass. There's no powder coating, paint or finish to wear off or peel. The low voltage ground light with a cleated heavy-duty stake design makes it easy for outdoor ground-mounting. Equipped with removable ground stake, lamp body can be used alone. Outdoor Deck Light for Railing, Deck, Patio, Yard, Garden, Walkway and Driveway.

Uniform Finish
High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, with 6-foot 18 AWG lead wire and two waterproof wire connectors.

IP65 Waterproof
Brass casting outer casing, concise and elegant, anti-corrosion and waterproof, ideal for indoor and outdoor use.

Small Size

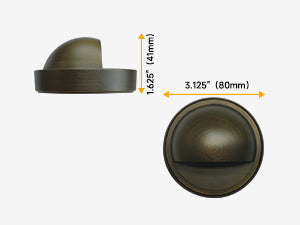

1.625" diameter, 3.125" tall small size heavy-duty outdoor deck light for railing, deck, patio and yard

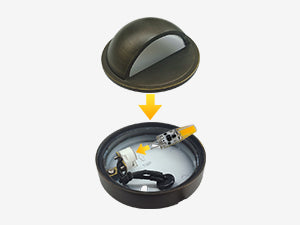

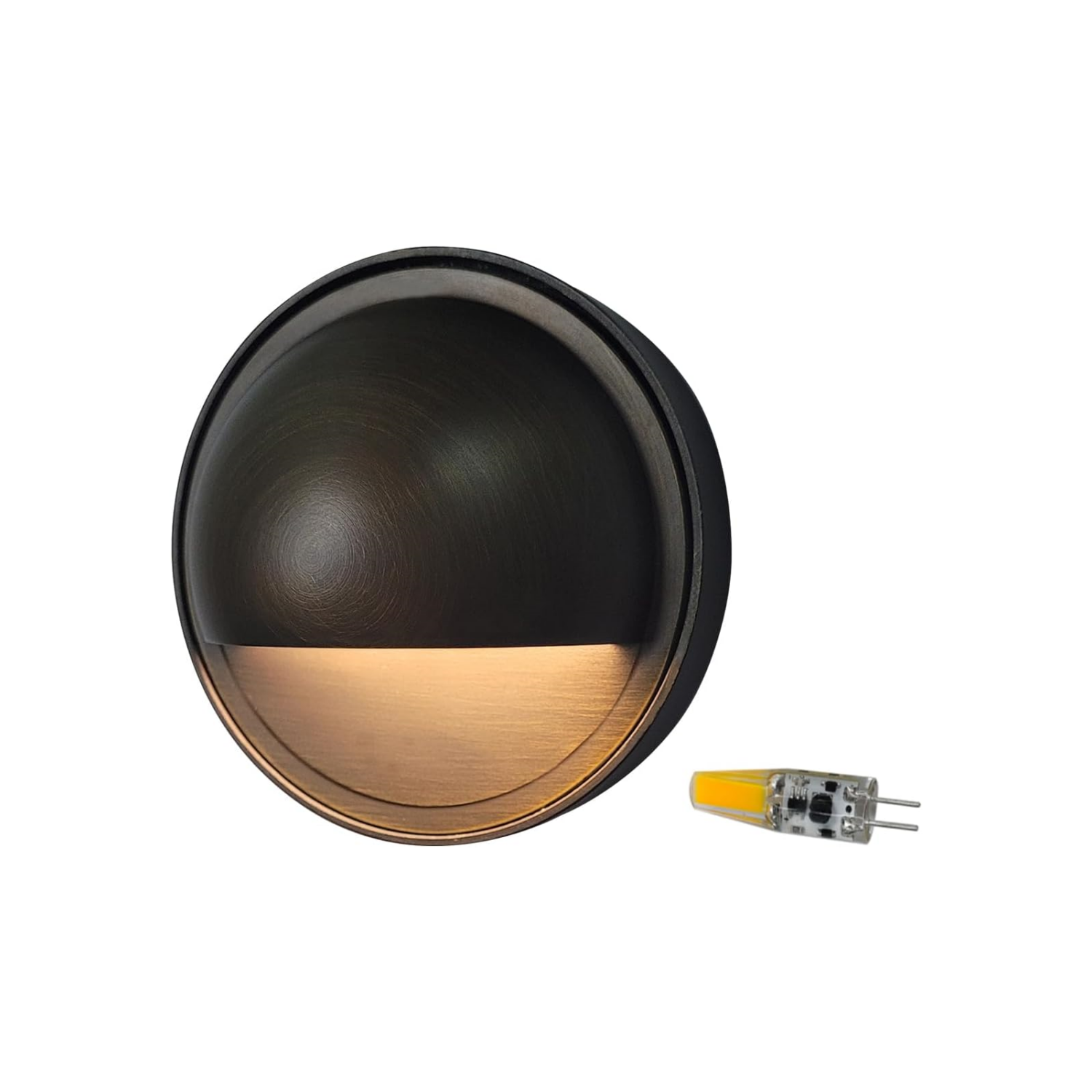

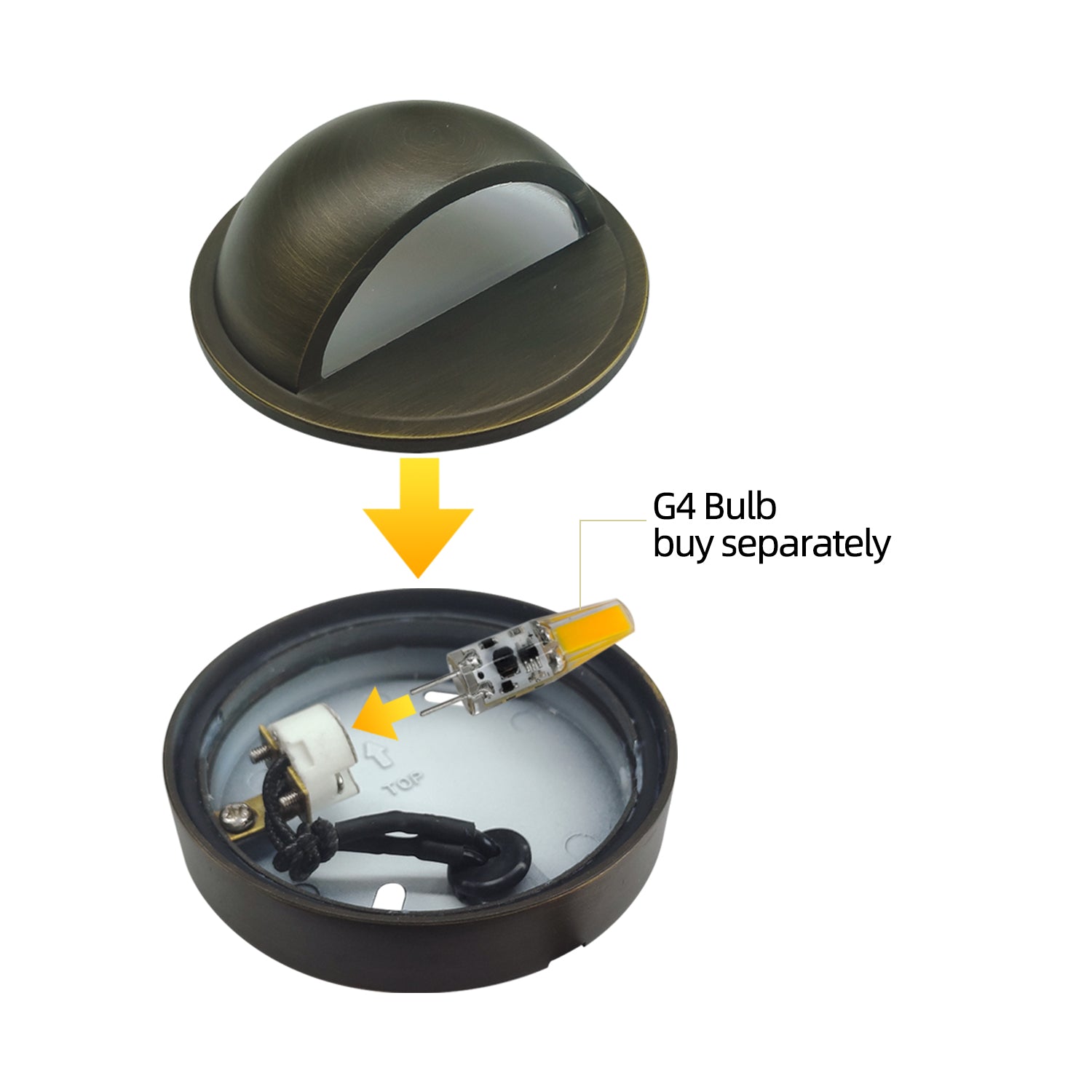

G4 Bulb Socket
With G4 bulb or max 20W halogen lamp(not included), can output 180 lumens 2700K warm white light, better decorate your patio or stairs.

COLOER 12V Low Voltage Solid Brass Outdoor Deck Light

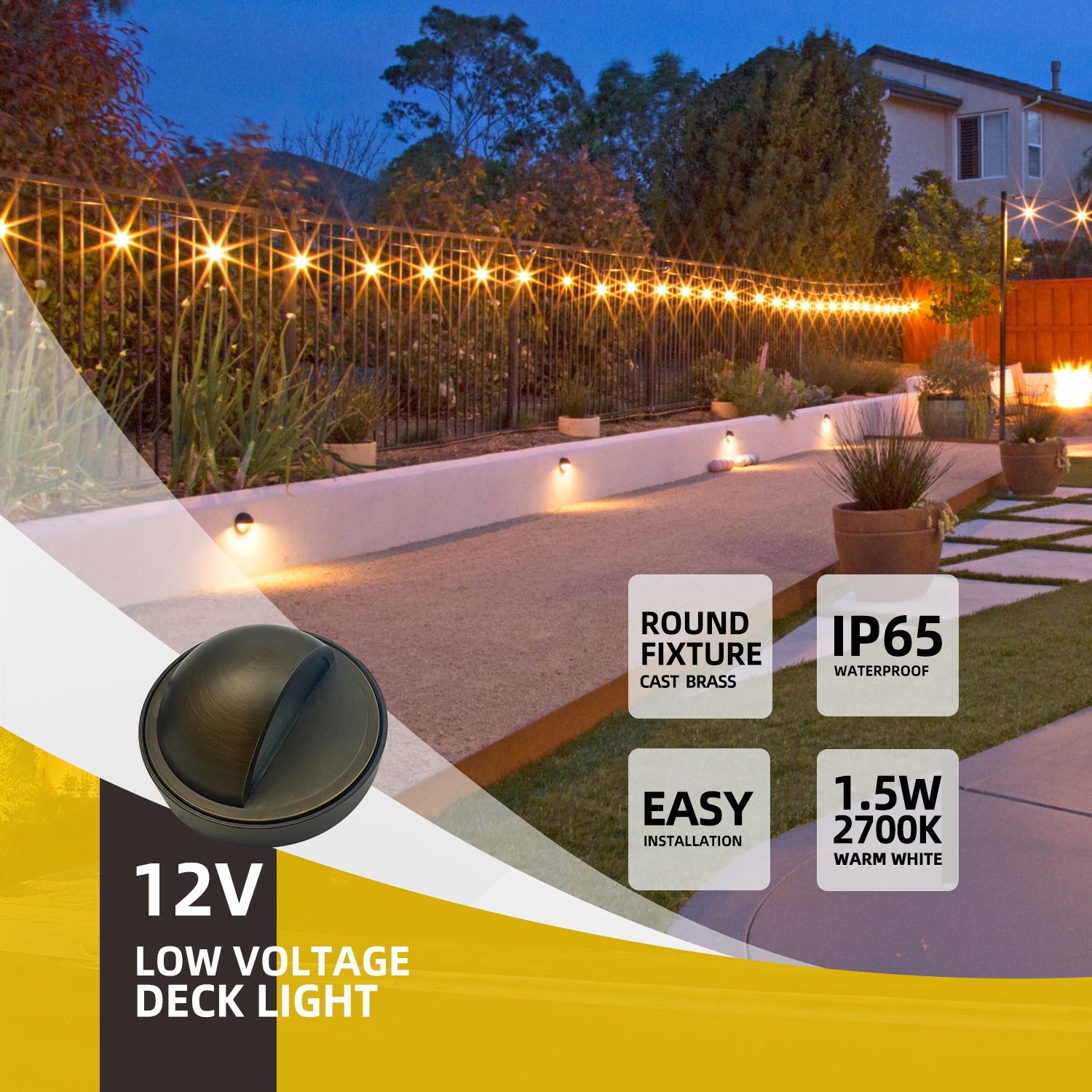

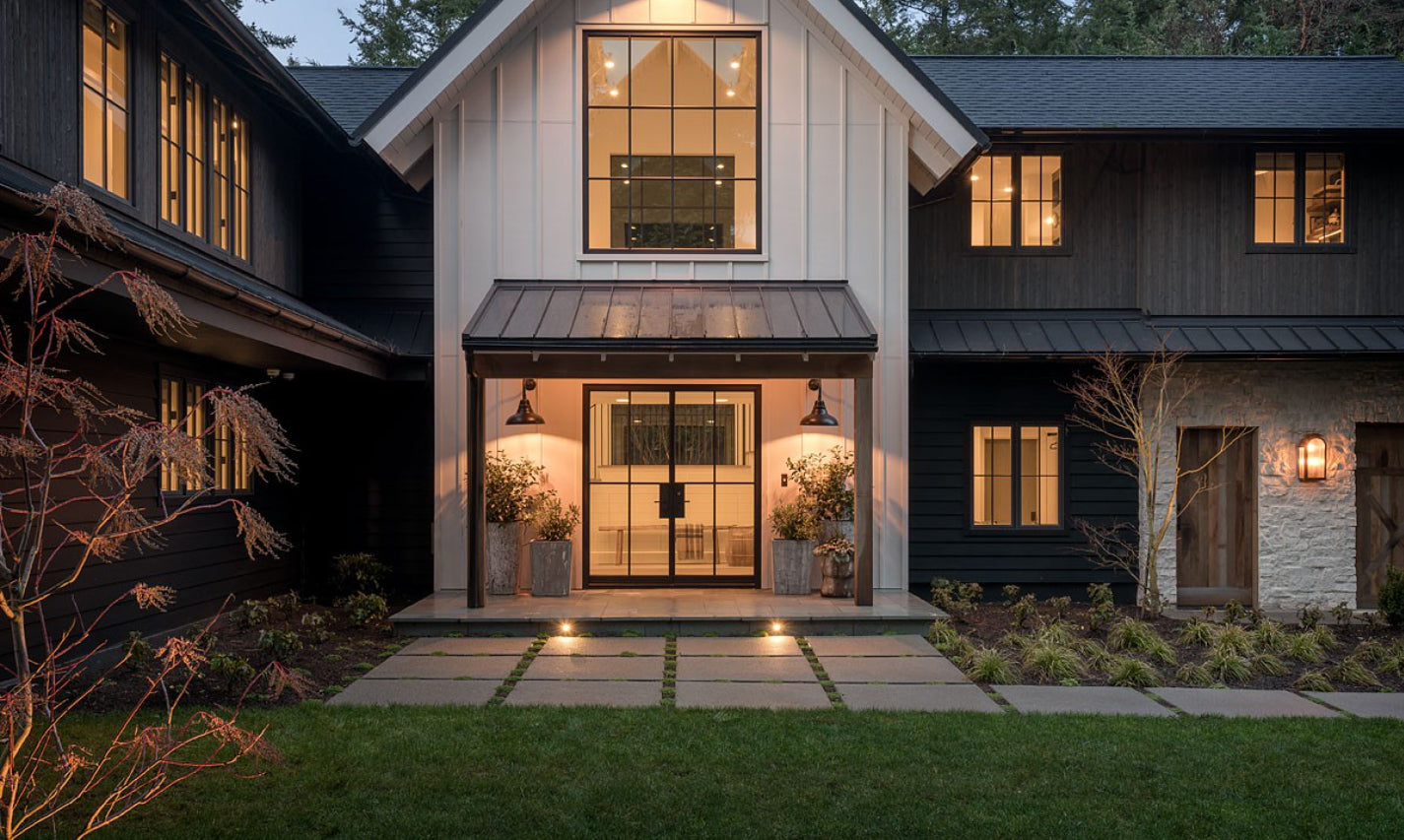

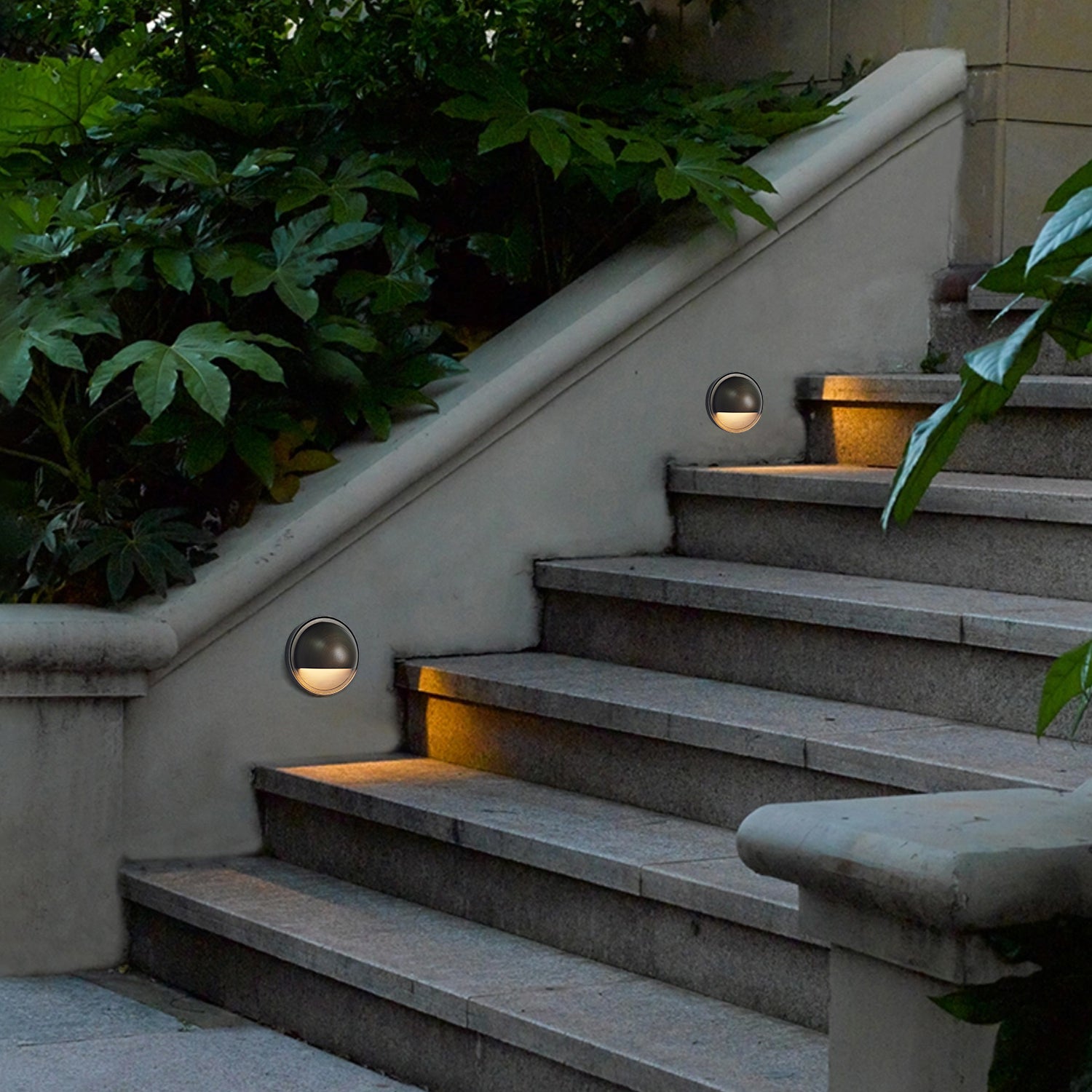

By illuminating potential hazards such as steps and uneven surfaces, deck lights ensure a safer environment for you during the evening hours. They can highlight specific architectural elements, plants or artwork, elevating the overall aesthetic appeal of your deck
COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!

How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

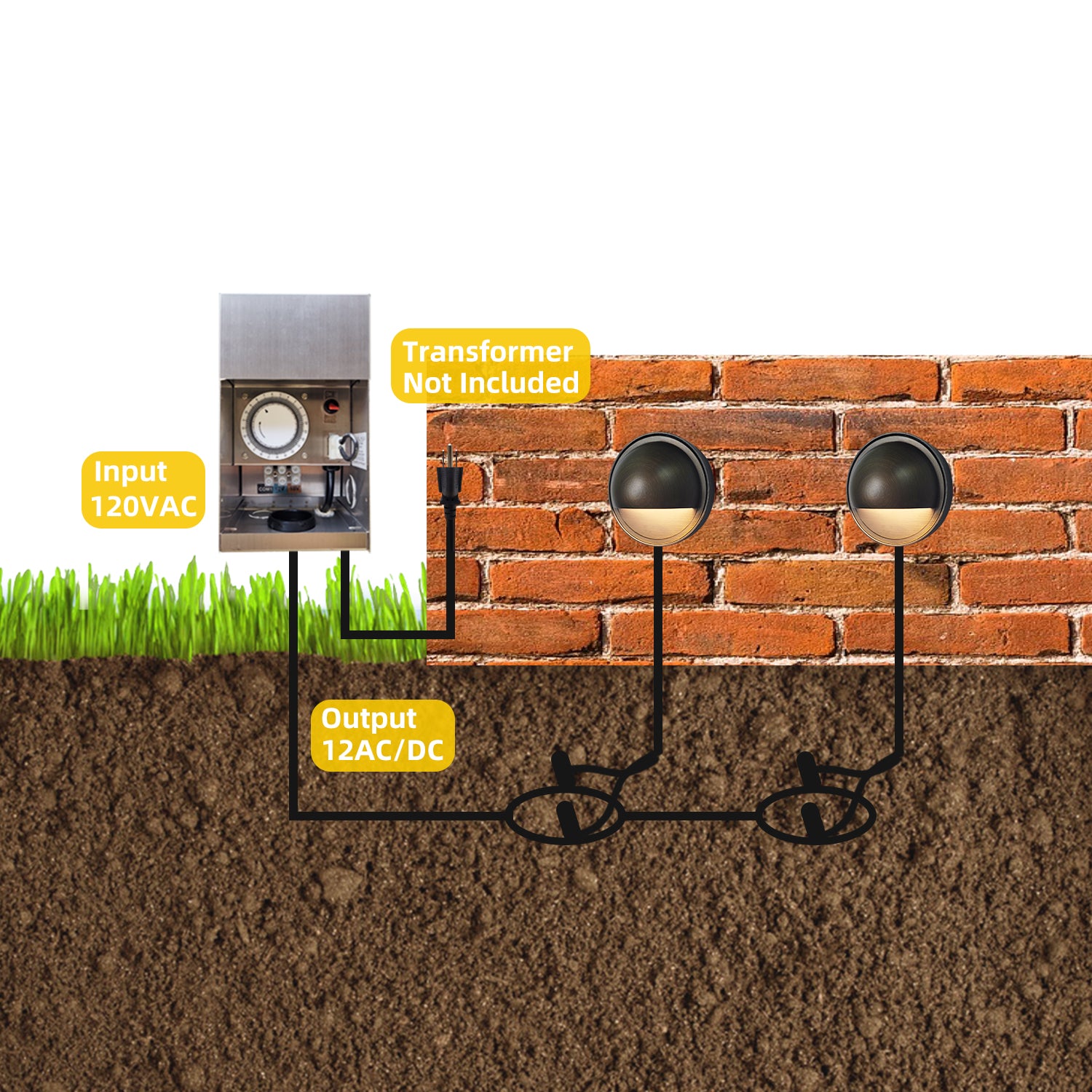

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

How to Install
Step 1: Mark the location of the deck light you'll be dilling.
Step 2: Remove the faceplate from the deck light so it can be mounted to the post.
Step3: Check the orientation of the deck light to make sure that the top is facing up.
Step 4: Insert two screws to secure the deck light to the post.

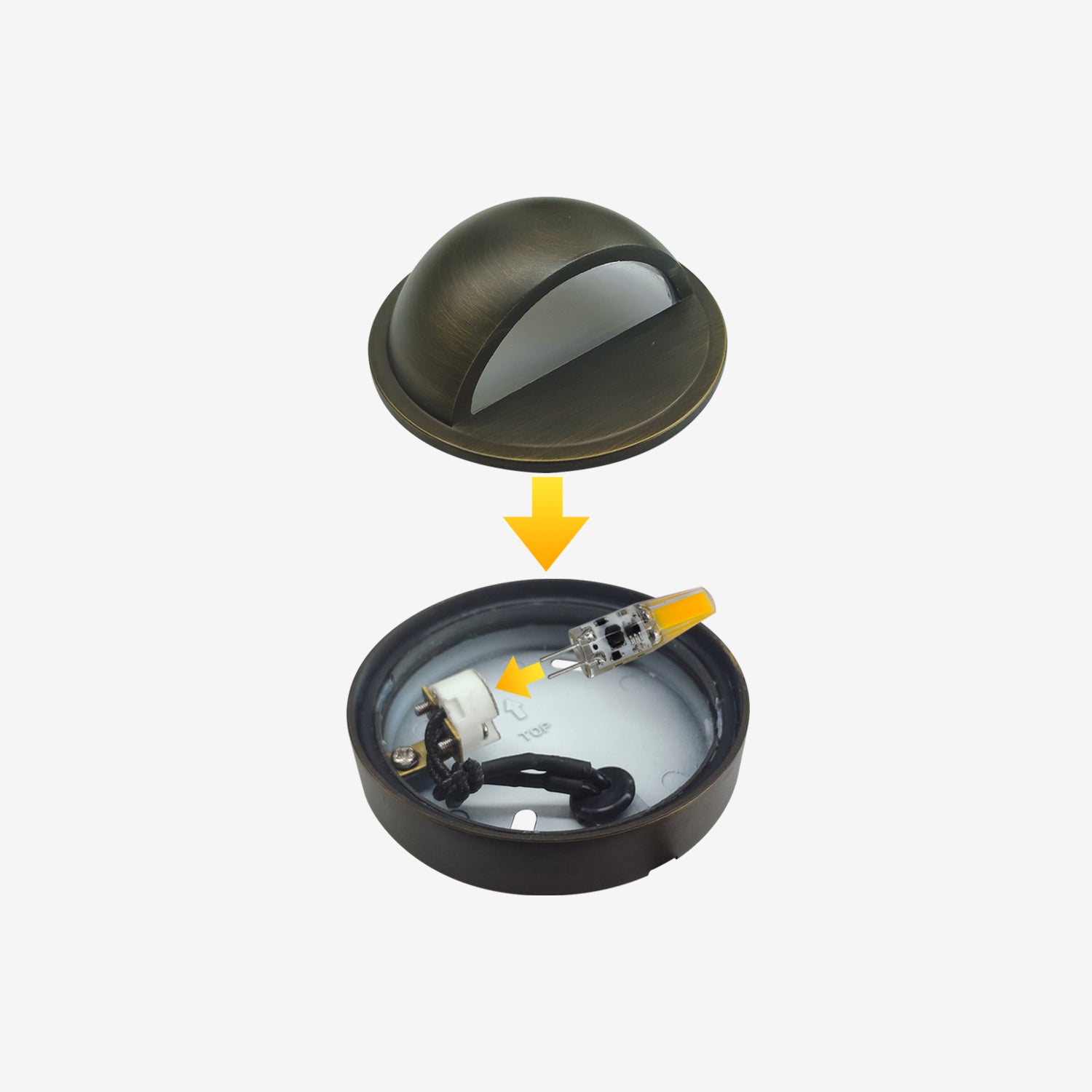

Step 5: Install a halogen or LED lamp and put the faceplate back on the deck light.
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install
Step 1: Mark the location of the deck light you'll be dilling.
Step 2: Remove the faceplate from the deck light so it can be mounted to the post.
Step3: Check the orientation of the deck light to make sure that the top is facing up.
Step 4: Insert two screws to secure the deck light to the post.
Step 5: Install a halogen or LED lamp and put the faceplate back on the deck light.
