Large Size Brass In-Ground Lights, LED Landscape Low Voltage Well Lights COG301B
Description
12V Low Voltage Outdoor In-Ground Well Lights

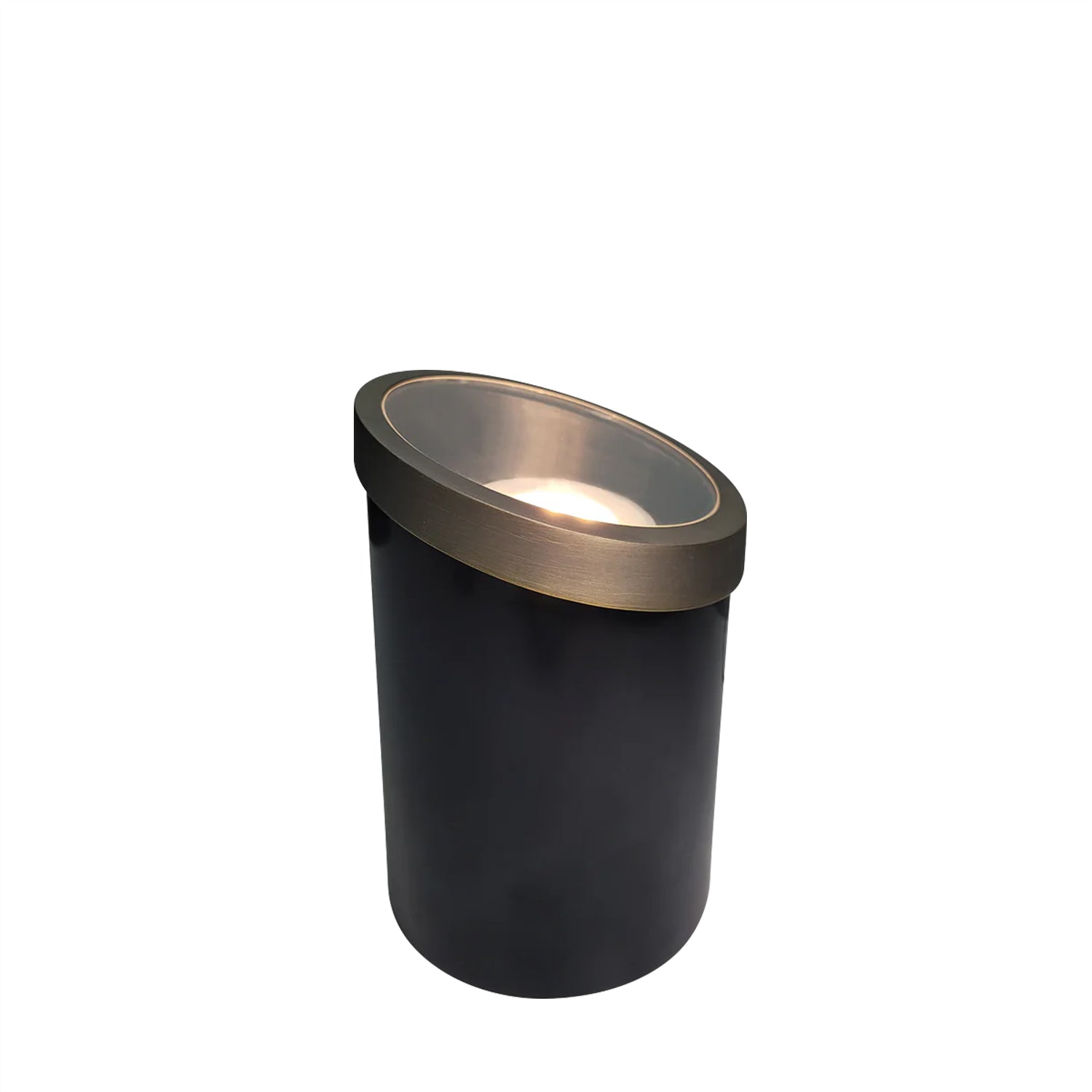

COLOER outdoor in-ground light is made of die-cast brass material. Solid cast brass pagoda path light with frosted polycarbonate lens. The brass material body structure for in-ground light has better corrosion resistance and pressure resistance. Projects a large 16' diameter region of illumination. IP65 Waterproof garden lights, perfect for gardens, pool streetspools, pathways, swimming pools, and more.

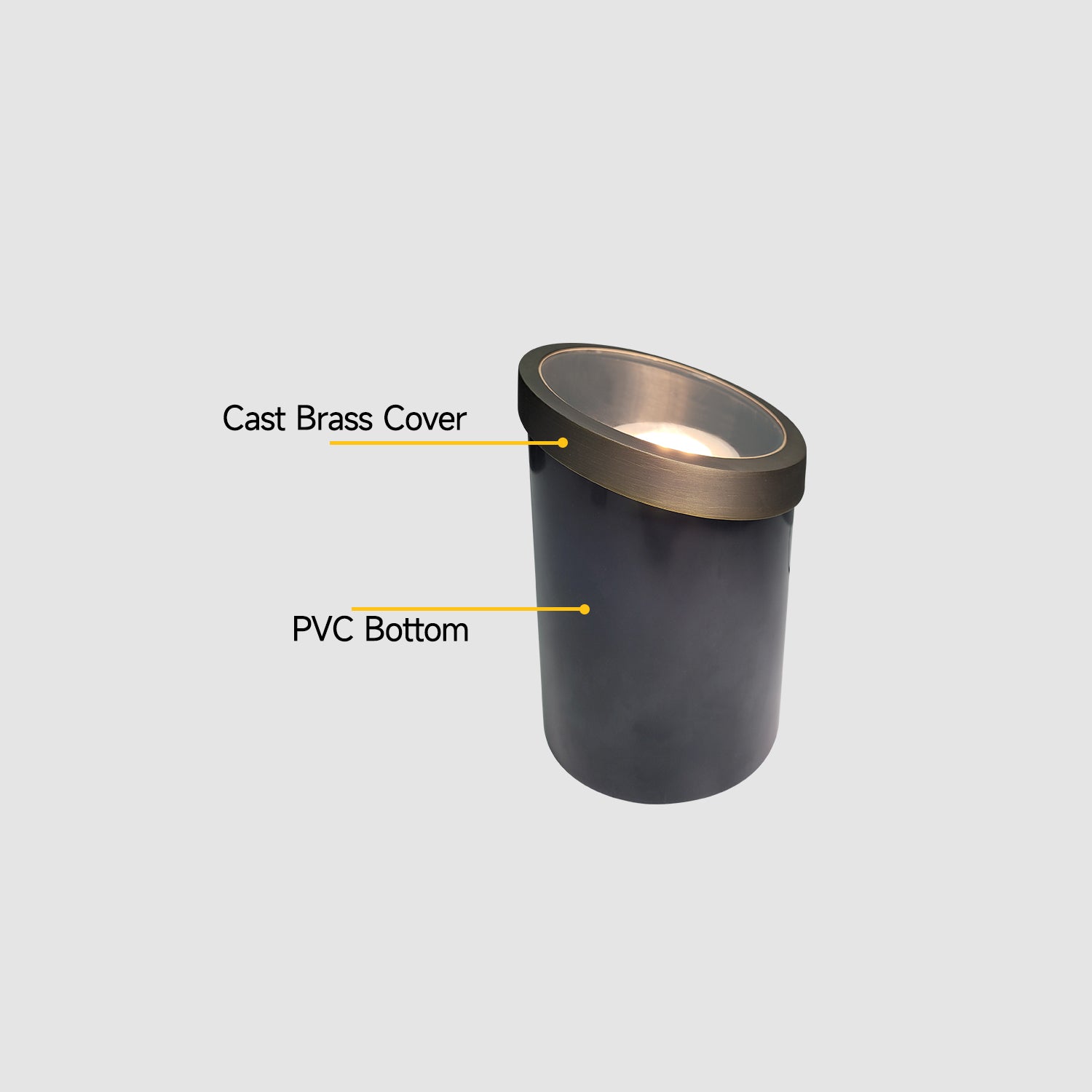

Uniform Finish: The diameter of this in-ground well light is 5.51" and the height is 7.24", with a cast brass cover and PVC bottom, it is more reliable and durable.

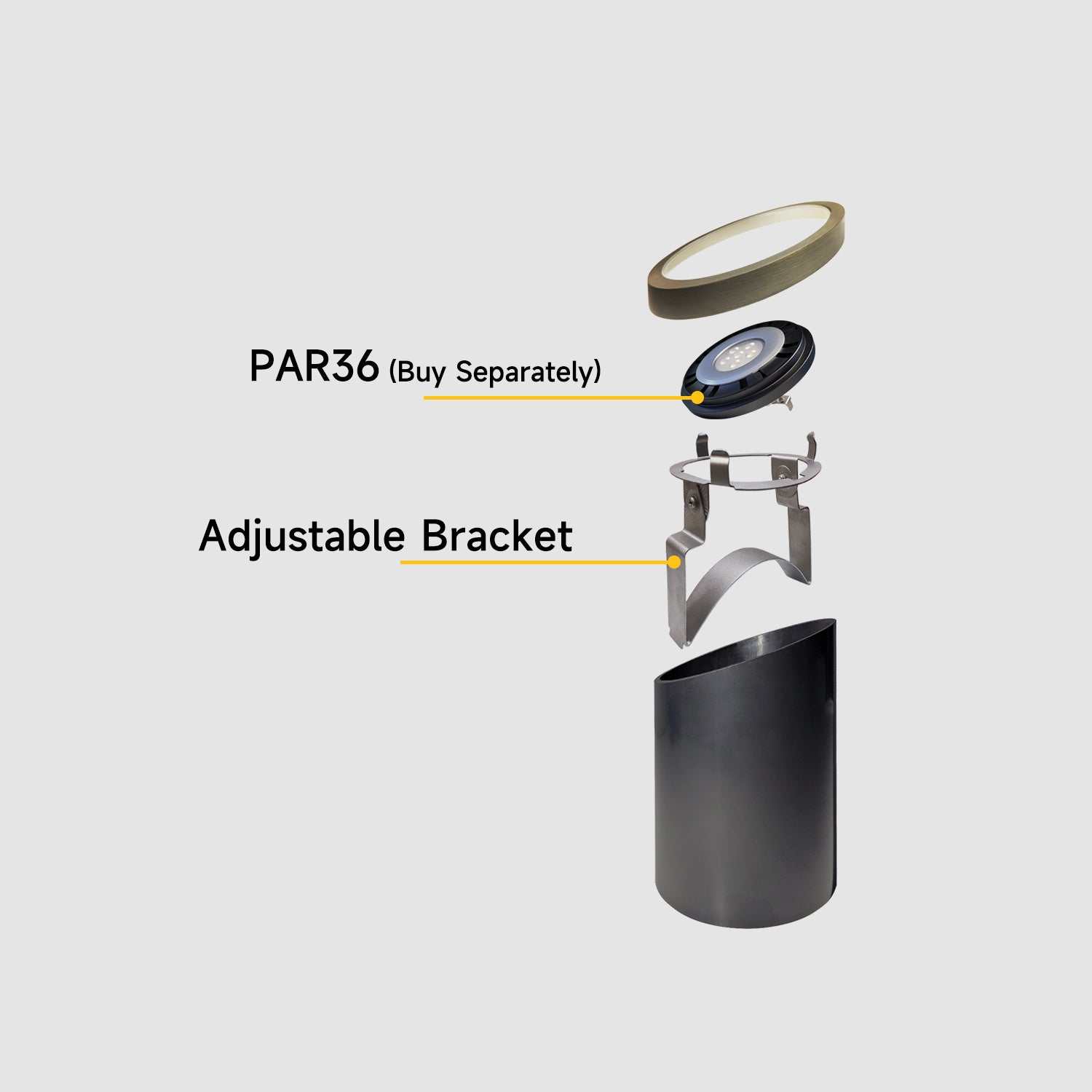

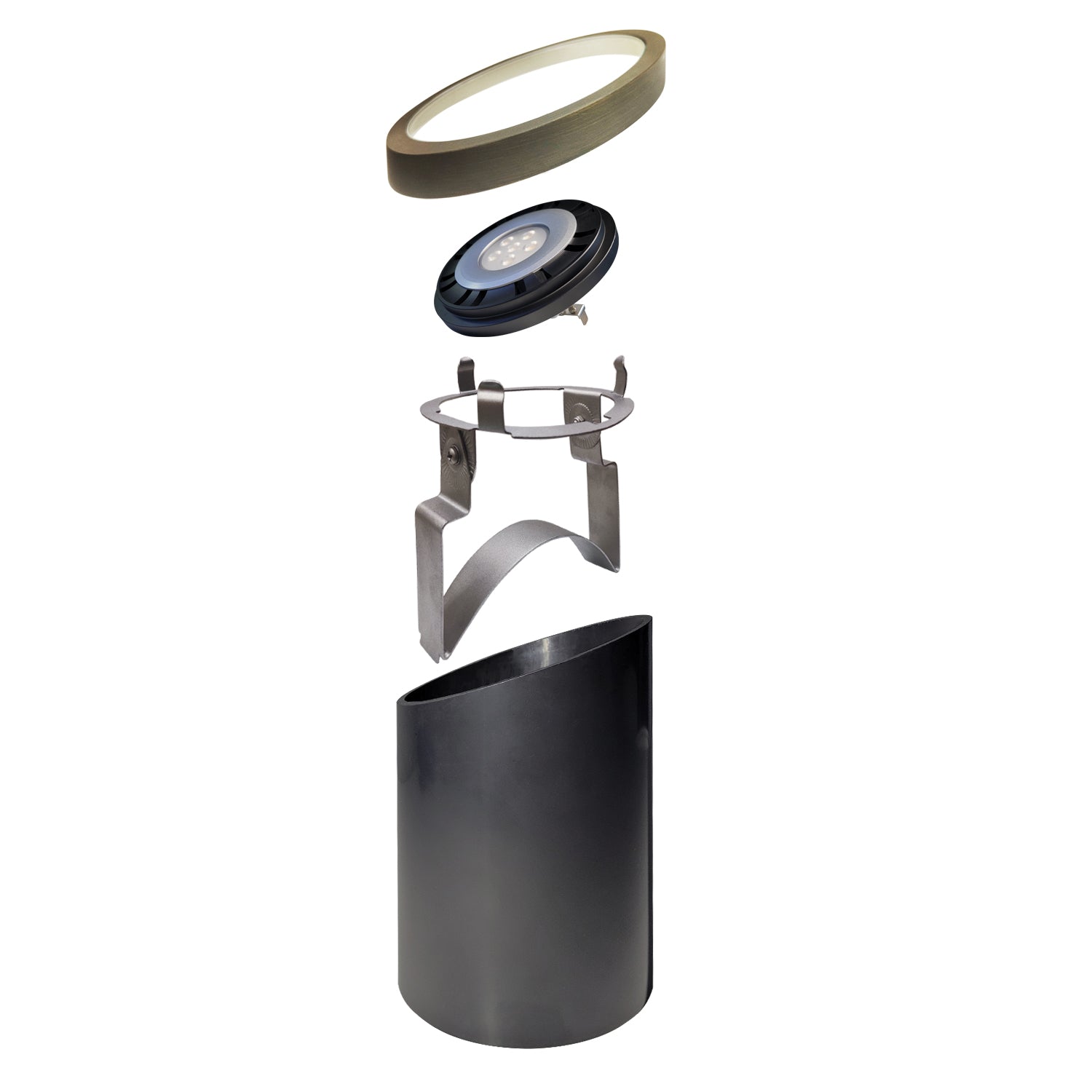

Adjustable: This ground lights for outside with an adjustable bracket, after installing the par36 bulb (buy separately), you can adjust the angle of the light according to your needs.

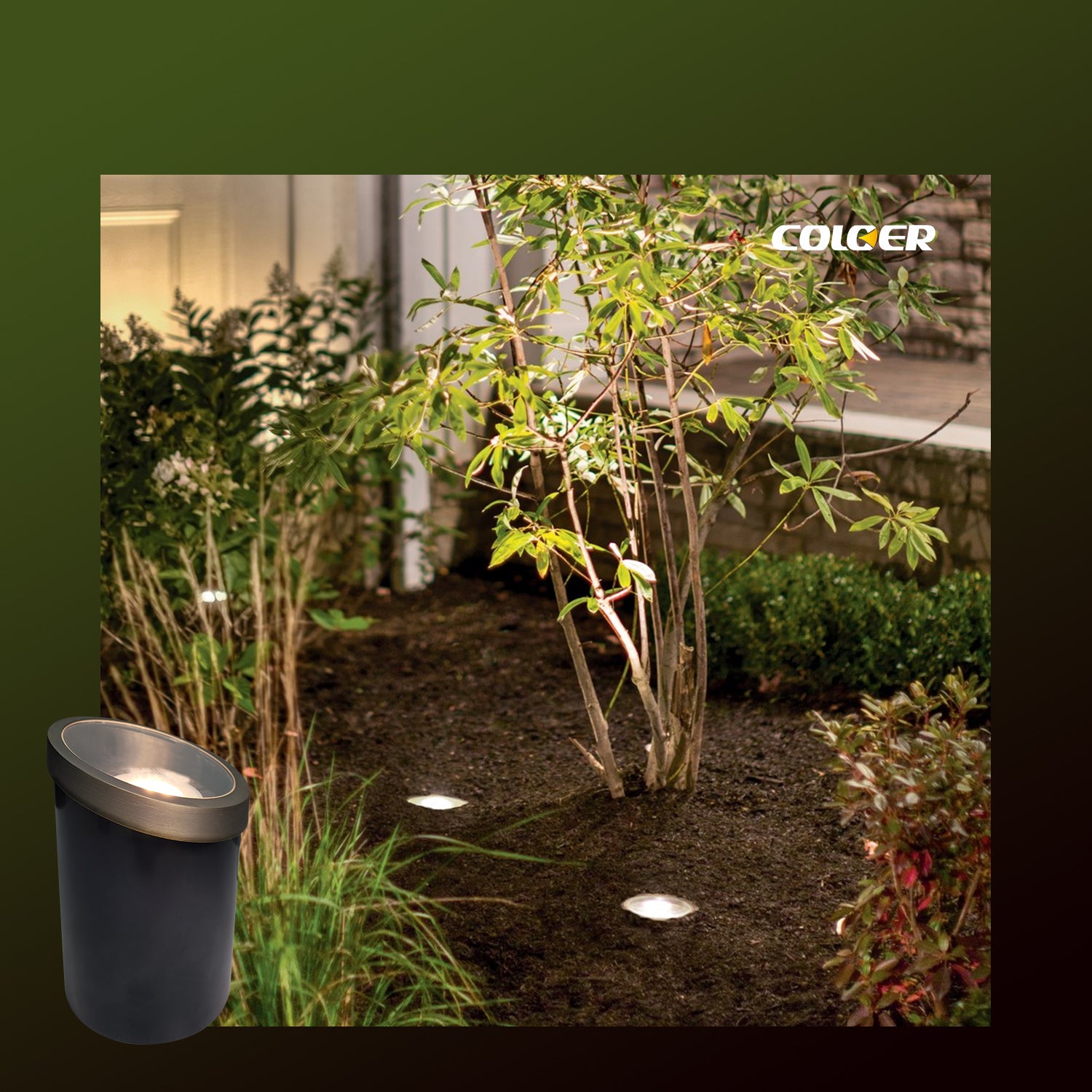

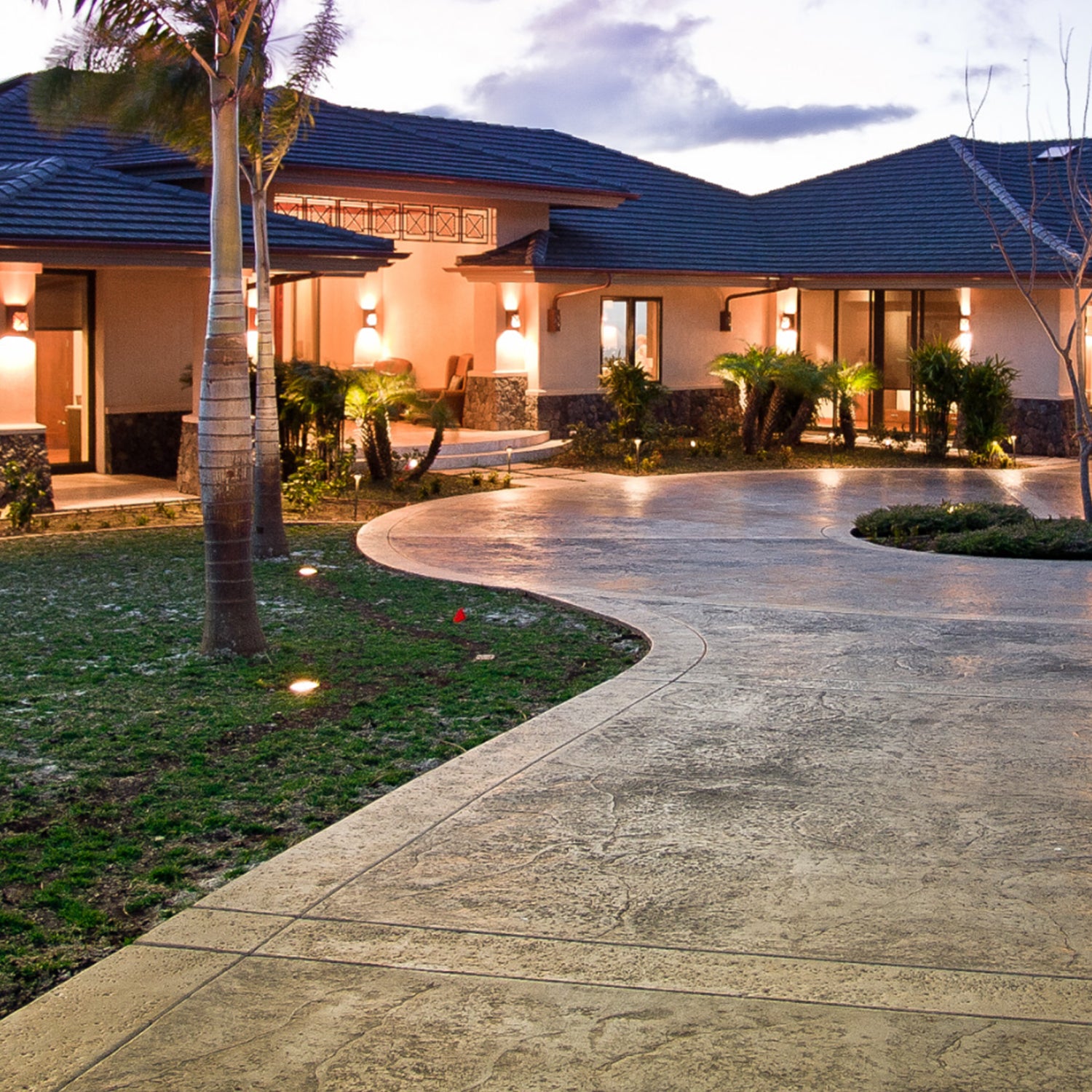

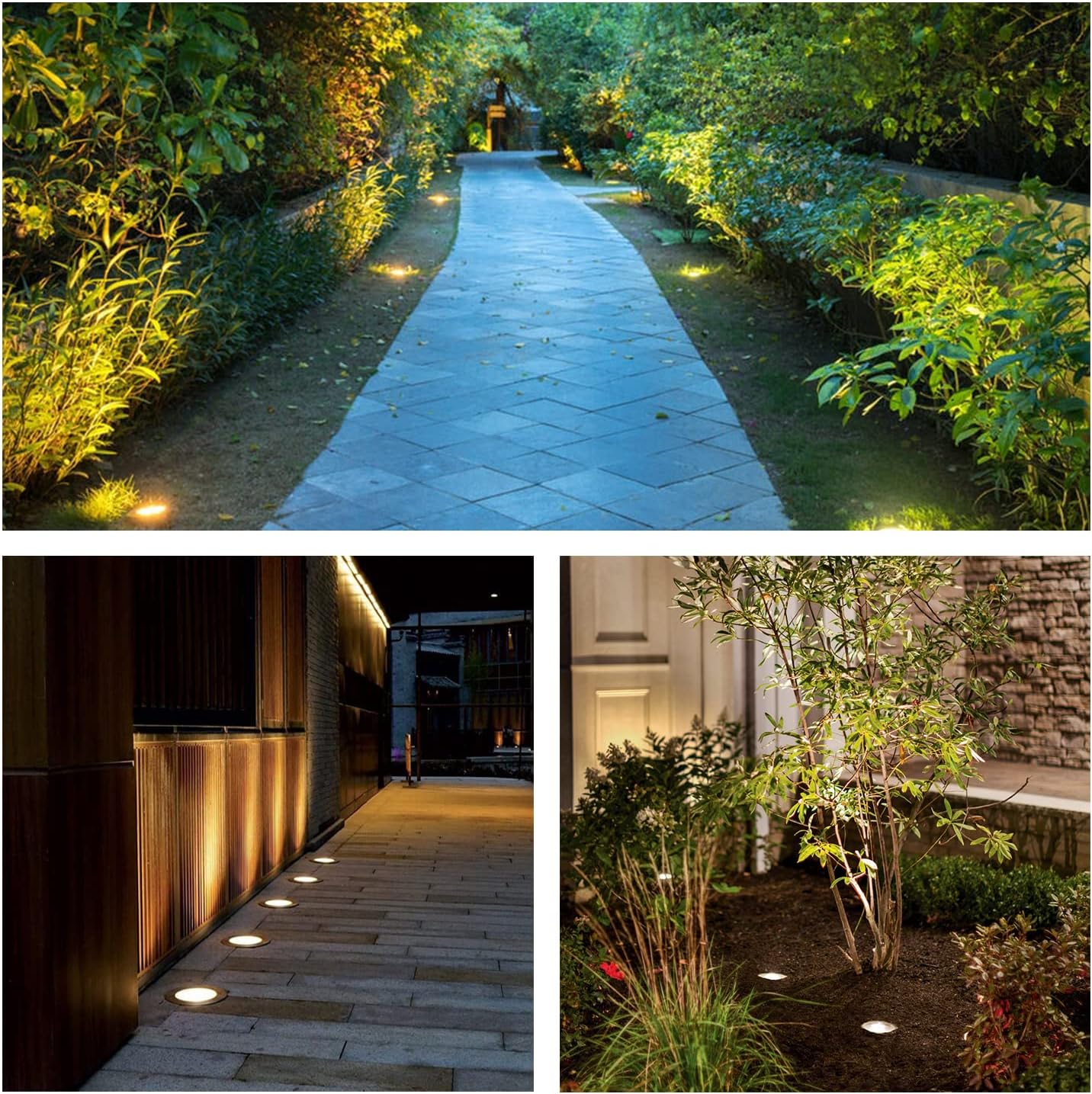

This landscape in-ground light is perfect for lighting various outdoor locations such as sidewalks, driveways, pathways, walkways, trees, fences, yards, and other outdoor areas. It's a good choice for any of your up-lighting applications.
Specifications
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 5.51"L x 5.51"W x 7.24"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: PAR36 LED Bulb | Wattage: 10 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 800 Lumen | Beam Angle: 60D | Lens: Clear Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Light Socket: GU 5.3 Bi-pin | Item Weight: 2.6 Pounds | Color Rendering Index (CRI): >85 |
| Water Resistance: Pressure Rubber Gasket | Warranty Type: Lifetime | Mounting Type: Floor Mount | Indoor/Outdoor Usage: Outdoor |
| Style: Model | Light Fixture Form:Recessed | Finish Type: Painted | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |
How to Install
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert PAR36 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)
NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Downloads
12V Low Voltage Outdoor In-Ground Well Lights
COLOER outdoor in-ground light is made of die-cast brass material. Solid cast brass pagoda path light with frosted polycarbonate lens. The brass material body structure for in-ground light has better corrosion resistance and pressure resistance. Projects a large 16' diameter region of illumination. IP65 Waterproof garden lights, perfect for gardens, pool streetspools, pathways, swimming pools, and more.
Uniform Finish: The diameter of this in-ground well light is 5.51" and the height is 7.24", with a cast brass cover and PVC bottom, it is more reliable and durable.
Adjustable: This ground lights for outside with an adjustable bracket, after installing the par36 bulb (buy separately), you can adjust the angle of the light according to your needs.
This landscape in-ground light is perfect for lighting various outdoor locations such as sidewalks, driveways, pathways, walkways, trees, fences, yards, and other outdoor areas. It's a good choice for any of your up-lighting applications.
| Material: Die-cast Brass | Color: Antique Bronze | Product Dimensions: 5.51"L x 5.51"W x 7.24"H | Power Source: 9-17V AC/DC |
| Maximum Compatible Wattage: 50 Watts | Bulb: PAR36 LED Bulb | Wattage: 10 Watts | Light Color: Warm White |
| Color Temperature: 2700K | Brightness: 800 Lumen | Beam Angle: 60D | Lens: Clear Flat Glass |
| Lead Wire: 6-Foot 18AWG Premium Copper Wire | Light Socket: GU 5.3 Bi-pin | Item Weight: 2.6 Pounds | Color Rendering Index (CRI): >85 |
| Water Resistance: Pressure Rubber Gasket | Warranty Type: Lifetime | Mounting Type: Floor Mount | Indoor/Outdoor Usage: Outdoor |
| Style: Model | Light Fixture Form:Recessed | Finish Type: Painted | Lighting Method: Uplight |
| Light Source Replaceable: Yes | Special Features: Energy Efficient | Included Components:Wire Connectors, Mounting Hardware, Instruction Manual | Shade Material:Acrylonitrile Butadiene Styrene, Plastic, Glass, Polycarbonate, Silicone, Ceramic, Brass |
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert PAR36 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose a Transformer
To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system and add 10% for low-voltage cable and fixture connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than the total wattage of all fixtures in the system, which allows you to add more fixtures later.
Size of transformer=Total wattages of fixtures X 1.1
Select a transformer that matches as close as possible to the calculation shown above.
Example: you have 12 fixtures, each 5 watt. You need a 75-watt transformer (12x5=60 plus 10%= 66)
NOTE: Low-voltage lighting systems require the use of a transformer to reduce the standard 120-volt power from ordinary household electricity to 12, 13, 14, and 15 volts needed to power low-voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

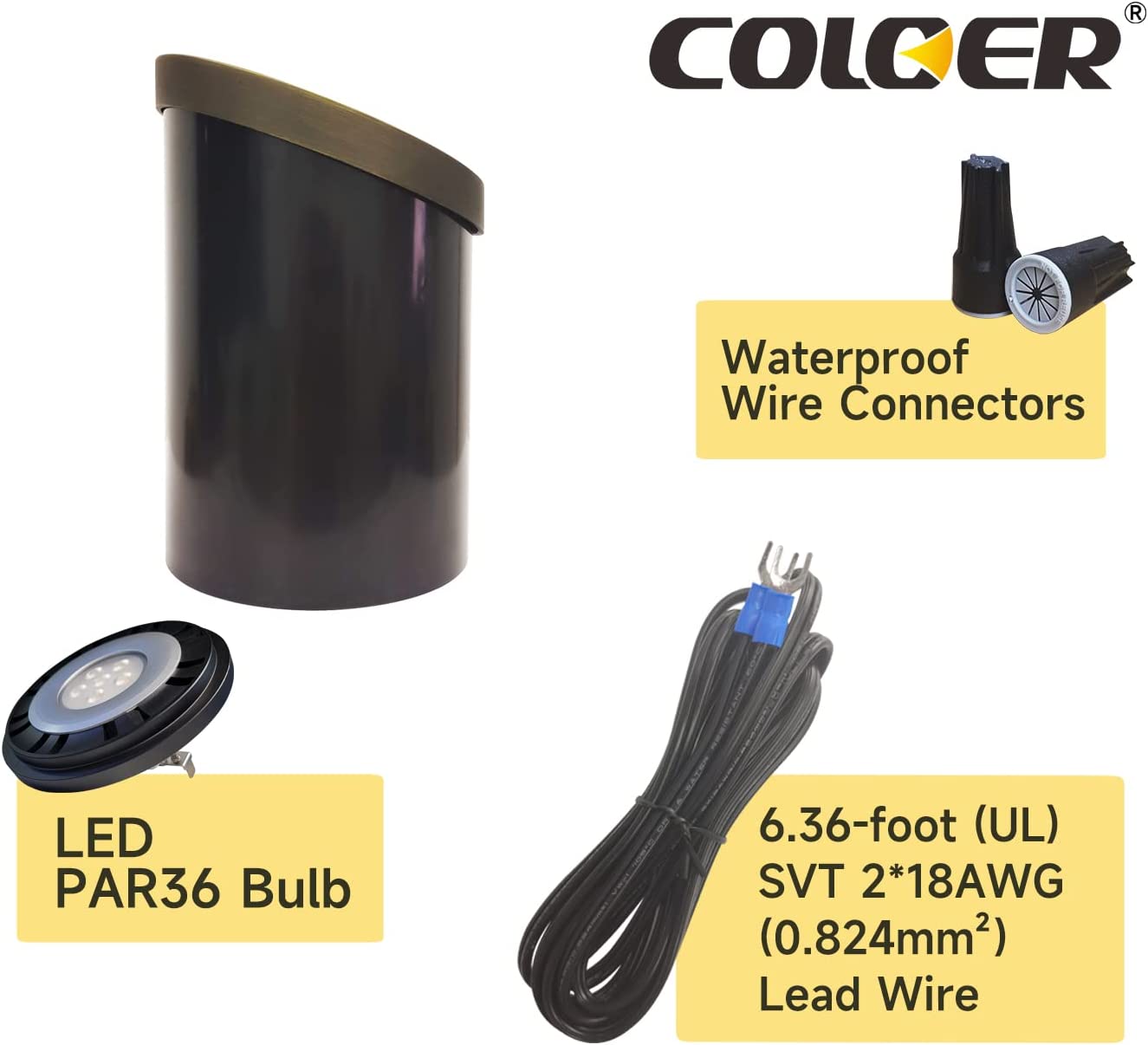

What included in the box
- Main Fixture
- LED PAR36 Bulb
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime

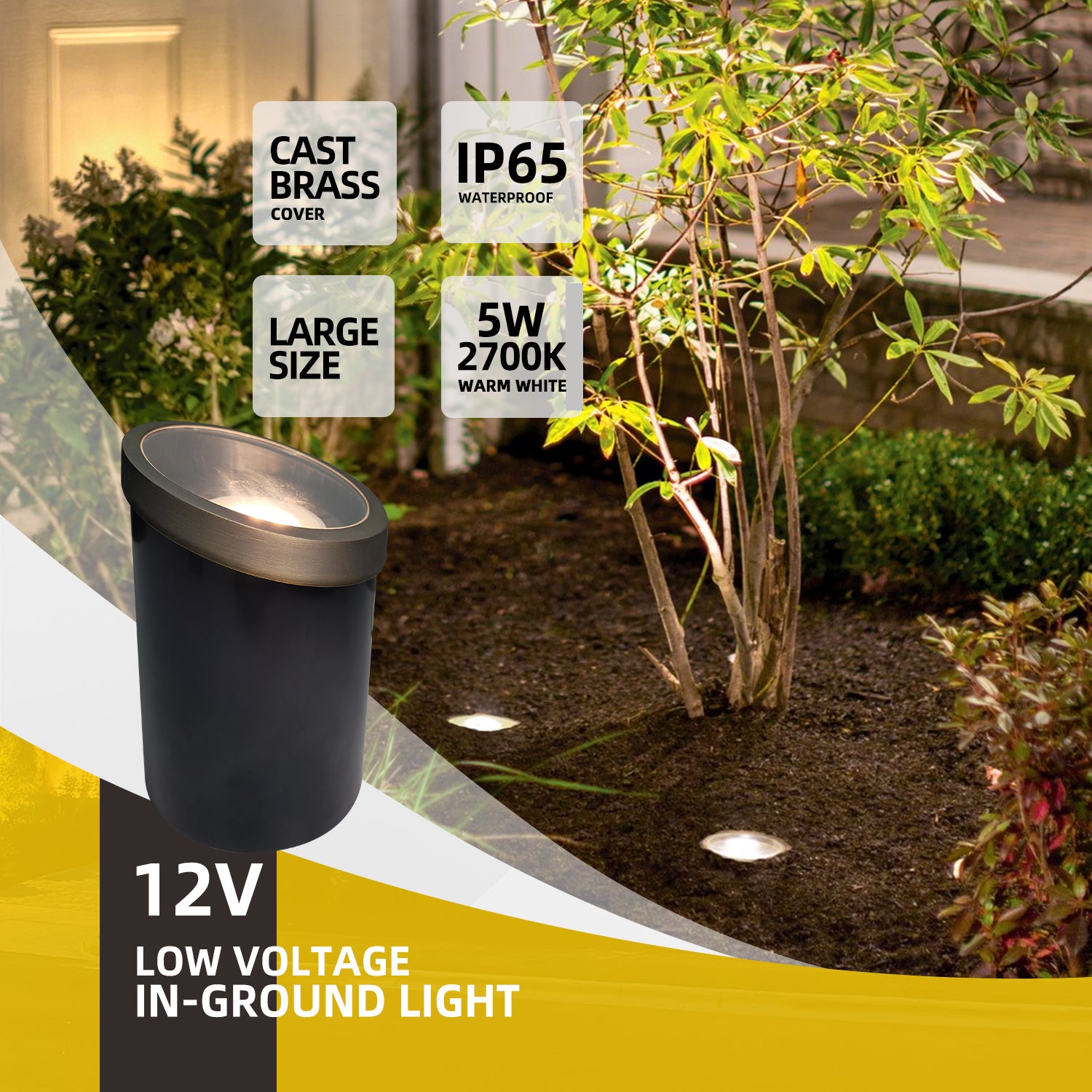

12V LOW VOLTAGE
DIE-CAST BRASS COVER
This landscape light is made of die-cast brass material. Solid cast brass pagoda path light with frosted polycarbonate lens. The brass material body structure for in-ground light has better corrosion resistance and pressure resistance. Projects a large 16' diameter region of illumination. IP65 Waterproof garden lights, perfect for garden, streets, pathways, swimming pool and more.
Uniform Finish
The diameter of this in-ground well light is 5.51" and the height is 7.24", with cast brass cover and PVC botton, it is more reliable and durable.

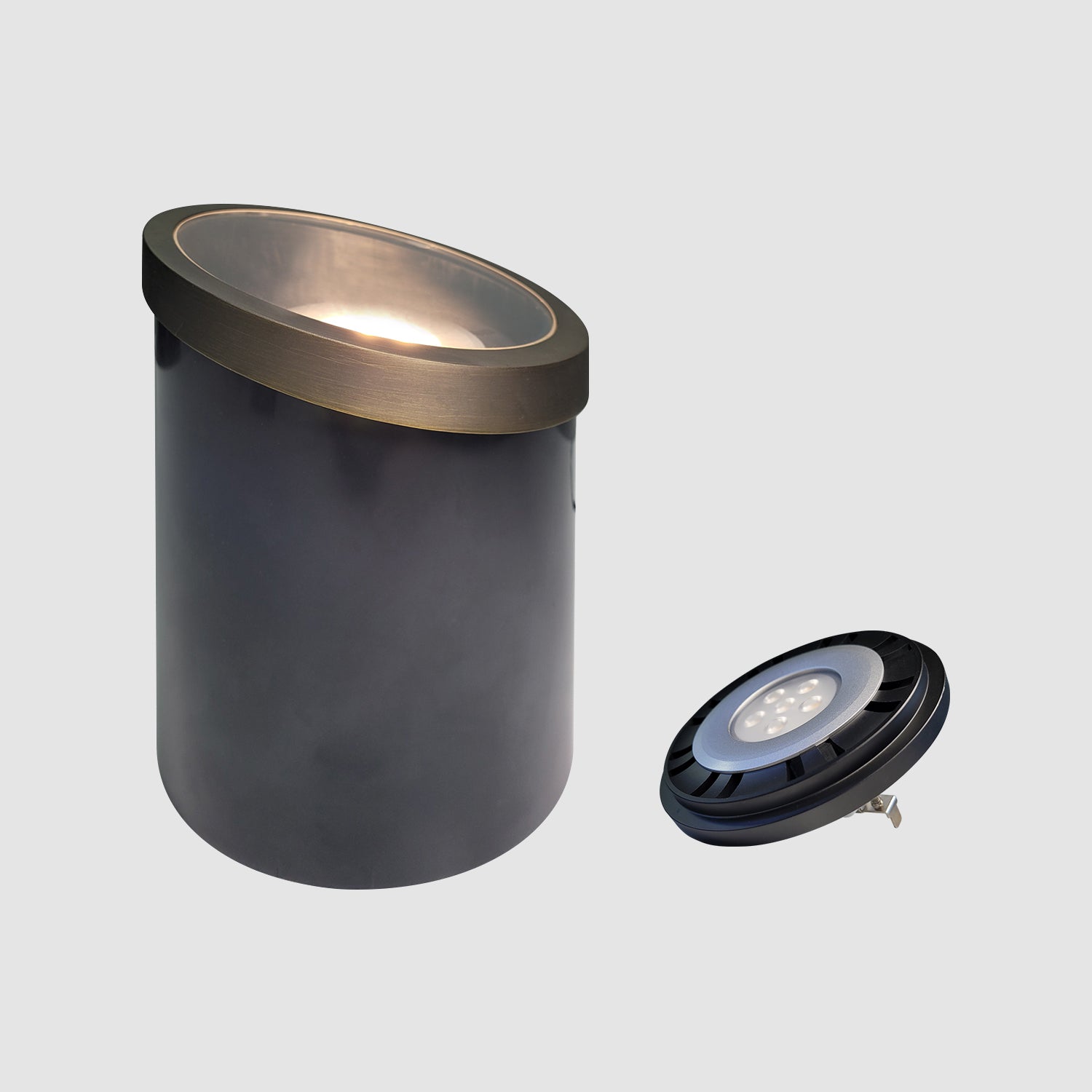

High-transparency Glass Cover and Excellent PAR36 LED bulb
High-transparency glass cover and excellent PAR36 LED bulb making them more reliable and has a long lifespan.
Adjustable
This ground lights for outside with adjustable bracket, after installing the par36 bulb(buy separately), you can adjust the angle of the light according to your needs.

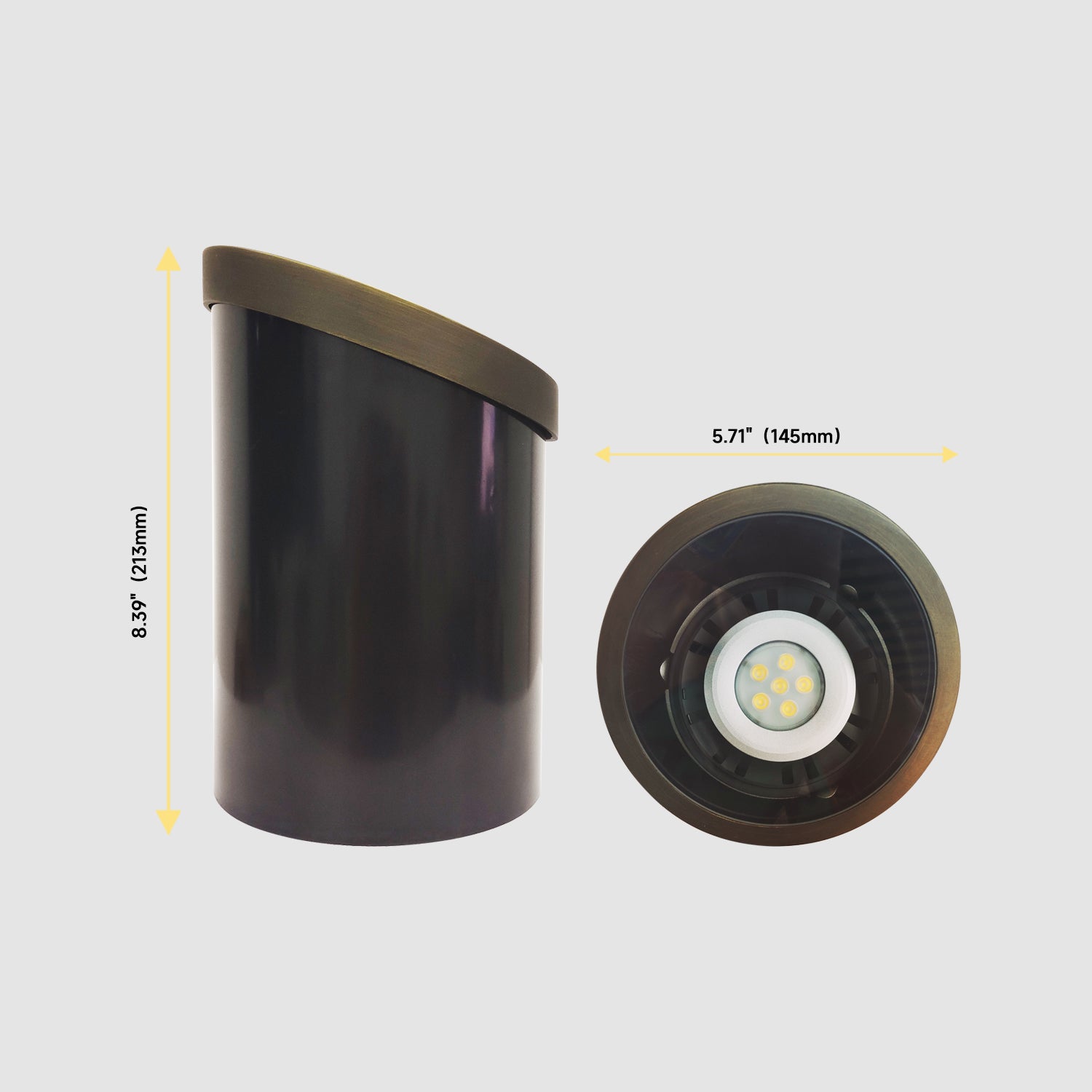

Large Size

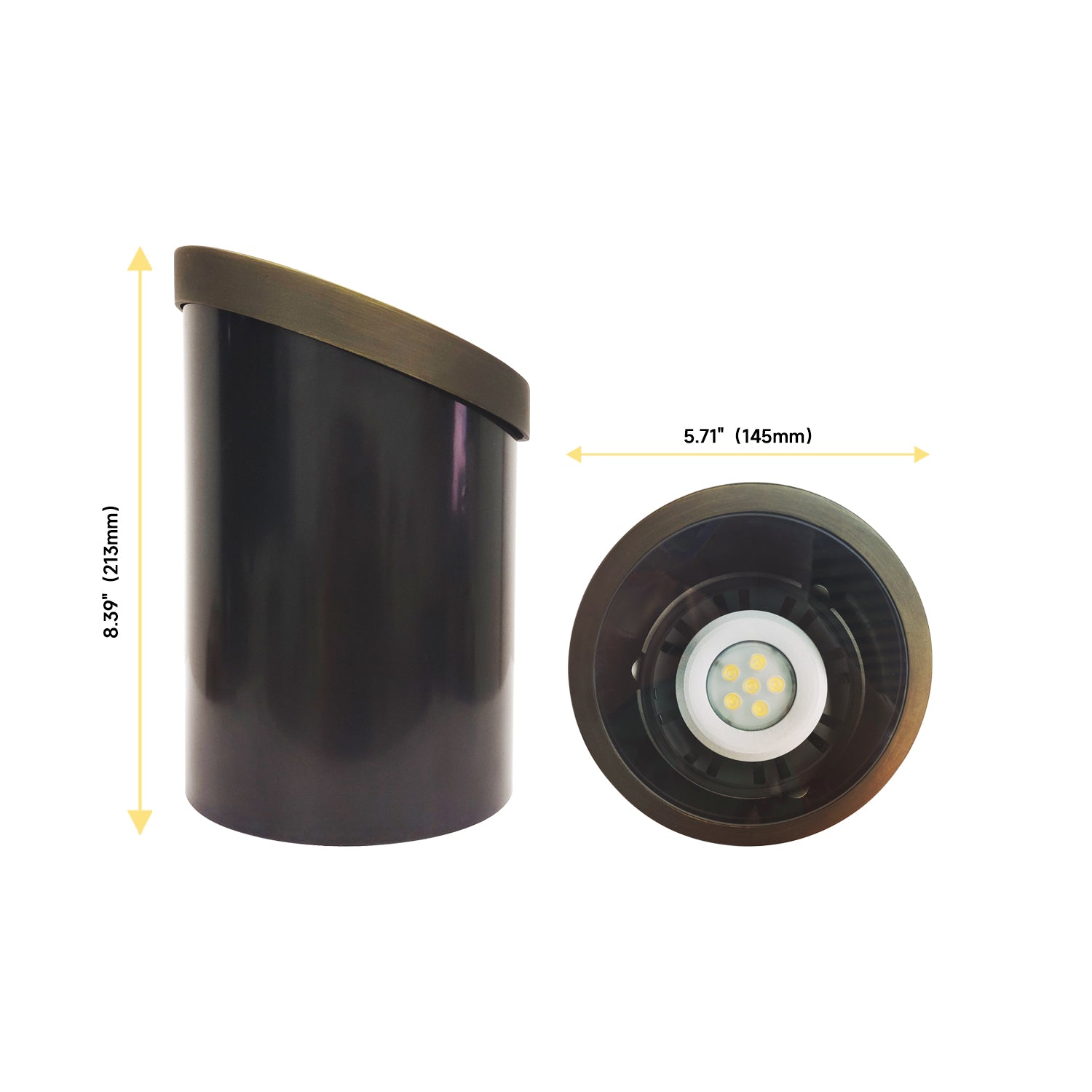

Large size outdoor in-ground lights with a diameter of 5.71" and a height of 8.39", with larger lighting angles, suitable for large area lighting requirements.
In-Ground Light Series
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- The adjustable bracket for PAR36 bulbs makes it simple to install and replace LED PAR36 or halogen lamps up to 50w (not included), it emits a soft and warm 2700K light, providing a comfortable experience.
- Easy installation, just screw the fixture onto the stake, Lay out fixtures at desired locations.
3.94 x 3.94 x 4.67 inches
5.51"L x 5.51"W x 7.24"H
2.6 pounds
2.6 pounds
Brass
Brass
MR16/5W/400LM/2700K
PAR36 / 10W / 2700K / 800LM
45D
60D
9-17V AC/DC
9-17V AC/DC
Atique Bronze
Atique Bronze
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
COLOER 12V Low Voltage Outdoor In-Ground Well Lights
COLOER outdoor in-ground lights feature heavy duty cast brass cover and a clear lens,it is more reliable and durable. IP65 Waterproof walkway lights perfect for garden, trees, flowers beds, alleys, loading docks, doorway, streets and pathways.
