Product Informations
About the COG302B In-Ground Light
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- The adjustable bracket for PAR36 bulbs makes it simple to install and replace LED PAR36 or halogen lamps up to 50w (not included), it emits a soft and warm 2700K light, providing a comfortable experience.
- Easy installation, just screw the fixture onto the stake, Lay out fixtures at desired locations.
5.51"L x 5.51"W x 7.24"H
2.6 pounds
Brass
PAR36 / 10W / 2700K / 800LM
60D
9-17V AC/DC
Atique Bronze
What included in the box
- Main Fixture
- LED PAAR36 Bulb
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime
12V LOW VOLTAGE
DIE-CAST BRASS COVER
This landscape light is made of die-cast brass material. Solid cast brass pagoda path light with frosted polycarbonate lens. The brass material body structure for in-ground light has better corrosion resistance and pressure resistance. Projects a large 16' diameter region of illumination. IP65 Waterproof garden lights, perfect for gardens, poolsstreets, pathways, swimming pool and more.
Uniform Finish
The diameter of this in-ground well light is 5.51" and the height is 7.24", with cast brass cover and PVC botton, it is more reliable and durable.
Adjustable
This ground lights for outside with adjustable bracket, after installing the par36 bulb(buy separately), you can adjust the angle of the light according to your needs.
COLOER 12V Low Voltage Outdoor In-Ground Well Lights

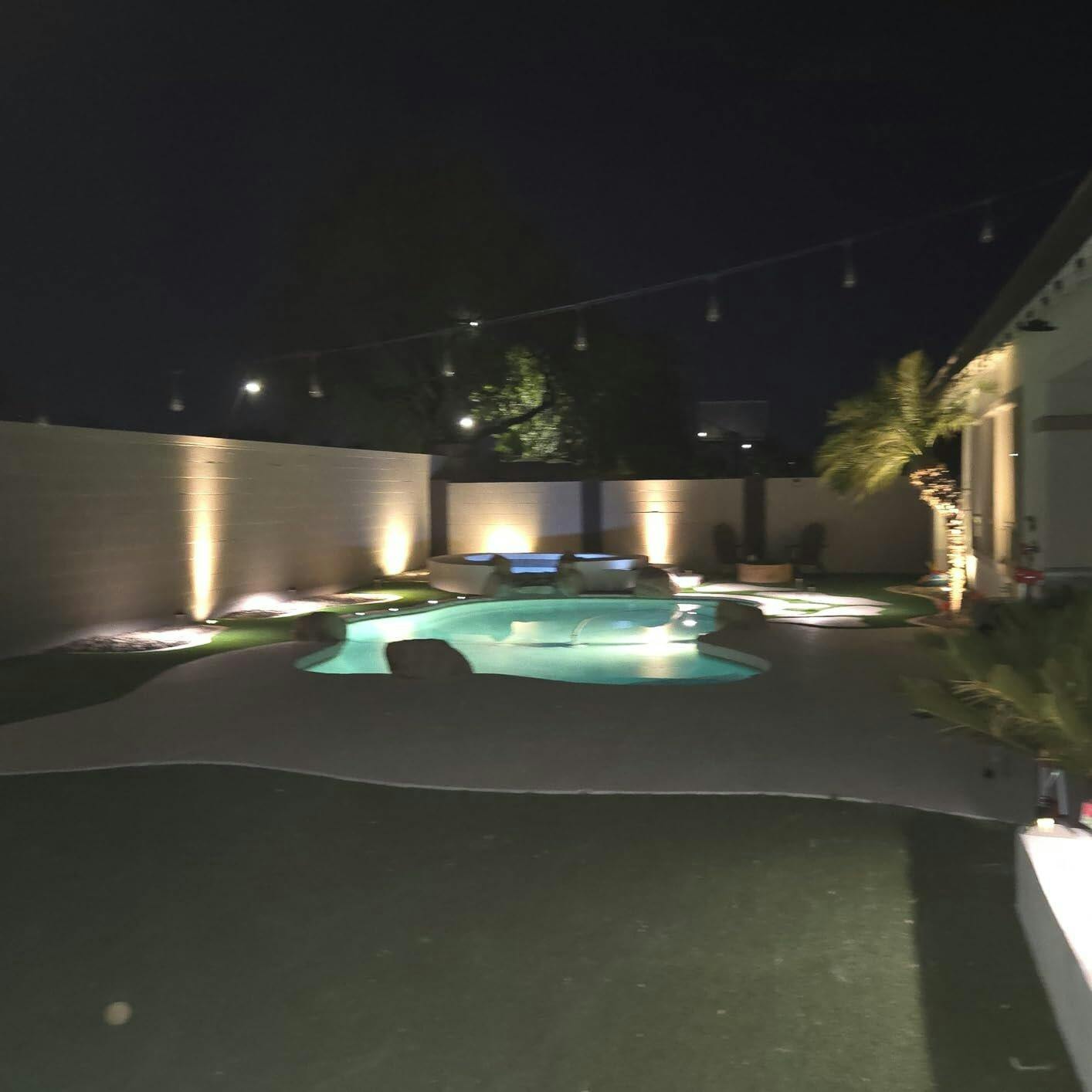

COLOER outdoor in-ground lights feature heavy duty cast brass cover and a clear lens, it is more reliable and durable. IP65 Waterproof walkway lights perfect for garden, trees, flowers beds, alleys, loading docks, doorway, streets and pathways.
COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

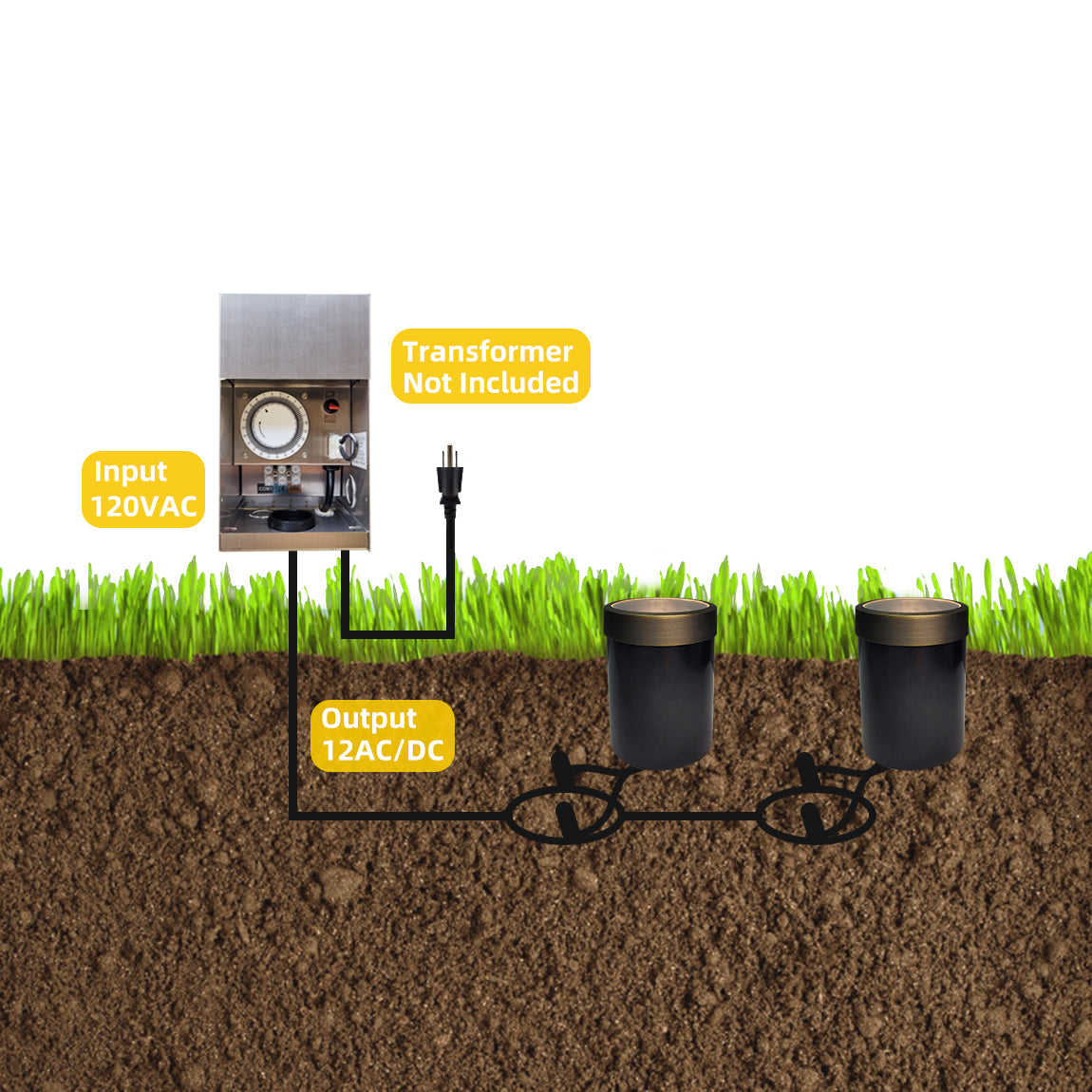

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
Email: customerservice@coloer.com / Tel: +1 626 699 4666
Have a question? We are here to help.
Check out the most common questions our customers asked. Still have questions? Contact our customer support
Could these lights be powered by a doorbell supply voltage?
This in ground light work with 12V AC/DC, if your doorbell supply voltage is 8-15V, it can powerd to this lights. But because the power supply of the doorbell is relatively small, don't connect more than 4 lights.
Any question?
You can contact us through our contact page! We will be happy to assist you.
