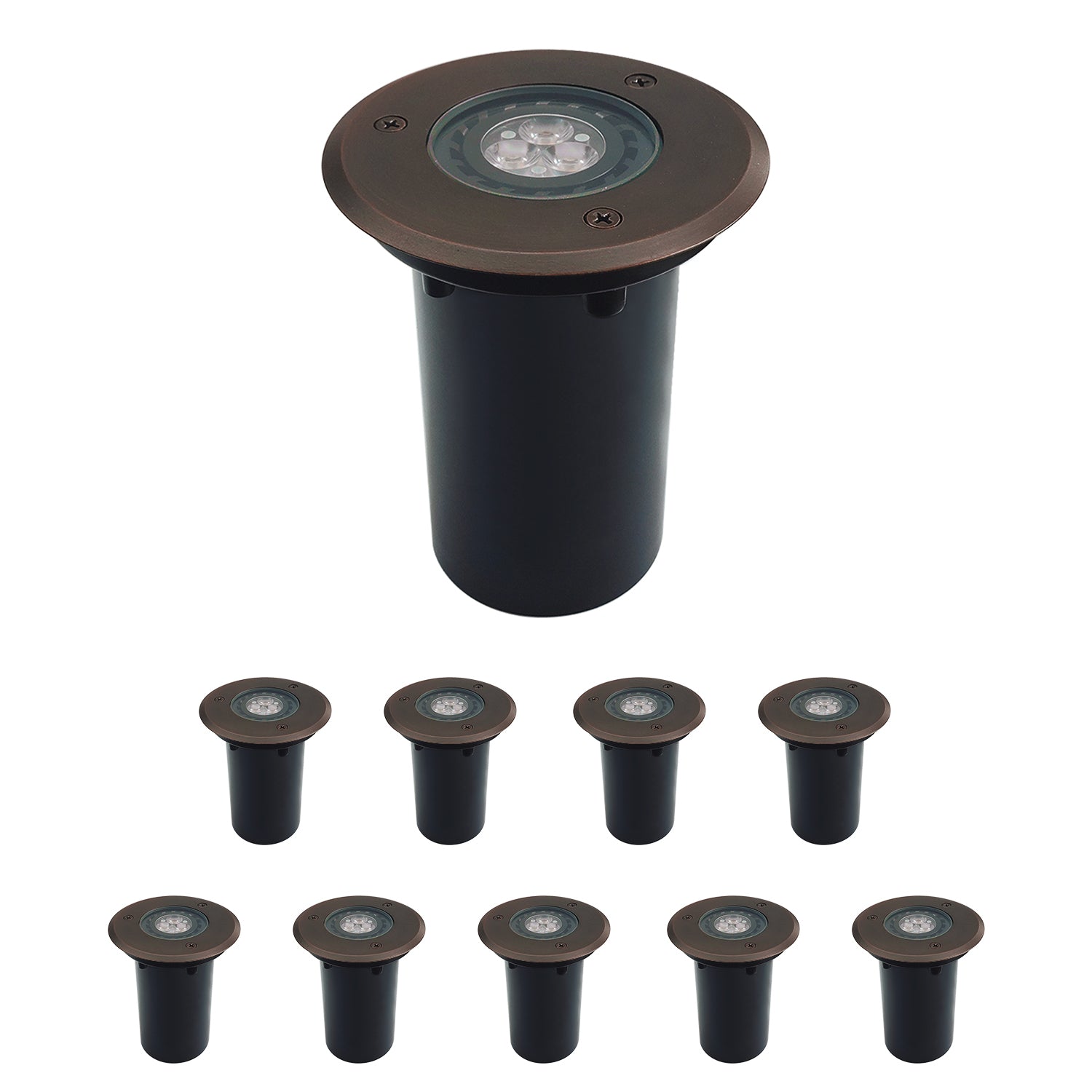

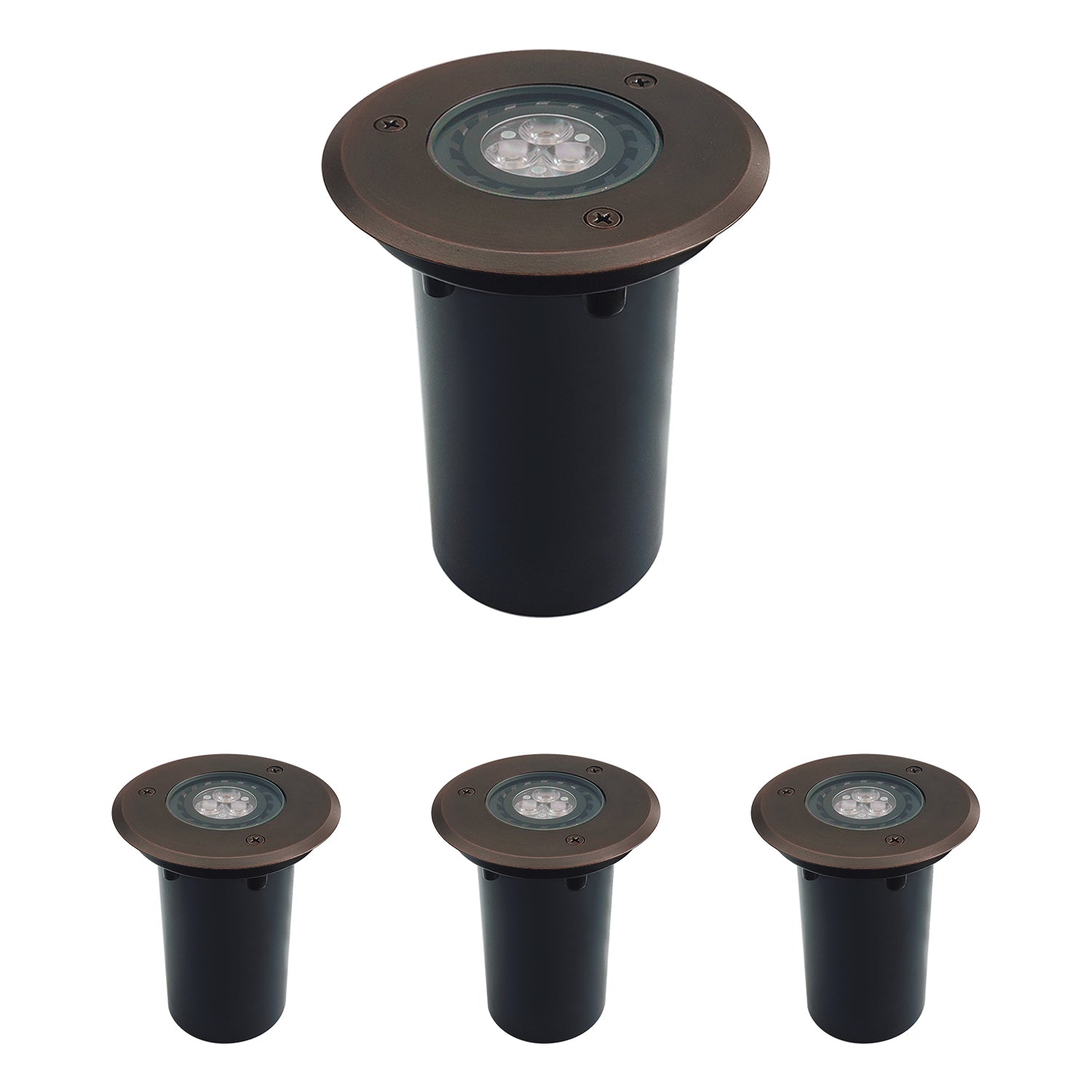

Landscape Tree LIghting | LED In-Ground Well Lights | LED Outdoor Low Voltage Pathway Lights COG303B

Sale price$47.99 USD

Model: 1-pack with bulb

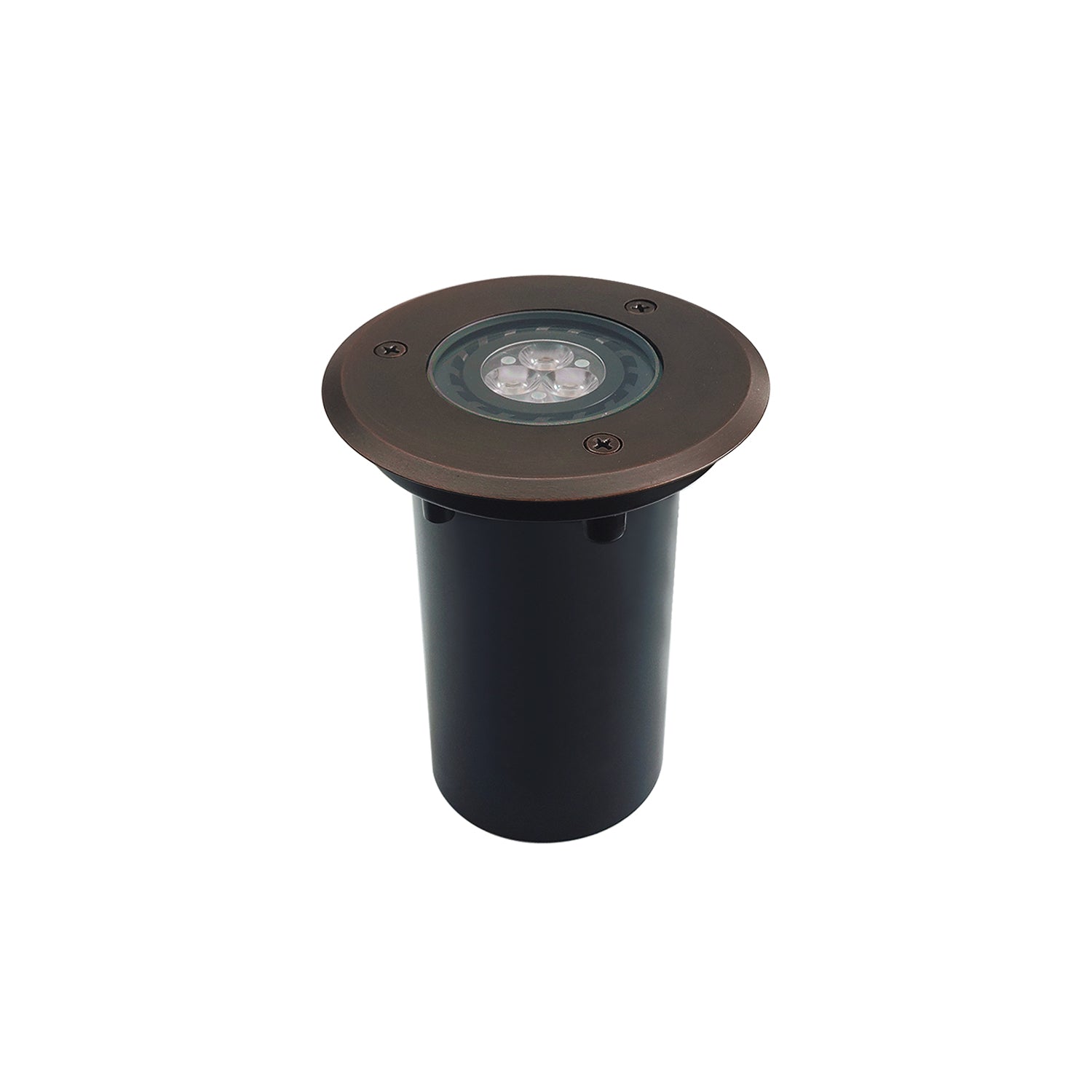

About the COG303B In-Ground Light

  • High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, the fine workmanship makes it tougher, harder, and aesthetically pleasing.

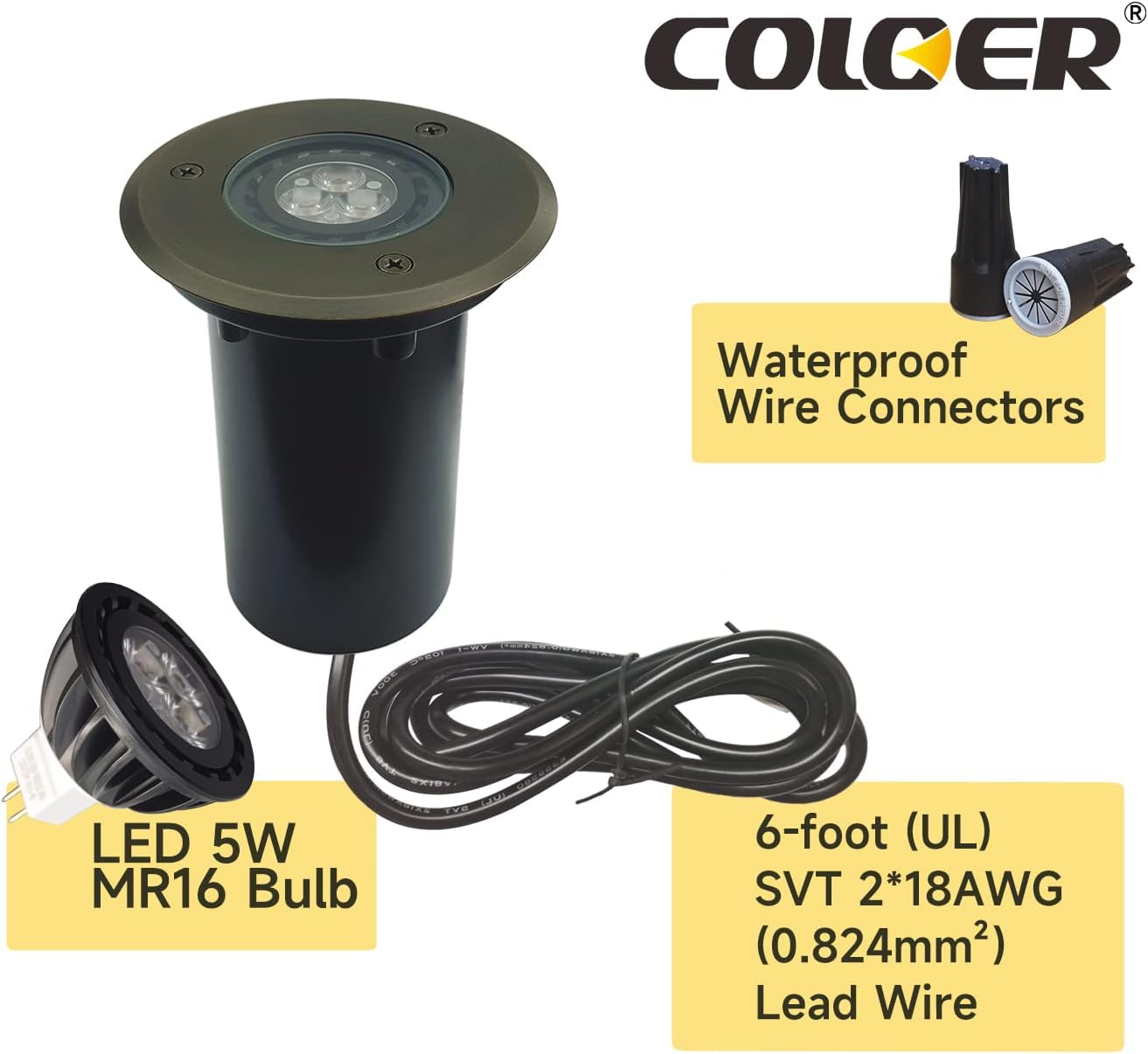

  • With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
  • The GU5.3 Bi-pin socket for MR16 bulbs makes it simple to install and replace LED MR16 or halogen lamps up to 50w (not included), it emits a soft and warm 2700K light, providing a comfortable experience.
  • Easy installation, just screw the fixture onto the stake, Lay out fixtures at desired locations.
details
User Manual Download

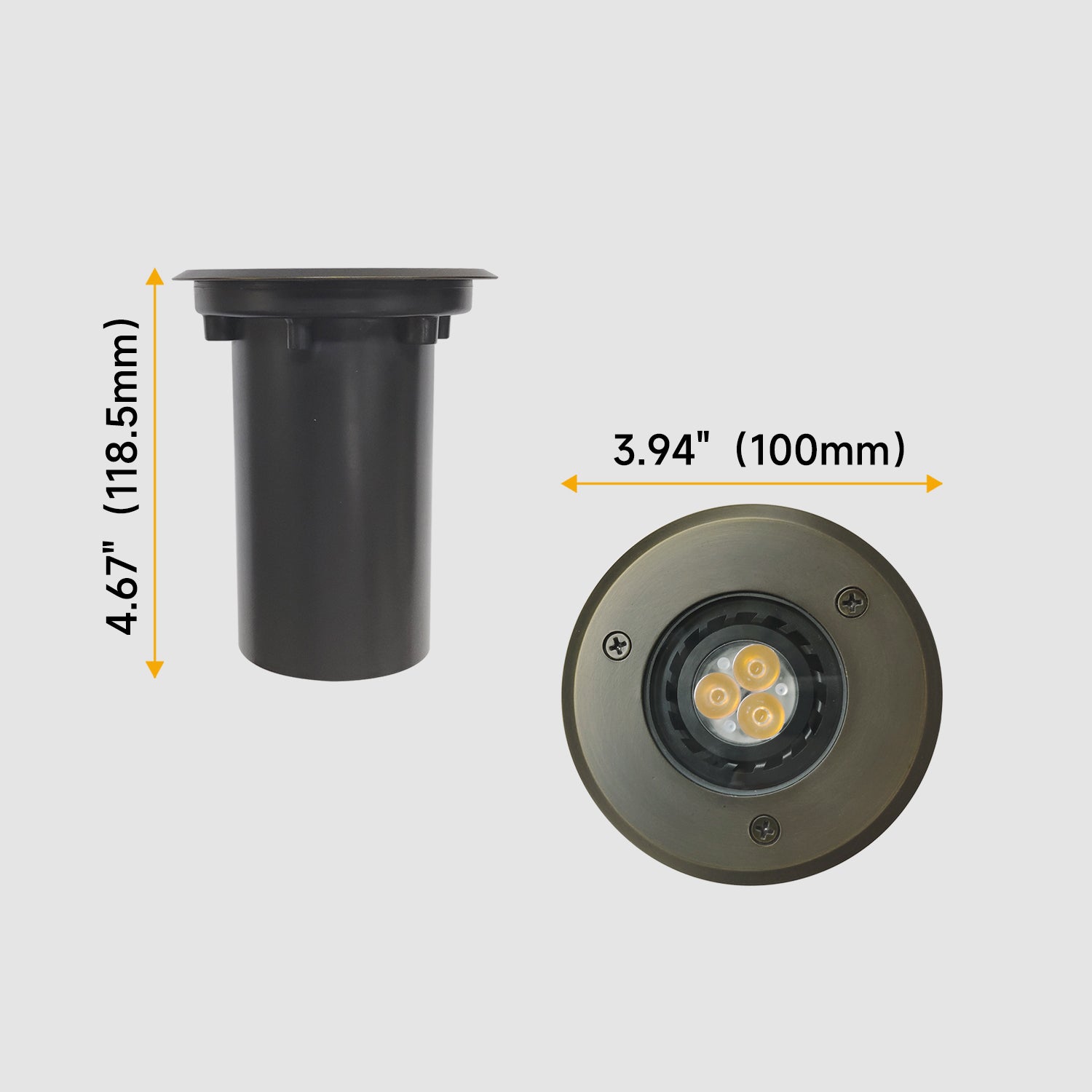

Demetions

3.94"L x 3.94"W x 4.67"H ‎

Weight

1.41 pounds

Material

Brass

Bulb

MR16 / 5W / 2700K / 400LM

Beam Angle

45D

Input Voltage

9-17V AC/DC

Fixture Color

Atique Bronze

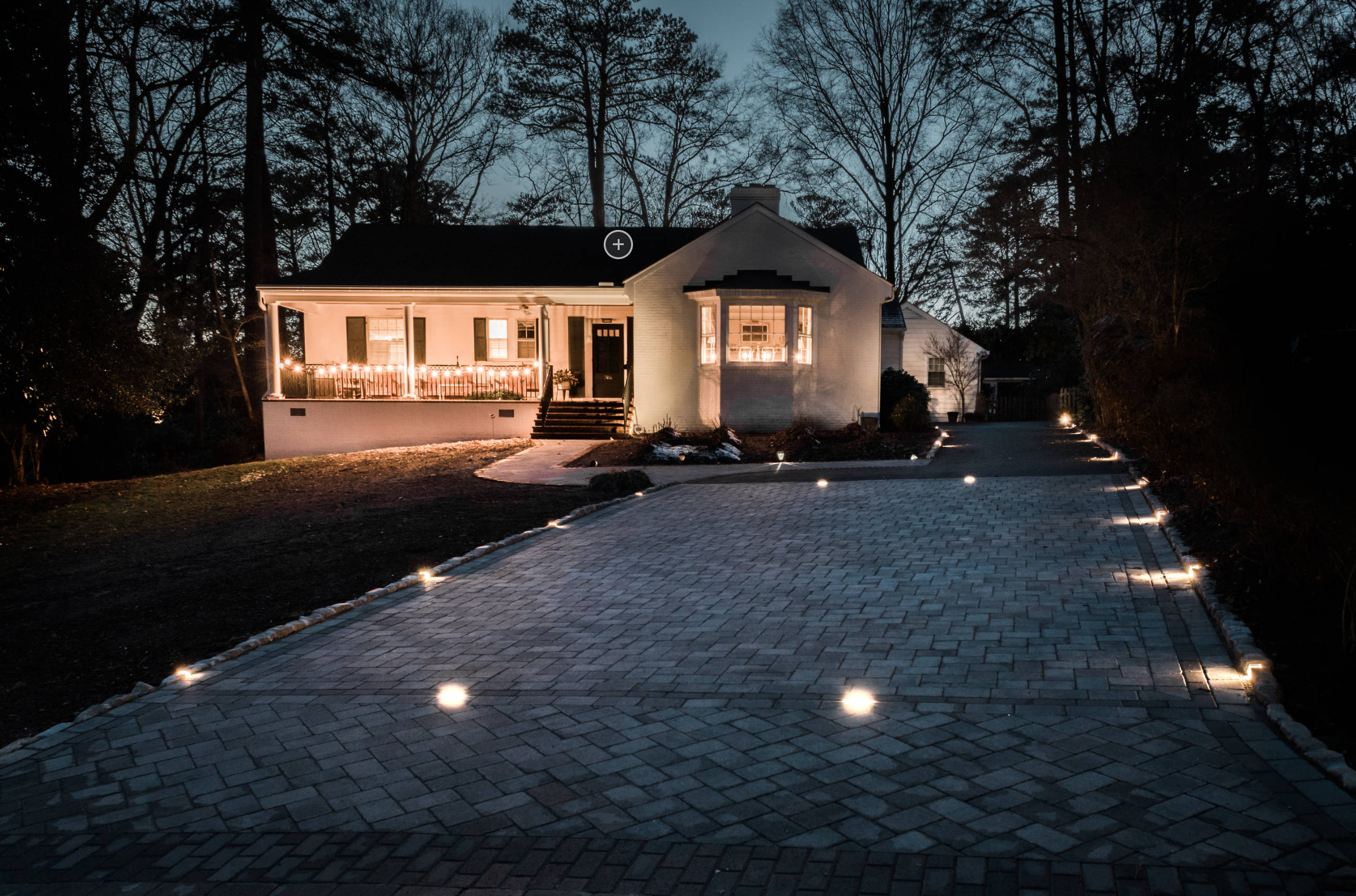

LED In-Ground Well Lights

Suitable for Road Garden Deck

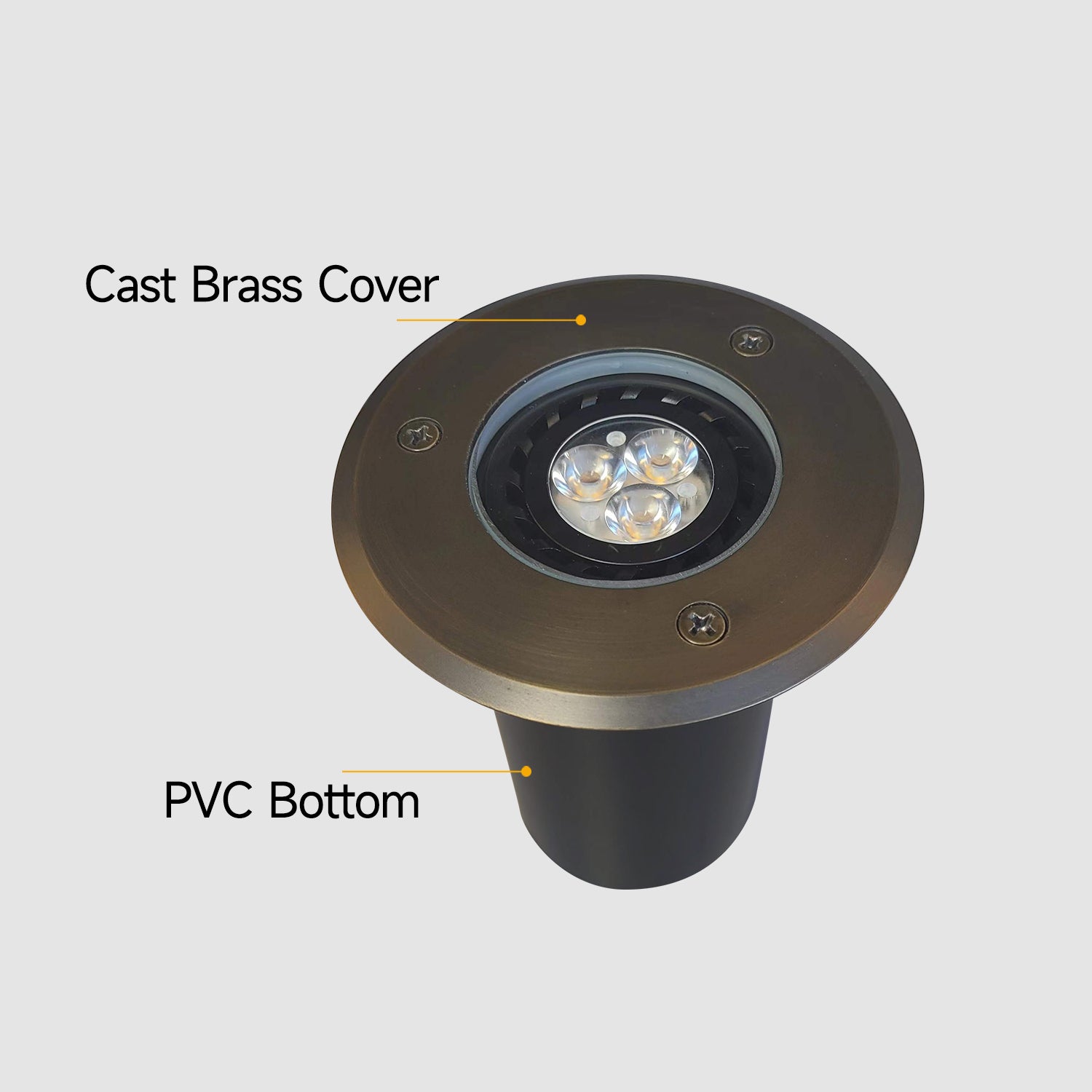

Cast Brass Cover & PVC Bottom
High Corrosion Resistance

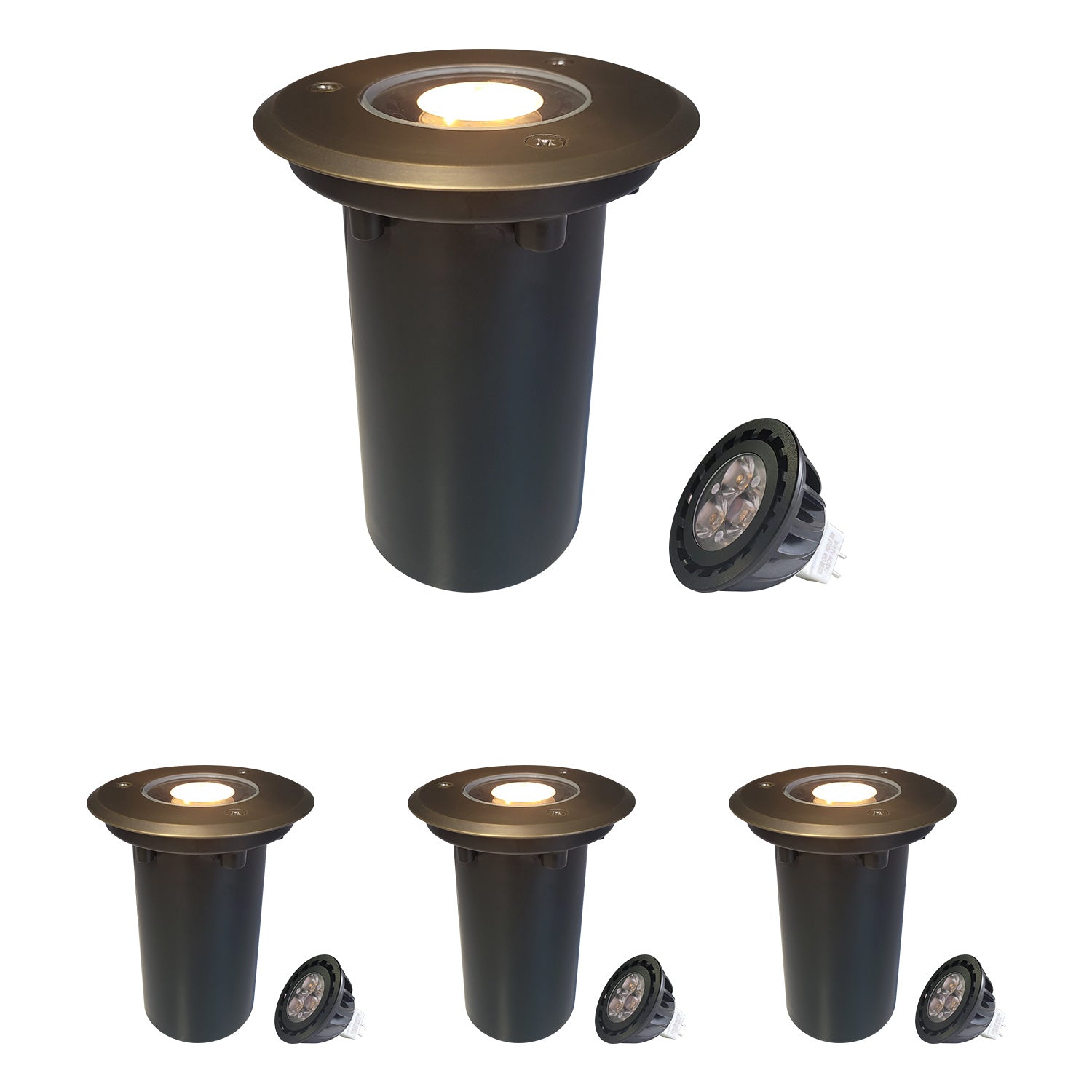

What included in the box

  • Main Fixture
  • LED MR16 Bulb
  • PVC Stake With Cut
  • Wire Connectors
  • User Manual

How long can I receive it

  • We have CA/FL two warehouses for service
  • We will arrange delivery nearby
  • You will receive the goods in 3-5 work days
  • Remote areas may take a little longer

How long is the warranty

  • Brass Fixture: Lifetime
  • Aluminum Fixture: 5 Years
  • LED Bulbs: 5 Years
  • Transformers: Lifetime

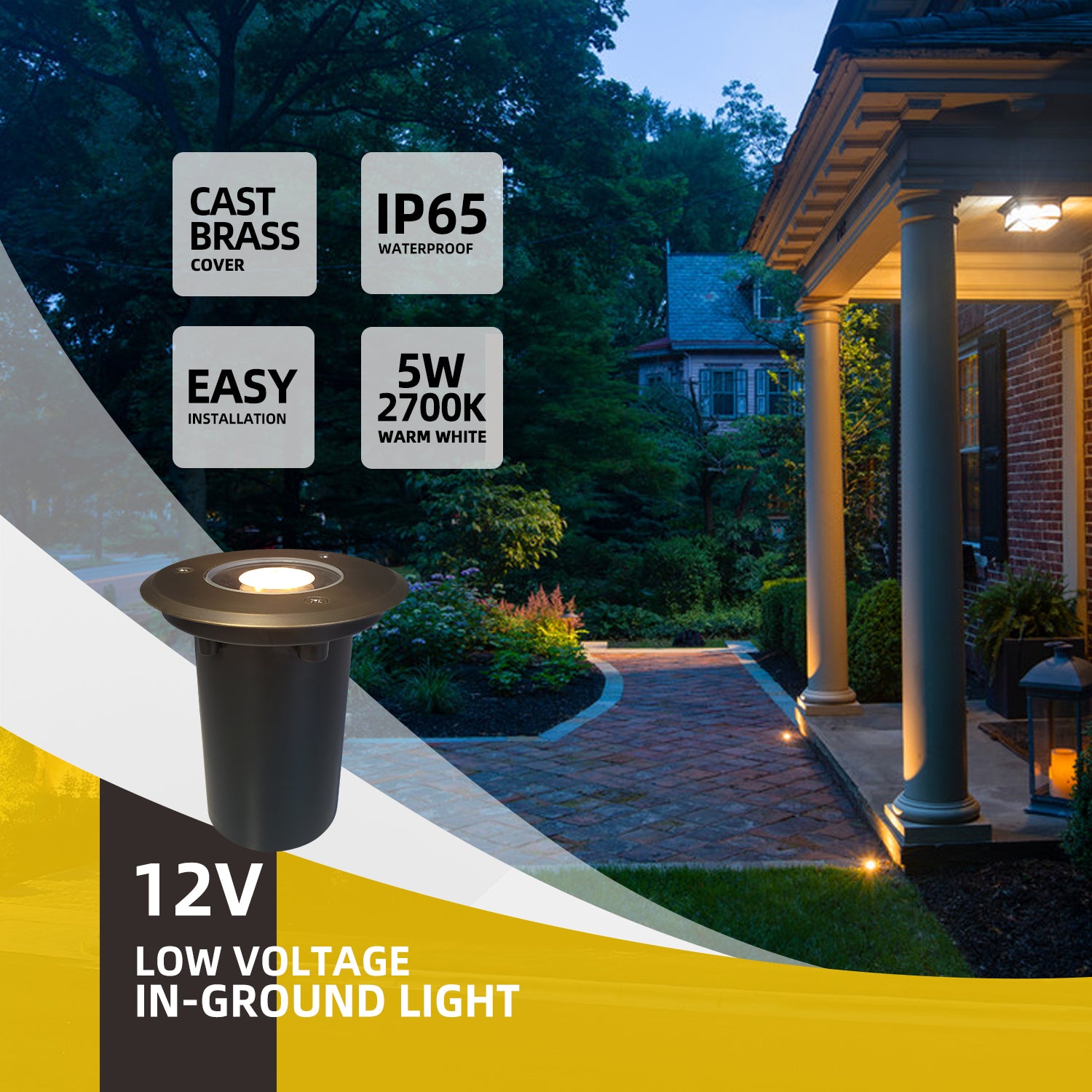

12V LOW VOLTAGE

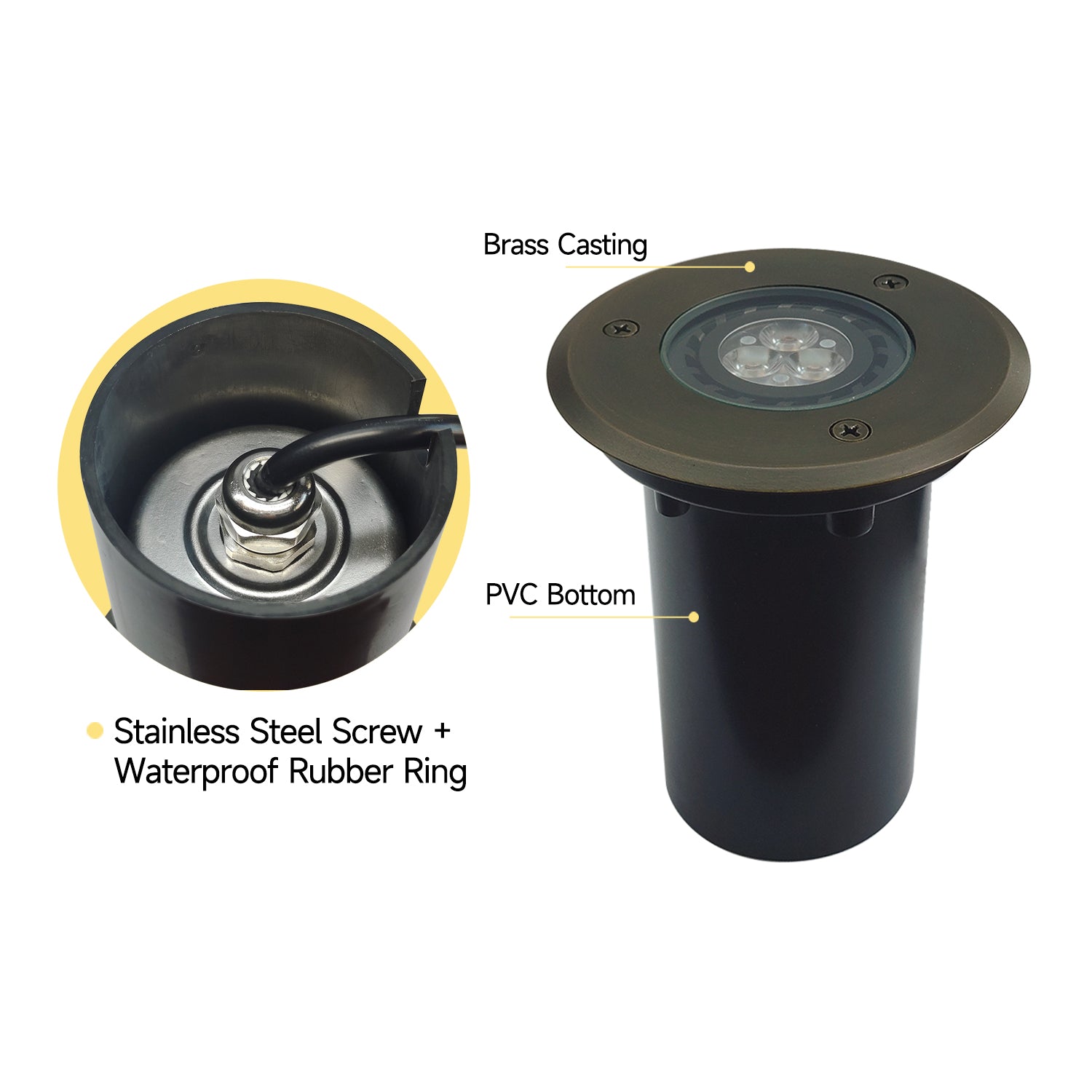

DIE-CAST BRASS COVER

This landscape light is made of die-cast brass material. Cast brass light top with cleae lens. The brass material body structure for in-ground light has better corrosion resistance and pressure resistance. Well sealed from water, with O-ring design and silicon plug at the bottom where the leads exit the fixture. IP65 Waterproof garden lights, perfect for gardens, streets, pathways, swimming pools and more.

Uniform Finish

The top of led garden lights use brass casting and clear flat glass lens, corrosion resistant and not easy to wear.

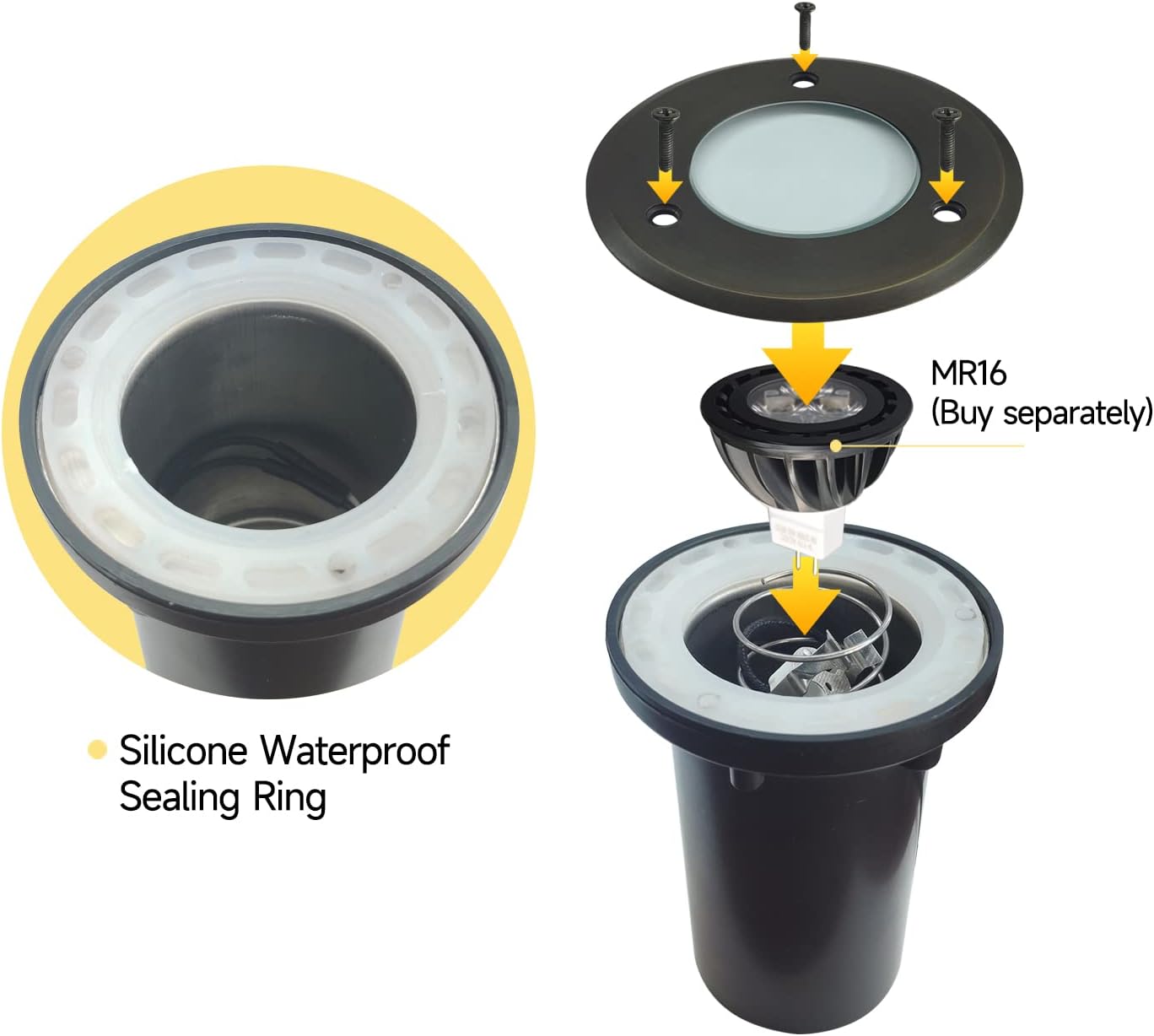

Rubber Seal

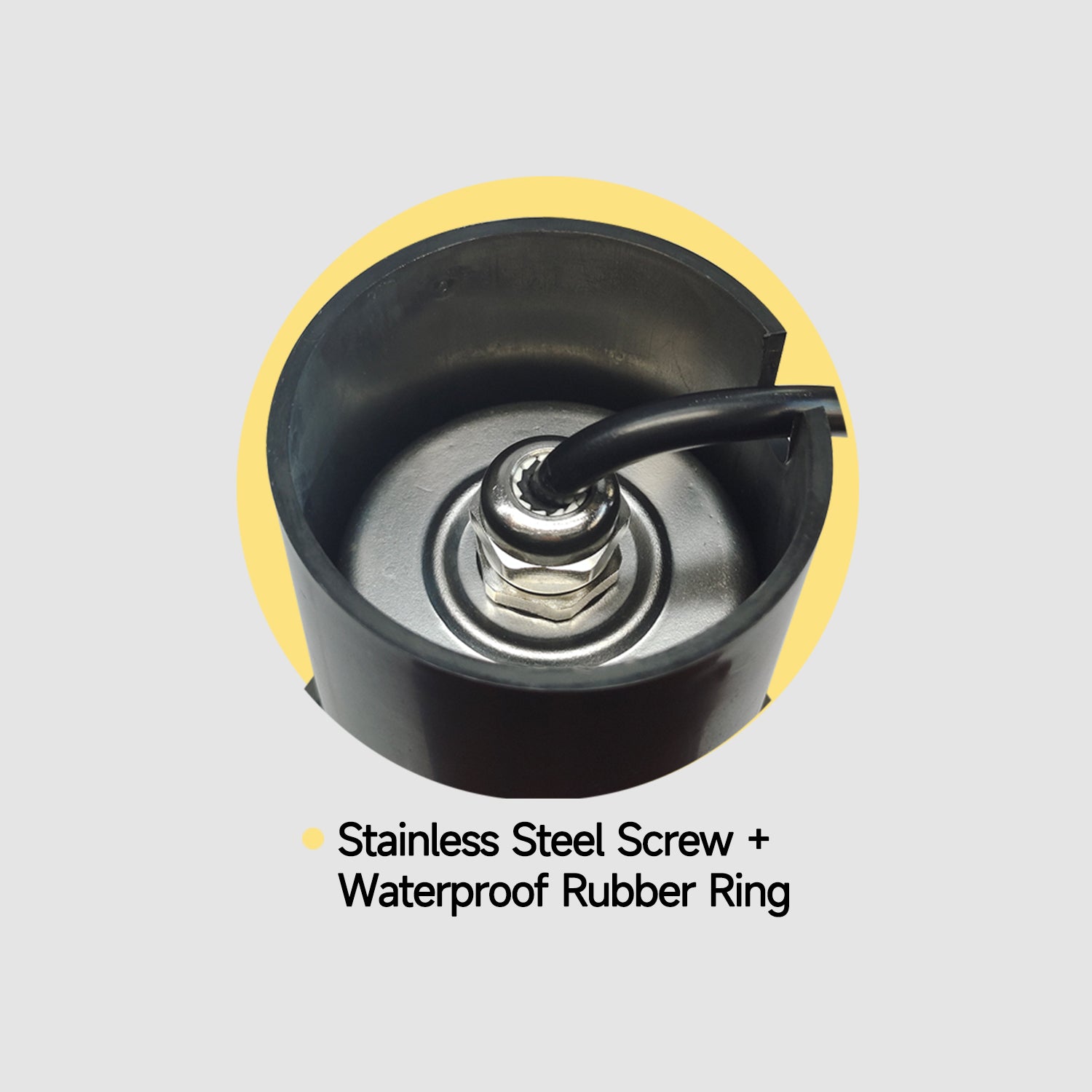

Water tight seals, pressure rubber gasket, rubber seal around wire exit.

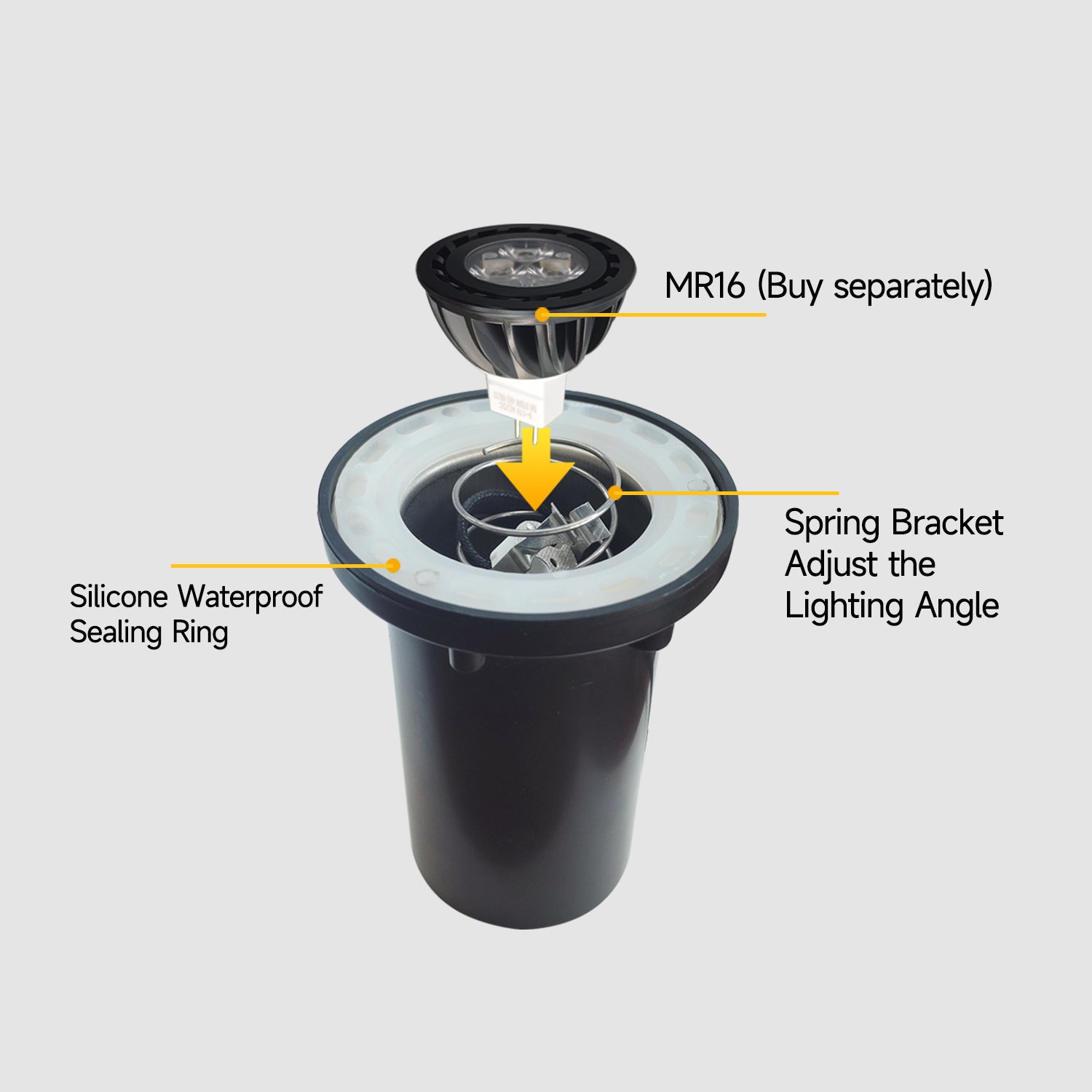

MR16 Bulb Socket

IP65 waterproof ground lights for outside use MR16 or halogen lamps up to 50W (Optional)

Small outdoor in-ground lights

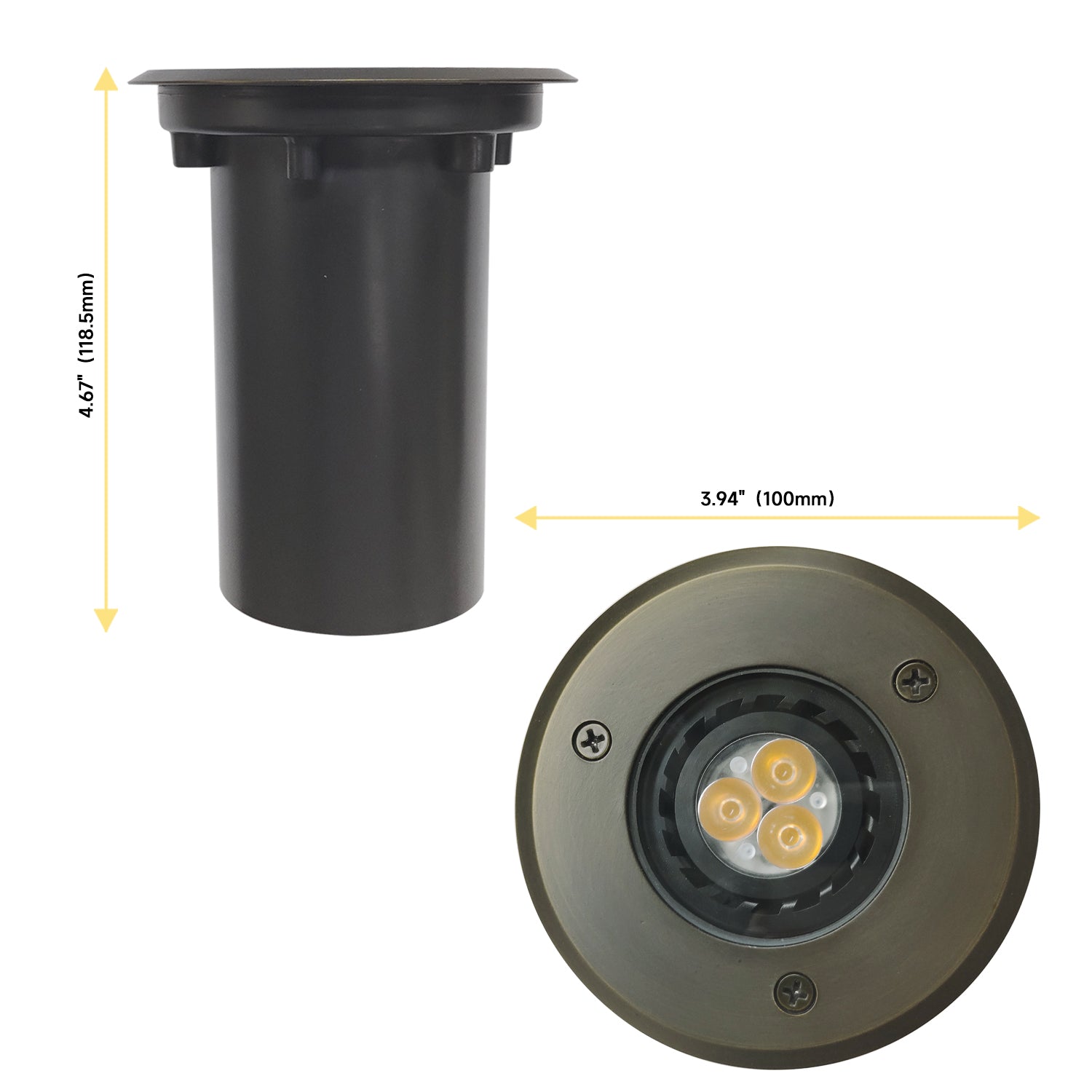

Small outdoor in-ground lights with a diameter of 3.94" and a height of 4.67", suitable for more scenes.

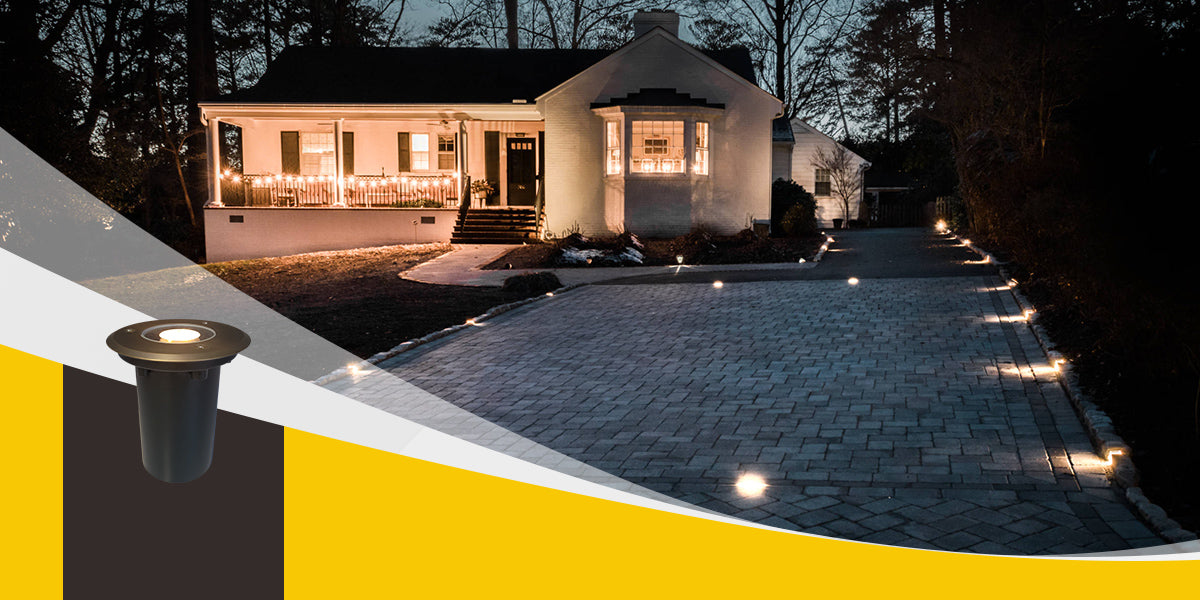

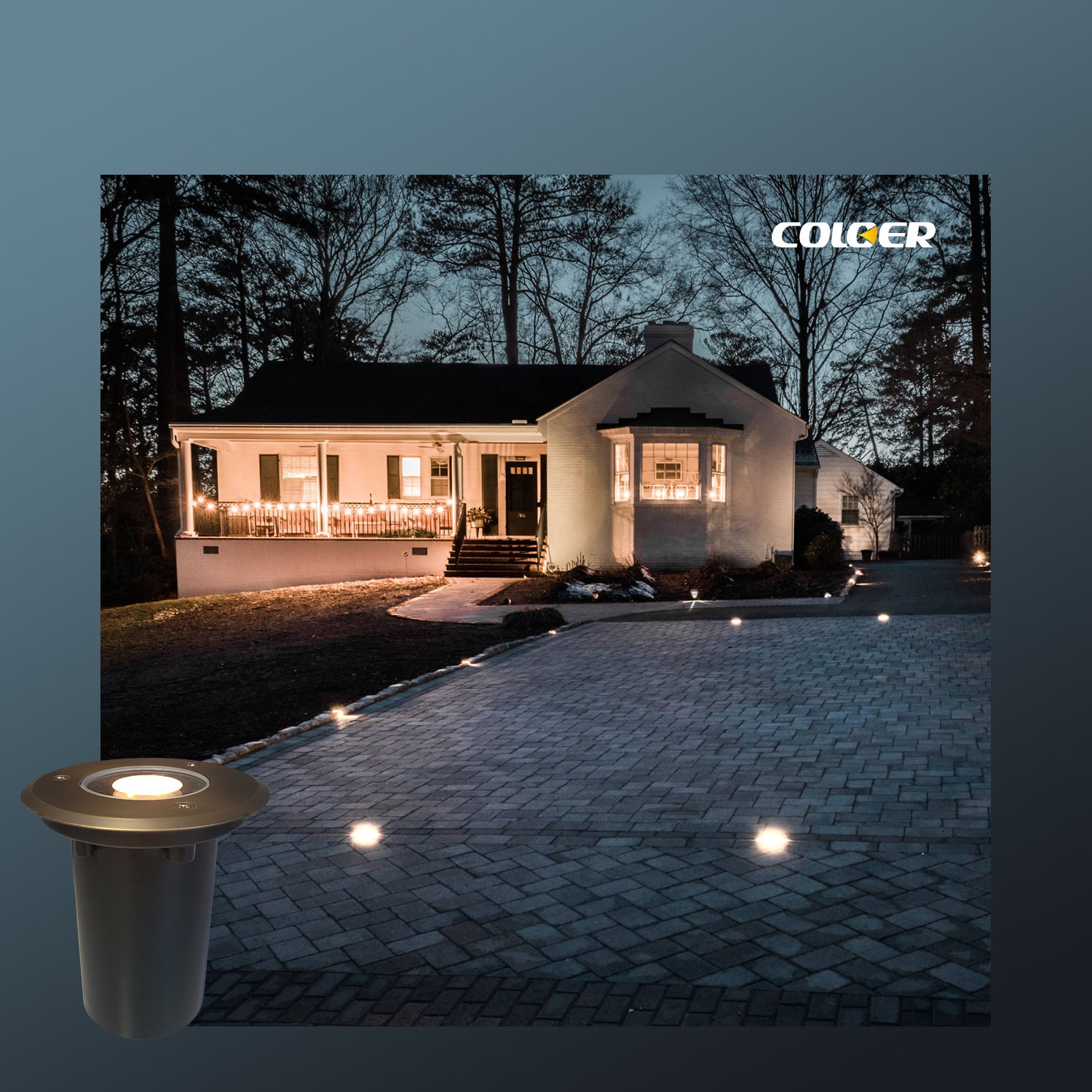

COLOER 12V Low Voltage Outdoor In-Ground Well Lights

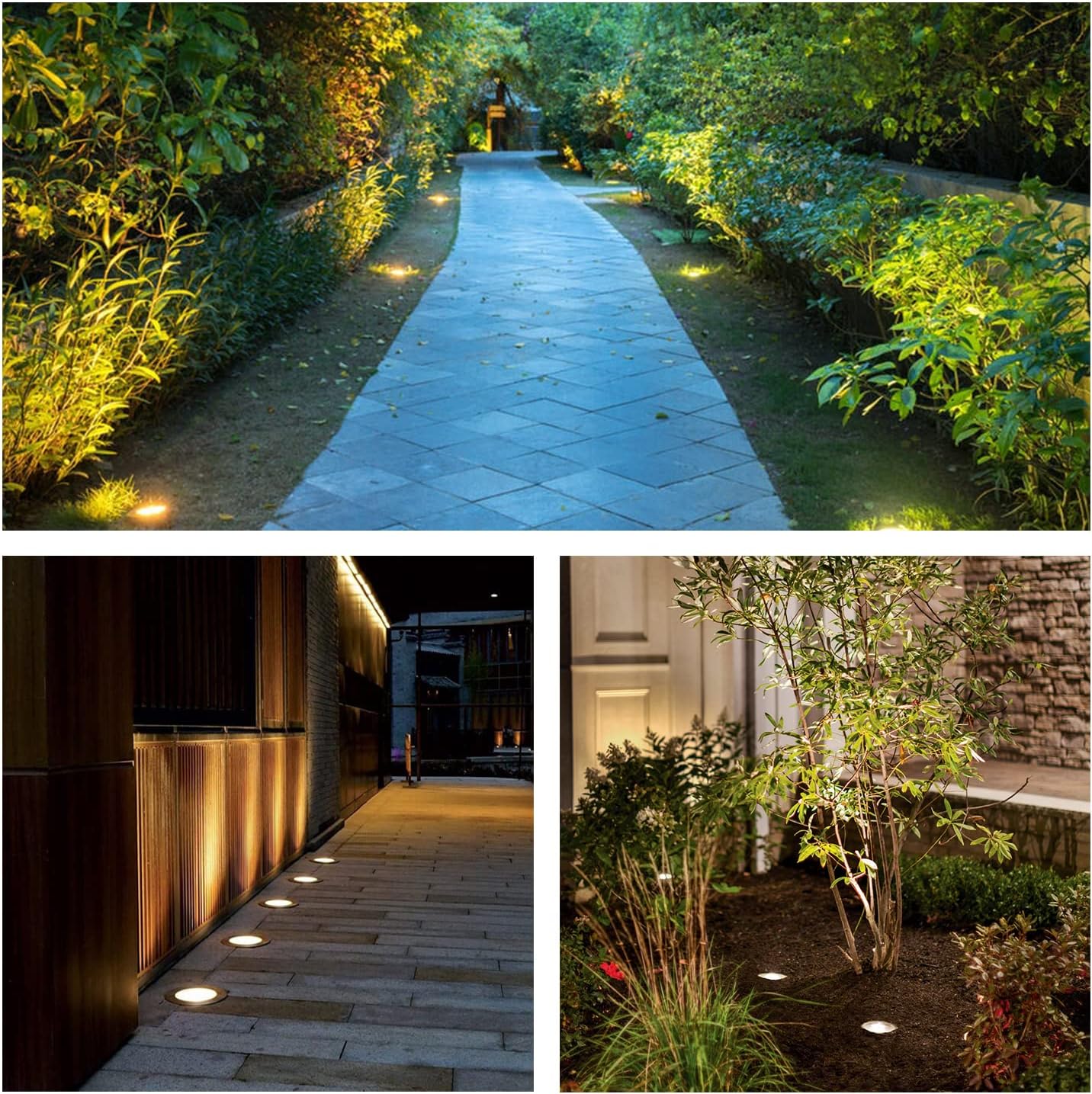

COLOER outdoor in-ground lights feature solid heavy brass top and a clear lens, it is more reliable and durable. IP65 Waterproof walkway lights perfect for garden, trees, flowers beds, alleys, loading docks, doorway, streets and pathways.

COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!

01

How to Choose Transformer

To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.

TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1

Select a transformer that matches as close as possible to calculation shown above.

Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

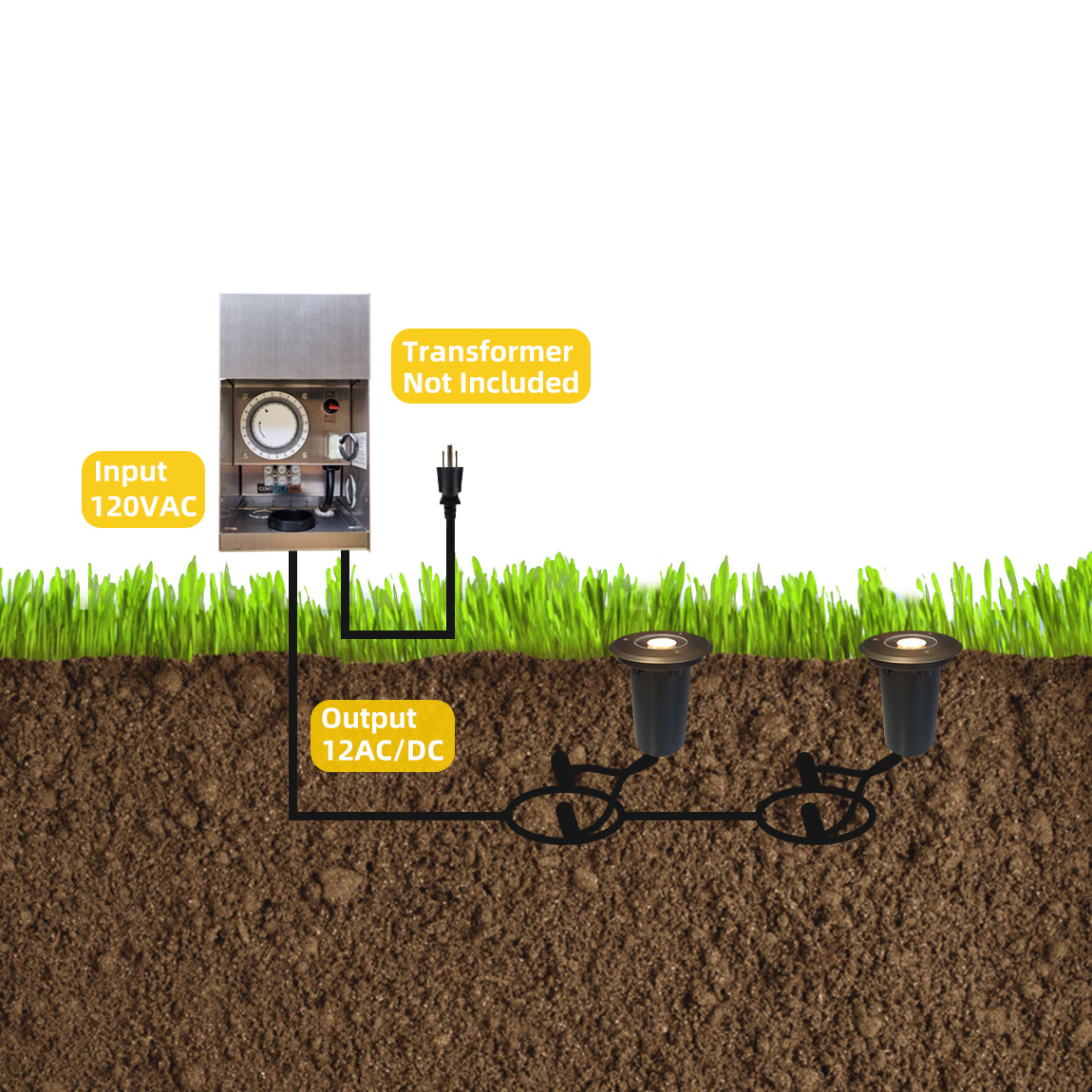

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

02

How to Install

Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.

01

How to Choose Transformer

To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.

TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1

Select a transformer that matches as close as possible to calculation shown above.

Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

02

How to Install

Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
