Die-cast Brass LED Low Voltage Outdoor Lighting Kit KIT-6
👉Subscribe to get $10 off on your first order!
FIXTURE KIT
- UNIQUE DESIGN: This landscape light kits made of die-cast brass material. The brass material body structure for the spotlights and path lights has better corrosion resistance and pressure resistance, it is more durable and has a longer lifespan than aluminum and plastic fixture.
- FLEXIBLE INSTALLATION: The low voltage landscape light with a cleated heavy-duty stake design makes it easy for outdoor ground-mounting. Equipped with removable ground stake, lamp body can be used alone.There is a screw for adjustment in the middle of the spotlight, which can make the outdoor spot lights for yard turn 180°in the vertical direction.
- SOLID HEAVY-DUTY STRUCTURE: Solid cast brass pagoda path light with polycarbonate lens and 4-foot 18AWG, SPT-1 lead wire. Measures 22.87 inches tall with 6.1 inches diameter hat. The solid brass housing makes the outdoor lights for yard excellent in corrosion resistance and heat dissipation, the fine workmanship makes it tougher, harder and aesthetics.
- OPTIMAL ILLUMINATION: The pathway lights projects a large 16'diameter region of illumination. Well sealed from water, with O-ring design and silicon plug at the bottom where the leads exit the fixture, suitable for wet locations. The white ceramic coating under the lampshade brings better lighting and saves energy. With CRI85+ G4 bulb, 160LM, 2700K soft and warm white light, giving you a comfortable experience.
What included in the box
- Main Fixture
- LED MR16/G4 Bulb
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime
About the KIT-6
Spot with Path Lights Kits & Bulbs Kits
- Lights-The brass material body structure for the spotlights and path lights has better corrosion resistance and pressure resistance, it is more durable and has a longer lifespan than aluminum and plastic fixture.Bulbs-9-17V AC/DC wide input low voltage cover, dimmable with most magnetic transformers.

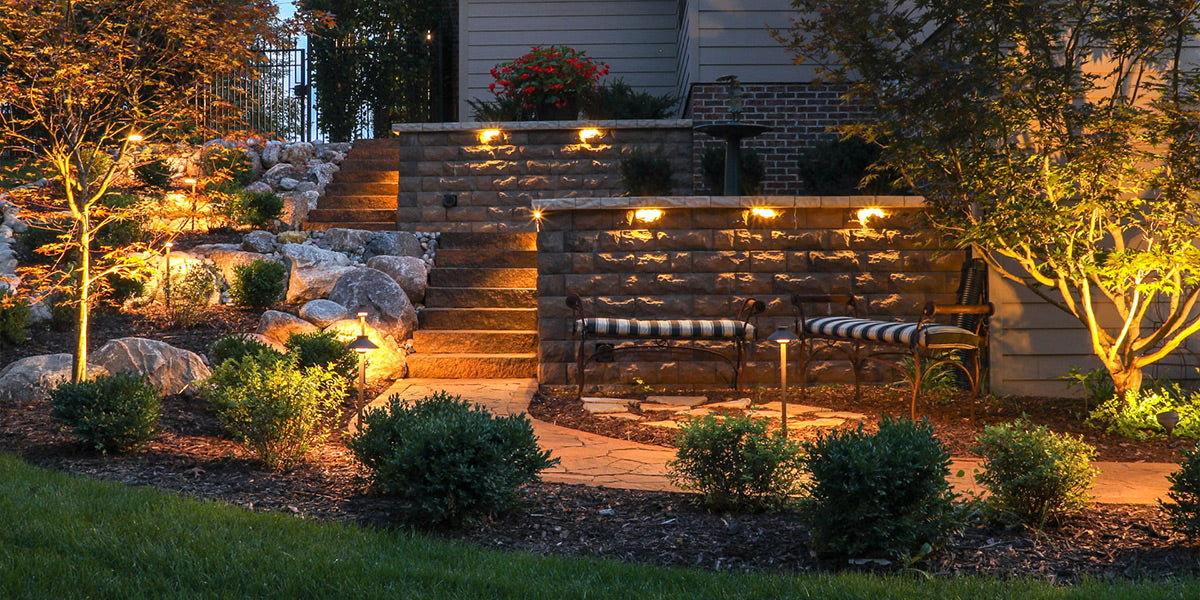

- Meet a variety of options.Suitable for flowerbeds, walkways, driveway, patio or any yard area.
2.13"L x 2.13"W x 15.74"H
6.13"L x 6.13"W x 22.88"H
1.07 pounds
3.14 pounds
MR-16
G4
9-17V AC/DC
12 AC/DC
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
This product has no reviews yet.
Still have questions?
We are here to help
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
Q & A
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 45 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 360 lumen and 2700K.
What do I use to mount to a tree for downlighting purposes?
The mounting for the lights in the box only supports uplighting. You can buy a ring surface wall mount separately for it, so you can Install these lights on a tree or wall for downlighting.
What is the difference between 101B/102B/103B fixtures?
They vary in appearance and size.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this spotlight?
Yes, our landscape spotlights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Can an MR-11 bulb be used in this fixture?
Yes, the MR11 bulb can be used in the 101B/102B/103B fixture.
I am replacing a broken lamp that is on a volt landscape lighting16 volt transformer. is
this compatible?
Multi-tap transformers provide taps from 12 to 22 volts. The higher voltage taps are for
long runs of cable because voltage decreases over long distances. This light should work
on a 16v tap, however, if the higher voltage is sustained over the entire line it may affect
the life of the bulbs.
Can this work with rgb-w multiple-color mr16 bulbs?
Yes, it works well with any type of MR16 bulb as long as it's the standard size MR16.
Do these come in white?
The light fixtures are bronze and the skate for these is black, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Mi has mr16 bulbs that use a 60-degree beam. Will the bulb turn this light more like a
floodlight rather than a spotlight?
The 60-degree beam MR16 bulb use in this fixture also projects a spotlight, thank you.
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM – 5:00 PM CST
What is the beam angle?
The beam angle is determined by the bulb used in this fixture. Our light source is 45 degrees.
What are the lumens on the light bulb provided?
The light bulb we provide for this fixture is 360 lumen and 2700K.
What do I use to mount to a tree for downlighting purposes?
The mounting for the lights in the box only supports uplighting. You can buy a ring surface wall mount separately for it, so you can Install these lights on a tree or wall for downlighting.
What is the difference between 101B/102B/103B fixtures?
They vary in appearance and size.
How does the light connect to the lead wire?
Our light fixture with 6-foot wire and 2 connectors, you can strip part of the lead wire insulation and connect the wires from the light fixture to the lead wire.
Is the transformer required for this spotlight?
Yes, our landscape spotlights work with 12V AC/DC low voltage, it requires a transformer
to reduce the voltage from 110V to 12V.
Can an MR-11 bulb be used in this fixture?
Yes, the MR11 bulb can be used in the 101B/102B/103B fixture.
I am replacing a broken lamp that is on a volt landscape lighting16 volt transformer. is
this compatible?
Multi-tap transformers provide taps from 12 to 22 volts. The higher voltage taps are for
long runs of cable because voltage decreases over long distances. This light should work
on a 16v tap, however, if the higher voltage is sustained over the entire line it may affect
the life of the bulbs.
Can this work with rgb-w multiple-color mr16 bulbs?
Yes, it works well with any type of MR16 bulb as long as it's the standard size MR16.
Do these come in white?
The light fixtures are bronze and the skate for these is black, don't have white light fixtures.
Where can I order the ring surface Mounting brackets?
You can search the keyword "brass ring mounting plate" on Amazon and will find ring surface
mounting brackets from other sellers.
Mi has mr16 bulbs that use a 60-degree beam. Will the bulb turn this light more like a
floodlight rather than a spotlight?
The 60-degree beam MR16 bulb use in this fixture also projects a spotlight, thank you.
