LED Low Voltage Landscape Lighting | Solid Brass 12V Backyard Lighting Kit KIT-3

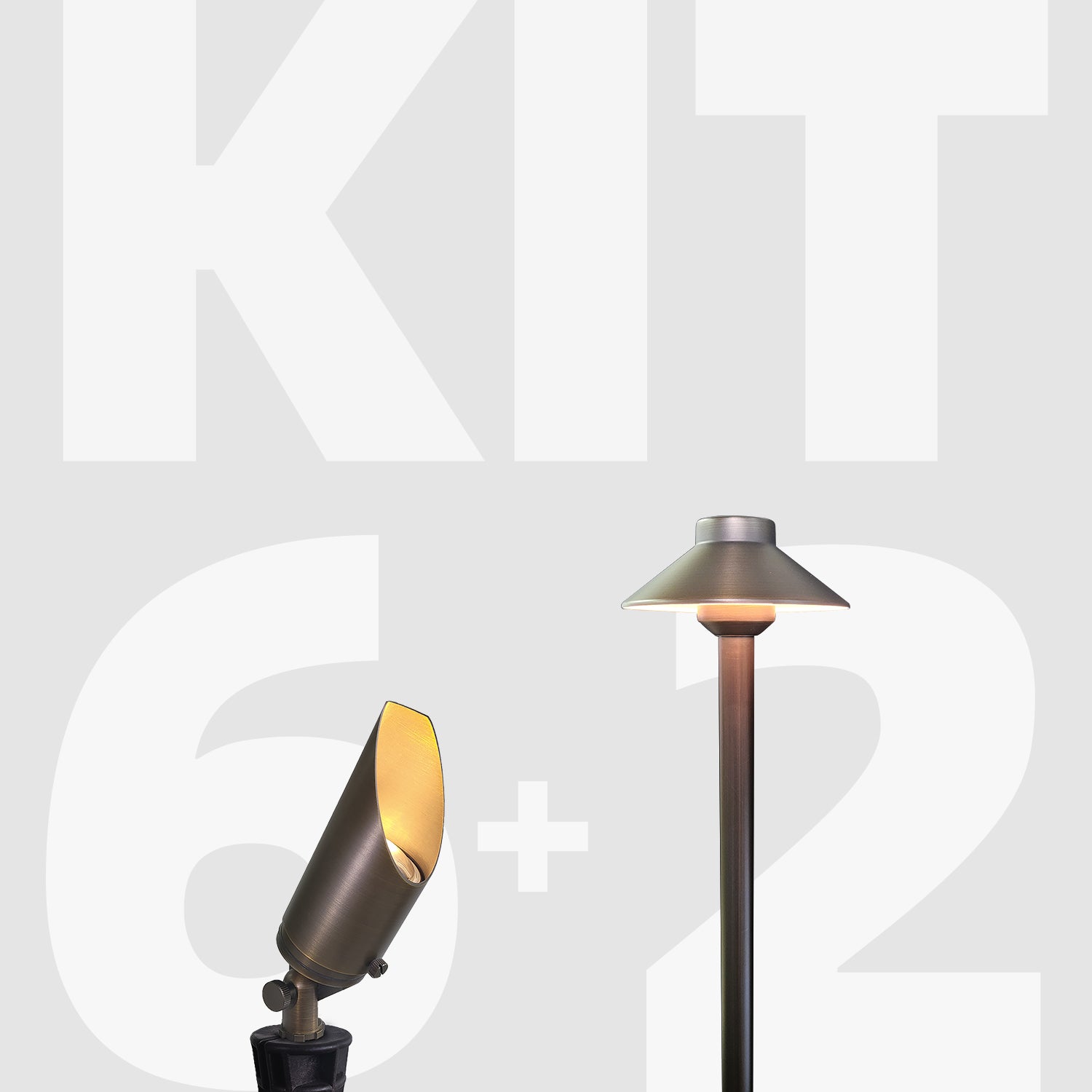

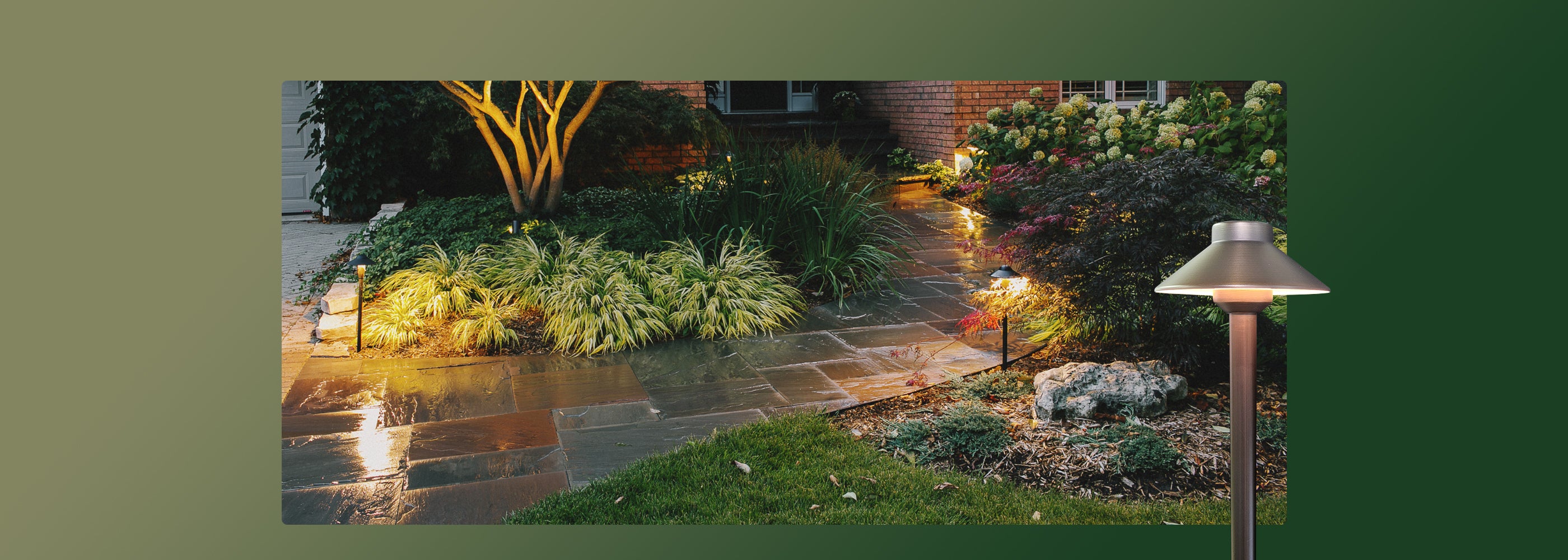

About the COA103B Spot Light & COP602B Path Light
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, with 6-foot 18 AWG lead wire.
- Uses halogen lamps up to 50w or rated LED MR-16/G4(Not Included).
- A high-quality PVC ground stake with cut makes it easy and stable for outdoor ground mounting.
2.44"L x 2.44"W x 15.75"H
6.13"L x 6.13"W x 22.88"H
1.7 pounds
3.14 pounds
MR-16
G4
9-17V AC/DC
12 AC/DC
LIFT-TIME
High Performance
With 50,000hrs long lifespan and using state-of-the-art components, We stand behind our product with our top rated customer service
12V LOW VOLTAGE
DIE-CAST BRASS

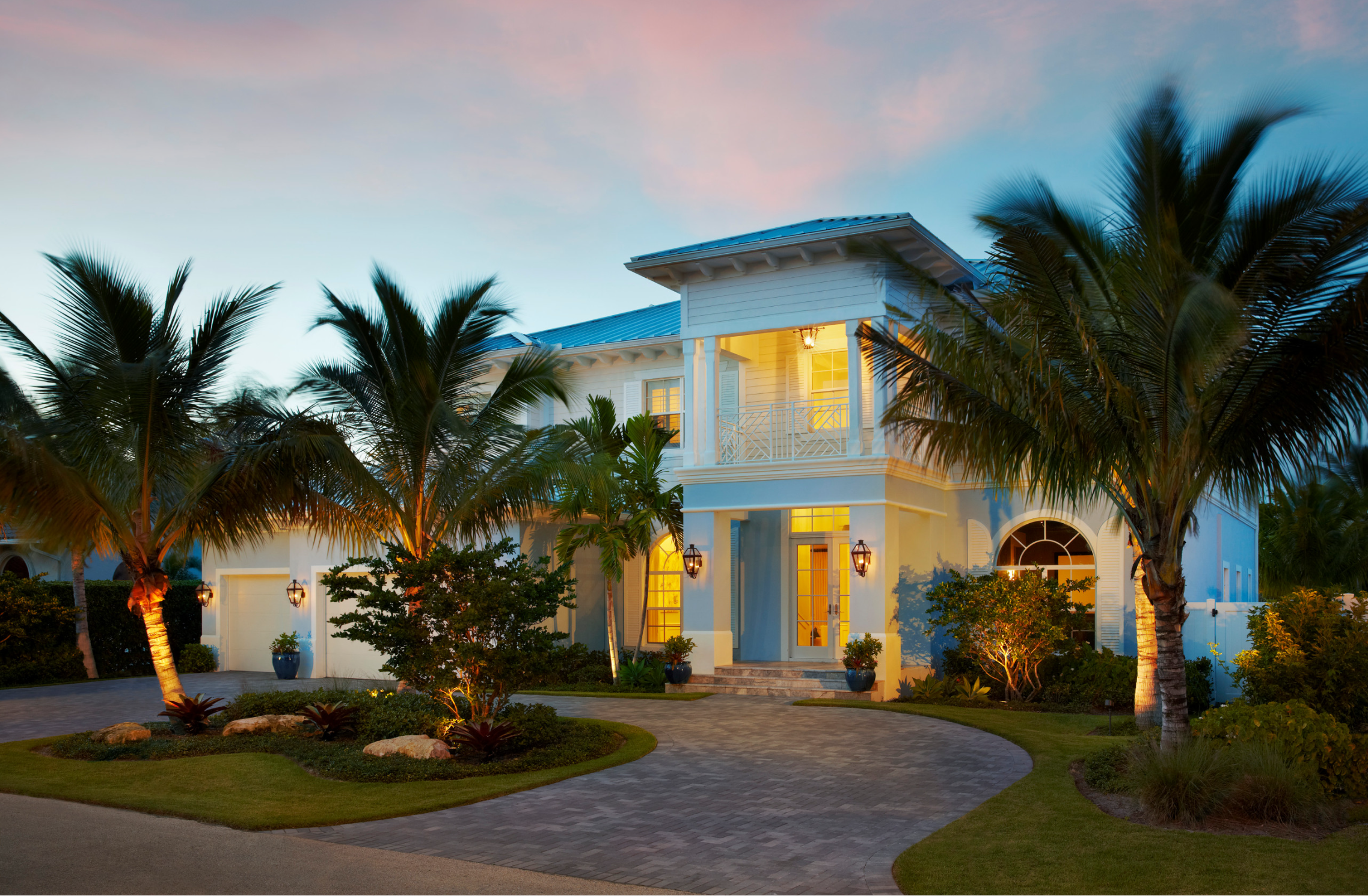

This landscape light is made of die-cast brass material, bronze paint on the surface of the light fixture, which is higher quality and more beautiful. The brass material body structure for spotlight has better corrosion resistance and pressure resistance, and is more durable and lasts longer than aluminum and plastic lamps. 45°narrow beam angle for for the exterior of the house, palm trees and tall oak trees. Classic minimalist design, easy to install and clean.
COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!
HOW TO CHOOSE TRANSFORMER
To determine the sizeof transformer neededn a low voltagelighting system, addup the wattage of allfixtures in system anothen add 10% for lowvoltage cable andfixtures connections.
If the total load of fixtures is toogreat, either divide thetotal load between 2transformers or use a morepowerful transformer.
Select a transformer with20%higher capacity thantotal wattage of all fixturesin system, that allow you to add morefixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

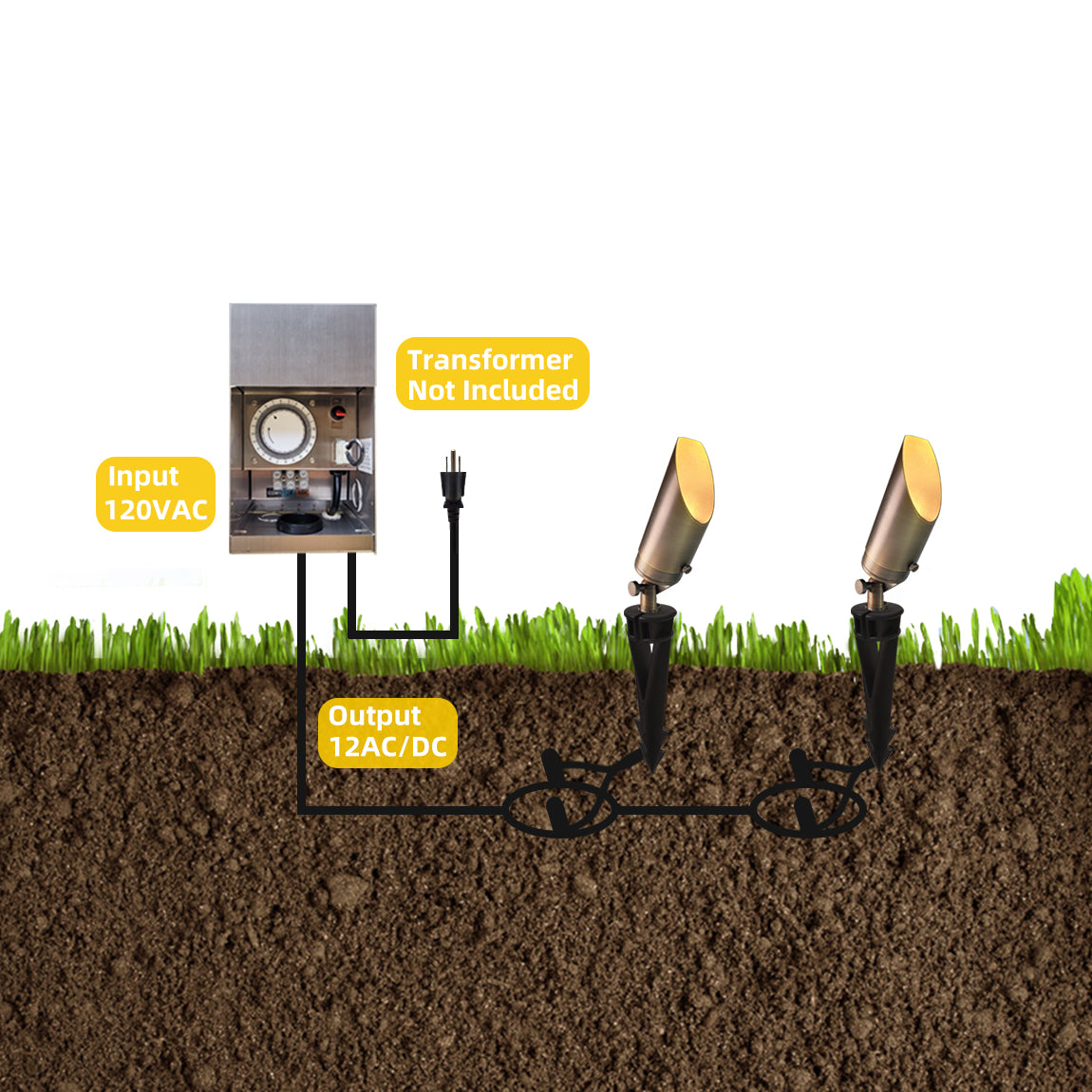

NOTE: Low voltage lighting systemsrequire the use of a transformerto reduce the standard 120 voltpower from ordinary householoelectricity to 12, 13, 14, and 15volt needed to power lowvoltage fixtures.
The total wattage ofal fixtures connectedto one transformermust not exceed thewattage capacity ofthe transformer.
HOW TO INSTALL
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
HOW TO CHOOSE TRANSFORMER
To determine the sizeof transformer neededn a low voltagelighting system, addup the wattage of allfixtures in system anothen add 10% for lowvoltage cable andfixtures connections.
If the total load of fixtures is toogreat, either divide thetotal load between 2transformers or use a morepowerful transformer.
Select a transformer with20%higher capacity thantotal wattage of all fixturesin system, that allow you to add morefixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systemsrequire the use of a transformerto reduce the standard 120 voltpower from ordinary householoelectricity to 12, 13, 14, and 15volt needed to power lowvoltage fixtures.
The total wattage ofal fixtures connectedto one transformermust not exceed thewattage capacity ofthe transformer.
HOW TO INSTALL
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
Email: customerservice@coloer.com / Tel: +1 626 699 4666
Have a question? We are here to help.
Check out the most common questions our customers asked. Still have questions? Contact our customer support
What is the beam angle?
The beam angle is determined by the bulb used in this fixture.Our own light source is 45 degrees.
What are the lumes on the light bulb provided ?
The light bulb we provide for this fixture is 360 lumen and 2700K.
What do I use to mount to a tree for downlighting purposes? The mounting for the lights in the box only supports uplighting.
You can buy a ring surface wall mount separately for it, so you can Install this lights on tree or wall for downlighting.
What is difference between 101B/102B/103B fixtures?
They vary in appearance and size.
how does the light connect to the leed wire?
Our light fixture with 6 foot wire and 2 connectors, you can strip part of the leed wire insulation and connect the wires from the light fixture to the leed wire.
Is the transformer required for this spotlight?
Yes, our landscape spotlights work with 12V AC/DC low voltage, it requires a transformer to reduce the voltage from 110V to 12V.
Can an MR-11 bulb be used in this fixture?
Yes, MR11 bulb can be used in 101B/102B/103B fixtrue.
I am replacing broken lamp that is on a volt landscape lighting16 volt transformer. is this compatible?
Multi-tap transformers provide taps from 12 to 22 volt. The higher voltage taps are for long runs of cable because voltage decreases over long distances. This light should work on a 16v tap, however, if the higher voltage is sustained over the entire line it may effect the life of the bulb.
Can this work with rgb-w multiple color mr16 bulbs?
Yes it works well with any type of MR16 bulbs as long as it's the standard size MR16.
Do these come in white?
the light fixtures are bronze and the skate for these are black, don't have white light fixtures, thank you.
Where can I order the ring surface Mounting brackets ?
you can search keyword "brass ring mounting plate" at amazon, will find the ring surface mounting brackets from other sellers, thank you.
Mi have mr16 bulbs that uses 60 degree beam. Will bulb turn this light more like a floodlight rather than a spotlight?
60 degree beam mr16 bulb use in this fixture also project a spotlight, thank you.
