COLOER Solid Brass LED 12V Landscape Lighting Sopt with Path Lights Kit KIT-1
πSubscribe to get $10 off on your first order!
FIXTURE KIT
- UNIQUE DESIGN: This landscape light kits made of die-cast brass material. The brass material body structure for the spotlights and path lights has better corrosion resistance and pressure resistance, it is more durable and has a longer lifespan than aluminum and plastic fixture.
- FLEXIBLE INSTALLATION: The low voltage landscape light with a cleated heavy-duty stake design makes it easy for outdoor ground-mounting. Equipped with removable ground stake, lamp body can be used alone.There is a screw for adjustment in the middle of the spotlight, which can make the outdoor spot lights for yard turn 180Β°in the vertical direction.

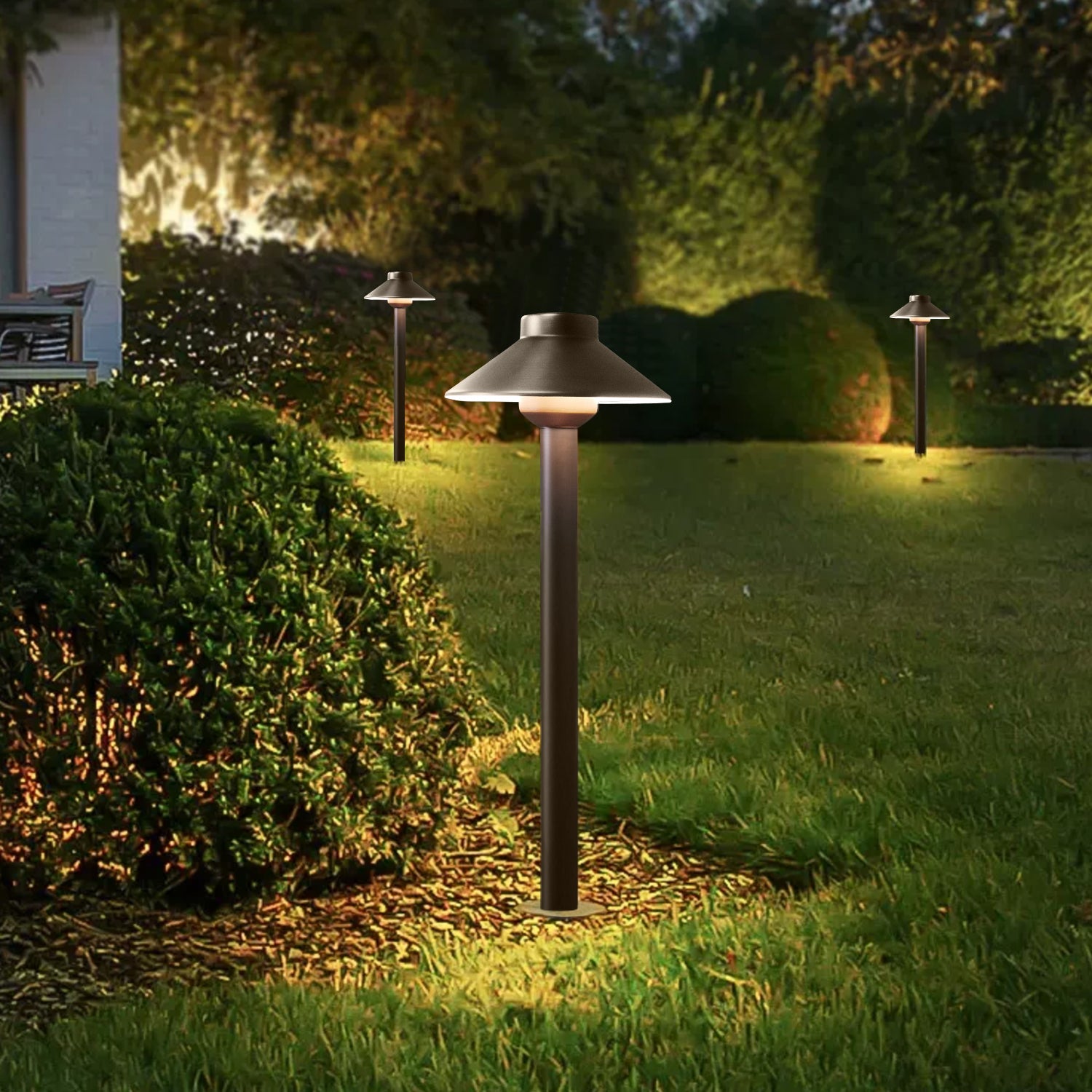

- SOLID HEAVY-DUTY STRUCTURE: Solid cast brass pagoda path light with polycarbonate lens and 4-foot 18AWG, SPT-1 lead wire. Measures 22.87 inches tall with 6.1 inches diameter hat. The solid brass housing makes the outdoor lights for yard excellent in corrosion resistance and heat dissipation, the fine workmanship makes it tougher, harder and aesthetics.
- OPTIMAL ILLUMINATION: The pathway lights projects a large 16'diameter region of illumination. Well sealed from water, with O-ring design and silicon plug at the bottom where the leads exit the fixture, suitable for wet locations. The white ceramic coating under the lampshade brings better lighting and saves energy. With CRI85+ G4 bulb, 160LM, 2700K soft and warm white light, giving you a comfortable experience.
What included in the box
- Main Fixture
- PVC Stake With Cut
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime
About the KIT-1

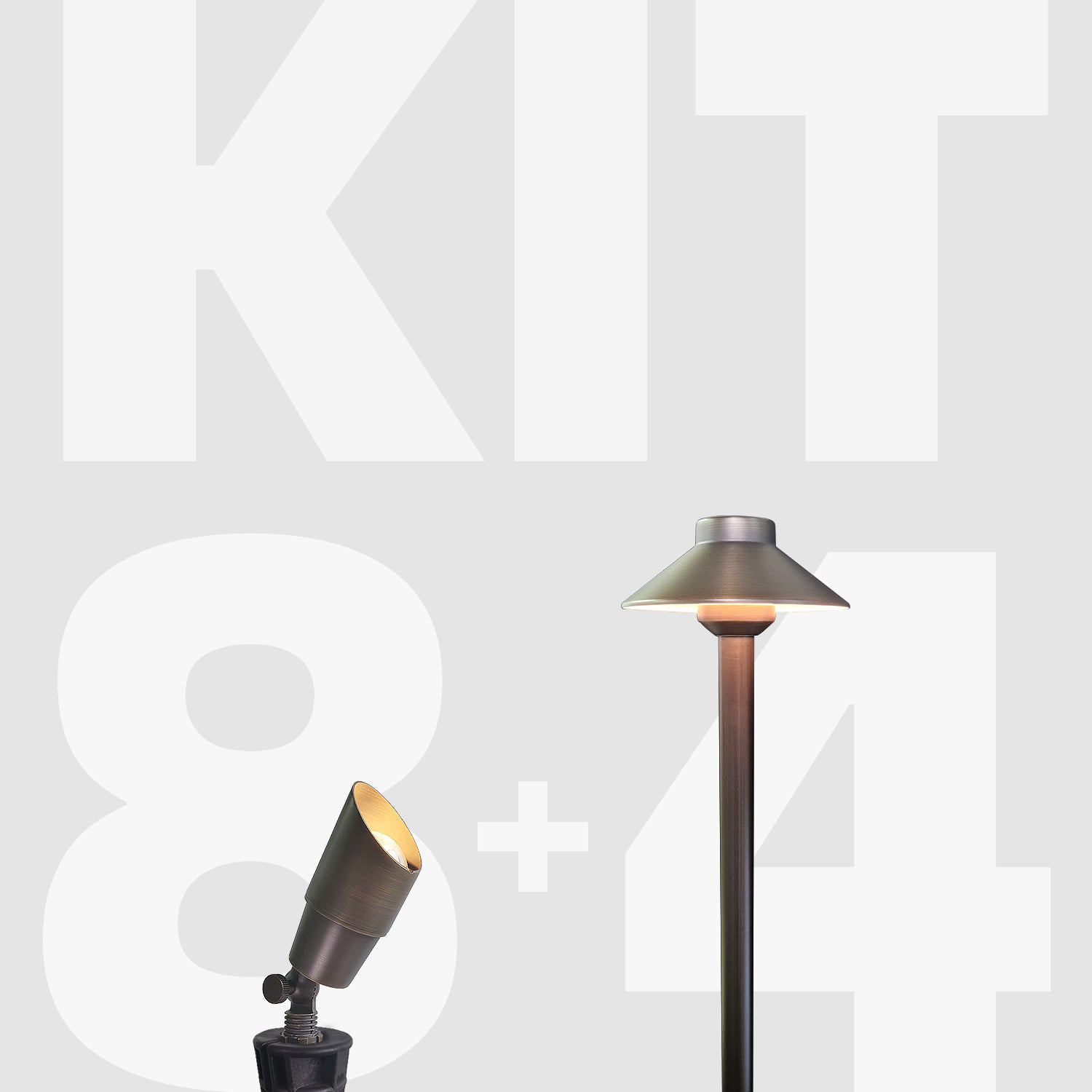

Spot with Path Lights KitsΒ & Bulbs Kits
- Lights-The brass material body structure for the spotlights and path lights has better corrosion resistance and pressure resistance, it is more durable and has a longer lifespan than aluminum and plastic fixture.Bulbs-9-17V AC/DC wide input low voltage cover, dimmable with most magnetic transformers.
- Meet a variety of options.Suitable for flowerbeds, walkways, driveway, patio or any yard area.
2.13"L x 2.13"W x 15.74"H
β6.13"L x 6.13"W x 22.88"H
1.07 pounds
β3.14 pounds
MR-16
βG4
9-17V AC/DC
9-17 AC/DC
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

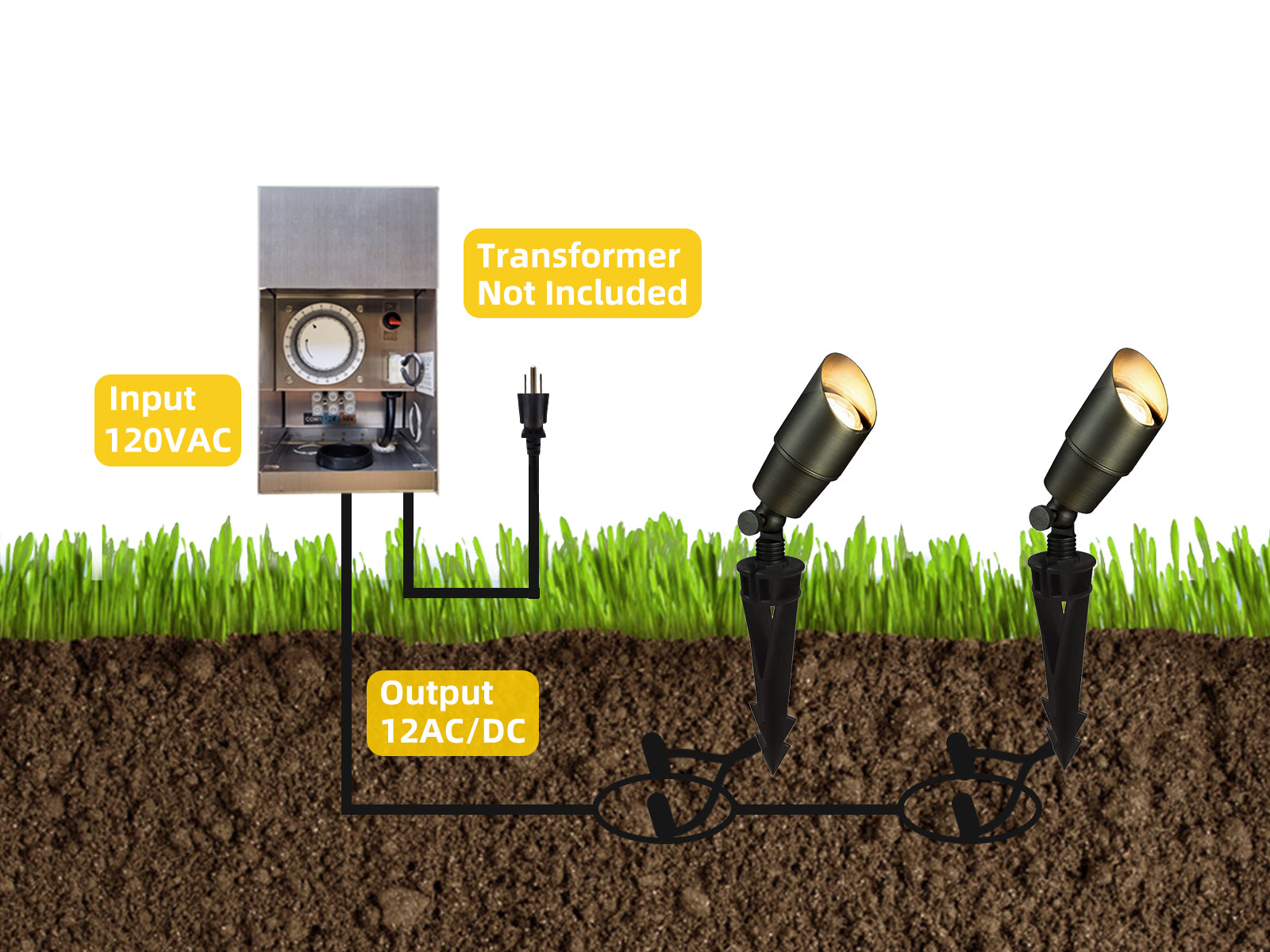

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.
Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.
Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.
Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
This product has no reviews yet.
Still have questions?Β
We are here to help
COLOER is a manufacturer-direct company based in the United States, dedicated to offering high-quality, affordable products. With a foundation of 10 years of industry experience, we are committed to providing top-notch service through direct sales.
We guarantee local shipment for all products, with delivery as fast as 2 working days after ordering. Therefore, by choosing COLOER, you can expect competitive pricing, quality assurance, efficient delivery, and attentive after-sales service.
For bulk orders or any other product inquiries, please feel free to contact us via phone or email. We are wholeheartedly committed to providing you with consultation and support.
Call: 626-699-4666
Email: customerservice@coloer.com
Business Hours: Monday to Friday 9:00 AM β 5:00 PM CST
Q & A
WhatΒ isΒ theΒ beamΒ angle?
TheΒ beamΒ angleΒ isΒ determinedΒ byΒ theΒ bulbΒ usedΒ inΒ thisΒ fixture. Our lightΒ sourceΒ isΒ 45 degrees.
WhatΒ areΒ theΒ lumensΒ onΒ theΒ lightΒ bulbΒ provided?
TheΒ lightΒ bulbΒ weΒ provideΒ forΒ thisΒ fixtureΒ isΒ 360Β lumenΒ andΒ 2700K.
WhatΒ doΒ IΒ useΒ toΒ mountΒ toΒ aΒ treeΒ forΒ downlightingΒ purposes?
TheΒ mountingΒ forΒ the lightsΒ inΒ theΒ boxΒ onlyΒ supportsΒ uplighting. YouΒ canΒ buyΒ aΒ ringΒ surfaceΒ wallΒ mountΒ separatelyΒ forΒ it,Β soΒ youΒ canΒ InstallΒ theseΒ lightsΒ onΒ a tree orΒ wallΒ forΒ downlighting.
WhatΒ isΒ the differenceΒ betweenΒ 101B/102B/103BΒ fixtures?
TheyΒ varyΒ inΒ appearanceΒ andΒ size.
HowΒ doesΒ theΒ lightΒ connectΒ toΒ theΒ leadΒ wire?
OurΒ lightΒ fixtureΒ withΒ 6-footΒ wireΒ andΒ 2Β connectors,Β youΒ canΒ stripΒ partΒ ofΒ theΒ leadΒ wire insulationΒ andΒ connectΒ theΒ wiresΒ fromΒ theΒ lightΒ fixtureΒ toΒ theΒ leadΒ wire.
IsΒ theΒ transformerΒ requiredΒ for thisΒ spotlight?
Yes,Β ourΒ landscapeΒ spotlightsΒ workΒ withΒ 12VΒ AC/DCΒ lowΒ voltage,Β itΒ requiresΒ aΒ transformer
toΒ reduceΒ theΒ voltageΒ fromΒ 110VΒ toΒ 12V.
CanΒ anΒ MR-11Β bulbΒ beΒ usedΒ inΒ thisΒ fixture?
Yes,Β the MR11Β bulbΒ canΒ beΒ usedΒ inΒ the 101B/102B/103BΒ fixture.
IΒ amΒ replacingΒ a brokenΒ lampΒ thatΒ isΒ onΒ aΒ voltΒ landscapeΒ lighting16Β voltΒ transformer.Β is
thisΒ compatible?
Multi-tapΒ transformersΒ provideΒ tapsΒ fromΒ 12Β toΒ 22Β volts.Β TheΒ higherΒ voltageΒ tapsΒ areΒ for
longΒ runsΒ ofΒ cableΒ becauseΒ voltageΒ decreasesΒ overΒ longΒ distances.Β ThisΒ lightΒ shouldΒ work
onΒ aΒ 16vΒ tap,Β however,Β ifΒ theΒ higherΒ voltageΒ isΒ sustainedΒ overΒ theΒ entireΒ lineΒ itΒ mayΒ affect
theΒ lifeΒ ofΒ theΒ bulbs.
CanΒ thisΒ workΒ withΒ rgb-wΒ multiple-colorΒ mr16Β bulbs?
Yes,Β itΒ worksΒ wellΒ withΒ anyΒ typeΒ ofΒ MR16Β bulbΒ asΒ longΒ asΒ it'sΒ theΒ standardΒ sizeΒ MR16.
DoΒ theseΒ comeΒ inΒ white?
TheΒ lightΒ fixturesΒ areΒ bronzeΒ andΒ theΒ skateΒ forΒ theseΒ isΒ black,Β don'tΒ haveΒ whiteΒ light fixtures.
WhereΒ canΒ IΒ orderΒ theΒ ringΒ surfaceΒ MountingΒ brackets?
YouΒ canΒ searchΒ the keywordΒ "brassΒ ringΒ mountingΒ plate"Β onΒ AmazonΒ and willΒ find ringΒ surface
mountingΒ bracketsΒ fromΒ otherΒ sellers.
MiΒ hasΒ mr16Β bulbsΒ thatΒ useΒ a 60-degreeΒ beam.Β WillΒ the bulbΒ turnΒ thisΒ lightΒ moreΒ likeΒ a
floodlightΒ ratherΒ thanΒ aΒ spotlight?
The 60-degreeΒ beamΒ MR16Β bulbΒ useΒ inΒ thisΒ fixtureΒ alsoΒ projectsΒ aΒ spotlight,Β thankΒ you.
