Cast Brass LED Landscape Lighting | 12V Low Voltage Waterproof Outdoor Lights Kit KIT-4

Sale price$278.99 USD

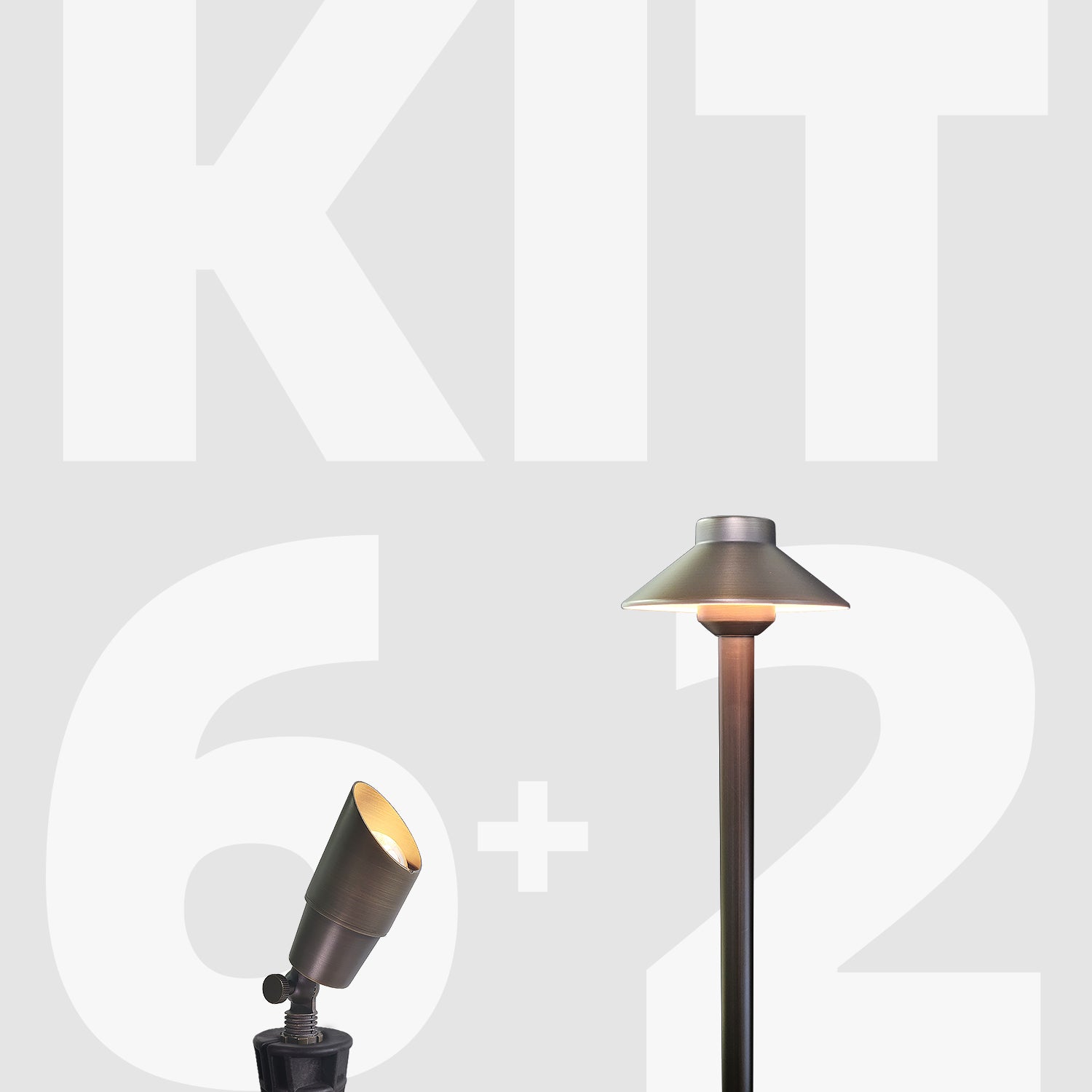

Model: KIT4---6 pack spotlights+ 2 pack pathlights (with bulbs)

About the COA101B Spot Light & COP602B Path Light

  • High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture, with 6-foot 18 AWG lead wire.
  • Uses halogen lamps up to 50w or rated LED MR-16/G4(Not Included).
  • A high-quality PVC ground stake with cut makes it easy and stable for outdoor ground mounting.
details
User Manual Download
Demetions

2.13"L x 2.13"W x 15.74"H

‎6.13"L x 6.13"W x 22.88"H

Weight

1.07 pounds

‎3.14 pounds

Bulb

MR-16

‎G4

Input Voltage

9-17V AC/DC

12 AC/DC

LIFT-TIME

High Performance

With 50,000hrs long lifespan and using state-of-the-art components, We stand behind our product with our top rated customer service

12V LOW VOLTAGE

DIE-CAST BRASS

This landscape light is made of die-cast brass material, bronze paint on the surface of the light fixture, which is higher quality and more beautiful. The brass material body structure for spotlight has better corrosion resistance and pressure resistance, and is more durable and lasts longer than aluminum and plastic lamps.45°narrow beam angle for for the exterior of the house, palm trees and tall oak trees. Classic minimalist design, easy to install and clean.

Included in the box

Main Fixture

Large Size PVC Stake

Wire Connectors

User Manual

COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!

01

HOW TO CHOOSE TRANSFORMER

To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.

TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1

Select a transformer that matches as close as possible to calculation shown above.

Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

02

HOW TO INSTALL

Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.

01

HOW TO CHOOSE TRANSFORMER

To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.

TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1

Select a transformer that matches as close as possible to calculation shown above.

Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)

NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.

02

HOW TO INSTALL

Step 1: Make sure that the power is turned OFF before installing or servicing this fixture.

Step 2: Remove the shroud of the fixture and insert MR16 lamp into the lamp socket.

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 85% percent of the power supply transformer.

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord.
