What Size Wire Do You Need for Low-Voltage Landscape Lighting?

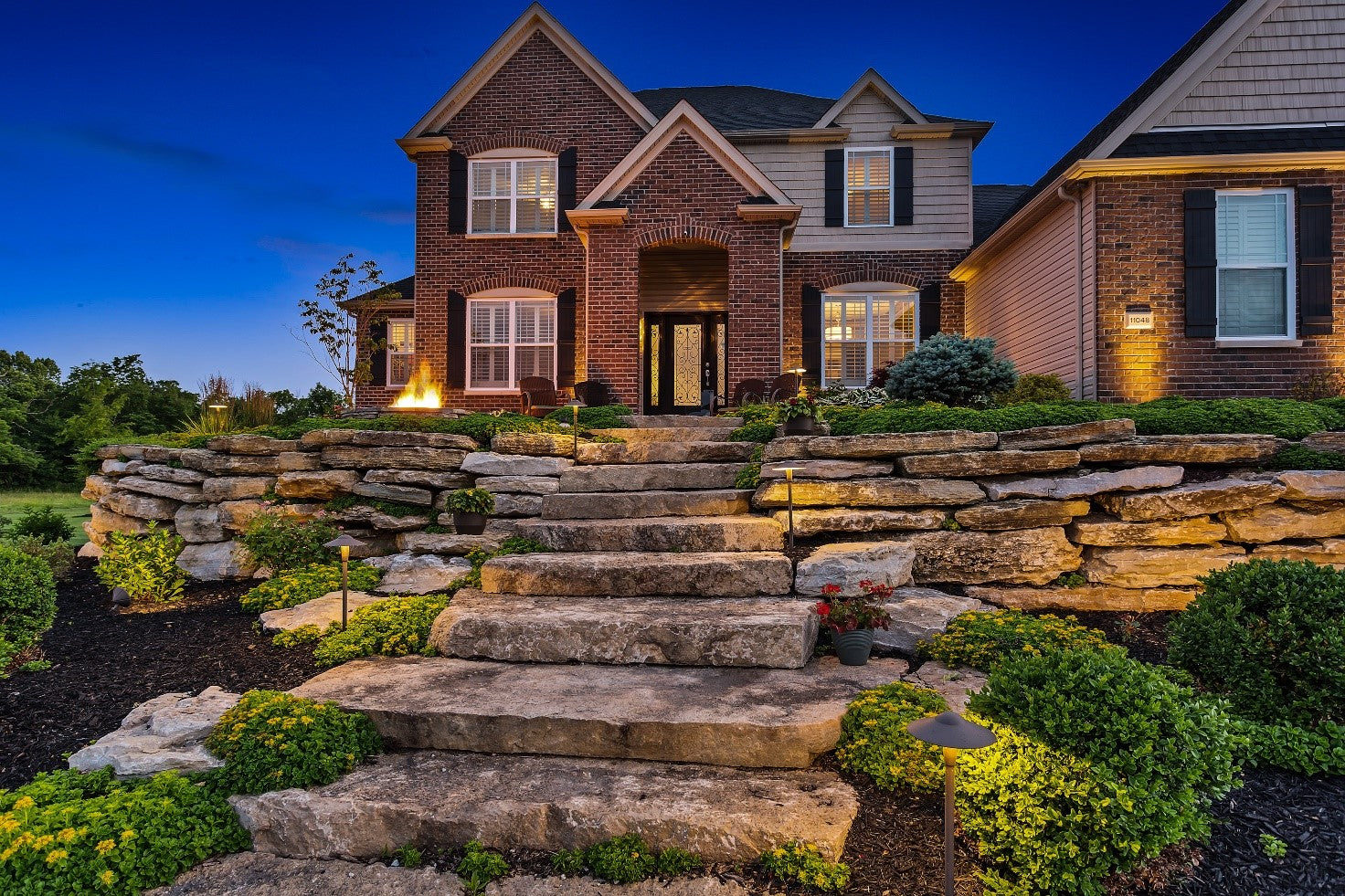

 caculate Low-Voltage Landscape Lighting wire usage
Outdoor lighting brings beauty, security, and functionality to landscapes. Low-voltage systems operating on 12 or 24 volts are a popular choice because they are energy efficient, safe, and easy to install. Proper wiring is essential to realizing the benefits of low-voltage lighting. The wire must be large enough to deliver adequate power across the full length of the run to illuminate each light brightly and consistently. At the same time, oversized wiring wastes money without providing any advantage. This article explains how to choose landscape lighting wire for optimal safety, performance, and efficiency.

Voltage and Its Impact on Wire Size

Low-voltage lighting wire is measured in gauge, which refers to the diameter of the inner conductor inside the insulating jacket. A higher gauge number indicates a thinner wire. Wire thickness (gauge) affects how much voltage is lost as power travels from the transformer to each light fixture. Thicker wires have less voltage drop because they provide less resistance to electrical flow.

Voltage drop causes lights farther from the transformer to be dimmer. The lighting effect becomes uneven. Excessive voltage drop can also overheat connections and shorten the system's lifespan. The goal is to select wiring where voltage losses are under 5%. Lower voltage systems have less room for drop before light quality suffers.

Calculate Voltage Drop

Voltage drop refers to the loss of voltage that occurs as electric current travels through a wire. Some voltage drops are inevitable, but excessive drops can cause lights to dim and affect the quality of your lighting installation.

Voltage drop is calculated using the formula:

Voltage Drop (in volts) = Current (in amps) x Resistance (in ohms) x Length of Run (in feet)

To make this calculation, you first need to know:

1.Current - The amount of electric current flowing in the circuit. For low voltage lighting, this is determined by calculating the total wattage of all fixtures and dividing by system voltage. For example, a 300 watt, 12V system would have a current of 300/12 = 25 amps.

2.Resistance - The amount of resistance to current flow within the wire, measured in ohms. Wire resistance varies significantly based on gauge (thickness) and material. Copper wire has lower resistance than aluminum. Standard resistance per foot values for different gauge copper wires are:

  • a.16 gauge - 6.4 ohms/1000ft
  • b.14 gauge - 4.1 ohms/1000ft
  • c.12 gauge - 2.6 ohms/1000ft

3.Length - The length of the wire run from the transformer to the farthest fixture, measured in feet.

With these variables inserted into the voltage drop formula, you can precisely calculate the drop for any proposed wiring setup. If the drop exceeds 5%, a thicker gauge wire is required.

Determine Current and Total Resistance

1.To calculate voltage drop, you first need to determine the current in amps. This is done by totaling the wattage of all fixtures and dividing by the system voltage.

For example:

  • 12V system
  • Six 20W spotlights (6 x 20 = 120 watts)
  • Four 35W path lights (4 x 35 = 140 watts)

Total wattage = 120 + 140 = 260 watts

Current = Total Watts / Voltage= 260 / 12= 21.7 amps

2.Next, determine the total resistance over the length of the run. Resistance is measured in ohms and depends on the wire gauge and material. Standard values per 1000ft are:

  • 16 gauge copper wire - 6.4 ohms
  • 14 gauge copper wire - 4.1 ohms
  • 12 gauge copper wire - 2.6 ohms

For a 100-foot run using 14 gauge copper wire, the total resistance would be:

100ft / 1000ft x 4.1 ohms = 0.41 ohms

3.With the current and total resistance figures, you can now calculate voltage drop using the formula:

Voltage Drop = Current x Resistance x Length

For this example:

Voltage Drop = 21.7A x 0.41 ohms x 100ft= 8.9 volts

Since this is below the 5% maximum of 0.6V (5% of 12V), a 14 gauge wire would be sufficient.

Low-voltage landscape lighting

Select the Right Wire Gauge

Wire Gauge

Max Wattage

Max Run Length

Typical Use

Voltage Drop

16 Gauge

Up to 300 W

Up to 80 feet

Walkway lighting, spotlights, accents

Under 3% at 100 feet

14 Gauge

300-600 W

Up to 120 feet

Driveways, patios, landscape beds

Less than 5% drop

12 Gauge

600-900 W

Up to 150 feet

Property perimeter, multiple structures

Minimal drop

10 Gauge

Over 900 W

Up to 200 feet

Large systems, long runs

Minimal drop

The necessary wire gauge depends primarily on three factors:

  • Total wattage (determines current)
  • Run length from transformer to farthest light
  • Allowable voltage drop

Larger wattage systems and longer runs require thicker wire to minimize voltage drop. For any lighting project, always start by calculating the total wattage. A general guide to selecting wire gauges based on common low-voltage wattages is:

  • Up to 300 watts - 16 gauge wire
  • 300 to 600 watts - 14 gauge wire
  • 600 to 900 watts - 12 gauge wire
  • Over 900 watts - 10 gauge wire

These recommendations are for runs up to 100 feet from the transformer to the farthest light. Longer runs may need to go one gauge thicker.

16 Gauge Wire

With a capacity of up to 300 watts, 16 gauge copper wire can be used for smaller systems or shorter runs up to 80 feet. It is common for walkway lighting, spotlights, and accent lights. Voltage drop is under 3% at 100 feet.

14 Gauge Wire

This versatile mid-range size handles 300-600 watts and runs up to 120 feet with less than a 5% drop. It works for small to medium-sized installations. 14 gauge wire is a common choice for driveways, patios and landscape beds.

12 Gauge Wire

With a capacity of 600-900 watts, 12 gauge wire is well-suited to larger installations with longer runs. It can deliver power up to 150 feet with minimal voltage drop. Ideal uses are property perimeter lighting, lighting multiple structures, and heavier loads.

10 Gauge Wire

The largest wire size commonly used in low-voltage landscape lighting, 10 gauge wire can handle over 900 watts and runs up to 200 feet. It is recommended for very large lighting systems, extremely long runs, or applications demanding minimal voltage drop. The thicker cable diameter may require larger junction boxes.

Use outdoor low-voltage landscape lights for lighting

How the Wire Material Affects Gauge Selection

The two most common materials used for low-voltage landscape lighting wire are copper and aluminum. Copper wire is generally preferred because it offers lower electrical resistance per foot compared to aluminum. This allows copper wire to carry electricity more efficiently over long distances with less voltage drop.

Some key differences between copper and aluminum wire:

  • Copper has about 60% less resistance per foot than the same gauge aluminum wire. For example, 12 gauge copper wire has a resistance of 2.6 ohms per 1000 feet. 12 gauge aluminum wire has a resistance of 4.1 ohms per 1000 feet. This means copper can handle more current and power with less voltage drop compared to aluminum.
  • Aluminum also has a higher coefficient of thermal expansion, meaning its resistance increases faster than copper as it heats up from electrical current. However, aluminum is less expensive than copper and is also lighter in weight. This makes it easier to work with and can reduce shipping costs.

When using aluminum wire for low-voltage lighting, it's generally recommended to go at least one gauge larger than you would with copper wire for an equivalent wiring run. For example, if your lighting load would require 14 gauge copper wire, you should use 12 gauge aluminum wire instead to compensate for the higher resistance. This helps ensure voltage drop is kept within acceptable limits across the full distance.

The Bottom Line

Choosing the proper wire gauge prevents unsafe voltage drop while avoiding oversizing. Consider the total wattage, run length, and acceptable voltage drop percentage based on lamp tolerance. Outline the lighting plan on paper with measurements so that the load and distances are accurate. Wire size calculators and voltage drop formulas ensure the best wire gauge is selected. For large or complex installations, consult a lighting professional. Proper wiring of low-voltage systems makes landscapes shine brightly and beautifully. If you encounter any issues with your low voltage lighting system, be sure to refer to this comprehensive guide on troubleshooting low voltage lighting systems to diagnose and resolve common problems effectively.
