Dimmable 120V LED Step Lights | 3000K/4000K/5000K 3 CCT Selectable 3.5W 30 Lm Stair Light for Outdoor and Indoor COS804A
.%20This%20step%20light%20project...
){kind=link}
Product Informations
About the COS804A Step Light
- High-salt, moisture, and UV resist, uniform, and long-lasting finish fixture,the fine workmanship makes it tougher, harder, and aesthetically pleasing.
- With 6-foot 18 AWG lead wire, suitable for a variety of installation requirements.
- 3.5W led lights for stairs emit 30lm 3000K/4000k/5000k warm white light and without light leak loss. This step light projects 45° down light and about 20-inch light range so that it can illuminate each tread without glare to improve personal safety at night.
- The brightness of the lamp can be changed by adjusting the input voltage, and the adjustable brightness range is 10% to 100%.
- The installation method fixed on the stainless steel mounting bracket with elastic buckles makes our step lights easier to use.
4.72"L x 2.88"W x 1.67"H
3 Pounds
Aluminum
3.5W / 3000K/4000K/5000K / 30LM
AC 120V
Oil-Rubbed Bronze
What included in the box
- Main Fixture
- Wire Connectors
- User Manual
How long can I receive it
- We have CA/FL two warehouses for service
- We will arrange delivery nearby
- You will receive the goods in 3-5 work days
- Remote areas may take a little longer
How long is the warranty
- Brass Fixture: Lifetime
- Aluminum Fixture: 5 Years
- LED Bulbs: 5 Years
- Transformers: Lifetime
Indoor & Outdoor
3000K/4000K/5000K 3CCT Selectable
This led stair lights work with AC 120V power, so you don't need a transformer. Compatible with 4.33inch (L) ×2.2inch(W)×2.8inch(H) j-box (not included), you can easily install or replace the old step lights. The stair lights include a rubber gasket to seal against moisture. All required screws, wiring caps and stainless steel mounting bracket in the package.
Uniform Finish

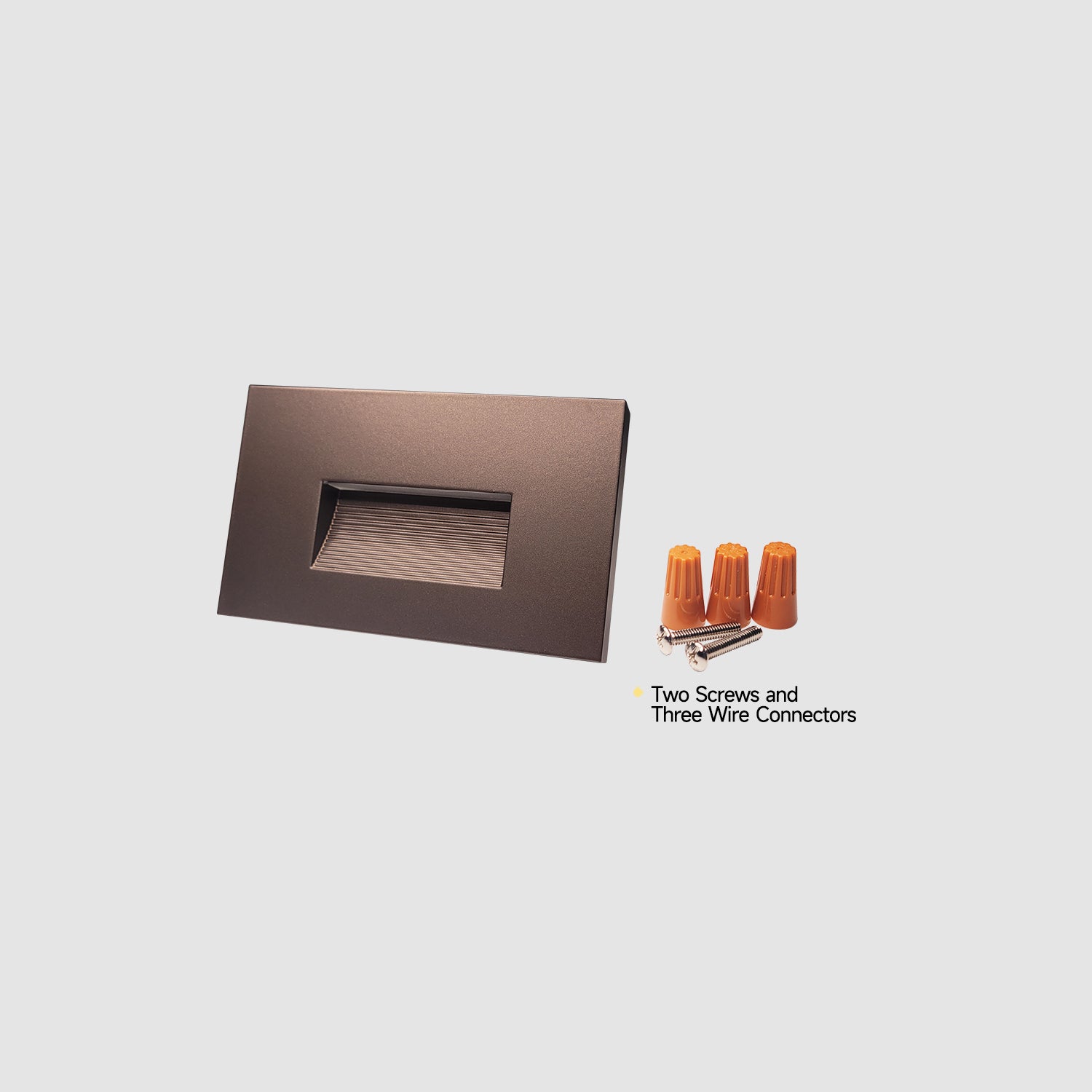

This LED lights for stairs has an oil rubbed bronze finish face plate, with two screws and three wire connectors so you can easy to install and connect to the lines already laid out.
Moderate In Size

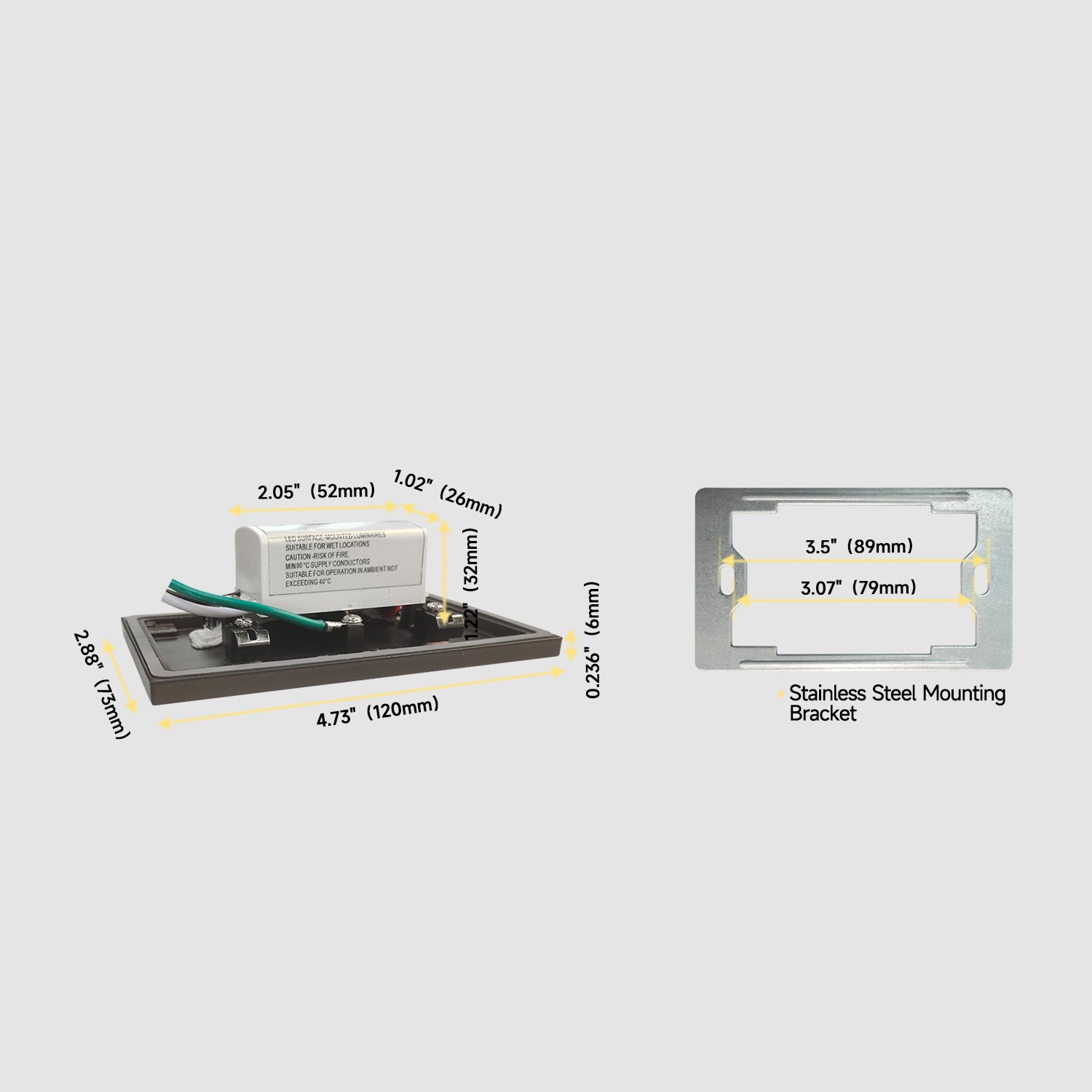

The size for this step light is Length: 4-3/4", Width: 2-7/8", Height: 1.674", Moderate in size, it will not affect the appearance whether installed outdoors or indoors.
With Elastic Buckles

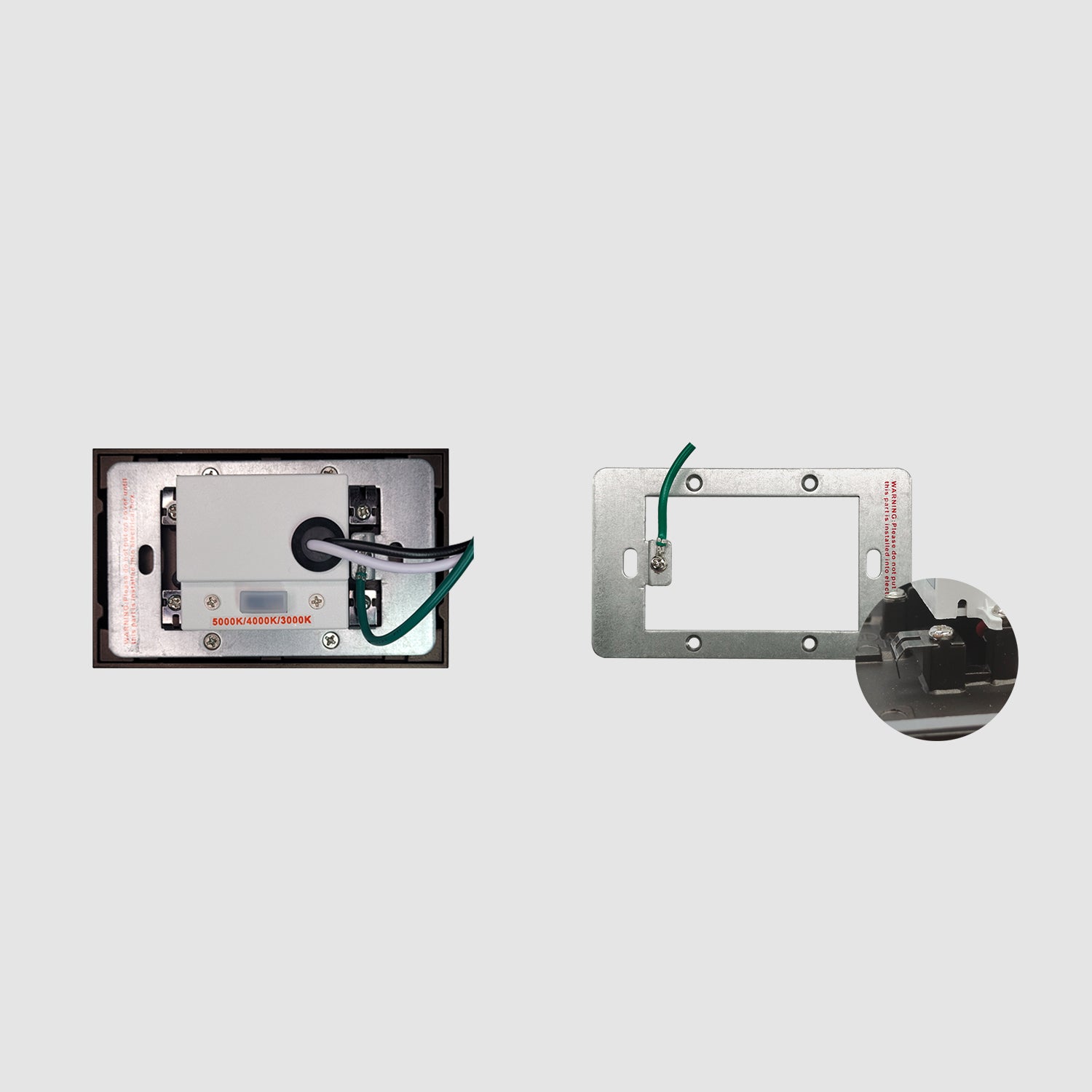

The installation method fixed on the stainless steel mounting bracket with elastic buckles makes our step lights easier to use. With a toggle switch to choose the color temperature from 3000K, 4000K and 5000K.
Compatible With Junction Box

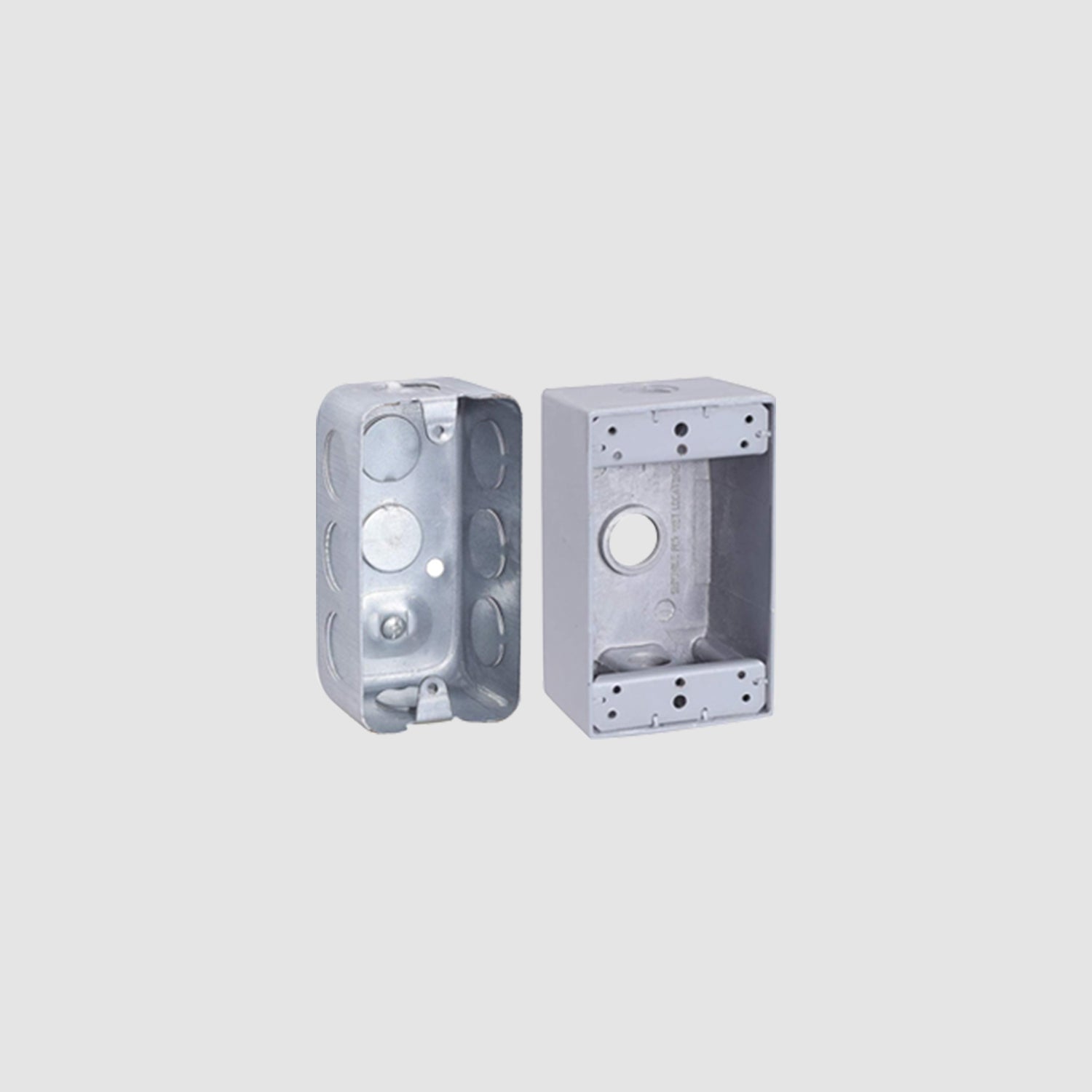

Compatible with both indoor and outdoor single gang electric outlet junction box,minimum depth 2 inch.(Note:Junction box not included in package.)
COLOER Dimmable 120V 3.5W LED Outdoor Step Lights Kit
COLOER step lights with heavy duty oil-rubbed bronze aluminum shell that is highly resistant to corrosion. This LED stair light can be used both indoors and outdoors, IP65 waterproof, suit for wet location.It ensures safety and visibility while creating a warm and inviting atmosphere.
COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination, to be a reliable partner in lighting your home life!
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install

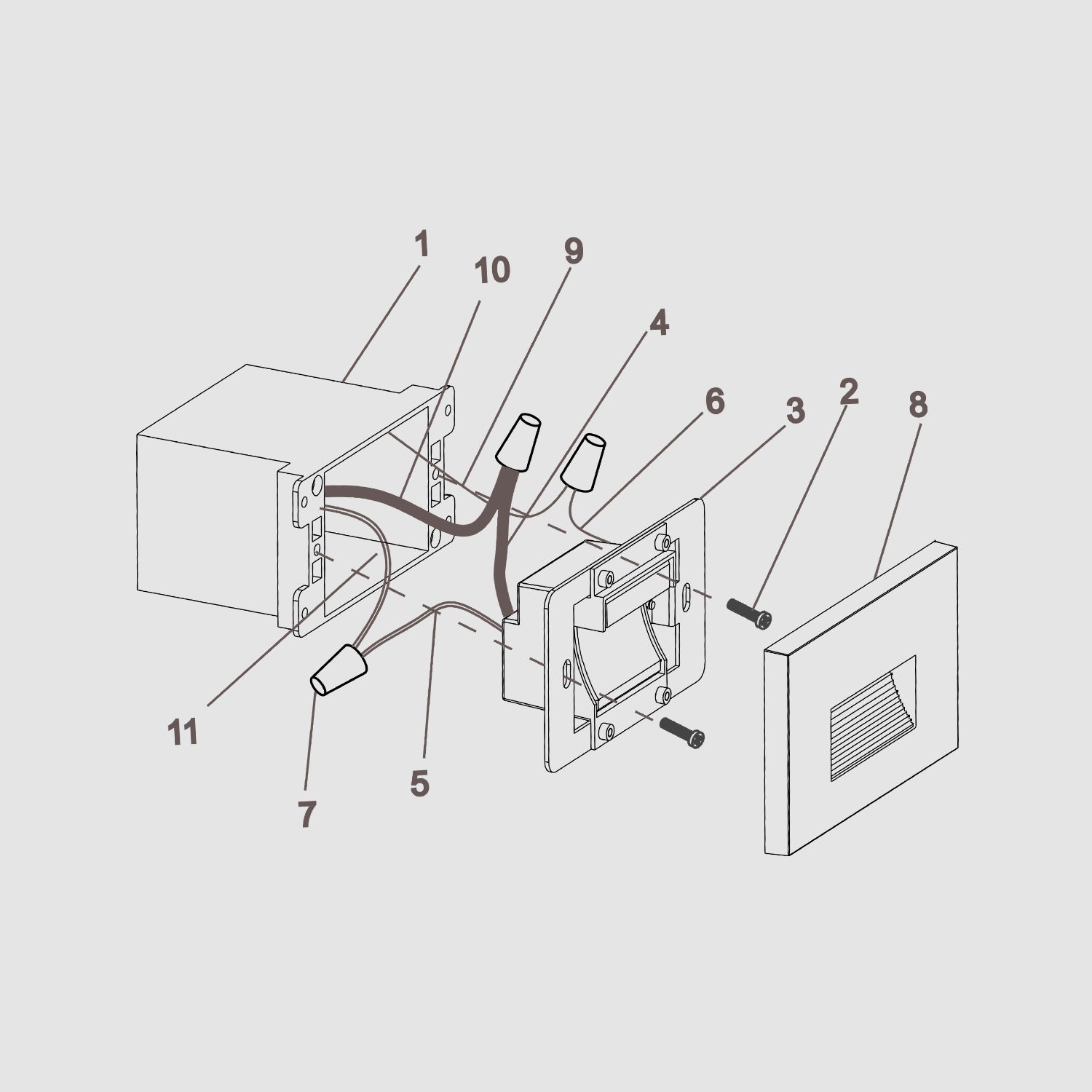

FIXTURE INSTALLATION
Step 1. Pull the power supply wires (7) out from the outlet box(1). Mount the mounting bracket (3)to the outlet box using the mounting screws (2).
Step 2. Use the wire nuts(4)to connect the fixture wires (6)to the power supply wires(7). (white-neutral, Black-live,Green-ground). Carefully tuck the wires inside the outletbox(1)
Step 3. Snap the face plate(5)onto the fixture
Step 4. Use sealant (not include), to fill the gap between the face plate (5)and the outlet box (1) to improve the water resistance.
How to Choose Transformer
To determine the size of transformer needed for a low voltage lighting system, add up the wattage of all fixtures in the system and add 10% for lowvoltage cable and fixtures connections.
If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.
Select a transformer with 20% higher capacity than total wattage of all fixtures in the system, that allow you to add more fixtures later.
TRANSFORMER SIZING
SIZE OF TRANSFORMER=TOTAL WATTAGES OF FIXTURES X 1.1
Select a transformer that matches as close as possible to calculation shown above.
Example:you have 12 fixtures, each 5 watt. You need a 75 watt transformer (12x5=60 plus 10%= 66)
NOTE: Low voltage lighting systems require the use of a transformer to reduce the standard 120 volt power from ordinary household electricity to 12, 13, 14, and 15volt needed to power low voltage fixtures.
The total wattage of all fixtures connected to one transformer must not exceed the wattage capacity of the transformer.
How to Install
FIXTURE INSTALLATION
Step 1. Pull the power supply wires (7) out from the outlet box(1). Mount the mounting bracket (3)to the outlet box using the mounting screws (2).
Step 2. Use the wire nuts(4)to connect the fixture wires (6)to the power supply wires(7). (white-neutral, Black-live,Green-ground). Carefully tuck the wires inside the outletbox(1)
Step 3. Snap the face plate(5)onto the fixture
Step 4. Use sealant (not include), to fill the gap between the face plate (5)and the outlet box (1) to improve the water resistance.
Email: customerservice@coloer.com / Tel: +1 626 699 4666
Have a question? We are here to help.
Check out the most common questions our customers asked. Still have questions? Contact our customer support
How do I replace the lights if anything goes wrong?
The light source of this step lights cann‘t be replaced. We provide a 5-year warranty. If there is any problem within the warranty period, we can replace it for you.
Any question?
You can contact us through our contact page! We will be happy to assist you.
